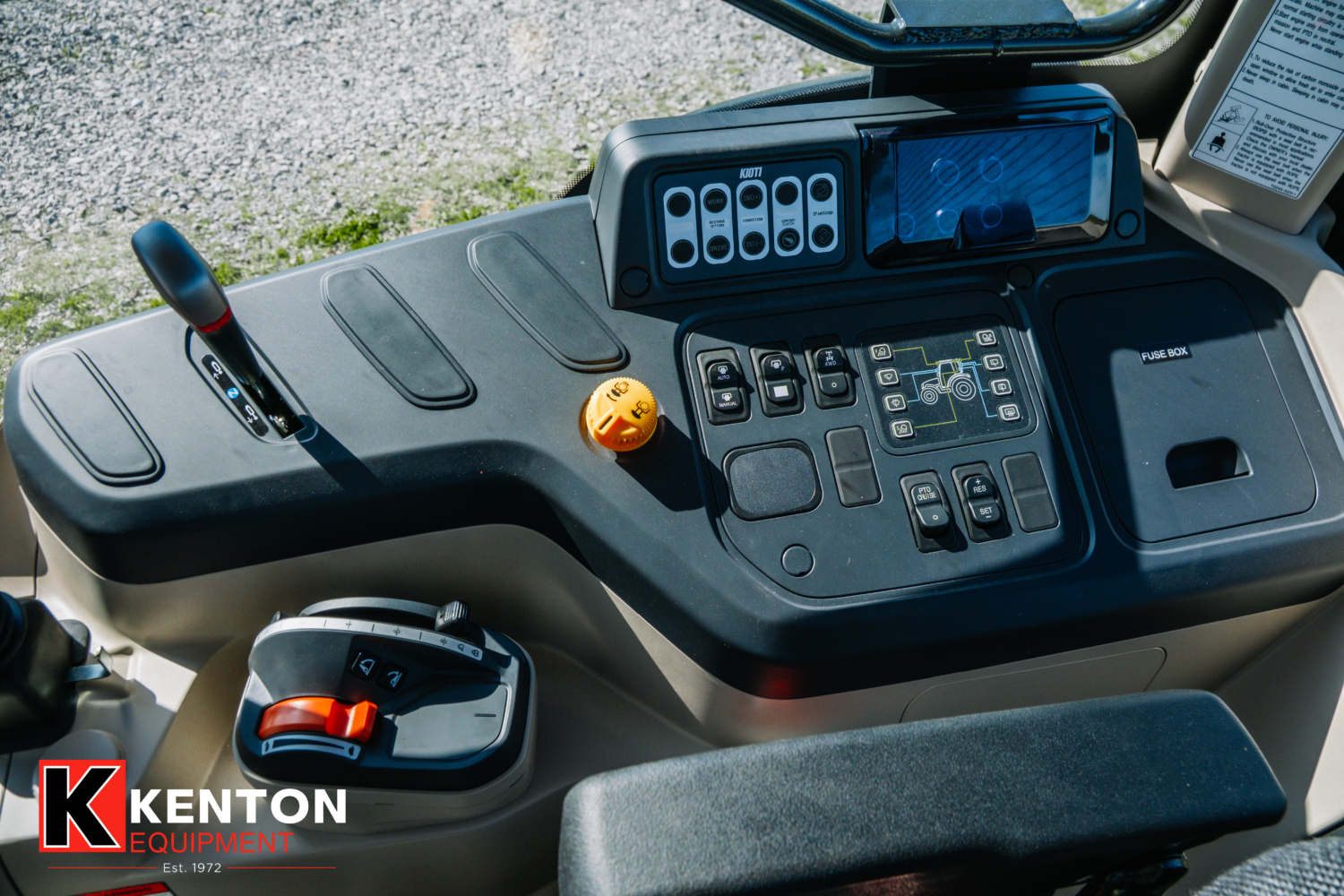

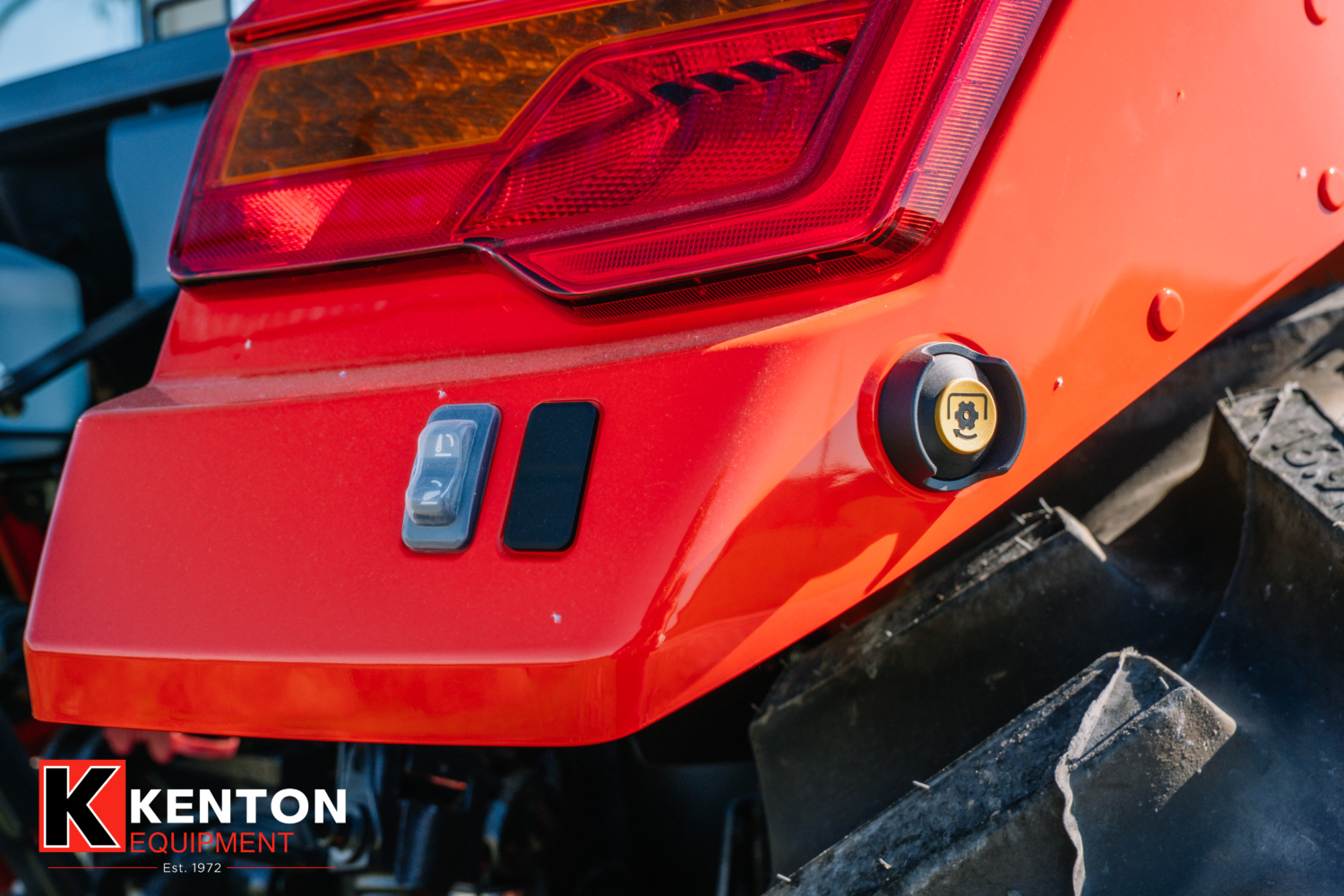

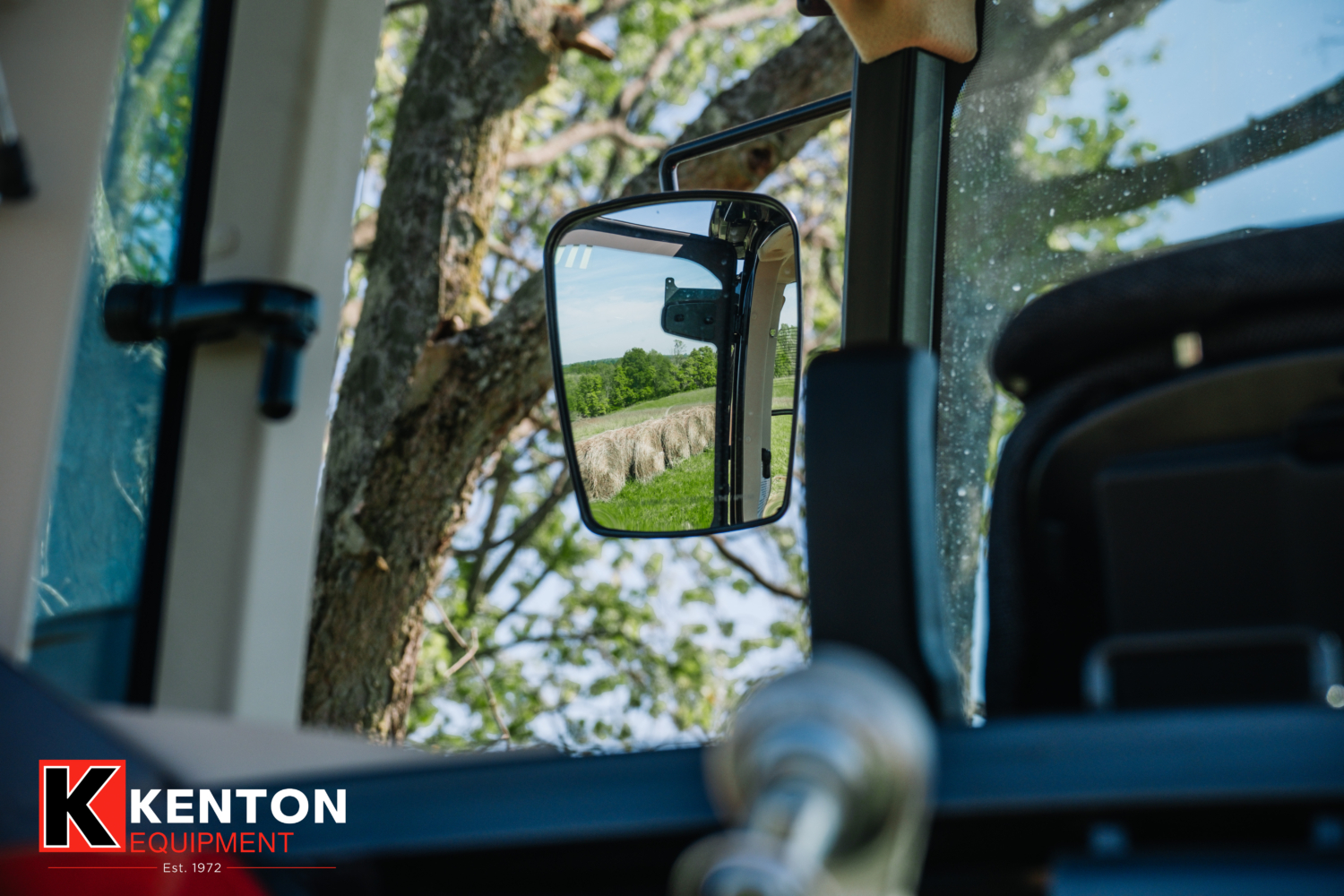

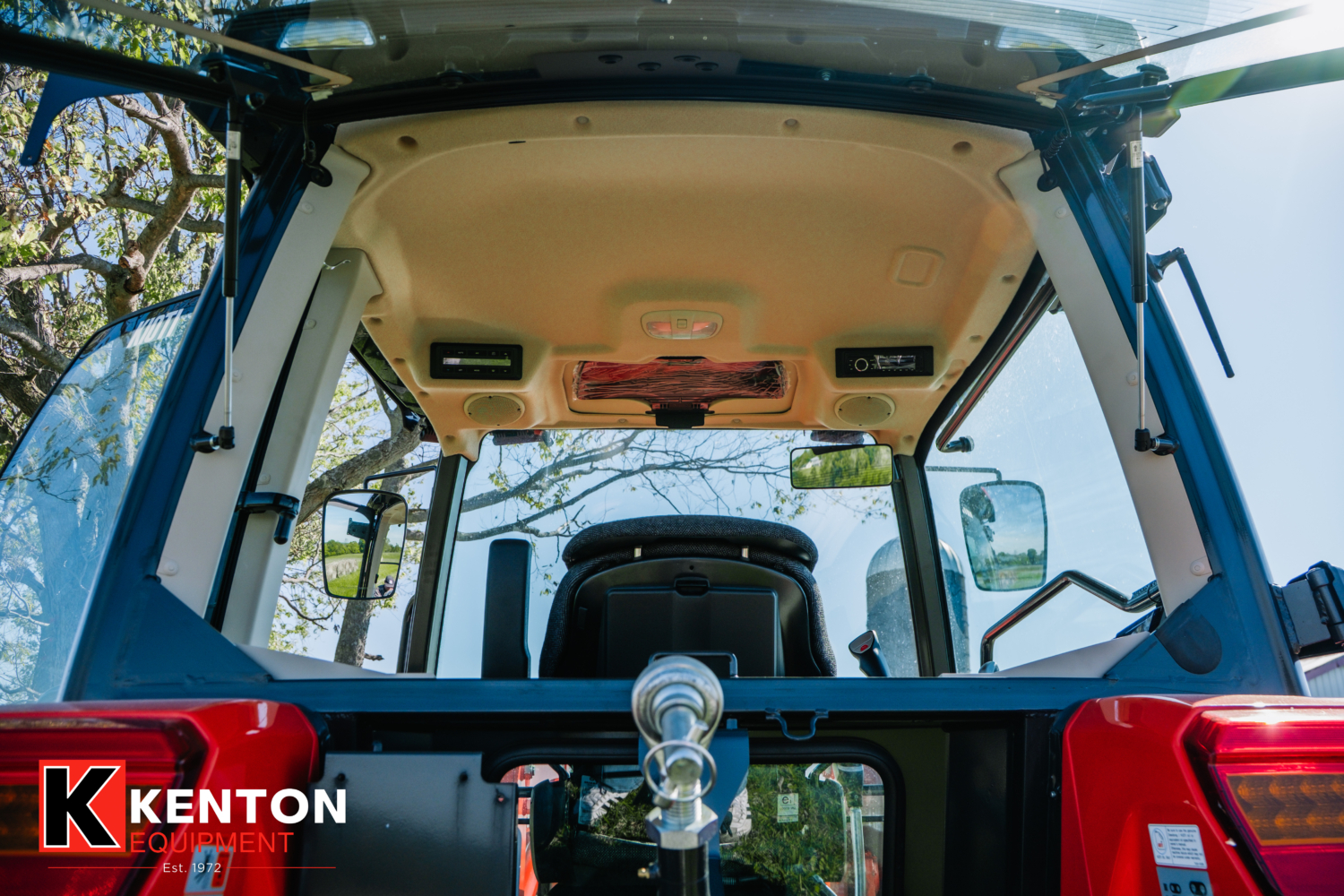

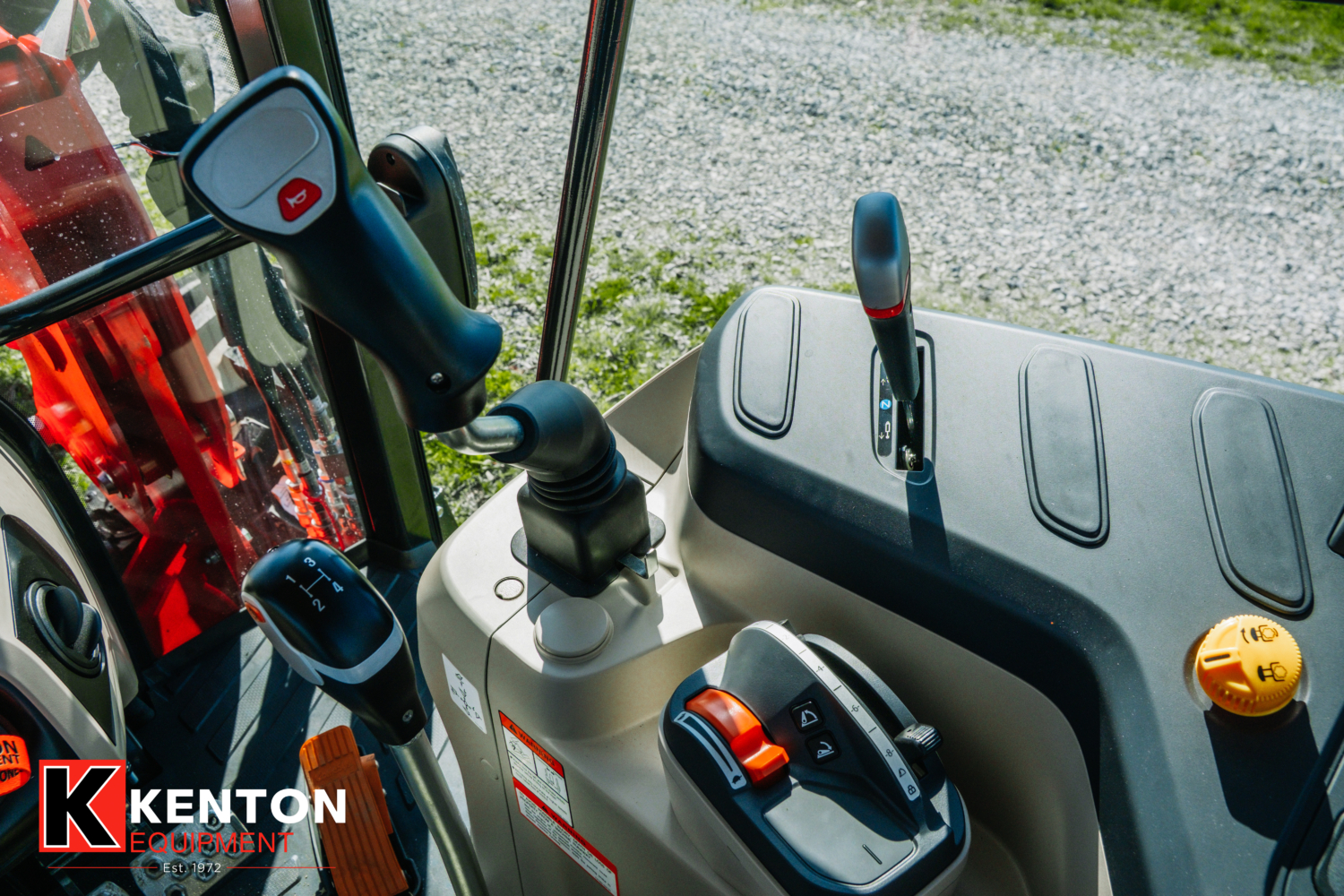

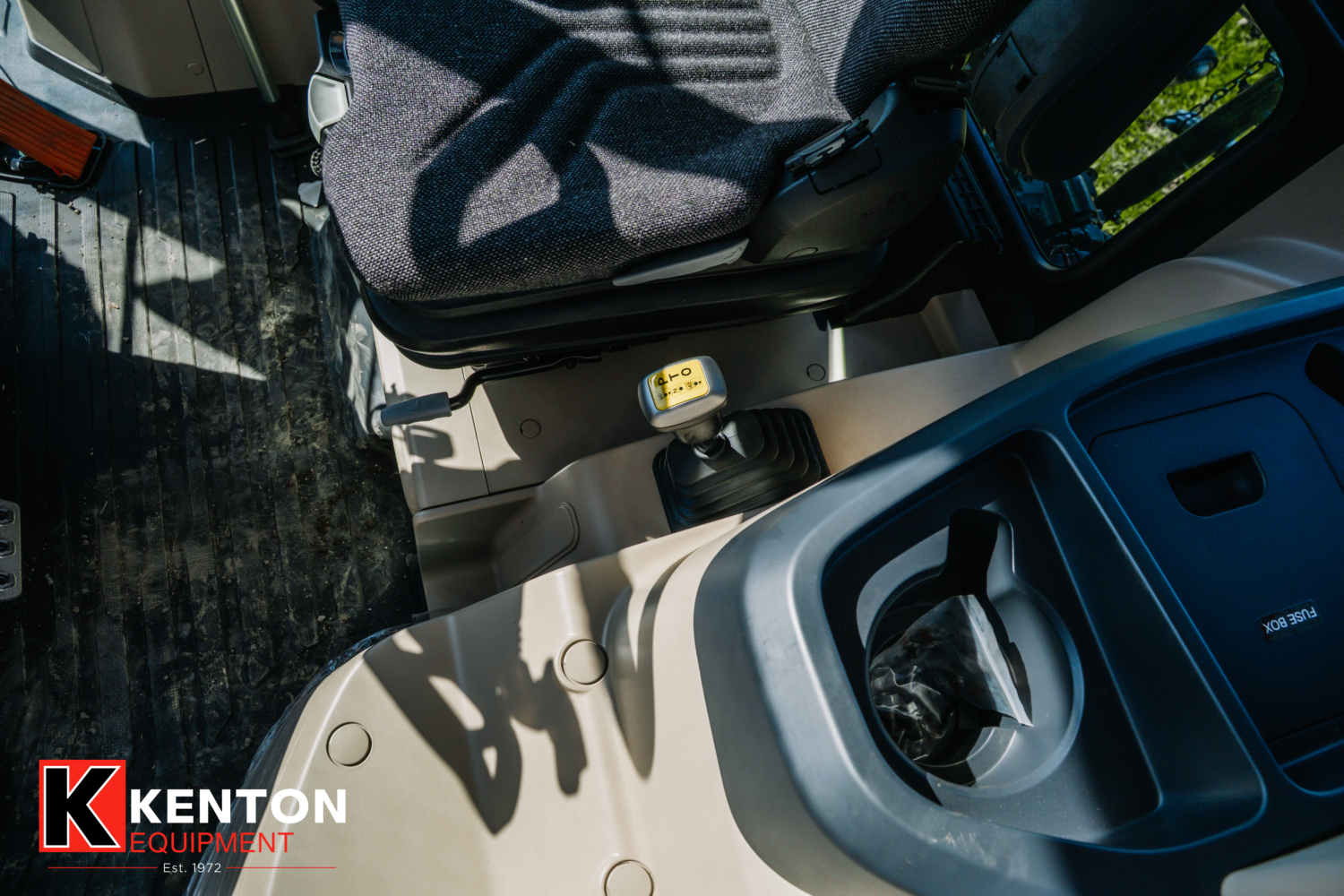

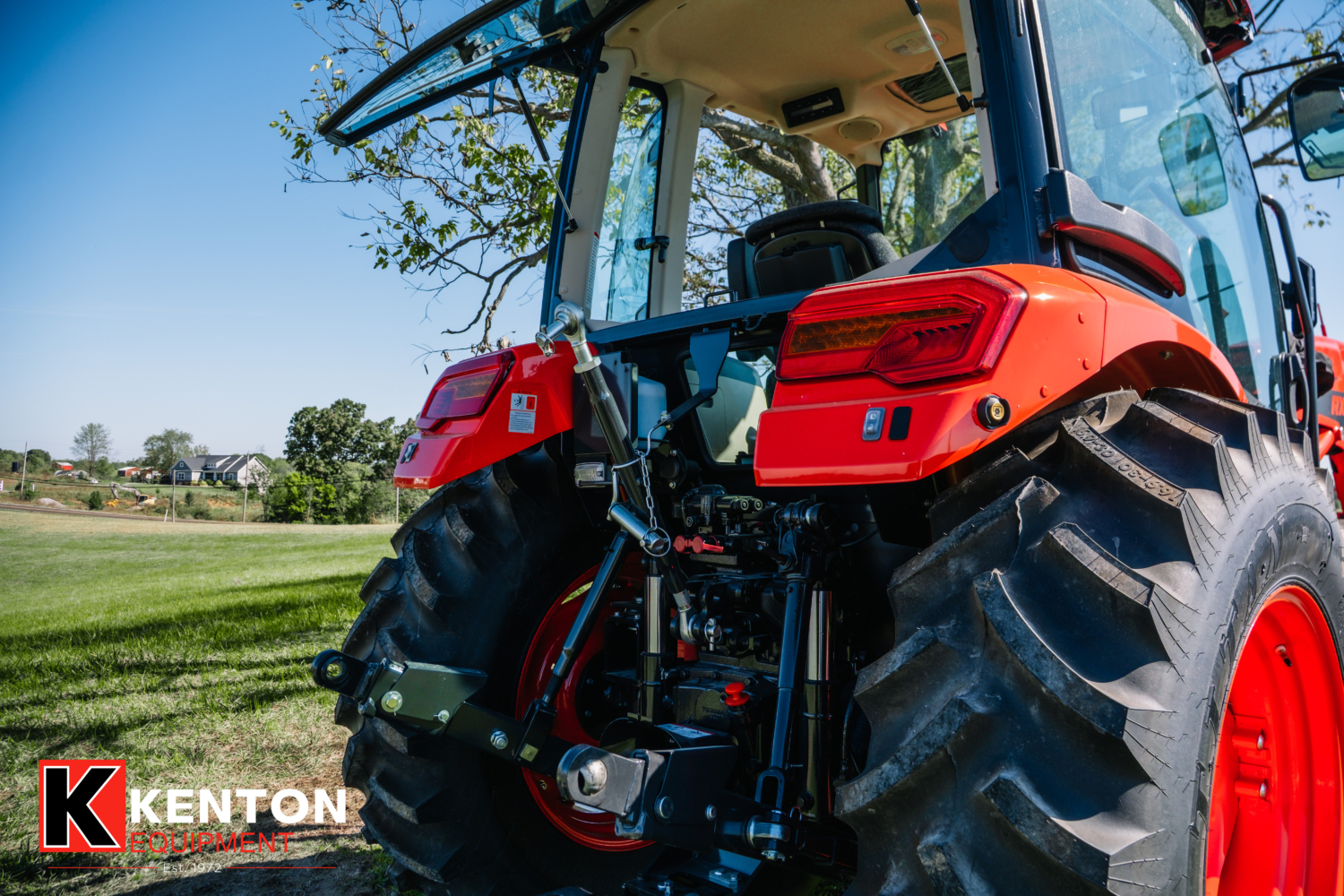

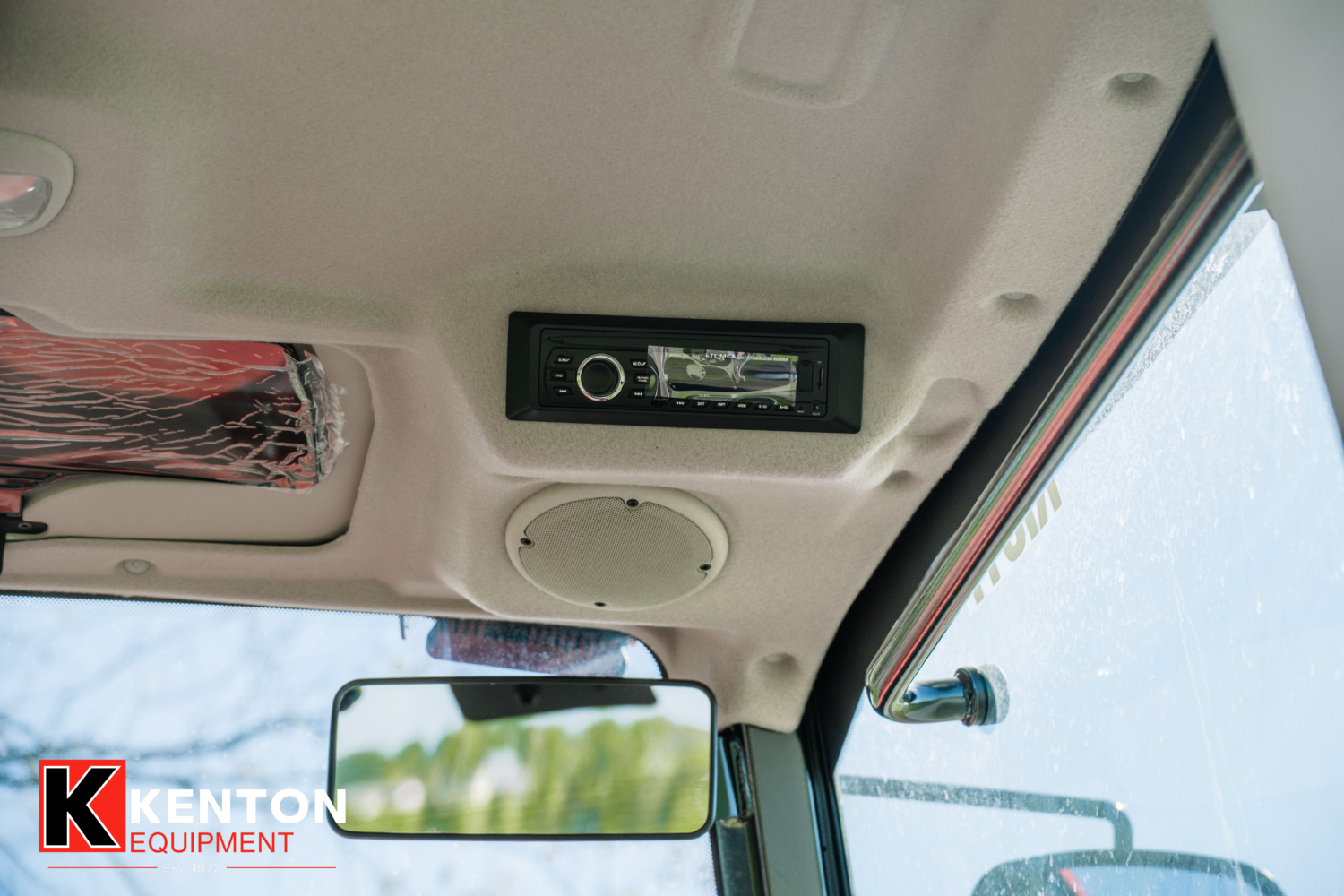

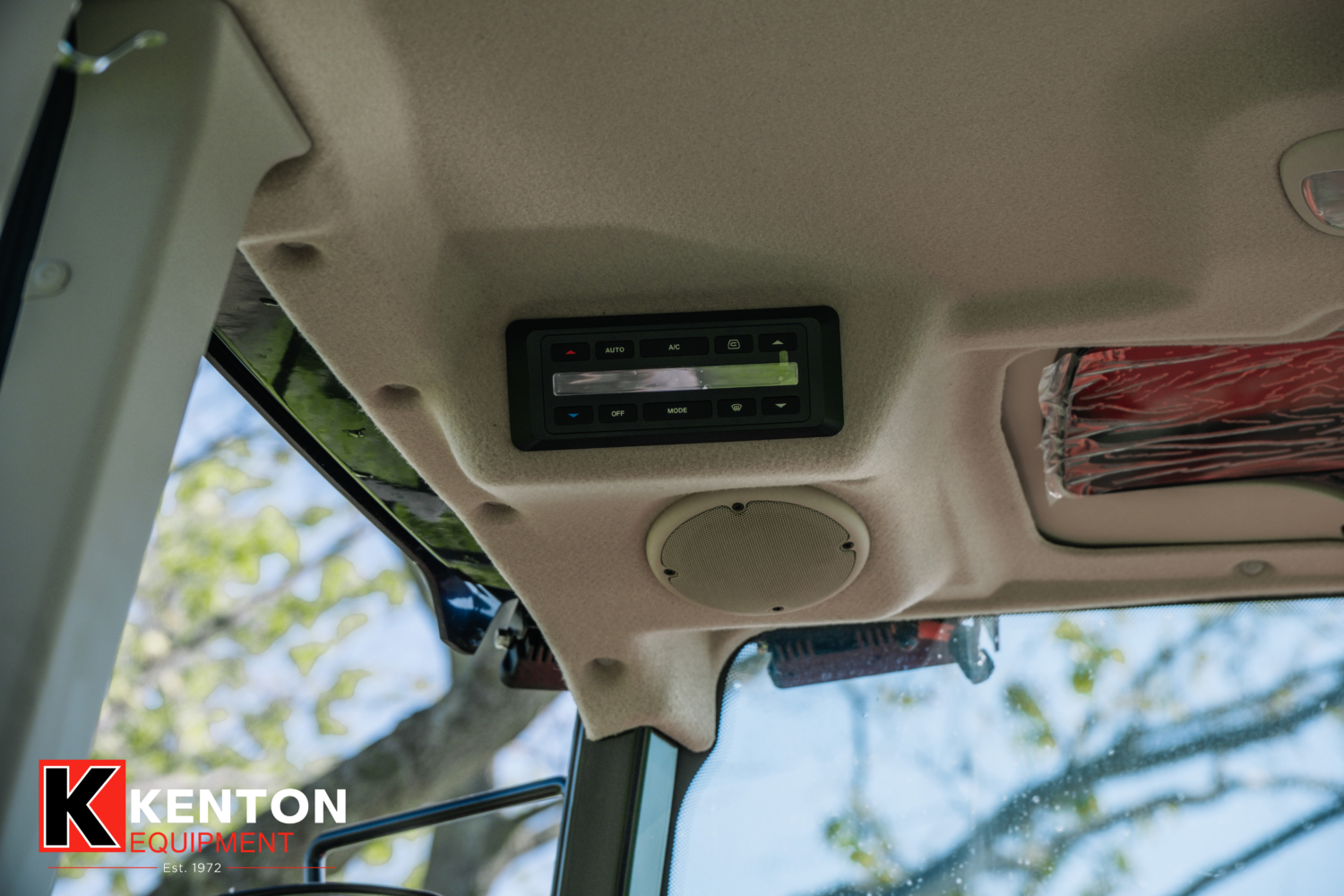

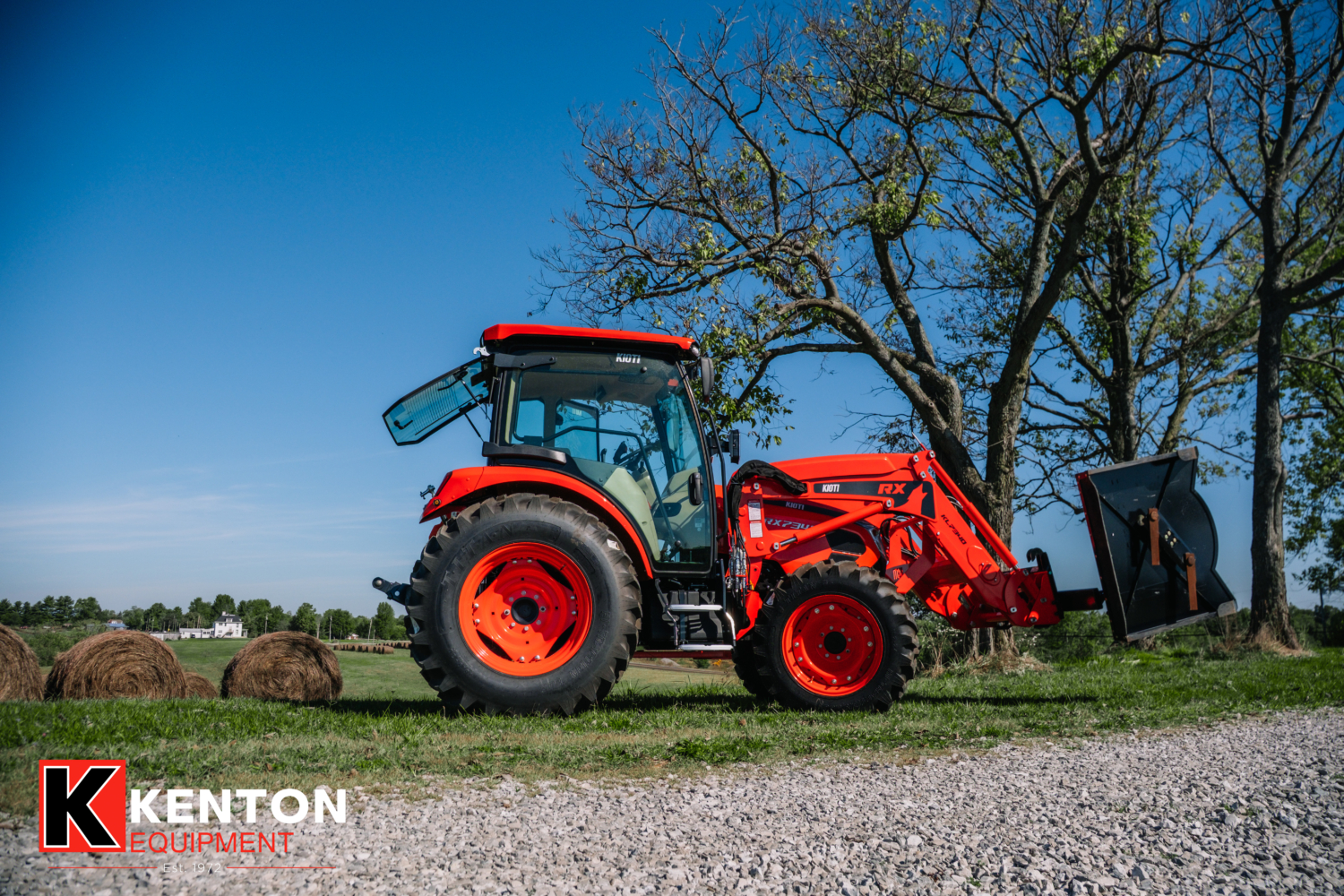

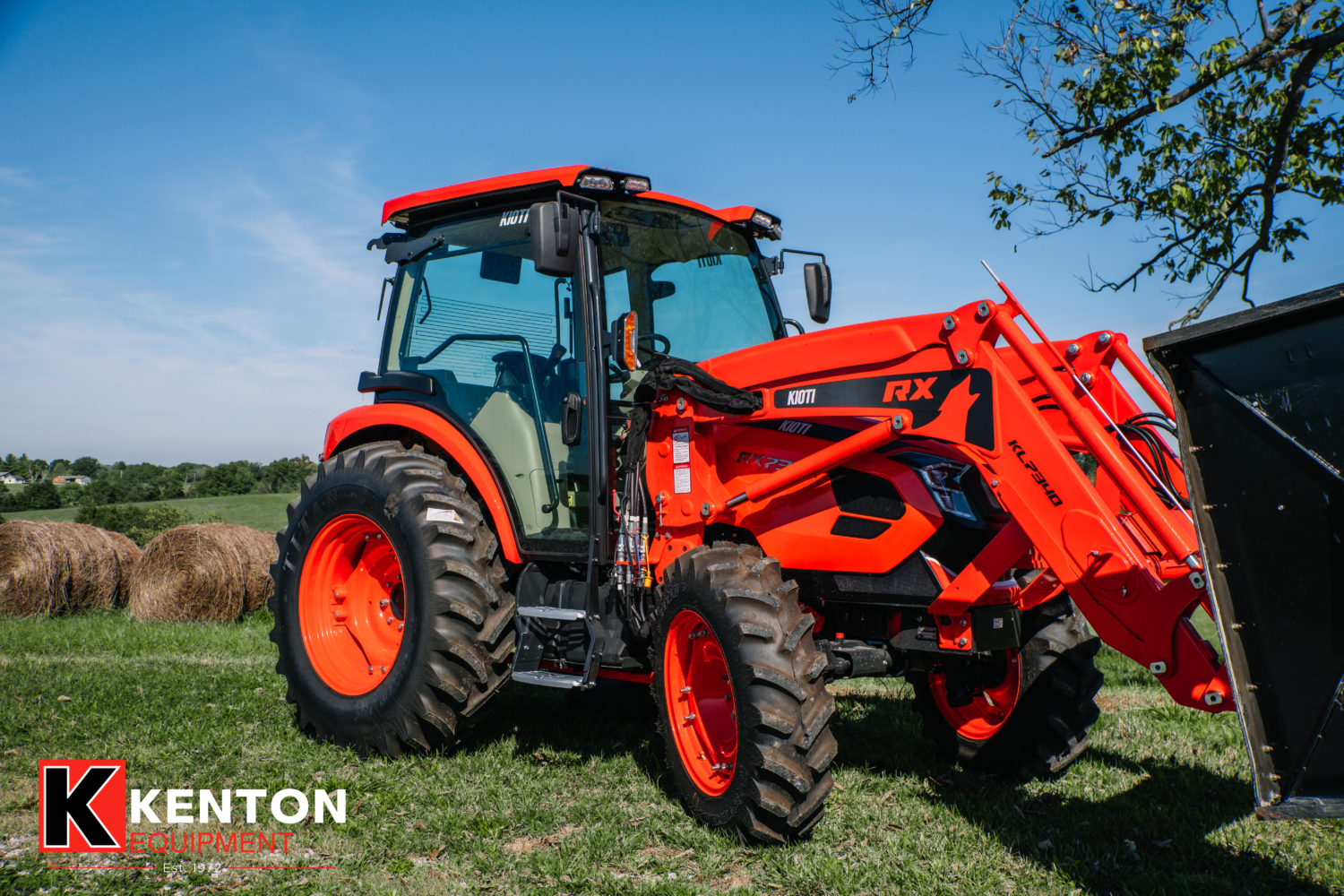

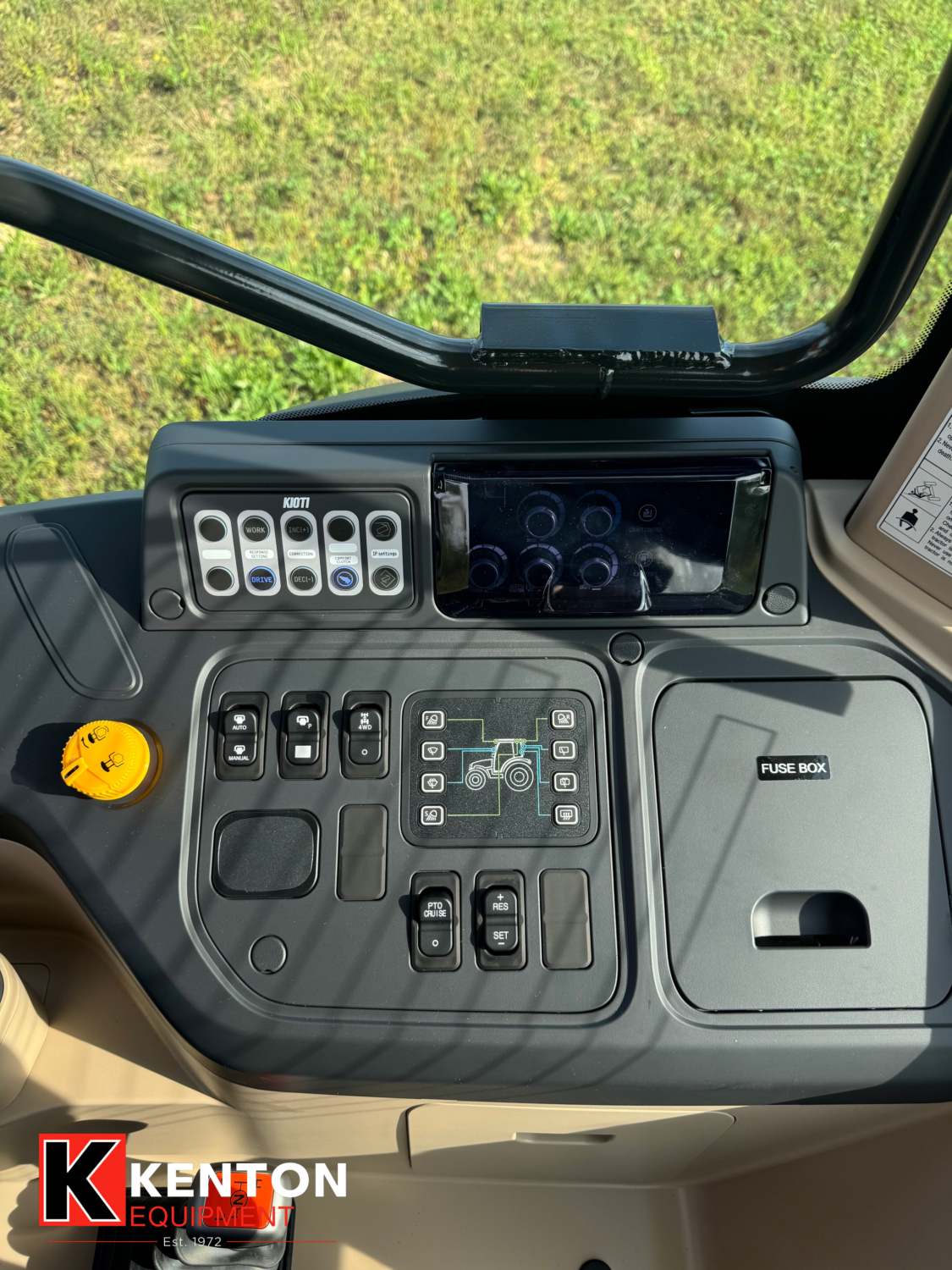

RX7340 Power Shuttle Cab

Performance Features

• 84" Cutting Width
• Quick-Hitch Ready
• 130 HP Gearbox Rating
• Taller Sidebands For Increased Cutting Efficiency
• Smooth-Top Deck for easy cleaning
• Custom Forged, Heat-Treated Blades

Construction Features

• Continuously Welded Deck
• Full-Length 10ga Strongbacks
• Reinforcing plates added to rear sidebands
• Double-Braced Lower Hitch Lugs
• Formed and Fully-Welded Tailwheel Mount
• Puncture-Proof Laminated Tailwheels

Safety Features

• PTO Shield
• Front Deflector
• Rear Metal Band
• Front Chains
• Rear Chains

Specifications

• Cutting Width: 84"
• Cutting Height: 2"-12"
• Cutting Capacity: 2"
• Hitch Type: Cat 1 or 2 Std & QH Ready
• Deck Thickness: 10 Ga
• Sideband Thickness: 10 Ga
• Sideband Height: 11 1/2"
• Driveline: CAT 4
• Driveline Protection: 2-Plate Slip-Clutch
• Gearbox: 130 HP
• Tractor PTO Speed: 540 rpm
• Minimum Tractor PTO HP: 50 HP
• Blade Holder: Oval
• Blades: 1/2" X 4" Uplift
• Blade Tip Speed: 14,963 fpm
• Tires: 15 1/2" Laminated
• Deflector Type: Rubber/Metal/Chains
• Approximate Weight: 1,075 lb.
• Gearbox Warranty: 10 years

Specifications

• PTO HP: 55 - 100 HP
• Width: 84"
• Weight: 1375 lbs
• Cutting Capacity: 3"
• Deck Thickness: 7 Gauge
• Side Bands: 8"
• PTO Drive Shaft: Series 5
• Stump Jumper: 5/8"
• Gear Box: 100 HP
• Wheel: Laminated
• Hub: Greaseable
• Hitch: Cat. I & II
• Quick Hitch Compatible: Yes, Cat. II
• Discharge Shields: Available

Key Features

• Heavy-Duty Frame and Gearbox Stand Construction
• Heavy Duty Pull-Type Axle with 21" Laminated Tires
• Self-Leveling Pull-Type with Reinforced Axles and Tongue
• Durable rubber discs protect Cross Shafts from harsh impacts and loads

Performance Features

• Reliable Bush Hog® Performance In An Economical Pasture Mower
• 8'3" Cutting Width
• Durable Rubber Discs in Cross Shafts from Transfer Box To Cutting Gearboxes
• Front Single or Double Row Chains
• Rear Metal Band, Single Row Chains, or Double Row Chains
• 7 Gauge Oval Blade Pans
• Shock Absorbing Axles
• EZ-Clean Sloped Deck that sheds water
• High Blade Tip Speeds

Specifications

• Cutting Width: 99"
• Cutting Height: 2" – 13"
• Cutting Capacity: 2"
• Hitch Type: CAT 1 & 2 Std & QH
• Deck Thickness: 10GA
• Sideband Thickness: 7GA
• Sideband Height: 11 3/4"
• Driveline Size: Cat 4
• Driveline Protection: 2-Plate Slip-Clutch
• Transfer Gearbox: 140 HP
• Cutting Gearbox: 65 HP
• Tractor PTO Speed: 540 RPM
• Minimum Tractor PTO HP: 45 HP
• Blade Holder: Oval Pan
• Blades: 1/2" X 4" Uplift
• Blade Tip Speed: 16,173 fpm
• Tires: 15 1/2" Laminated
• Deflector Type: Chain / Chain
• Approximate Weight: 1,650 lb.
• Gearbox Warranty: 10 Years

Construction Features

• 10 Year Gearbox Limited Warranty
• Smooth-Top Deck
• Quick-Detach Gearbox Shields
• 10 gauge Deck
• 7 Gauge Steel Sidebands
• Tough Slip-clutches Standard
• Round Blade Pans Standard

Safety Features

• Front Single or Double Row Chains
• Rear Band or Single or Double Row Chains
• Driveline Shields

Specifications

• PTO HP: 52 HP
• Cutting Width: 120"
• Transport Width: 122"
• Hitch: lift-type Cat I & II
• Quick Hitch Compatible: Yes, Cat II
• Cutting Height (min): 2" - 10"
• Max Cutting Capacity: 3"
• Deck Thickness: 7 Gauge
• Side Bands: 8"
• PTO Drive Shaft: Series 5 w/ Slip Clutch
• Center Drive Shaft: Shock Coupler Protected
• Stump Jumper: 1/2" Plate
• Center Gearbox: 125 HP
• Outboard Gearboxes: 100 HP
• Wheels: Laminated
• Hub: Bearing
• Weight: 1480 lb.
• Skid Shoes: Replaceable
• Gearbox Warranty: 5 Year Limited
• Chain Guards: Available

Specifications

• Horsepower: 30 - 70 HP
• Working Width: 96"
• Moldboard Height: 17"
• Overall Depth: 22"
• Weight: 640 lbs
• Number of Shanks: 6
• A-Frame Material: 1/2"
• Cutting Edges: 6"
• Quick Hitch Compatible: Yes
• Hitch: Cat I & II

Specifications

• Horsepower: 55 - 75 HP
• Working Width: 96"
• Moldboard Height: 17"
• Weight: 503 lbs
• Angle Adjustment: Five positions; Forward and reverse
• Tilt Adjustment: Three Positions
• Offset adjustment: Ratchet Jack
• A-Frame Material: 3/8"
• Cutting Edges: 6"
• Quick Hitch Compatible: Yes
• Hitch: Cat. I & II

Specifications

• Features: Heat treated forks; Euro style and John Deere mounts are available; Steps on both sides of frame
• Forks Length: 48"
• Lift Capacity: 4,000 lbs

Specifications

• Features: Euro Style and John Deere mounts are available
• Lift Capacity: 3,500 lbs
• Number of Spears: 1

Specifications

• Description: Standard duty utility sized auger.
• Tractor Category: Cat 1 & 2
• Gearbox: 3:1 Ratio, 2" Output shaft
• Driveline: Yoke TS 6-Spline PTO
• Auger Diameter: 9"
• Boom: 2 7/8 O.D. Tubing
• A-Frame: 2 7/8 O.D. Tubing
• Shipping weight: 265 lbs
• Warranty: 2 Year Limmited
• Safety Shields: On driveline, Gearbox "U" joint, and Gearbox output shaft
• Available Colors: Red

Key Features

• Full Length Sideband Skids.
• Each axle arm on the center section has a rubber cushion to absorb the shock loads near the wheels. Shown with optional dual tires on the center.
• Patented oil sight gauge in all three cutting gearboxes for quick and easy monitoring of oil levels.

Performance Features

• E-Z clean smooth decks are on the center and wings.
• Wing "free float" without movement of wing hydraulic cylinder rod extends cylinder life.
• Gearbox oil sight gauge allows the checking of the oil level in a few seconds.
• PTO driveline holder is standard.
• Wheel spindles are in halves for economy and ease of maintenance.
• A single hydraulic hose is standard for lifting. Two hoses are optional for lifting wings independently of center section.

Construction Features

• Center section cushions are at each axle arm to absorb shocks near the wheels.
• Replaceable full length sideband skids give maximum protection and strength to the sideband.
• Wheel hub cap retainers are standard to prevent loss of cap and hub grease.

Safety Features

• Safety lights for highway travel are standard.

Performance Features

• Wing skids are 3/8 inch thick for extended wear and outside edges are turned up at 45 degrees to stop heavy ground contact that might damage the sidebands.
• Center section blades properly align with center wheels to closely cut out the bottom of ditches.
• Grease fittings and spring steel bushings at axle pivot points for longer life.
• Free wing float without movement of the hydraulic cylinder rod is 22 degrees down and 45 degrees up.
• Optional grass/row crop baffles for improved distribution in grass and corn stalk shredding.

Construction Features

• Center section axle spindles are centered on the axle arm for equalized loading of vertical forces.
• Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked.
• All grease fittings on the PTO CV driveline and wing drivelines align for quick location of grease points, reducing service times.
• Greaseable Axle Pivot Points with spring steel bushings.
• Turnbuckle alignment with wing hinge pin ensures long life of turnbuckle and less hinge wear.
• Powder Coat Paint.

Safety Features

• Improved design of wing sidebands means less damage caused by sideband-to-ground contact.

Specifications

• Overall Width: 90"
• Tilling Width: 85"
• Tractor HP Range: 50 - 65 HP
• 3-Point hitch Type: Cat. II
• Number of Flanges on Rotor: 9
• Number of Tines per Flange: 6
• Number of Tines: 54
• Weight (w/o PTO): 993 lbs
• PTO Input speed: 540 RPM
• Max Working Depth: 8"
• Rotor Tube Diameter: 4"
• Rotor Swing Diameter: 19"

Specifications

• Overall Width: 75.5"
• Mowing Width: 69"
• Tractor HP Range: 40 - 70 HP
• 3-Point Hitch Type: Cat. I
• Hydraulic Offset: 12"
• Number of Hammers: 22
• Weight (w/o PTO): 957 lbs
• Belts: 4

Specifications

• Features: Hydraulic lines routed inside the tubing to prevent tears; Optional spacer tines
• Size: 72"
• HP Required: 45 HP to 65 HP
• Cylinders: Dual 2" x 10"

Features and Benefits

• Five wheels per wing: Rake up to 22 ft (6.9 m) in each pass with five wheels on each wing.
• Adjustable rake without tools: No tool adjustment because raking width and angle can be changed easily without tools to increase or decrease windrow size.
• Greaseable tapered roller bearings: Keep your Vermeer hay rake running smooth with greaseable tapered roller bearings on the rake wheels and transport wheels.
• High-clearance frame: High-clearance frame allows for heavy hay crops to pass through easily for windrow formation.

Dimensions and Weights

• Raking width minimum: 19 ft (5.8 m)
• Raking width maximum: 22.6 ft (6.9 m)
• Windrow width minimum: 19 in (48.3 cm)
• Windrow width maximum: 82 in (208.3 cm)
• Transport Width: 10 ft (3 m)
• Transport Length: 20.2 ft (6.2 m)
• Transport Height: 9.4 ft (2.9 m)
• Total Weight: 1520 lbs (689.5 kg)
• Tongue Weight: 300 lbs (136.1 kg)
• Transport tire size: ST205/75D15
• Flotation: Rubber torsion on toolbar

Raking Components

• Number of Rake Wheels: 10
• Rake wheel diameter: 55 in (139.7 cm)
• Teeth per wheel: 40
• Tooth diameter: .3 in (.8 cm)
• Rake wheel wind discs: Optional
• Single-side raking: Standard left- or right-side capable

Tractor Requirements

• PTO horsepower minimum: 30 hp (22.4 kw)
• Hydraulic Type: 1 double-acting
• Hydraulic Pressure: 1500 psi (103.4 bar)
• Hydraulic flow rate: 5 gpm (18.9 L/min)

Features

• Safety Chain: Optional
• Center splitter: Optional

• Camless pickup: The Vermeer camless pickup comes standard on the 504R Classic baler. Built with fewer moving parts, this camless pickup allows you to get the job done when you have time to put up hay and minimize parts cost when it is time for routine maintenance.
• Atlas control system: The Atlas™ control system delivers robust performance in a simple and intuitive package. A 4.3-in (10.9-cm) color touchscreen displays everything you need to bale and allows operators to enter field statistics to track bales per hour and average bale size. Optional features include ability to see bale shape on the display as well as real-time moisture readings.
• Low recommended PTO horsepower: Tractors just don't run balers. That is why we designed a baler to fit your tractor. With a low recommended PTO horsepower of 50 hp (37.3 kW), the 504R Classic will run with most part-time operators' tractors.
• 3-year pickup warranty: Operators can rest assured with a 3-year pickup warranty covering internal components and parts and labor on the 504R Classic baler. Does not include teeth or hardware for teeth.
• Optional netwrap system: Using netwrap helps to reduce hay loss compared to twine and keep the shape and structure of your bales during storage.

Bale Size

• Bale Diameter: 36 in - 60 in (91.4 cm - 152.4 cm)
• Bale Width: 47 in (119.4 cm)
• Maximum bale weight: 1000 lbs (453.6 kg)

Dimensions and Weights

• Length standard: 156 in (396.2 cm)
• Length with net: 173 in (439.4 cm)
• Length with ramp: 169 in (429.3 cm)
• Height: 107 in (271.8 cm)
• Width with standard tires: 100 in (254 cm)
• Tires: Standard - 11L-15; Optional - 31 x 13.5-5
• Weight fully optioned: 5260 lbs (2385.9 kg)

Bale Forming Chamber

• Drive Roller Size: 4.78 in (12.1 cm)
• Idler roller size: 3.5 in (8.9 cm)
• Start Roller Size: 4.5 in (11.4 cm)
• Belt Type: Standard mini rough top
• Number of Belts: 5
• Width of Belt: 6.8 in (17.3 cm)
• Length of belt (long): 465.5 in (1182.4 cm)
• Length of belt (short): 455.5 in (1157 cm)
• Type of Lace: Alligator rivet

Drive System

• Driveline: 540 rpm, standard lube, radial pin clutch
• Torque protection pickup: Radial pin clutch
• Roller chains: Single 60
• Bearing and Sprocket Configuration: Round drive shafts and bearings

Tractor Requirements

• PTO horsepower minimum: 40 hp (29.8 kw)
• PTO horsepower recommended: 50 hp (37.3 kw)

Pickup

• Pickup type: Camless wide
• Width tooth to tooth: 60 in (152.4 cm)
• Tooth Bars: 4
• Number of Teeth: (48) double steel coil
• Teeth spacing: 2.83 in (7.2 cm)
• Stripper bands: Steel
• Flotation: Optional gauge wheels 4.8-16 HD semi-pneumatic with spring assist
• Pickup Lift: Manual standard, hydraulic optional
• 3-year pickup warranty: Standard

Control System

• Control system type: Atlas™ control system
• Display: 4.3 in (10.9 cm) color touch screen
• Field Statistics: 10 fields
• Bale shape indicators: Optional
• Moisture: Optional - up to 27%
• Bales per hour: Standard

Density

• Bale density adjustments: Standard manual through hydraulic relief valve
• Density readings: Optional physical gauge

Bale Tie System

• Twine system: Optional
• Netwrap system: Optional
• Net tension control: via mechanical adjustment
• Extra roll storage: Standard

Features

• Bale ramp: Optional spring-loaded
• Fire extinguisher, safety chain: Optional

Features and Benefits

• Camless wide pickup: A camless wide pickup with no cam tracks or follower bearings allows for a smooth, quieter operation compared to previous models. This durable, 5-bar pickup is equipped with steel teeth for baling tough or heavy crops and features fewer moving parts to help reduce maintenance and prolong the life of the machine.
• 3-year pickup warranty: The Vermeer 3-year pickup warranty covers the internal components and includes parts* and labor on the 504R Signature baler. Operators can rest assured the pickup is backed by Vermeer parts and service. *Does not include teeth or hardware for teeth.
• More total tines: A 5-bar, camless wide pickup features more total tines to gather the crop for big feeding capacity. This helps minimize the wear on each individual tine and more importantly provides a more efficient, positive start of the crop into the bale chamber. More tines can also equal more crop picked up in the field.
• Rotor: An aggressive rotor creates positive bale starts while the auger and feeding system forces crop onto rotating belts and then into the chamber for bale formation. Together, along with the camless wide pickup, this forms square-shouldered, dense bales.
• Real-time moisture sensors: Real-time moisture sensors come standard on the 504R Signature baler and provide moisture readings via the Atlas™ control system, giving operators access to real-time moisture information in the tractor cab.
• Optional hydraulic pickup lift: An optional hydraulic pickup lift provides convenience for operators switching between multiple fields in a day, eliminating the extra trips in and out of the tractor. Available hydraulic controls allow the operator to easily lift and lower the pickup without getting out of the cab to make sure pickup teeth aren't scraping the ground.
• Durable drivetrain: The durable drivetrain handles starting and stopping during operation. The three main drive chains are made with 80 diamond chain to minimize chain maintenance. The upper and lower drive bearings have a 33 percent higher load rating while the clutch's maximum torque rating is 32 percent higher than on previous models. Durable parts allow operators to efficiently bale dry or wet hay.

Bale Size

• Bale Diameter: 36 in - 60 in (91.4 cm - 152.4 cm)
• Bale Width: 47 in (119.4 cm)
• Maximum bale weight: 2000 lbs (907.2 kg)

Dimensions and Weights

• Length standard: 156 in (396.2 cm)
• Length with net: 173 in (439.4 cm)
• Length with ramp: 169 in (429.3 cm)
• Height: 107 in (271.8 cm)
• Width with standard tires: 100 in (254 cm)
• Tires: Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire
• Weight fully optioned: 5400 lbs (2449.4 kg)

Bale Forming Chamber

• Drive Roller Size: 4.78 in (12.1 cm)
• Idler roller size: 3.5 in (8.9 cm)
• Start Roller Size: 4.5 in (11.4 cm)
• Belt Type: Standard mini rough top
• Number of Belts: 6
• Width of Belt: 6.8 in (17.3 cm)
• Length of belt (long): 465.5 in (1182.4 cm)
• Length of belt (short): 455.5 in (1157 cm)
• Type of Lace: Alligator rivet
• Silage kit: Optional

Drive System

• Driveline: 540 rpm, standard lube, friction clutch
• Torque protection pickup: Radial pin clutch
• Roller chains: Single 60 and 80
• Bearing and Sprocket Configuration: Round drive shafts and bearings

Tractor Requirements

• PTO horsepower minimum: 45 hp (33.6 kw)
• PTO horsepower recommended: 55 hp (41 kw)

Pickup

• Pickup type: Camless wide
• Width tooth to tooth: 60 in (152.4 cm)
• Tooth Bars: 5
• Number of Teeth: (60) double steel coil
• Teeth spacing: 2.83 in (7.2 cm)
• Stripper bands: Steel
• Flotation: Gauge wheels 4.8-16 HD semi-pneumatic with spring assist
• Pickup Lift: Manual standard, hydraulic optional
• 3-year pickup warranty: Standard

Control System

• Control system type: Atlas™ control system
• Display: 4.3 in (10.9 cm) color touch screen
• Field Statistics: 10 fields
• Bale shape indicators: Standard
• Moisture: Standard - up to 27%
• Bales per hour: Standard

Density

• Bale density adjustments: Standard manual through hydraulic relief valve
• Density readings: Physical gauge

Bale Tie System

• Twine system: Optional
• Netwrap system: Optional
• Net tension control: via mechanical adjustment
• Extra roll storage: Standard

Features

• Bale ramp: Optional spring-loaded
• Right-hand door: Standard
• Fire extinguisher, safety chain: Optional

• Standard silage kit: As baleage gains popularity across North America, operators demand a baler that is specially designed and built to handle it. The 504R Premium comes with a standard silage kit, ready for your high-moisture hay needs.
• Heavy-duty components: With heavy-duty components, like “rock" belts, optional endless belts and optional float tires, this baler is designed for maximum productivity and output.
• Atlas control system: The Atlas™ control system delivers robust performance in a simple and intuitive package. A 4.3-in (10.9-cm) color touchscreen displays everything you need to bale and allows operators to enter field statistics to track bales per hour and average bale size. Optional features include ability to see bale shape on the display as well as real-time moisture readings.
• Camless wide pickup: The 504R Premium comes equipped with a 60-in (152.4-cm) camless wide pickup. This pickup has minimal moving parts to help minimize maintenance and parts costs.
• 3-year pickup warranty: A 3-year pickup warranty covering internal components and parts and labor assures operators their baler is built to last. *Does not include teeth or hardware for teeth.

Bale Size

• Bale Diameter: 36 in - 60 in (91.4 cm - 152.4 cm)
• Bale Width: 47 in (119.4 cm)
• Maximum bale weight: 2000 lbs (907.2 kg)

Dimensions and Weights

• Length standard: 156 in (396.2 cm)
• Length with net: 173 in (439.4 cm)
• Length with ramp: 169 in (429.3 cm)
• Height: 111 in (281.9 cm)
• Width with standard tires: 100 in (254 cm)
• Tires: Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire
• Weight fully optioned: 5460 lbs (2476.6 kg)

Bale Forming Chamber

• Drive Roller Size: 4.78 in (12.1 cm)
• Idler roller size: 3.5 in (8.9 cm)
• Start Roller Size: 4.5 in (11.4 cm)
• Belt Type: Premium mini rough top or endless
• Number of Belts: 6
• Width of Belt: 6.8 in (17.3 cm)
• Length of belt (long): 465.5 in (1182.4 cm)
• Length of belt (short): 455.5 in (1157 cm)
• Type of Lace: Alligator rivet or no laces (endless belts)
• Silage kit: Standard

Drive System

• Driveline: 540 rpm, extended lube, friction clutch
• Torque protection pickup: Radial pin clutch
• Roller chains: Single 60 and 80
• Bearing and Sprocket Configuration: Round drive shafts and bearings

Tractor Requirements

• PTO horsepower minimum: 55 hp (41 kw)
• PTO horsepower recommended: 65 hp (48.5 kw)

Pickup

• Pickup type: Camless wide
• Width tooth to tooth: 60 in (152.4 cm)
• Tooth Bars: 5
• Number of Teeth: (60) double steel coil
• Teeth spacing: 2.83 in (7.2 cm)
• Stripper bands: Steel
• Flotation: Gauge wheels 4.8-16 HD semi-pneumatic with spring assist
• Pickup Lift: Hydraulic
• 3-year pickup warranty: Standard

Control System

• Control system type: Atlas™ control system
• Display: 4.3 in (10.9 cm) color touch screen
• Field Statistics: 10 fields
• Bale shape indicators: Standard
• Moisture: Standard - up to 27%
• Bales per hour: Standard

Density

• Bale density adjustments: Standard manual through hydraulic relief valve
• Density readings: Physical gauge

Bale Tie System

• Twine system: Optional
• Netwrap system: Standard
• Net tension control: via mechanical adjustment
• Extra roll storage: Standard

Features

• Bale ramp: Spring-loaded
• Auto Lube greasing system: Optional
• Grease bank: Standard
• Right-hand door: Standard
• LED maintenance lights: Optional
• Fire extinguisher, safety chain: Optional
