FEATURES
- Premium Diesel Engine: A 21 hp (15.6 kW) optimized combustion diesel engine has large power output, yet low fuel consumption. Fluid service and inspection locations are easily accessible to the operator.
- Headlights: 55W lamps are the brightest in this tractor’s class.
- Foldable ROPS: The standard fold-down roll bar allows you to move into low clearance areas quickly and easily.

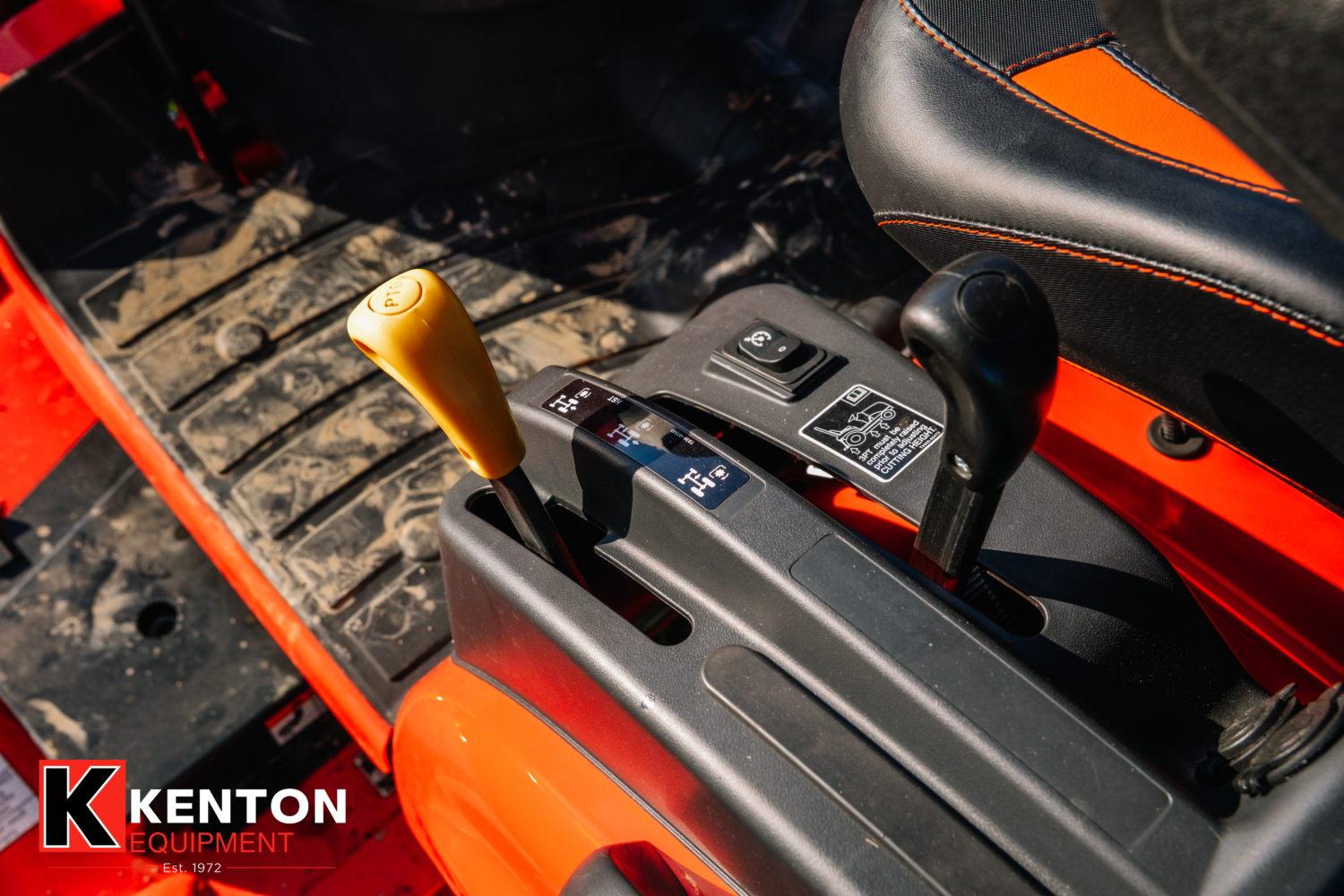

- Control Levers: The HST with HI-LO range lever allows the tractor to overcome a wide range of load tasks. The rear PTO and mid PTO can be controlled separately or together with a simple in-line shifting lever. The height adjustment lever allows the operator to easily control the mid-mount mower grass cutting height.

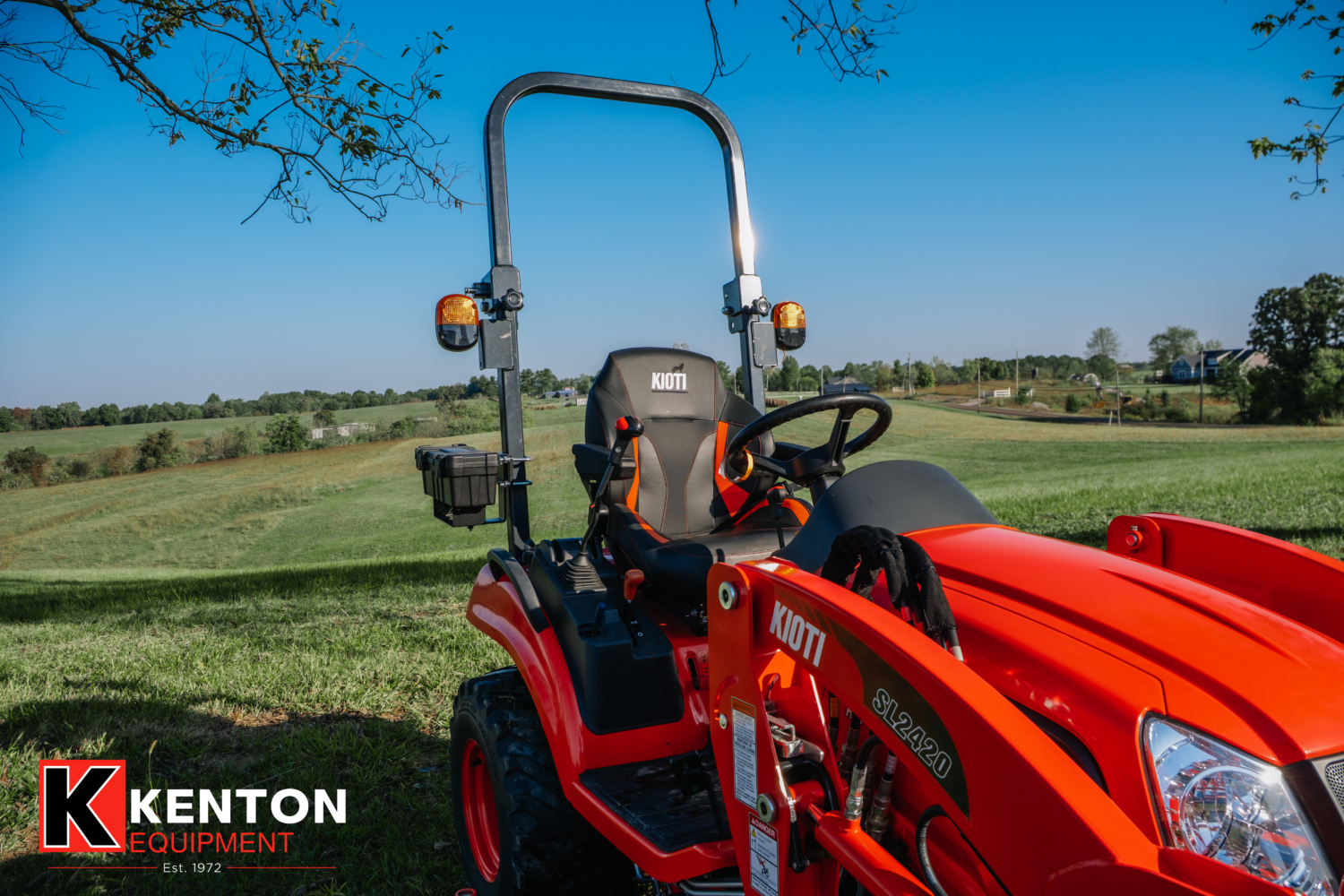

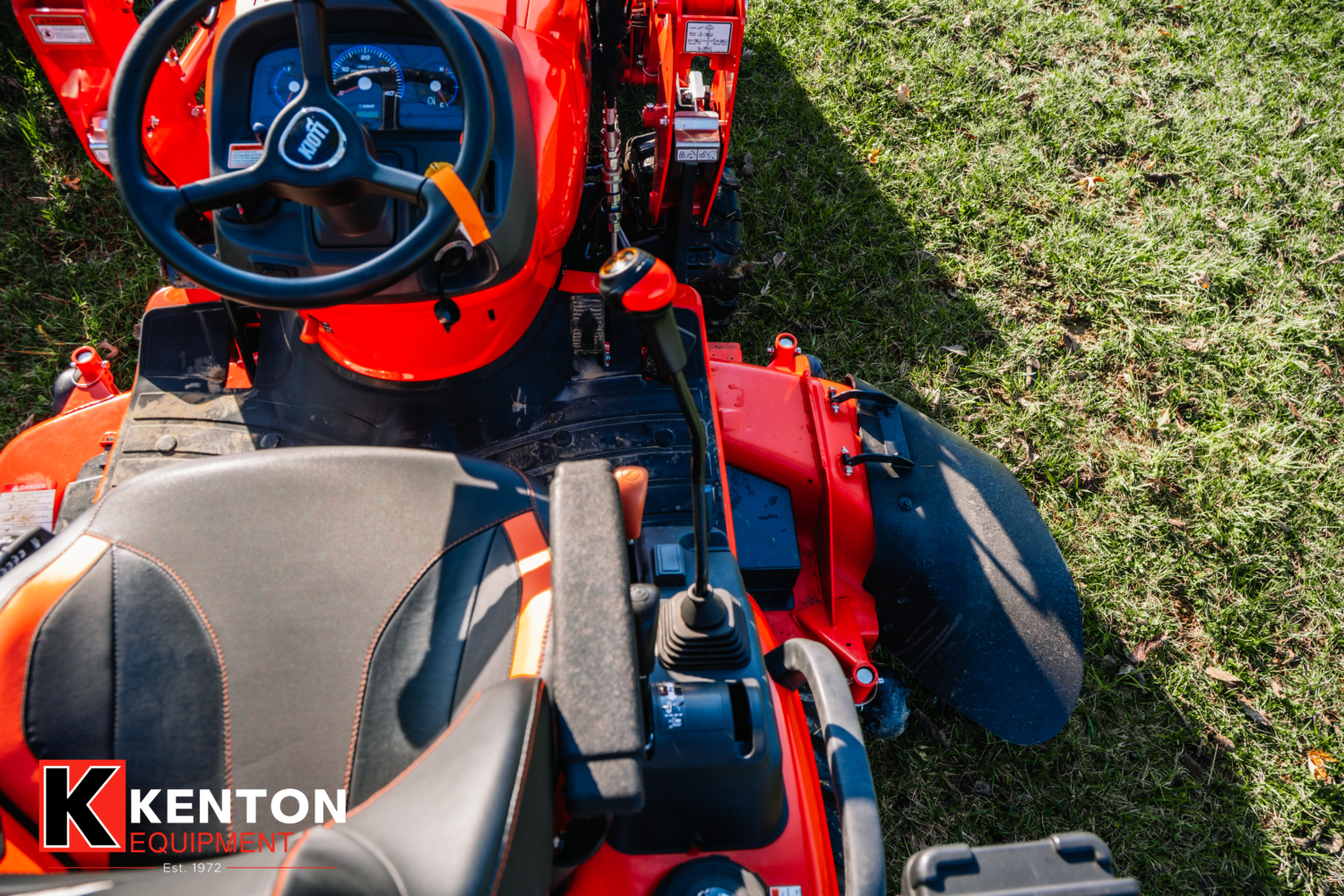

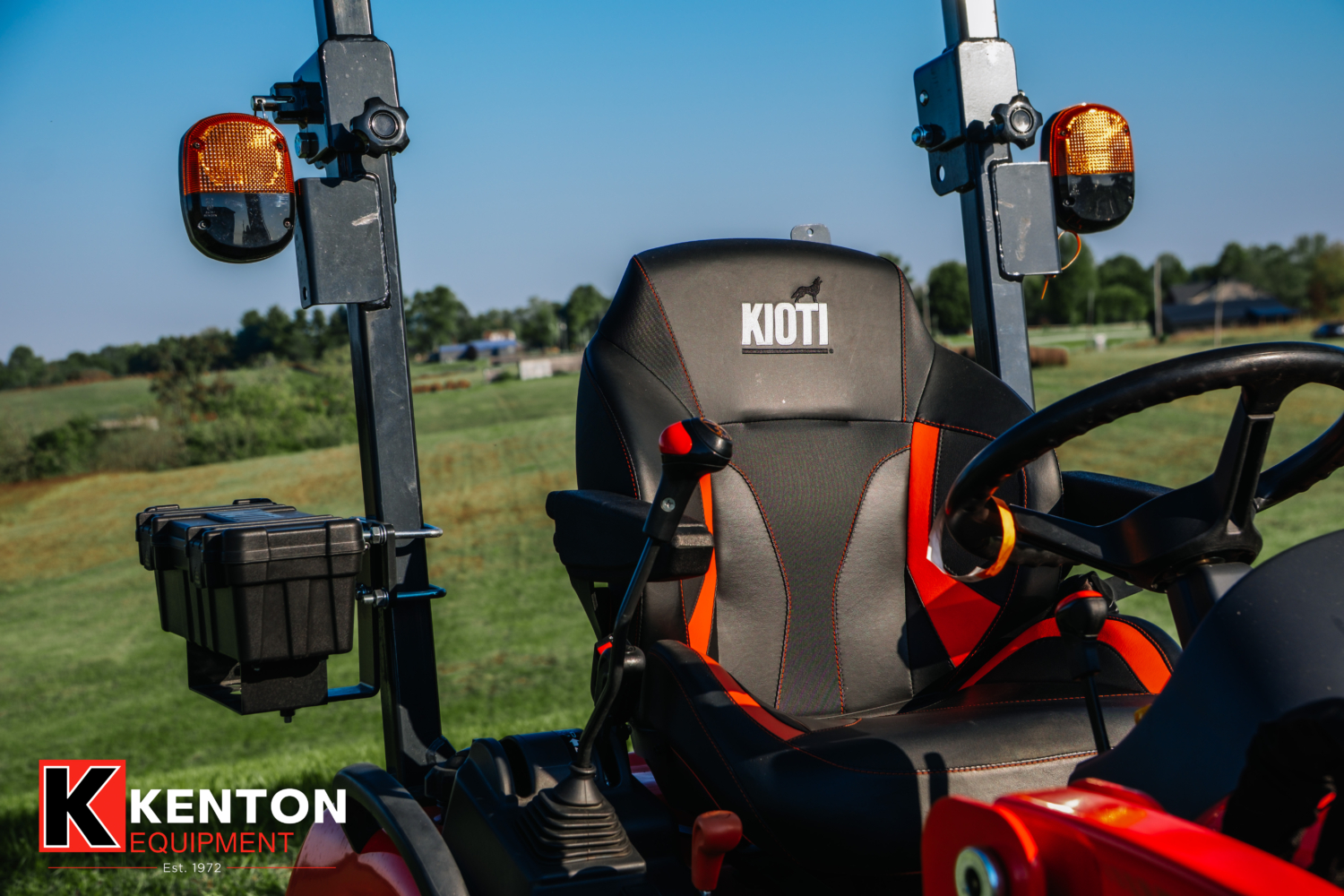

- Ergonomic Operator Station: The ergonomically designed workstation places operator controls within easy reach for maximum comfort.
- Four Wheel Drive: Single-lever engaged 4WD is standard on the CS2220 tractor.

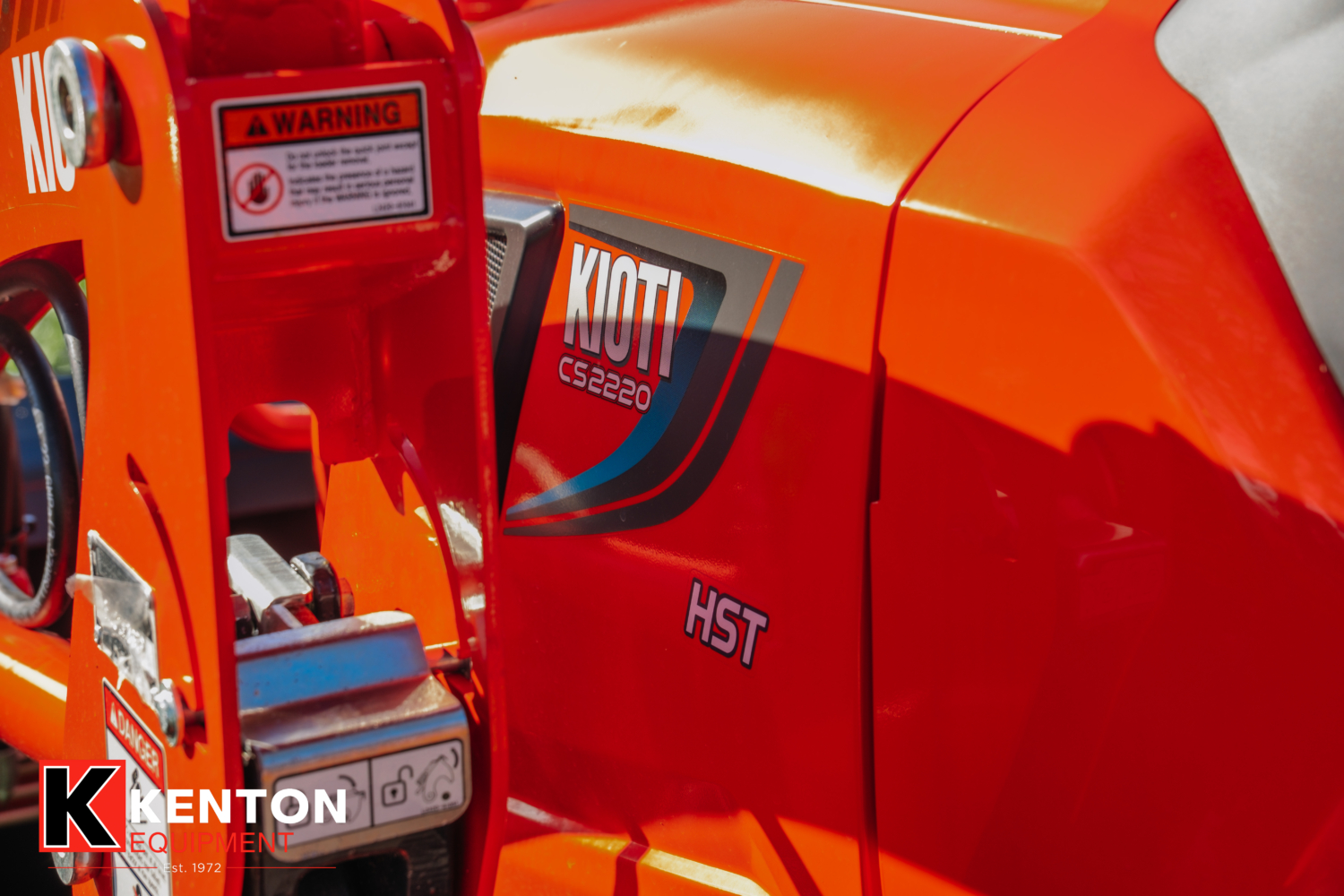

- Distinctive Hood Design: The streamlined hood design improves the visibility for the operator. A vertical opening hood allows for easy access to the air filter, fluid service and inspection locations fuse box and electrical components.
- Twin HST Pedals: Twin HST pedals offer easy forward and reverse movement with smooth engagement, acceleration and deceleration. Pedal pressure is minimized which reduces operator fatigue during long hours of use.

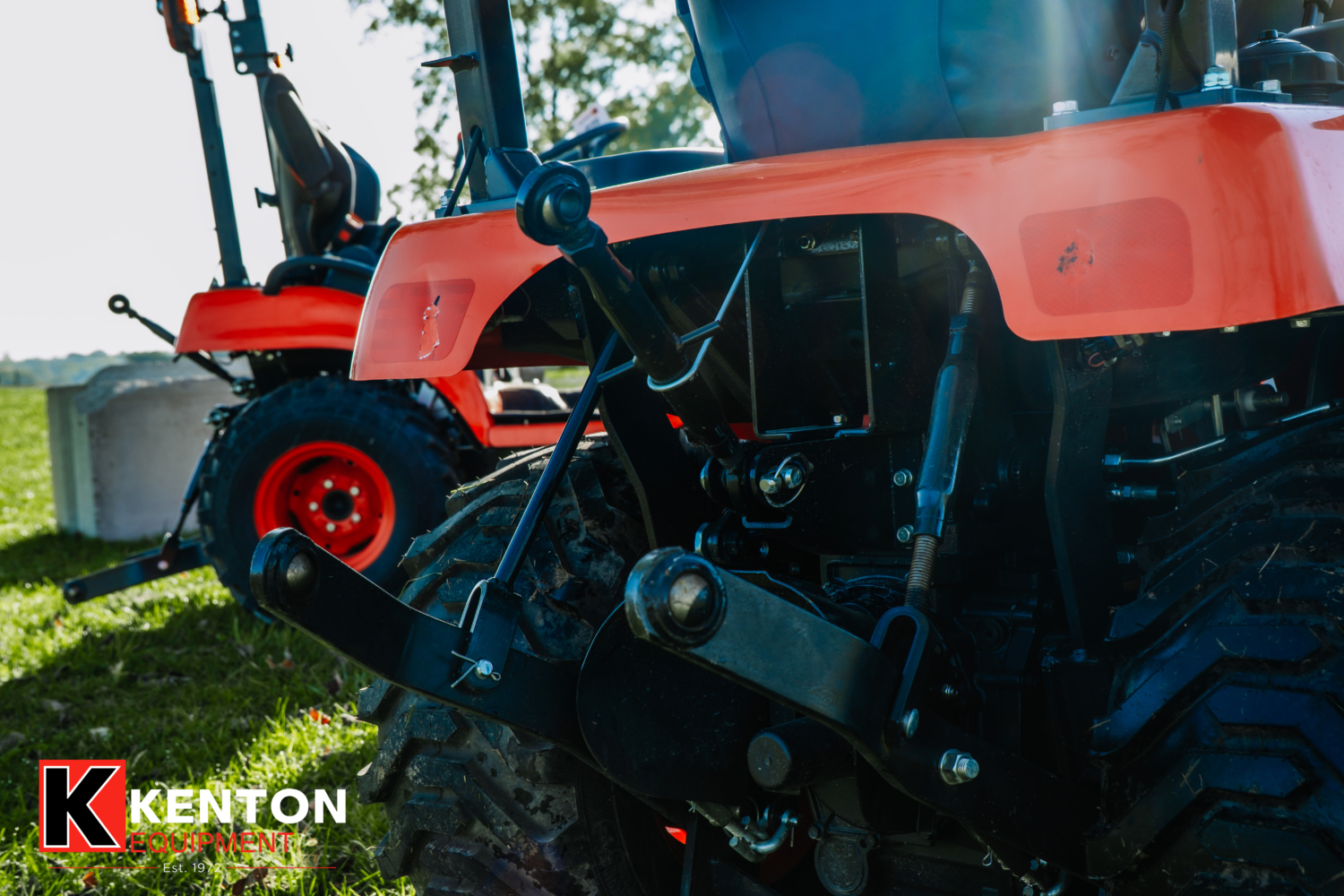

- Rear PTO and 3-Point Hitch: The rear PTO and high capacity three-point hitch can accommodate a variety of implements and attachments. The flip up PTO guard ensures easy implement attachment.

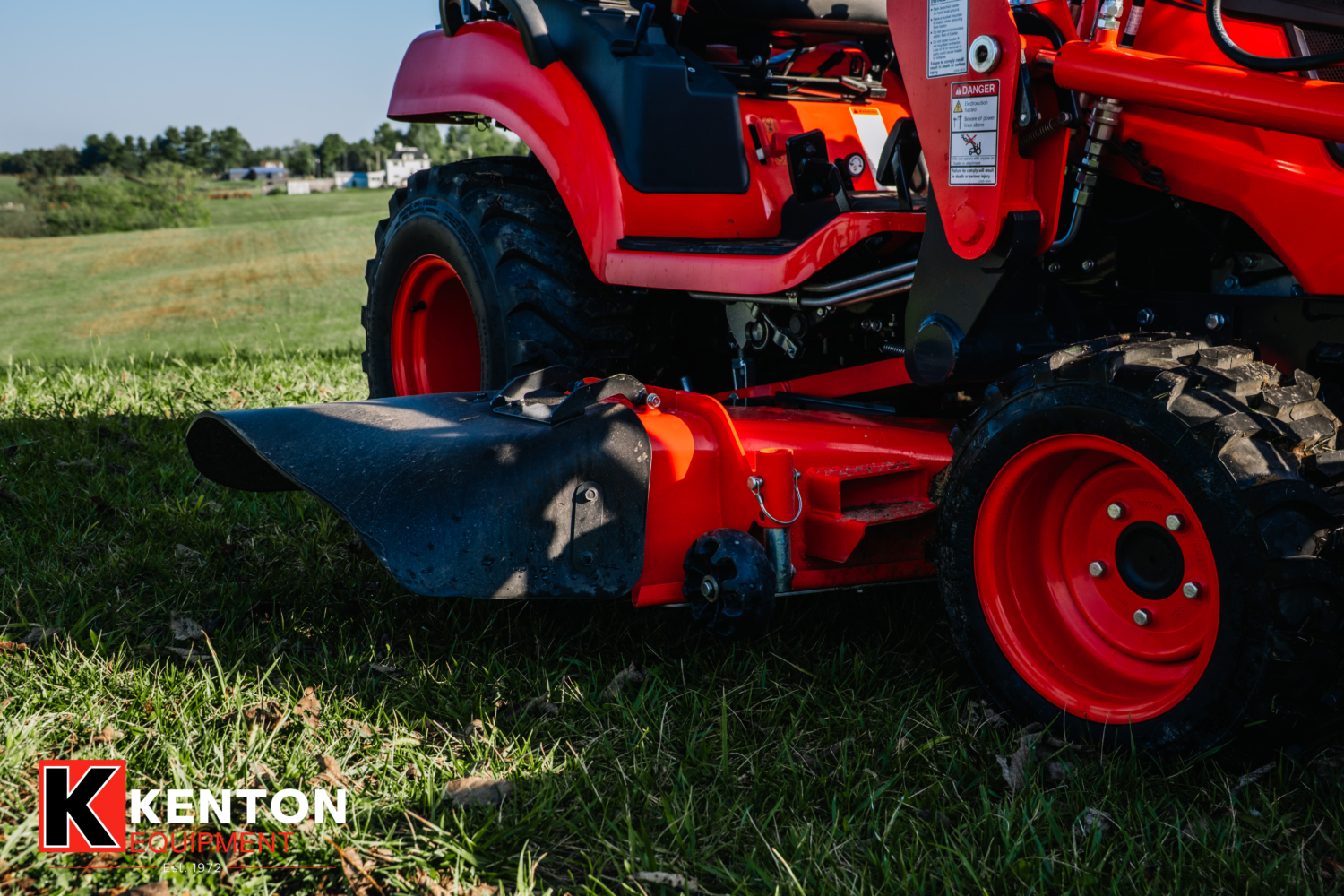

- Mid PTO: The standard mid-PTO (2,200 rpm) allows you to use implements such as a mid-mount mower.

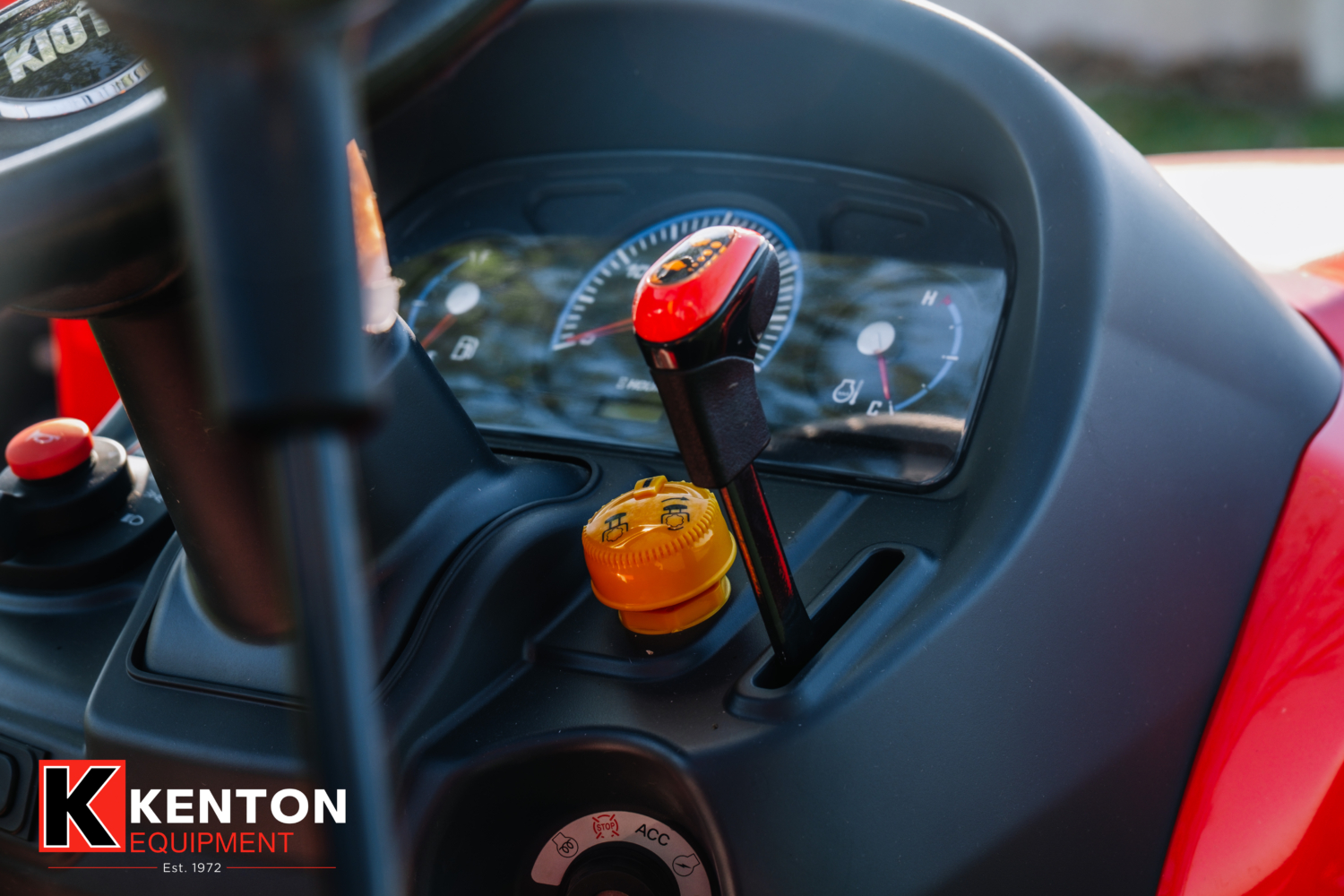

- Illuminated Dashboard: The dashboard illuminates when the engine is started. The digital gauge package includes tachometer, fuel and temperature gauges along with a low fuel warning lamp.
ENGINE
- Engine Model: 3C100LWH-U2
- Engine Gross Power: 21 hp (15.6 kW)
- Rated Speed: 3,200 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Displacement: 61.5 cu. in. (1,007 cc)
- Fuel Tank Capacity: 6.7 gal. (25.5 L)
TRANSMISSION
- Transmission Type: Hydrostatic
- Main Gear: Hydrostatic
- No. of Travel Speeds – Forward / Reverse: Infinite, 2 Range
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0 mph (0 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 9.57 mph (15.4 km/h)
POWER TAKE-OFF
- PTO Type Trans: Independent
- PTO Power: 16.3 hp (12.2 kW)
- Rear PTO Speeds(1st): 540 rpm
- Mid PTO Speeds: 2,200 rpm
BRAKES AND CLUTCH
- Brakes: Wet Multi Disc
DIMENSIONS W/AG TIRES
- Length w/ 3-point hitch: 99.3 in. (2,523 mm)
- Width: 45.9 in. (1,168 mm)
- From Top of the Highest Point: 88 in. (2,226 mm)
- Wheelbase: 55.1 in. (1,400 mm)
- Ground Clearance: 6.4 in. (162 mm)
- Front Tread Ag Tires – Min: 44.6 in. (1,133 mm)
- Rear Tread Ag Tires – Min: 46 in. (1,168 mm)
HYDRAULICS
- Total Pump Flow: 6.97 gpm (26.4 L/min)
3-POINT HITCH
- Standard Category: Category 1
- Maximum Lifting Capacity (24″”aft. of hitch): 700 lb. (318 kg)
- Control Type: Position
WEIGHT
- Weight w/ Ag Tires w/ ROPS: 1,554 lb. (705 kg)
STANDARD EQUIPMENT
- Rear PTO
- Mid PTO
- Joystick Valve
- Power Steering
- Tilt Steering Wheel
- Parking Brake
- PTO Cover
- USB Socket
- Power Socket
- Cruise Control
- Headlights
- Warning/Signal Lamps
- Cup Holder
- Horn
- SMV Sign
INSTRUMENT PANEL
- Tachometer
- Fuel Gauge
- Temperature Gauge
- Low Fuel Warning Lamp
