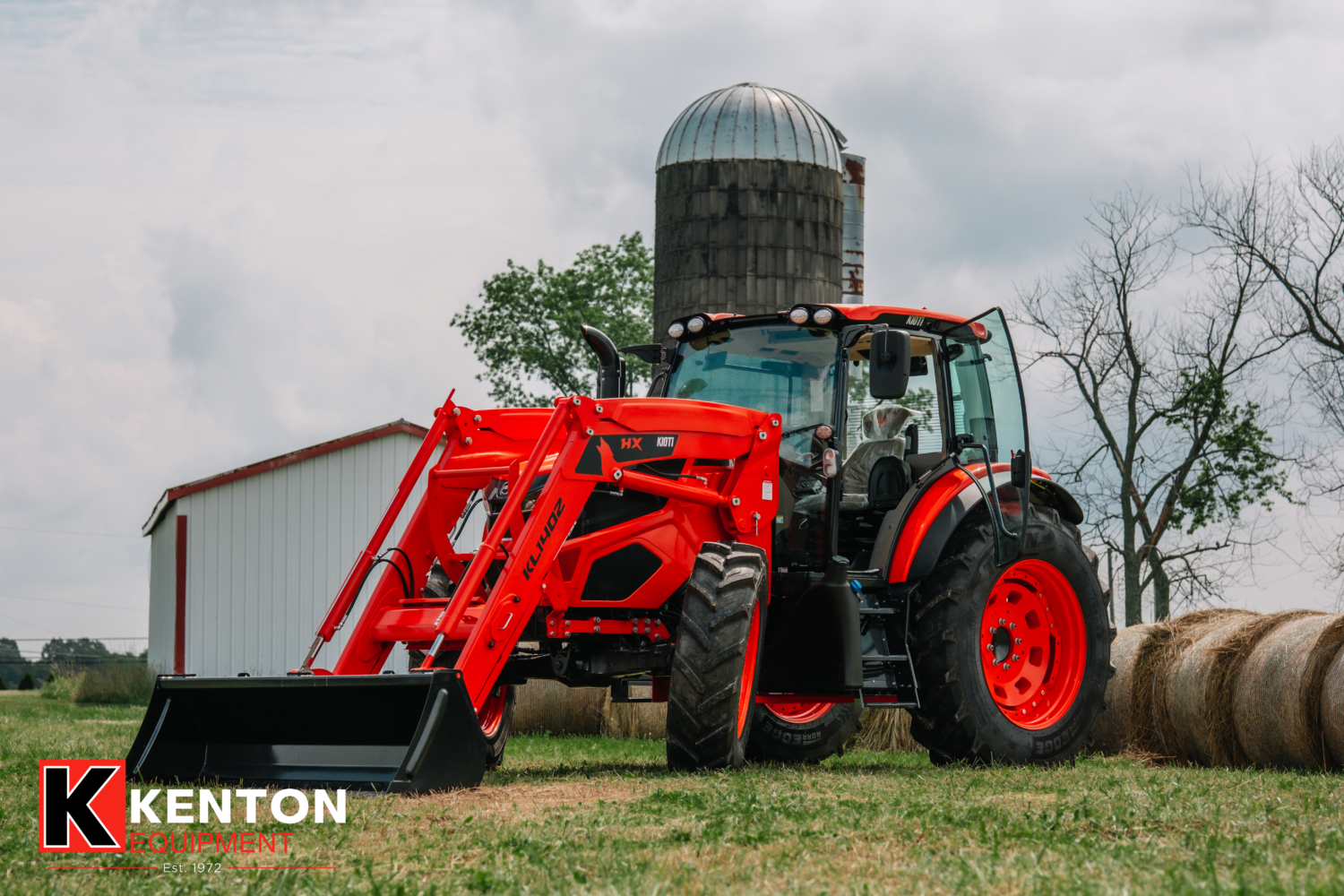

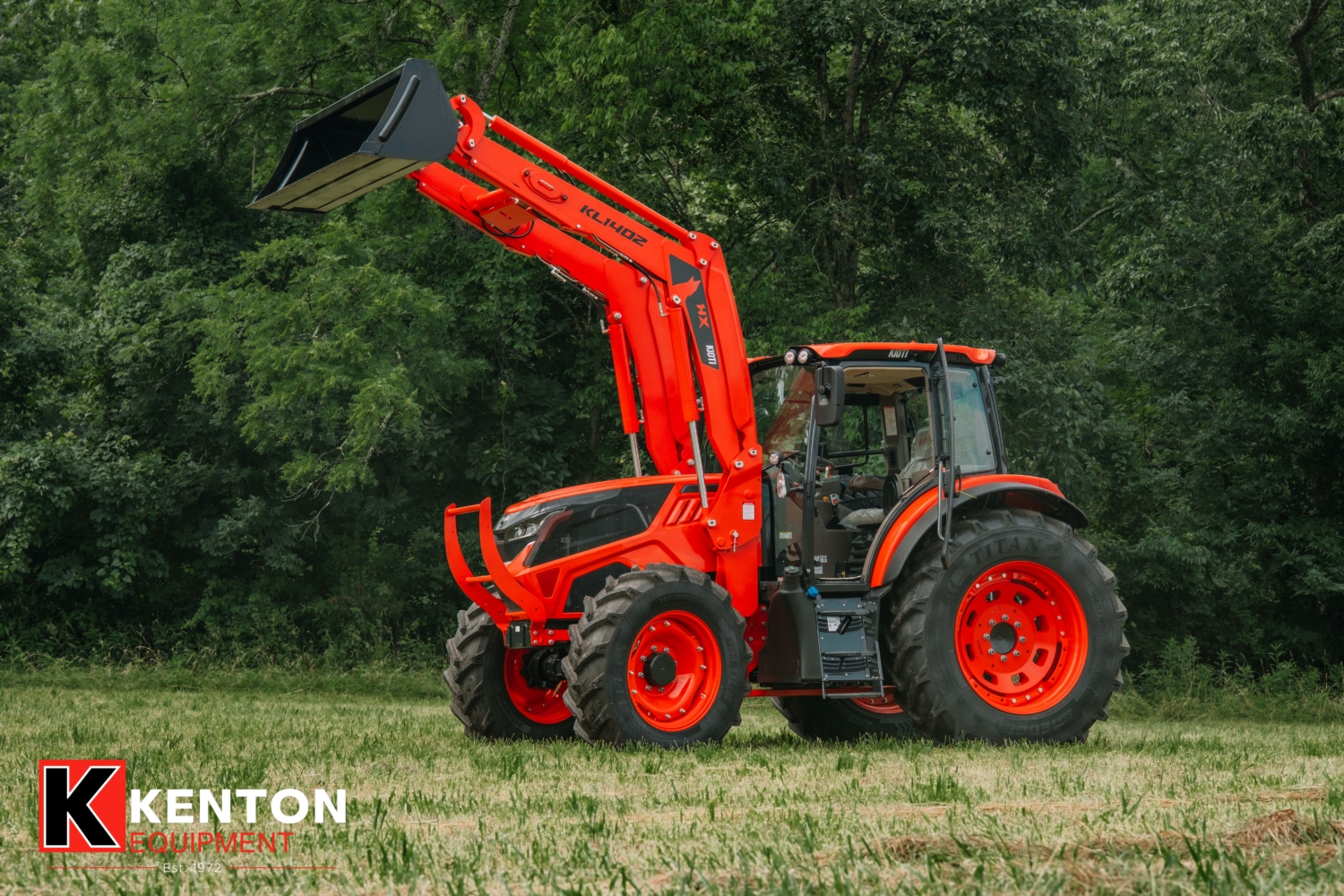

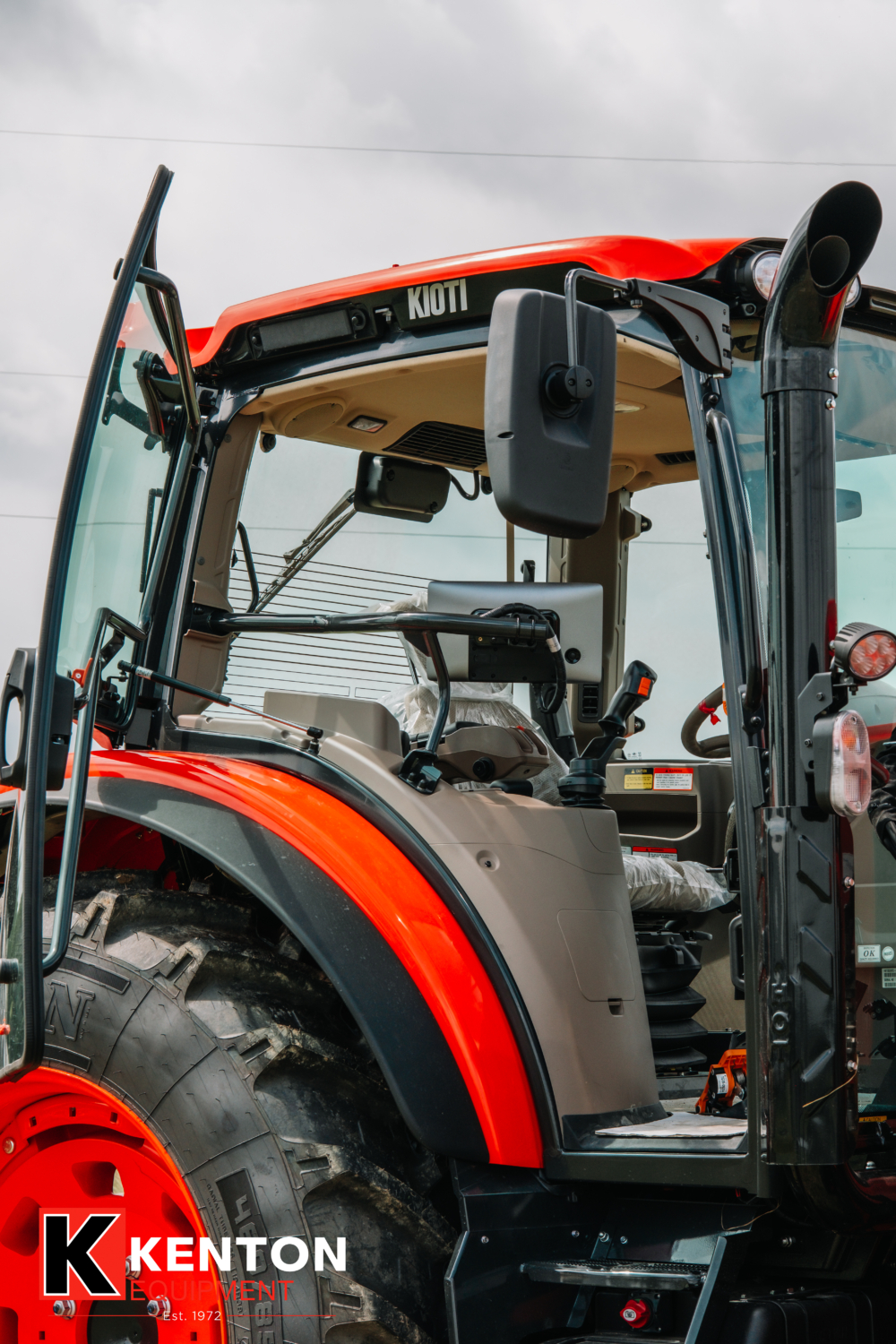

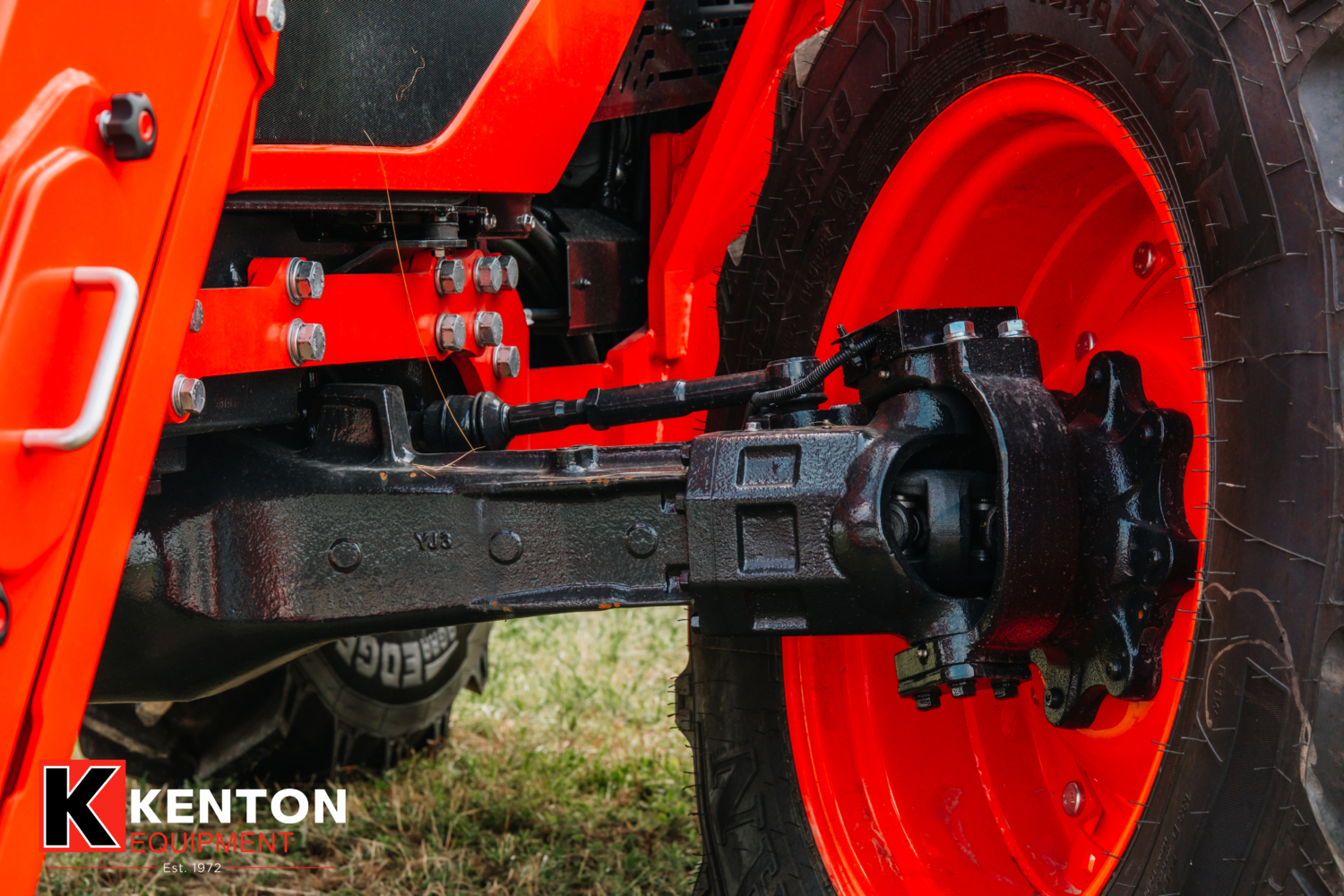

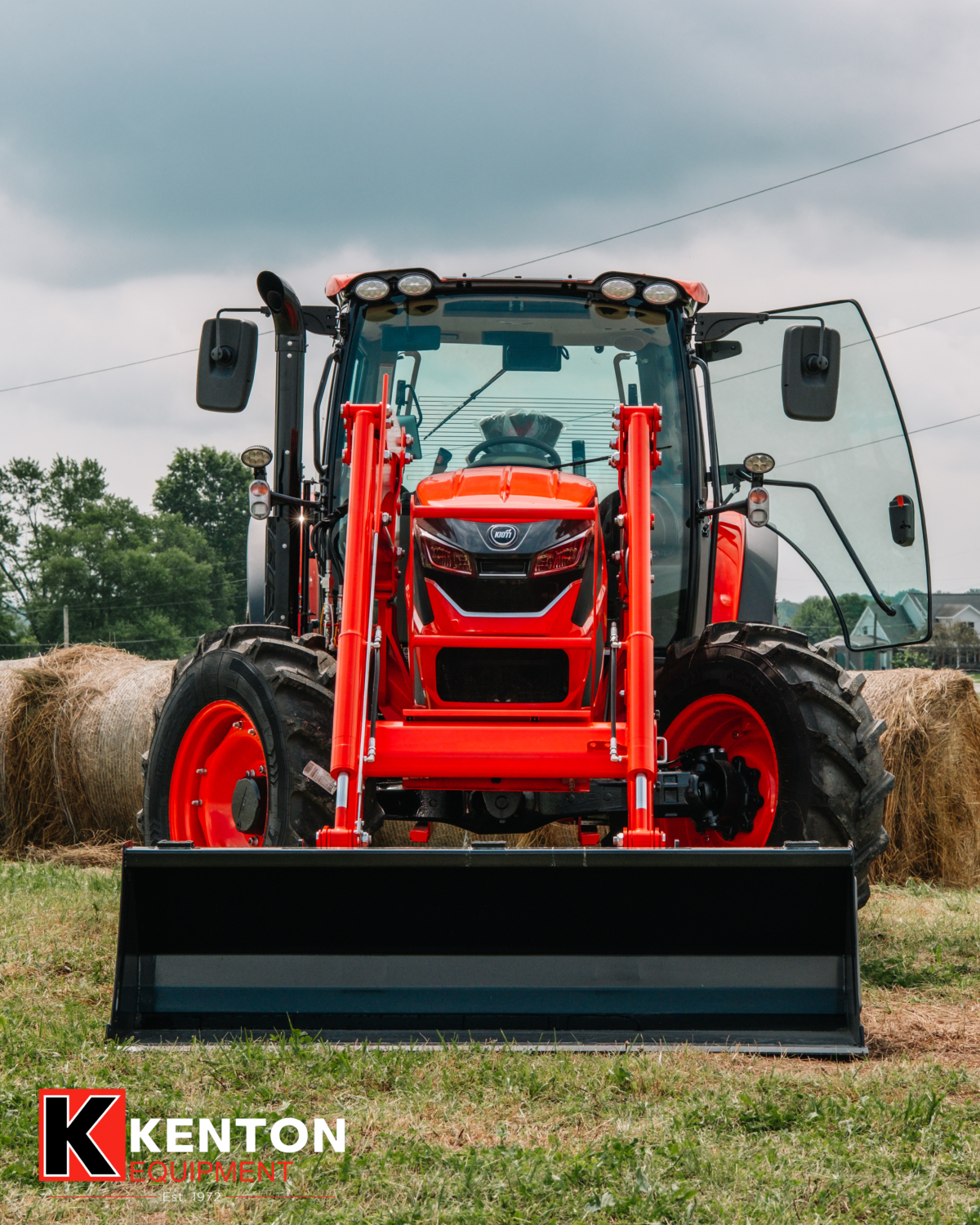

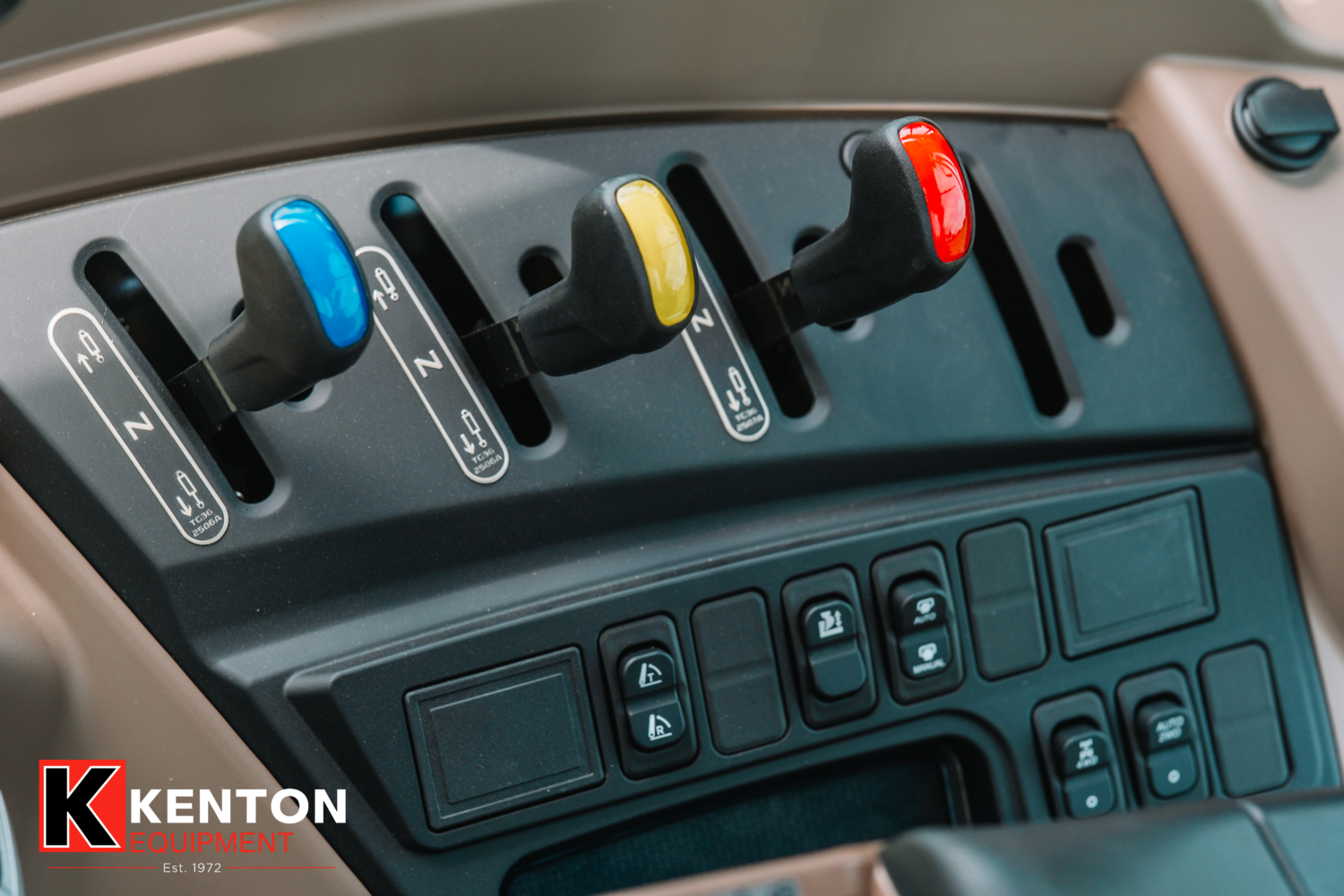

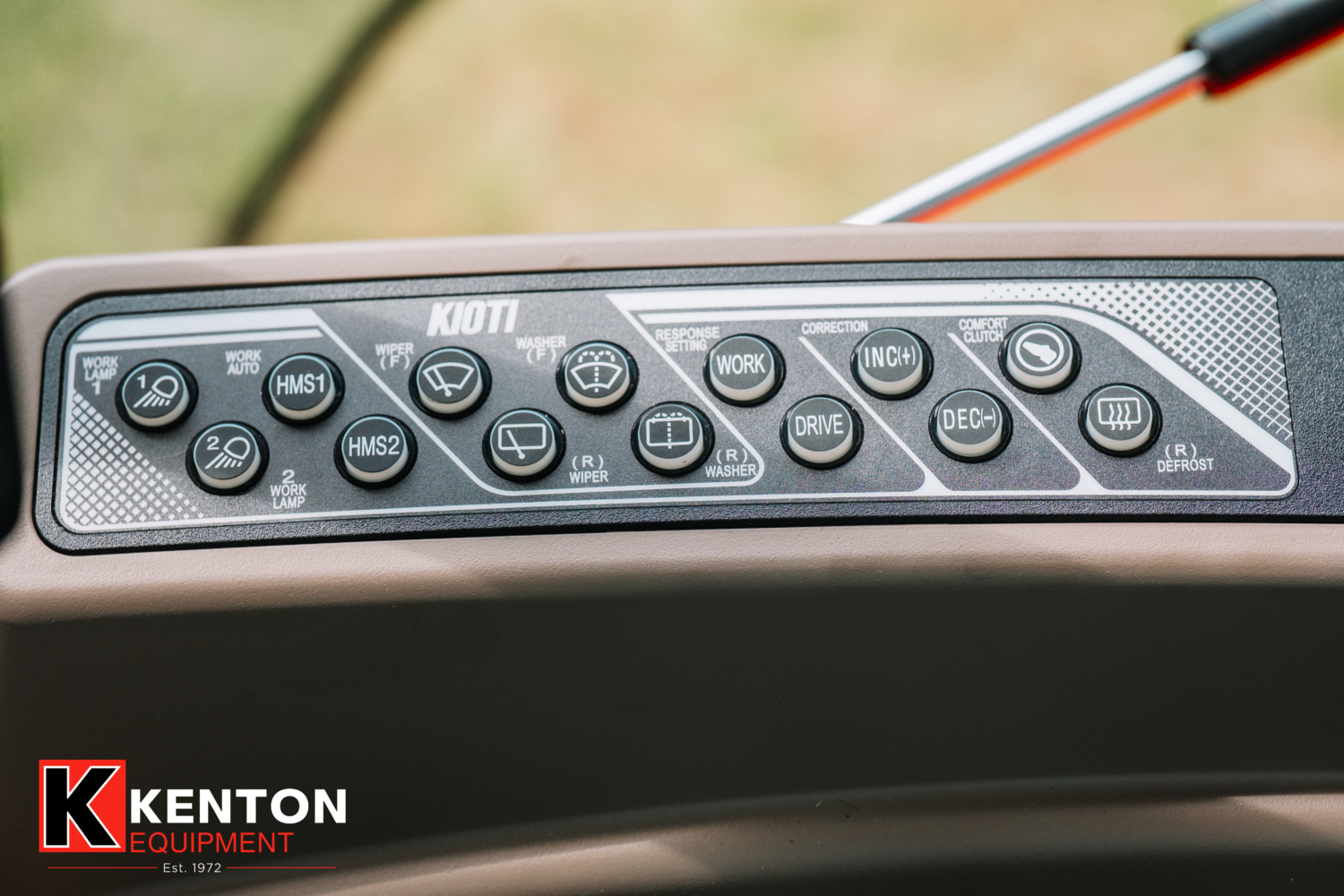

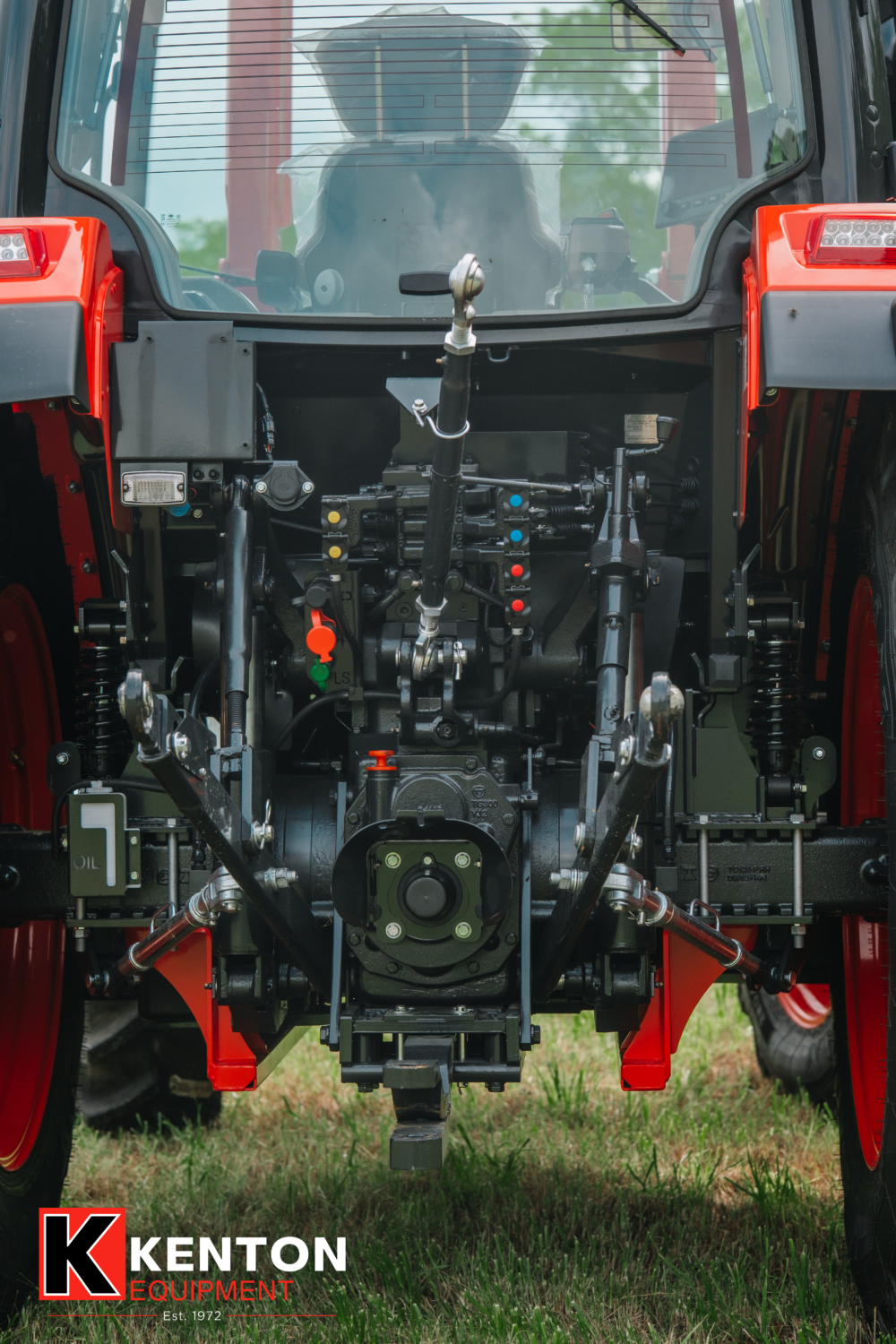

Name: HX1302 Cab
SKU: 2949
Availability: InStock

Back to Build My Tractor

Sale! In Stock

All products are subject to availability.

Price includes all dealer set up. FREE LOCAL DELIVERY!

Attachments

iFront-End Loader: $10,799.00

i20-Foot Flex-Wing Rotary Cutter: $27,599.00

i15-Foot Flex-Wing Rotary Cutter: $28,899.00

i96" Heavy-Duty Box Blade: $1,599.00

i96" Heavy-Duty Dual Edge Grader: $2,799.00

i96" Heavy-Duty Grader Blade: $1,899.00

i9-Foot Rear Mounted Blade: $9,999.00

iSignature Baler: $63,500.00

iLow Back Hay Spear: $699.00

iHeavy-Duty Pallet Forks & Frame: $1,299.00

iOffset Flail Mower: $9,199.00

iHeavy-Duty Flail Mower: $7,099.00

iExtreme-Duty Gear-Drive Tiller: $6,299.00

iX-treme Hay Bale Squeezer: $2,799.00

i72" Industrial Root Grapple: $3,299.00

iHeavy-Duty Grapple Rake: $3,299.00

iSignature Baler: $46,599.00

iPremium Baler (2000 lb max bale weight): $49,699.00

KIOTI KL1155 Front-End Loader

Price: $10,799.00

Standard Features

Robust Design
Built-In Parking Stand
Bucket Level Indicator
Complimentary Paint Color

Specifications

Maximum Lift Height to pivot pin: 150.6 in. (3,825 mm)
Clearance w/ Attachment Level: 141.1 in. (3,585 mm)
Clearance w/ Attachment Dumped: 114.6 in. (2,911 mm)
Reach at Maximum Height: 21.1 in. (536 mm)
Maximum Dump Angle: 59˚
Reach w/ Bucket on Ground: 94.1 in. (2,391 mm)
Maximum Rollback Angle: 42˚
Digging Depth Below Grade: 8.7 in. (220 mm)
Overall Height in Carry Position: 83 in. (2,109 mm)
Depth of Attachment (to back of inner shell): 27 in. (686 mm)
Height of Attachment: 36.4 in. (924 mm)
Length of Attachment (to pivot pin): 25.3 in. (641 mm)
Lift Capacity to Full Height at Pivot Pins: 4,316 lbs. (1,958 kg)
Breakout Rollback Force at Pivot Point: 8,397 lbs. (3,809 kg)
Bucket Size: 90" QA
Weight (with Bucket): 3,214 lbs. (1,458 kg)

Add To Configuration

Bush Hog 2120 Flex-Wing Rotary Cutter

Price: $27,599.00

The Bush Hog® 2120 Flex-Wing Rotary Cutter is designed to cut grass, weeds, and light brush up to 2” in diameter. The perfect cutter for maintaining large pastures, open parks, and airports, where clipping distribution is paramount for presenting a clean, manicured appearance. Fully-baffled decks increase directional air flow allowing the blades to guide clippings across the entire width of the cutter. EZ-clean decks, EZ-adjust leveling rods, EZ-lube drivelines, and multiple grease points, make maintaining the 2120 a snap. Invest in the 2120, and it will reward you with years of excellent performance and dependable service. The 2120 comes standard with Distribution Baffles, along with your choice of Perma-Level or 2-5/8” Ball Hitch, 540 or 1,000RPM CV Input Drivelines, Center Dual or Walking Tandem Axles, Wing Single, Dual, or Walking Tandem Axles, 5 Tire Selections, and Single or Double Row Safety Chains.

Key Features

Our Wing Free Float feature allows for 22° down and 25° up travel without movement of hydraulic cylinder rod for extended cylinder life.
Each axle arm is spring-loaded to absorb shock loads that could transfer through the axle and deck.
The 2120 is equipped with distribution baffles to evenly spread out clippings across the width of the cutter.
Our Patented oil sight gauges in all three cutting gearboxes allow for quick and easy oil level checks.
Bush Hog’s E-Z lube drivelines are quick and easy to service. All grease fittings on the PTO CV driveline and wing drivelines closely align for quick location of grease points.

Performance Features

Fully baffled decks eliminate windrowing
Half axle spindles make for quick and economical servicing
Center section blades closely align with center section wheels to cut better in ditch bottoms
Grease fittings and steel bushings at axle pivot points extend life at pivot areas
Free floating wings engage the hydraulic lift cylinders less extending cylinder life
Smooth-top deck design makes clean-up a snap
High blade tip speeds shear through tough vegetation with ease

Construction Features

Reinforced strongbacks and gearbox stands are designed to withstand years of frequent use
Spring suspension within each axle arm is tuned to reduce shock and provide a smoother ride
Patented oil sight gauges in all three cutting gearboxes allow for quick and easy oil level checks
E-Z lube drivelines align to reduce maintenance time
Turnbuckle aligns with wing hinge pins to ensure long life of turnbuckle and less hinge wear
Easily adjustable leveling rods

Safety Features

Single Row Chains come standard to reduce the potential for thrown objects exiting the cutter deck
¼” Sidebands withstand continual abrasion and the toughest thrown objects
Blade Bolt Hole Covers eliminate the possibility of material exiting through the top of the deck
Roll Stop keeps Perma-Level Hitch from rolling over during hookup

Specifications

Cutting Width: 20-ft.
Cutting Height: 1 1/2 in. to 14 in.
Hitch: Perma-Level
Minimum Tractor: 70 PTO HP
Approximate Weight: 6100 lb.
Approximate Tongue Weight: 2100 lb.
Side Band: 1/4 in. X 12 in.
Blades: 1/2 in. X 4 in. Parallel Lift
Blade Holder: 7ga Round Pan
PTO Drivelines: Ez-Lube Asae Cat 6
Wing Drivelines: Asae Cat 4
Wing Flex: 22 deg. Down to 87 deg. Up
Wing Cutting Angles: 22 deg. Down to 45 deg. Up
Splitter Gearbox Rating: 160 HP
Cutting Gearbox Rating: 130 HP
Gearbox Warranty: 10 Year Limited
Blade Tip Speed: 16,000 Fpm
Cutting Capacity: 2 in. Diameter
Deck Center: 10-Gauge
Deck Wing: 10 Gauge
Axle Cushions, Center: Cushioned Springs at Each Axle Arm
Wing Adjustments: Heavy Duty Turnbuckle
Grass/ Crop Distribution: Standard Baffles
Safety Tow Chain: Standard
PTO Driveline Support: Standard
Highway Safety Lights: Standard
Warranty: 10 Year Gearbox Limited; 1 Year Machine Limited

NOTES: All Specifications Subject to Change Without Notice

Add To Configuration

Bush Hog 4115 Flex-Wing Rotary Cutter

Price: $28,899.00

Building upon the success of our legendary Heavy-Duty Flex-Wing lineup, the New 4115 Flex-Wing is built for the harshest cutting conditions. Designed to cut heavy grasses and brush up to 4” in diameter, these New 15’ Flex-Wings are serious machines for serious users. Perfectly at home maintaining rights-of-way and roadsides or long days clipping the back 400, these cutters get the job done in any environment, day in and day out. New performance and convenience features like seriously upgraded axles, EZ-change blade bolts, and EZ-adjust leveling rods make your life easier and worry-free. Our new and improved axles glide over obstacles, while significantly reducing shock loads for an improvement you can see and feel in the tractor seat. Heavily-braced, 7ga smooth-top decks shed debris and water for easier cleanup. Gearbox stand plates are thicker and gusseted for improved strength and durability. Our Perma-Level+ Hitch has received additional reinforcements and quality of life features like rollover and clevis stops for easier tractor hookups. Standard equipment includes convenience features like EZ-lube drivelines, increased tongue transport height, and hydraulic hose handles to reduce slipping and improve ergonomics. Then when not in use, the hoses can be safely stored in the holder on the tongue. The New 4115 15’ Flex-Wing can be equipped with or without Deck Rings, 540 or 1,000 PTO Driveline, Center Dual or Walking Tandem Axles, Wing Single, Dual, or Walking Tandem Axles, Laminated, Air-Filled, or Foam-Filled Tires, Single or Double Row Chains, and 2 Hoses for simultaneous wing lift or 3 hoses for independent wing lift. And as with all Bush Hog® Rotary Cutters, the New 4115 Flex-Wing comes with the industry’s only 10-Year Gearbox Limited Warranty. Remember, “If it doesn’t say Bush Hog®, it just won’t cut it.”

Performance Features

New and improved axle suspension reduces g-force shock loads by 51%
Replaceable 1/2″ Cast Wing Skids for extended wear during heavy ground contact
Angled rear deck section with 41% longer skids improve durability during side and backward impacts
New durable Cast Leveling Rod Cams make adjusting deck pitch easier
New Cast Walking Tandem Axles walk over the most rugged terrain instead of bounce through it
Center section axle spindles are centered on the axle arm for equalized loading of vertical forces
Grease fittings and spring steel bushings at axle pivot points for longer life.
Wing decks free float 22° down and 45° up without engaging the hydraulic cylinder for longer cylinder life
Wing axles are adjustable 20″ left to right for variable row crop spacings
New Rollover and Clevis Stops on the Perma-Level+ Hitch make tractor hookups easier
Increased Cutting and Transport Height by 2″ to mow down taller vegetation and easier loading on trailers

Construction Features

Industry first — 3″ O.D. output shaft in cutting gearboxes
Smooth-top 7ga deck plates are heavily-reinforced for years of trouble-free service
33% stronger gearbox mount and stand are built to withstand years of punishing mowing conditions
Blade pans come standard with Hardened Hex-Head Blade Bolts and Bushings for easy blade changes
194% increase in axle arm section for substantially improved strength
ASAE Cat. 6 Input Drivelines and ASAE Cat.4 Wing Drivelines for use in heavy cutting conditions
Patented oil sight windows make for quick and easy oil level checks
Grease fittings in our E-Z lube drivelines align for reduced service times

Safety Features

Single or Double Row Chains to knock down flying debris
New Cast Transport Lock supports the cutter while transporting
Wing locks hold the wings stable when in an upright position
Rollover and Clevis Stops reduce rotating and swinging hitch components while attaching to tractor drawbar/li>
360° coverage around rotating drivelines

Specifications

Cutting Width: 15′
Cutting Height: 1 1/2″ – 16″
Cutting Capacity: 4″
Transport Width*: 8′ 2″
Transport Height**: 7′ 3″
Transport Width***: 15′ 3″
Approximate Weight (lb.): 6,000
Approximate Tongue Weight (lb.): 2,000
Minimum Tractor PTO HP: 60
Hitch: “Perma-Level+” or ball hitch
Center Deck: 7ga
Wing Decks: 7ga
Wing Cutting Angles: 22° down and 45° up
Wing Level Adjustments: Turnbuckles
Sidebands: 1/4″ x 13 1/2″
Transfer Gearbox (hp): 250
Cutting Gearboxes (hp): 225
Input Driveline: Category 6
Wing Drivelines: Category 4
Blade Holder: 7ga round
Blades: 1/2″ X 4″
Blade Tip Speed (fpm): 16,268
Axle Suspension: Isolators @ each axle + center isolator bank
Center & Wing Hydraulics: 2 or 3 hose selection
Safety Tow Chain: Single or double row chain selection
Distribution Baffles: Optional
PTO Driveline Support: Optional
Warranty: 10-Year Gearbox Limited Warranty & 2-Year Machine Limited Warranty

*Measured from Wing Skid to Wing Skid when Folded

**Measured at Maximum Transport Height

***Measured from hitch tip to rear of 21″ Laminated Tire

Notes: Unit shown is equipped with certain selections and options; please consult with your local Bush Hog dealer for all available configurations.

Add To Configuration

IronCraft 96" Heavy-Duty Box Blade

Price: $1,599.00

For tough jobs, this heavy-duty box blade scrapers will stand up to the tasks required to maintain your farm, building site, or landscaping projects. The Titan© 3208 Heavy Duty Box Blade will make quick work of ripping up dirt, grading and leveling land, or spreading soil. With a 96" working width, and 6 adjustable heavy-duty ripper shanks; is Category I quick hitch compatible and is designed to work with 30 to 70 hp tractors.

Specifications

Horsepower: 30 - 70 HP
Working Width: 96"
Moldboard Height: 17"
Overall Depth: 22"
Weight: 640 lbs
Number of Shanks: 6
A-Frame Material: 1/2"
Cutting Edges: 6"
Quick Hitch Compatible: Yes
Hitch: Cat I & II

Add To Configuration

IronCraft 3708 Heavy-Duty Dual Edge Grader

Price: $2,799.00

IronCraft’s 3700 dual-edge graders can be used to maintain gravel driveways, level a garden plot, and smooth dirt areas including horse arenas and barn floors. It is designed with an adjustable cutting depth, making the shanks optional.

The 3700 dual-edge graders feature replaceable skid shoes, reversible blades, adjustable blade height, and adjustable shanks.

Designed to work with 40 to 80 hp tractors, the 3700 Graders accommodate a Category I quick hitch, Category II 3-Point and Category II Quick Hitch if applicable. The 3700 dual-edge graders are available in two working widths from 84” to 96”.

Specifications

Product Family: 3700 Series
Product: 3708
Description: 8' Heavy Duty Dual Edge Grader
HP Required: 50 - 80
Working Width: 96"
Height: 33-3/4"
Overall Width: 101-5/8"
Overall Length: 58-1/2"
# of Shanks: 6
Scarifier Shank Construction: 3 Position Heat Treated shank with dimpled on hardened tips
Shank Adjustment: At grade level, 1-1/2" and 3" below grade level
A-frame Material: 3/8"
Weight: 740 lbs
Side Panel Thickness: 3/16"
Side Panel Height: 15-11/16"
Side Panel Length: 52-3/8"
Scarifier Support Tube Construction: 4/" x 4" x 1/4"
Rear Beam Construction: Two Beams 3" x 3" x 3/16" spaced 21-1/8" apart
Skid Shoes: Replaceable 3/16" x 2-3/4" x 53-9/16"
Hitch Type: Clevis Type
Hitch: Cat 1 & 2

Add To Configuration

IronCraft 96" Heavy-Duty Grader Blade

Price: $1,899.00

The 4508 Heavy-Duty Grader Blade is our toughest grader blade, and will easily meet all of your land grading, leveling, or backfilling needs. Designed for 55 to 75 hp tractors, and features a five-position angle adjustment, three-position tilt adjustment. Just use a ratchet jack for the offset adjustment. Category I & II quick hitch compatible and with a 96" working width.

Specifications

Horsepower: 55 - 75 HP
Working Width: 96"
Moldboard Height: 17"
Weight: 503 lbs
Angle Adjustment: Five positions; Forward and reverse
Tilt Adjustment: Three Positions
Offset adjustment: Ratchet Jack
A-Frame Material: 3/8"
Cutting Edges: 6"
Quick Hitch Compatible: Yes
Hitch: Cat. I & II

Add To Configuration

Bush Hog 181 9-Foot Rear Mounted Blade

Price: $9,999.00

Let Bush Hog®’s new 181-Series Blades give you the strength and durability to pave a new way. Perfect for road building and maintenance, snow removal, terracing, backfilling, and grading these blades can handle any scrape. These new series of rear mounted blades are available in 9-feet and 10-feet and recommended for tractors from 140 HP up to 180 HP. Standard features include 3-point ASAE Category II and Category III hitches with Quick Hitch compatibility, 5-inch King Pin, 1/2-inch x 6-inch cutting edges, and 19-inch moldboard height. These blades also feature manual or hydraulic offset, angle, and tilt adjustments. Other available options include heavy duty skid shoes, as well as, heavily constructed end plates.

Specifications

Maximum Tractor HP: 180 HP (2WD), 140 (4WD)

Hitch: 3-pt. ASAE Category II, III & Quick Hitch compatible

Moldboard Width: 9-feet, 10-feet

Moldboard Height: 19-inches

Cutting Edge: 1/2-inch X 6-inches

King Pin Diameter: 5-inches

Tilt Adjustment: 15° up or down (manual or hydraulic)

Offset Adjustment: 37-inches left or right (manual or hydraulic)

Angle Adjustment: 45° left of right (manual or hydraulic)

Parking Stand: Standard

Add To Configuration

Vermeer 604R Signature Baler

Price: $63,500.00

A signature bale every time. What does your 604R Signature baler say about you? That you value bale appearance and want consistent, square-shouldered bales. That you value simplicity and durability and want a pickup that's built for a variety of applications. That you value convenient features that allow you to control your baler and ultimately create good-looking, high-density bales. And that you value convenience and want smart features that help make your operation more efficient—like the Atlas Pro™ control system. A Signature says it all. This baler is a twine/net unit with bale ramps.

Features and Benefits

Moisture sensors: Moisture sensors come standard on all 604R Signature balers and allow operators to view real-time moisture readings in the cab via the control system.
3-year pickup warranty: Operators can rest assured knowing the Vermeer 3-year pickup warranty covers the internal components and includes parts* and labor on the 604R Signature baler. *Does not include teeth or hardware for teeth.
Rubber-mounted pickup teeth: Rubber-mounted pickup teeth help durability and tooth life. With an increased number of tines, the 604R Signature allows more crop to be put into your baler and not left on your field.
5-bar camless wide pickup: Equipped with a 5-bar, camless wide pickup, the 604R Signature is designed to handle high crop capacity. This 71-in (180.3-cm) pickup is designed with no cam tracks or follower bearings to help minimize machine maintenance.
Netwrap system: The netwrap system on all 604 R-series balers allows operators to control netwrap tension to help maximize the amount of net spread over the edge of the bale to help maintain square-shouldered bales. A sensor measures the amount of net left on the roll which is displayed on a digital gauge within the Atlas Pro control system in the cab.
Atlas Pro control system: Atlas Pro™ control system is equipped with a 7-in (17.8-cm) color touchscreen display that gives operators advanced, real-time field statistics for up to 50 fields and allows you to view and adjust various baler settings including netwrap tension, bale density settings and monitor moisture levels all while in-cab.

Bale Size

Bale Diameter: 36 in - 72 in (91.4 cm - 182.9 cm)
Bale Width: 47 in (119.4 cm)
Maximum bale weight: 2400 lbs (1088.6 kg)

Dimensions and Weights

Length standard: 164 in (416.6 cm)
Length with net: 184 in (467.4 cm)
Length with ramp: 206 in (523.2 cm)
Height: 121 in (307.3 cm)
Width with standard tires: 101 in (256.5 cm)
Width with optional tires: 115 in (292.1 cm)
Tires: Standard - 14L-16.1; Optional - 21.5L-16.1 flotation tire
Weight fully optioned: 7280 lbs (3302.2 kg)

Bale Forming Chamber

Drive Roller Size: 5.5 in (14 cm)
Idler roller size: 3.5 in (8.9 cm), 4.8 in (12.1 cm)
Start Roller Size: 5.3 in (13.3 cm)
Belt Type: Premium mini rough top
Number of Belts: 6
Width of Belt: 6.8 in (17.3 cm)
Length of belt (long): 563.5 in (1431.3 cm)
Length of belt (short): 557 in (1414.8 cm)
Type of Lace: Alligator rivet
Silage kit: Optional

Drive System

Driveline: Standard: 540 rpm, standard lube, friction clutch; Optional: 1000 rpm, standard lube, automatic clutch
Torque protection pickup: Radial pin clutch
Roller chains: Single 60 and 80
Bearing and Sprocket Configuration: Hex drive shafts and bearings

Tractor Requirements

PTO horsepower minimum: 70 hp (52.2 kw)
PTO horsepower recommended: 90 hp (67.1 kw)

Pickup

Pickup type: Camless wide
Width tooth to tooth: 70.5 in (179.1 cm)
Width on outside flair: 73.8 in (187.5 cm)
Tooth Bars: 5
Number of Teeth: (70) double rubber-mounted
Teeth spacing: 2.83 in (7.2 cm)
Stripper bands: Steel
Flotation: Gauge wheels 4.8 - 16 HD semi-pneumatic with spring assist
Pickup Lift: Hydraulic
3-year pickup warranty: Standard

Control System

Control system type: Atlas Pro™ control system
Display: 7 in (17.8 cm) color touch screen
Field Statistics: 50 fields with names
Field statistics download: USB
Bale shape indicators: Standard
Moisture: Standard - up to 27%
Bales per hour: Standard
Auto eject: Optional

Density

Bale density adjustments: Standard through control system monitor
Density readings: Digital gauge
Cylinder size: 2.5 in (6.4 cm)

Bale Tie System

Twine system: Optional
Netwrap system: Optional
Net gauge via control system: Standard
Net tension control: via control system
Netlift system: Optional
Extra roll storage: Standard

Features

Bale ramp: Hydraulic
Auto Lube greasing system: Optional
Grease bank: Standard
Right-hand door: Standard
LED maintenance lights: Optional
Fire extinguisher, safety chain: Optional

Add To Configuration

IronCraft Single Hay Spear

Price: $699.00

The Single Hay Spear is an excellent piece of equipment to have on the farm. Easily move bales of hay with a quick hook up on your skid steer or tractor. The Single Hay Spear is rated at 3500 lbs. Euro Style and John Deere mounts are available.

Specifications

Features: Euro Style and John Deere mounts are available
Lift Capacity: 3,500 lbs
Number of Spears: 1

Add To Configuration

IronCraft Heavy-Duty Pallet Forks & Frame

Price: $1,299.00

Anyone that owns a skid steer should have a set of forks on hand. Forks are ideal for lifting pallets, loading lumber or just about anything else. Our forks are 1-3/8 inches thick, 4 inches wide and 48 inches long. They are completely heat treated and rated to carry 4,000 lbs. We put a step on both sides of our frames so the operator can easily climb into the cab. Euro Style and John Deere mounts are available.

Specifications

Product Family: Heavy Duty Pallet Forks
Product: HDFF
Description: Heavy duty class II 48” forks & frame (4000 lbs.)
Fork Tine Length: 42", 48", 60", or 72"
Fork Material: Heat treated
Mount Options: SSL, Euro, & John Deere
Load Capacity: 4,000 lbs.
Notes: Steps on both sides of frame, optional 5,500 lb. capacity

Add To Configuration

IronCraft BRF 180 Offset Flail Mower

Price: $9,199.00

The multi-purpose capability of IronCraft’s BRF series makes it ready to face anything! Even on uneven terrain, it shreds grass, weeds, and brushwood up to 2” in diameter. Robust, yet easy to handle in tight areas, IronCraft's new BRF line is ideal for ripping, leveling, finish grading, and backfilling applications.

Specifications

Product Family: Offset Flail Mowers
Product: BRF-180
Description: BRF-180 Offset Flail Mower
Offset: Offsets to the right
Degree of Tilt: 90 degrees up and 65 degrees down
HP Required: 70-100 hp
Working Width: 71"
# of Hammers: 16
Side Transmission: 4 Belts
Roller Thickness or Diameter: 7.6"
Rotor Thickness or Diameter: 6.3"
Weight: 1565 lbs.
PTO Drive Shaft: Series 6

Add To Configuration

IronCraft BPF 225 Heavy-Duty Flail Mower

Price: $7,099.00

The BPF Series is suitable for tractors from 50 horsepower to 100 horsepower with a Category 2 hitch. It’s a powerful piece of equipment with multi-purpose capability.

Opened deck design for easy maintenance
Double deck design
Hydraulic side shift, rear roller standard
Hammers standard

Specifications

Product Family: BPF Series
Product: BPF-225
Description: 87" Heavy Duty Flail Mower
HP Required: 50 - 100
Working Width: 87"
# of Hammers: 20
Roller Thickness or Diameter: 6.69"
Rotor Thickness or Diameter: 6.69"
# of Belts: 4
Hydraulic Offset: 15"
Overall Width: 96"
Weight: 1726 lbs.
Hitch: Cat 2

Add To Configuration

IronCraft VH-90 Extreme-Duty Gear-Drive Tiller

Price: $6,299.00

The VH series is a suitable for tractors from 75 to 125 horsepower with category 2 or 3 hitch. The VH models are heavy-duty and dependable, cutting through very demanding and stony soils. The speed of the rotor can be adjusted.

Specifications

Product Family: VH Series
Product: VH-90
Description: 90" Extreme Duty Gear Drive Tiller
Rotation: Forward
RPM: 540
HP Required: 75 - 125
Working Width" 90"
Max Working Depth: 9"
# of Flanges on Rotor: 9
# of Tines per Flange: 6
Total # of Tines: 54
Rotor Thickness or Diameter: 3-1/2"
Rotor Swing Diameter: 17"
Overall Width: 95"
Weight: 1557 lbs.
Hitch: Cat 2 or 3

Add To Configuration

IronCraft XBS X-treme Bale Squeezer

Price: $2,799.00

Our X-treme Bale Squeezer is great for anyone moving and stacking large quantities of hay. It features twin 2 1/2″ x 8″ cylinders with a holding capacity of 2,800 lbs. This attachment can also stack two bales at a time and handles 4, 5 or 6 foot bales.

Specifications

Product Family: Bale Squeezer
Product: XBS
Description: X-TREME HAY BALE SQUEEZER
Load Capacity: 2,800 lbs.
Bale Capacity: 4', 5', or 6'
Cylinder Size: Twin 2-1/2" x 8"

Add To Configuration

CID 72" Industrial Root Grapple

Price: $3,299.00

The 72-inch Industrial Root Grapple is the choice for those who need an attachment that will hold up in severe applications. It can handle more material and is more rugged that our other grapples. It's built from 1/2" thick steel plate on the top and bottom, and incorporates 4" square tubing.

Specifications

Features: Hydraulic lines routed inside the tubing to prevent tears; Optional spacer tines
Size: 72"
HP Required: 45 HP to 65 HP
Cylinders: Dual 2" x 10"

*Requires a 3rd function hydraulic valve **Additional freight charges may apply.

Add To Configuration

IronCraft HDGR78 Heavy-Duty Grapple Rake

Price: $3,299.00

Our Grapple Rakes are ideal for raking and loading debris. The shape of the grapple makes it easy to roll debris into tight places. A single grapple or two independent grapples are available. We use American-made cylinders, rated at 4,000 psi, to handle the toughest jobs. Our Heavy Duty Rakes are built with ½” top-quality steel and are rated for 50-70 HP machines.

Specifications

Product Family: Heavy Duty Grapple Rake
Product: HDGR78
Description: Heavy Duty Grapple Rake, 78”
Cylinder Size: 2" x 10" 4,000 psi
RPM: Recommended for 50-70 hp machines
Working Width: 78"
Notes: Available as a single grapple or two independent grapples. Unique design makes it easy to roll debris into tight piles.

Add To Configuration

Vermeer 504R Signature Baler

Price: $46,599.00

The Signature name says it all. The 504R Signature baler gives the working man a baler for any operation. Designed for producers who harvest primarily dry hay but also want the ability to bale silage when the weather isn't on their side. It is built upon the three signature pillars of Vermeer balers — convenience, ease of use and durability. This baler is a twine/net unit with bale ramps.

Features and Benefits

Camless wide pickup: A camless wide pickup with no cam tracks or follower bearings allows for a smooth, quieter operation compared to previous models. This durable, 5-bar pickup is equipped with steel teeth for baling tough or heavy crops and features fewer moving parts to help reduce maintenance and prolong the life of the machine.
3-year pickup warranty: The Vermeer 3-year pickup warranty covers the internal components and includes parts* and labor on the 504R Signature baler. Operators can rest assured the pickup is backed by Vermeer parts and service. *Does not include teeth or hardware for teeth.
More total tines: A 5-bar, camless wide pickup features more total tines to gather the crop for big feeding capacity. This helps minimize the wear on each individual tine and more importantly provides a more efficient, positive start of the crop into the bale chamber. More tines can also equal more crop picked up in the field.
Rotor: An aggressive rotor creates positive bale starts while the auger and feeding system forces crop onto rotating belts and then into the chamber for bale formation. Together, along with the camless wide pickup, this forms square-shouldered, dense bales.
Real-time moisture sensors: Real-time moisture sensors come standard on the 504R Signature baler and provide moisture readings via the Atlas™ control system, giving operators access to real-time moisture information in the tractor cab.
Optional hydraulic pickup lift: An optional hydraulic pickup lift provides convenience for operators switching between multiple fields in a day, eliminating the extra trips in and out of the tractor. Available hydraulic controls allow the operator to easily lift and lower the pickup without getting out of the cab to make sure pickup teeth aren't scraping the ground.
Durable drivetrain: The durable drivetrain handles starting and stopping during operation. The three main drive chains are made with 80 diamond chain to minimize chain maintenance. The upper and lower drive bearings have a 33 percent higher load rating while the clutch's maximum torque rating is 32 percent higher than on previous models. Durable parts allow operators to efficiently bale dry or wet hay.

Bale Size

Bale Diameter: 36 in - 60 in (91.4 cm - 152.4 cm)
Bale Width: 47 in (119.4 cm)
Maximum bale weight: 2000 lbs (907.2 kg)

Dimensions and Weights

Length standard: 156 in (396.2 cm)
Length with net: 173 in (439.4 cm)
Length with ramp: 169 in (429.3 cm)
Height: 107 in (271.8 cm)
Width with standard tires: 100 in (254 cm)
Tires: Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire
Weight fully optioned: 5400 lbs (2449.4 kg)

Bale Forming Chamber

Drive Roller Size: 4.78 in (12.1 cm)
Idler roller size: 3.5 in (8.9 cm)
Start Roller Size: 4.5 in (11.4 cm)
Belt Type: Standard mini rough top
Number of Belts: 6
Width of Belt: 6.8 in (17.3 cm)
Length of belt (long): 465.5 in (1182.4 cm)
Length of belt (short): 455.5 in (1157 cm)
Type of Lace: Alligator rivet
Silage kit: Optional

Drive System

Driveline: 540 rpm, standard lube, friction clutch
Torque protection pickup: Radial pin clutch
Roller chains: Single 60 and 80
Bearing and Sprocket Configuration: Round drive shafts and bearings

Tractor Requirements

PTO horsepower minimum: 45 hp (33.6 kw)
PTO horsepower recommended: 55 hp (41 kw)

Pickup

Pickup type: Camless wide
Width tooth to tooth: 60 in (152.4 cm)
Tooth Bars: 5
Number of Teeth: (60) double steel coil
Teeth spacing: 2.83 in (7.2 cm)
Stripper bands: Steel
Flotation: Gauge wheels 4.8-16 HD semi-pneumatic with spring assist
Pickup Lift: Manual standard, hydraulic optional
3-year pickup warranty: Standard

Control System

Control system type: Atlas™ control system
Display: 4.3 in (10.9 cm) color touch screen
Field Statistics: 10 fields
Bale shape indicators: Standard
Moisture: Standard - up to 27%
Bales per hour: Standard

Density

Bale density adjustments: Standard manual through hydraulic relief valve
Density readings: Physical gauge

Bale Tie System

Twine system: Optional
Netwrap system: Optional
Net tension control: via mechanical adjustment
Extra roll storage: Standard

Features

Bale ramp: Optional spring-loaded
Right-hand door: Standard
Fire extinguisher, safety chain: Optional

Add To Configuration

Vermeer 504R Premium Baler

Price: $49,699.00

The Vermeer 504R Premium baler is fully loaded and comes standard with a silage kit specially designed for high output of high-moisture crops. This package offers more capacity in heavy crops and produces good looking bales in tough conditions. Silage or not, this is your first-class baler. This baler is a twine/net unit with bale ramps.

Features and Benefits

Standard silage kit: As baleage gains popularity across North America, operators demand a baler that is specially designed and built to handle it. The 504R Premium comes with a standard silage kit, ready for your high-moisture hay needs.
Heavy-duty components: With heavy-duty components, like “rock" belts, optional endless belts and optional float tires, this baler is designed for maximum productivity and output.
Atlas control system: The Atlas™ control system delivers robust performance in a simple and intuitive package. A 4.3-in (10.9-cm) color touchscreen displays everything you need to bale and allows operators to enter field statistics to track bales per hour and average bale size. Optional features include ability to see bale shape on the display as well as real-time moisture readings.
Camless wide pickup: The 504R Premium comes equipped with a 60-in (152.4-cm) camless wide pickup. This pickup has minimal moving parts to help minimize maintenance and parts costs.
3-year pickup warranty: A 3-year pickup warranty covering internal components and parts and labor assures operators their baler is built to last. *Does not include teeth or hardware for teeth.

Bale Size

Bale Diameter: 36 in - 60 in (91.4 cm - 152.4 cm)
Bale Width: 47 in (119.4 cm)
Maximum bale weight: 2000 lbs (907.2 kg)

Dimensions and Weights

Length standard: 156 in (396.2 cm)
Length with net: 173 in (439.4 cm)
Length with ramp: 169 in (429.3 cm)
Height: 111 in (281.9 cm)
Width with standard tires: 100 in (254 cm)
Tires: Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire
Weight fully optioned: 5460 lbs (2476.6 kg)

Bale Forming Chamber

Drive Roller Size: 4.78 in (12.1 cm)
Idler roller size: 3.5 in (8.9 cm)
Start Roller Size: 4.5 in (11.4 cm)
Belt Type: Premium mini rough top or endless
Number of Belts: 6
Width of Belt: 6.8 in (17.3 cm)
Length of belt (long): 465.5 in (1182.4 cm)
Length of belt (short): 455.5 in (1157 cm)
Type of Lace: Alligator rivet or no laces (endless belts)
Silage kit: Standard

Drive System

Driveline: 540 rpm, extended lube, friction clutch
Torque protection pickup: Radial pin clutch
Roller chains: Single 60 and 80
Bearing and Sprocket Configuration: Round drive shafts and bearings

Tractor Requirements

PTO horsepower minimum: 55 hp (41 kw)
PTO horsepower recommended: 65 hp (48.5 kw)

Pickup

Pickup type: Camless wide
Width tooth to tooth: 60 in (152.4 cm)
Tooth Bars: 5
Number of Teeth: (60) double steel coil
Teeth spacing: 2.83 in (7.2 cm)
Stripper bands: Steel
Flotation: Gauge wheels 4.8-16 HD semi-pneumatic with spring assist
Pickup Lift: Hydraulic
3-year pickup warranty: Standard

Control System

Control system type: Atlas™ control system
Display: 4.3 in (10.9 cm) color touch screen
Field Statistics: 10 fields
Bale shape indicators: Standard
Moisture: Standard - up to 27%
Bales per hour: Standard

Density

Bale density adjustments: Standard manual through hydraulic relief valve
Density readings: Physical gauge

Bale Tie System

Twine system: Optional
Netwrap system: Standard
Net tension control: via mechanical adjustment
Extra roll storage: Standard

Features

Bale ramp: Spring-loaded
Auto Lube greasing system: Optional
Grease bank: Standard
Right-hand door: Standard
LED maintenance lights: Optional
Fire extinguisher, safety chain: Optional

Add To Configuration

Options

iR1 Agricultural Tires: $0.00

iFactory 3rd Function Kit: $1,899.00

i4th Remote Hydraulic Valve (Detent/Float): $1,299.00

iFront Working Light Kit: $369.00

iRear Working Light Kit: $199.00

iFront Fender Kit: $699.00

iFront Weight Kit: $2,399.00

iCooler/Heater Kit: $499.00

iLoader Bolt On Cutting Edge: $399.00

HX R1 Agricultural Tires

The traditional agriculture tractor tire is best suited for traction in dirt and mud. It's also a great choice for hillside traction. The size of these tires for the HX series is as follows: 13.6 x 24 front / 18.4 x 34 rear with weighted cast center dish.

Add To Configuration

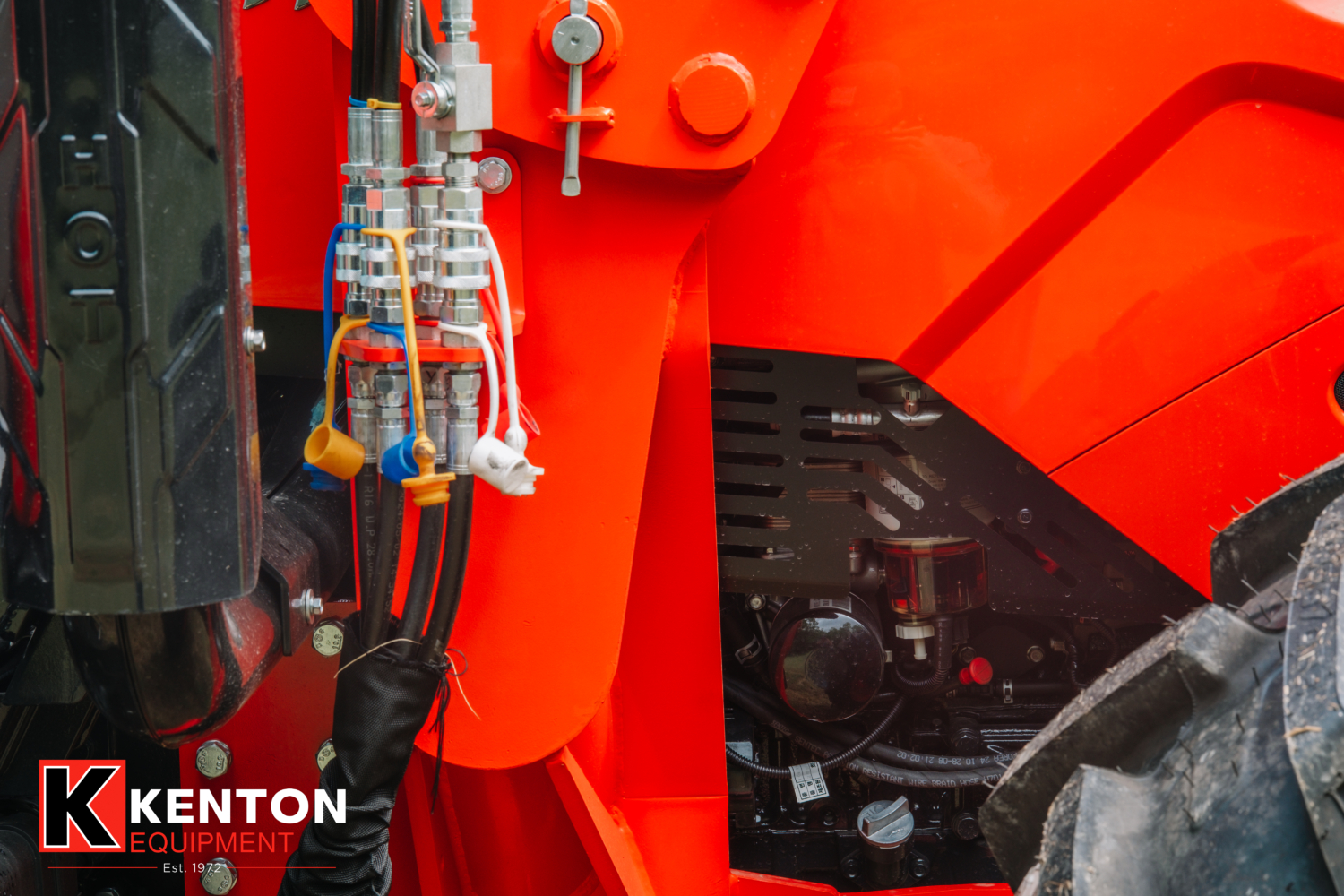

HX 3rd Function Kit

Price: $1,899.00

Add an additional hydraulic function to front loader for running loader mounted implements with hydraulic functions such as grapples, post hole diggers, rotary cutters, etc.

Add To Configuration

HX 4th Remote Hydraulic Valve (Detent/Float)

Price: $1,299.00

Add a 4th rear hydraulic remote set with locking detent operation and float position.

Add To Configuration

HX Front Working Light Kit

Price: $369.00

Add an additional front working light kit.

Add To Configuration

HX Rear Working Light Kit

Price: $199.00

Add an additional rear working light.

Add To Configuration

HX Front Fender Kit

Price: $699.00

Add fenders for front wheels to reduce slung debris from front tires towards cab.

Add To Configuration

HX Front Weight Kit

Price: $2,399.00

Front suitcase weight kit with bracket.

Adds 1.102 lb. (500 kg)
NOT COMPATIBLE WITH LOADER

Add To Configuration

HX Cooler/Heater Kit

Price: $499.00

Add a convenient cooler/heater kit with wireless charging inside tractor cab.

Add To Configuration

HX Loader Bolt On Cutting Edge

Price: $399.00

Get additional protection for your bucket edge with easy bolt on installation. Edge is reversible.

Add To Configuration

KIOTI Cash Back Program

ALL prices listed in the builder utilize the KIOTI Low-Rate Program. For the lowest cash price, customers may choose to take advantage of the KIOTI Cash Back Program. A $5000 cash rebate is available for the KIOTI HX Series. This program cannot be combined with the KIOTI Low-Rate Program. Standard financing rates apply. GIVE US A CALL OR STOP BY TO DISCUSS THIS OPTION.

Product total

Options total

Grand total

HX1302 Cab quantity

Calculate Your Payment Estimate

Description
Video

Engine

Cylinders: 4
Horsepower: 130.1 bhp; 97 kW
Cooling: Liquid
Displacement: 233.9 ci
Compression Ratio: 22:1
Alternator Amps: 50
Fuel Type: Diesel
Carburetion Type: Fuel Injected

Transmission

Transmission Type: Power Synchro-Shift
Maximum Forward Speed: 25.2 mph; 40.5 kph

Drive Line

Driveline Type: 4X4

Technical Specifications

Length: 177.9 in; 4517.9 mm
Width: 89.3 in; 2267 mm
Height: 114.4 in; 2906 mm
Wheelbase: 102.4 in; 2599.9 mm
Ground Clearance: 19.5 in; 495.3 mm
Dry Weight: 11660 lbs; 5288.9 kg
Fuel Capacity: 60.7 gal; 229.8 l

Wheels & Tires

Front Tire (Full Spec): 13.6 x 24
Rear Tire (Full Spec): 18.4 x 34

Brakes

Front Brake Type: Wet Disc
Rear Brake Type: Wet Disc

Instrumentation

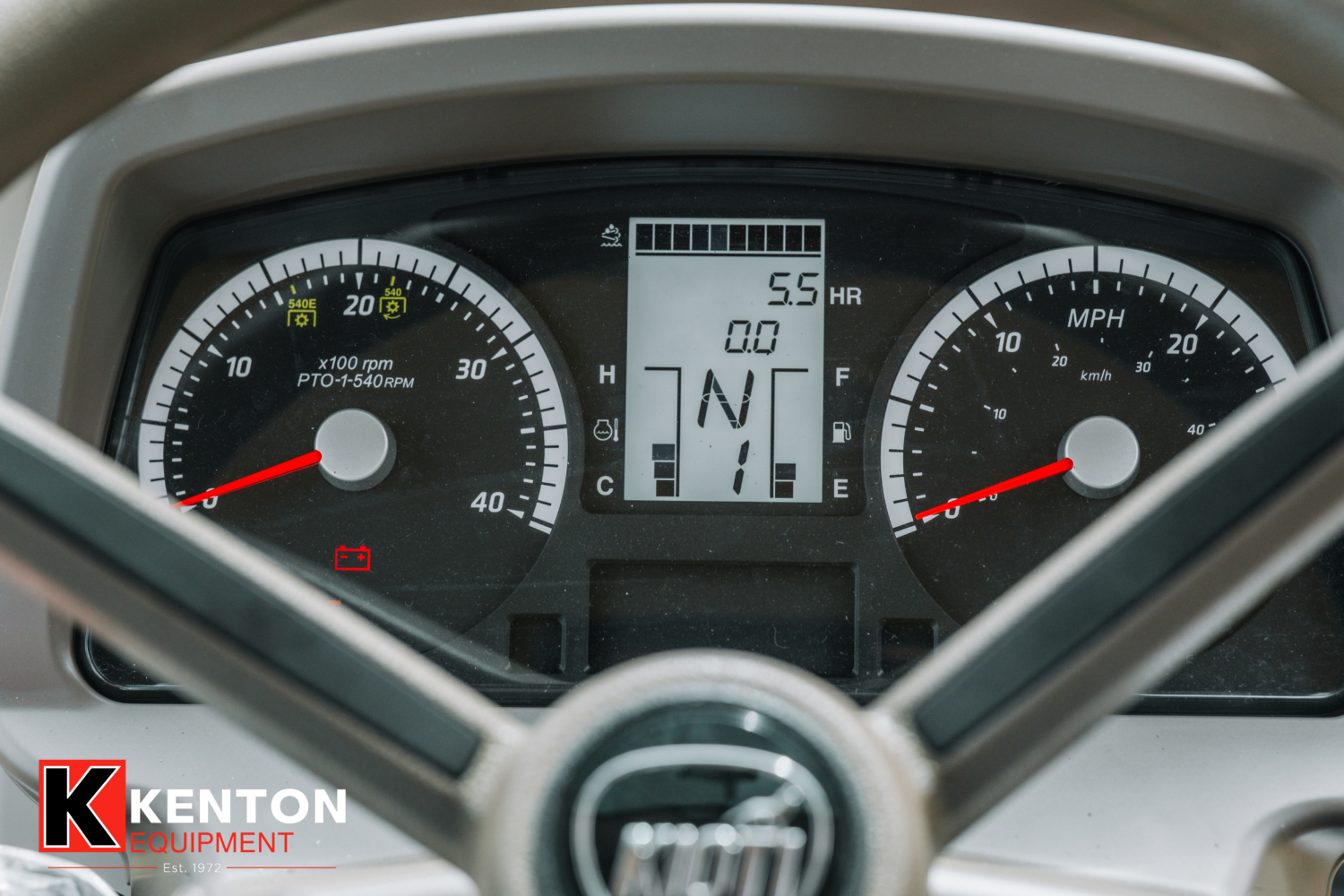

Tachometer: Standard

Price includes all dealer set up. FREE LOCAL DELIVERY!

Engine

Transmission

Drive Line

Technical Specifications

Wheels & Tires

Brakes

Instrumentation

Independence, KY

Dry Ridge, KY

Equipment Builder

HX1302 Cab

Calculate Your Payment Estimate

Email Me My Quote

Apply For Financing

Price includes all dealer set up. FREE LOCAL DELIVERY!

KIOTI KL1155 Front-End Loader

Standard Features

Specifications

Bush Hog 2120 Flex-Wing Rotary Cutter

Key Features

Performance Features

Construction Features

Safety Features

Specifications

Bush Hog 4115 Flex-Wing Rotary Cutter

Performance Features

Construction Features

Safety Features

Specifications

IronCraft 96" Heavy-Duty Box Blade

Specifications

IronCraft 3708 Heavy-Duty Dual Edge Grader

Specifications

IronCraft 96" Heavy-Duty Grader Blade

Specifications

Bush Hog 181 9-Foot Rear Mounted Blade

Specifications

Vermeer 604R Signature Baler

Features and Benefits

Bale Size

Dimensions and Weights

Bale Forming Chamber

Drive System

Tractor Requirements

Pickup

Control System

Density

Bale Tie System

Features

IronCraft Single Hay Spear

Specifications

IronCraft Heavy-Duty Pallet Forks & Frame

Specifications

IronCraft BRF 180 Offset Flail Mower

Specifications

IronCraft BPF 225 Heavy-Duty Flail Mower

Specifications

IronCraft VH-90 Extreme-Duty Gear-Drive Tiller

Specifications

IronCraft XBS X-treme Bale Squeezer

Specifications

CID 72" Industrial Root Grapple

Specifications

IronCraft HDGR78 Heavy-Duty Grapple Rake

Specifications

Vermeer 504R Signature Baler

Features and Benefits

Bale Size

Dimensions and Weights

Bale Forming Chamber

Drive System

Tractor Requirements

Pickup

Control System

Density

Bale Tie System

Features

Vermeer 504R Premium Baler

Features and Benefits

Bale Size

Dimensions and Weights

Bale Forming Chamber

Drive System

Tractor Requirements

Pickup

Control System

Density

Bale Tie System

Features

KIOTI
CS2220 HST

KIOTI
NS4710 HST

KIOTI
RX7320 Power Shuttle Cab

KIOTI
DK4720SE HST
