FEATURES
- KIOTI Diesel Engine: The new 24.5 hp (18.2 kW) diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.
- High Capacity Hydraulic Pump: The high capacity, efficient tandem hydraulic pump gives you smoother handling in heavy-duty working conditions and helps to reduce operator fatigue.
- Power Steering: Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.

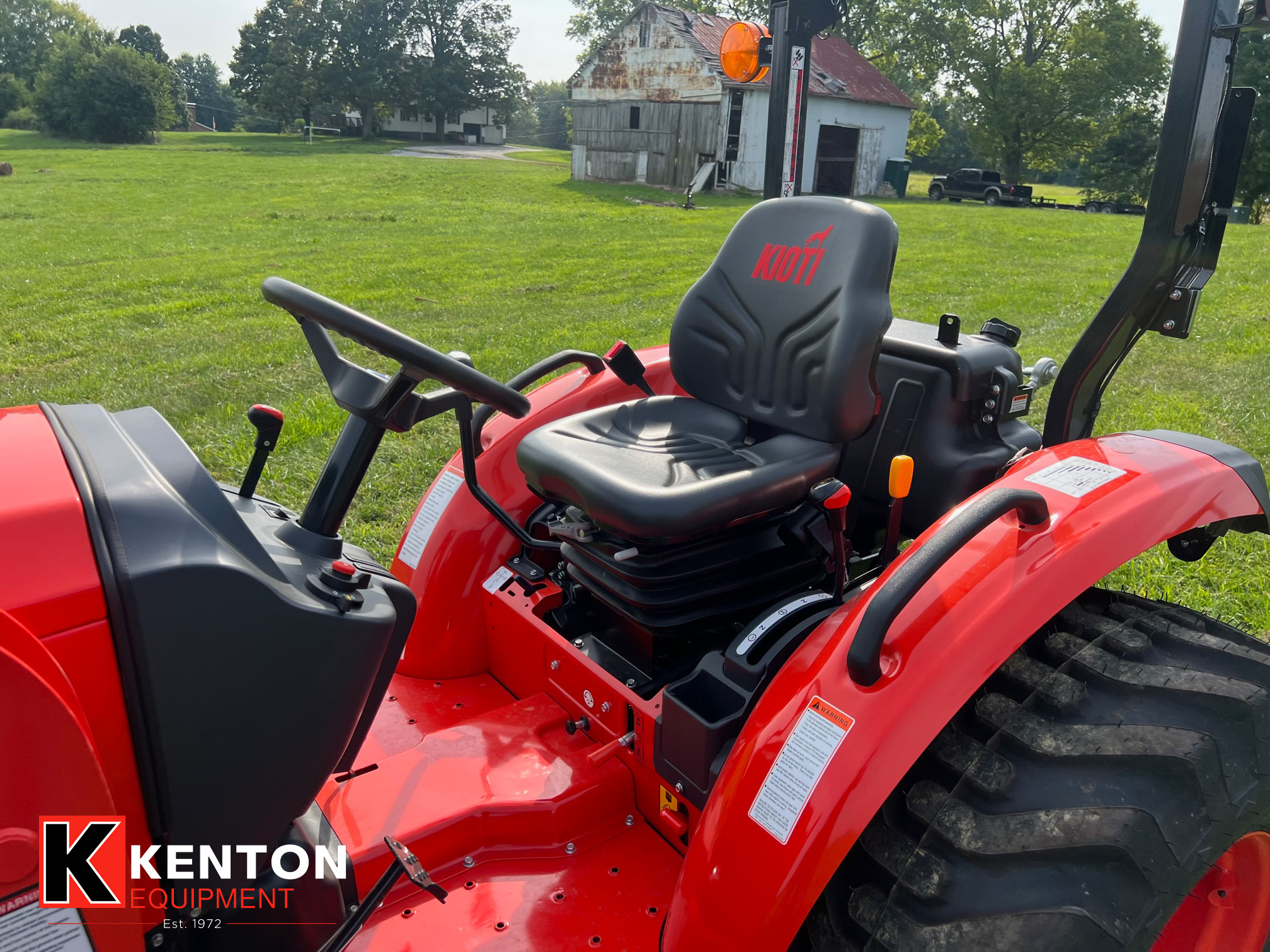

- Deluxe Seat: A fully adjustable suspension seat allows the operator to ride in comfort no matter what the job. A retractable seatbelt is standard on all KIOTI tractors to ensure operator safety.
- Rear PTO: Rear PTO is standard and mid PTO is optional. You can select the rear or mid PTO separately or simultaneously.

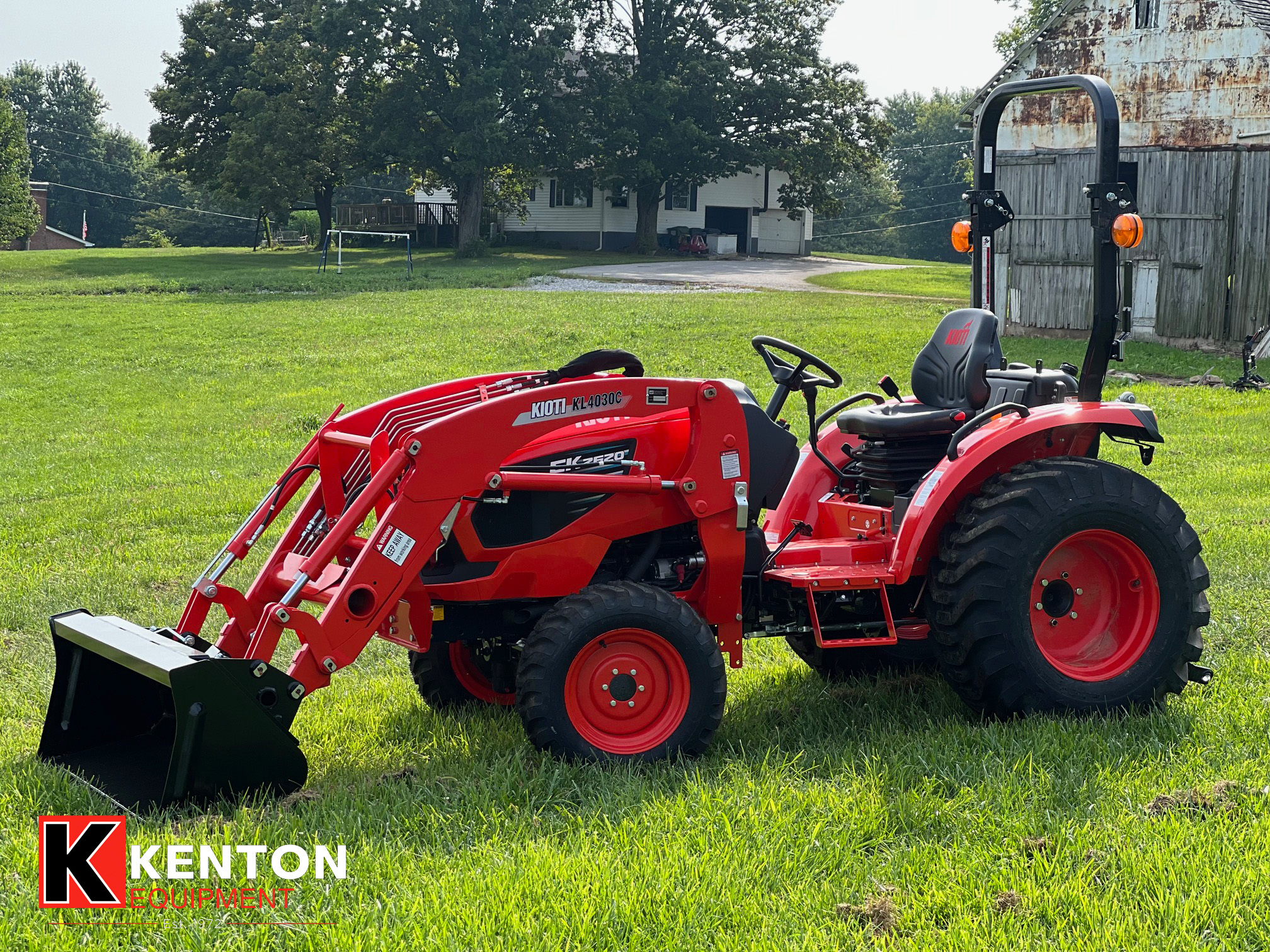

- Single Lever Joystick: The operation of the front end loader is made easier by the use of a single lever joystick. The joystick allows you to perform all loader functions with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. A float position allows the bucket free flotation over the ground surface.
- Foldable ROPS: A fold-down roll bar allows you to move into tight areas quickly and easily.
- Simple Maintenance: KIOTI tractors are designed for easy maintenance. Liftable hoods and removable side panels allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.

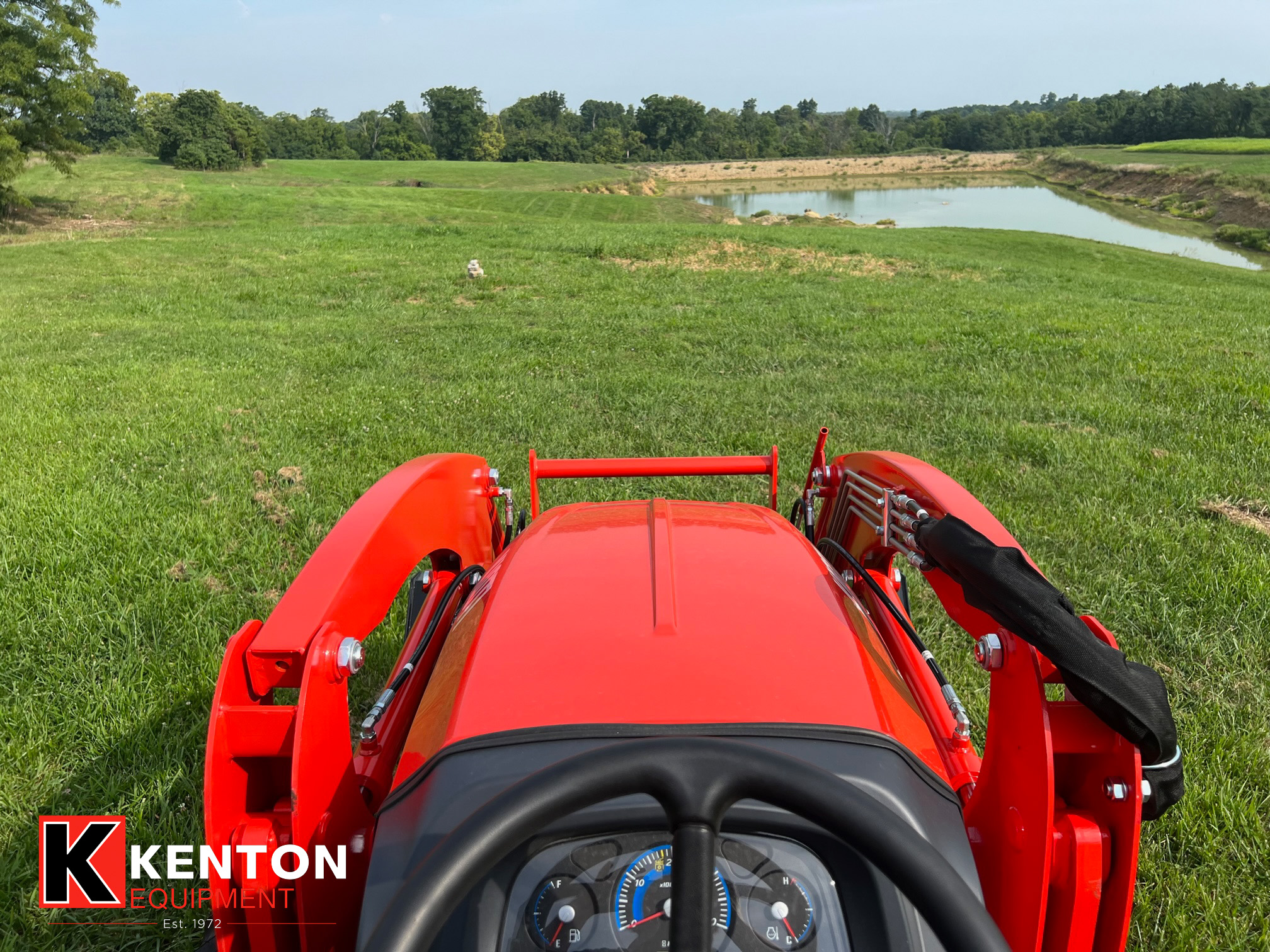

- Center Marker: The center marker on the hood assists with maintaining straight rows.
- High Ground Clearance: The minimum ground clearance of 13.4 in. makes usage on rocky or uneven terrain simpler.
- Illuminated Dashboard: The illuminated dashboard ensures great visibility while working in bright daylight or at night. The operator can check important instrumentation at a glance with an easy-to-see tachometer, hour meter, fuel temperature gauge and battery charge lamp.
- 3-Point Control Lever: The 3-point control lever allows you to easily raise and lower the lift arms when attaching implements.
- HST Transmission with Twin HST Pedals: HST models feature performance proven, heavy-duty HST drives that deliver power and efficiently. The three range transmission (Hi/Mid/Low) with twin pedal operation makes your job easier, smoother and safer.
ENGINE
- Engine Model: 3A165LWM-U
- Engine Gross Power: 24.5 HP (18.2 kW)
- Rated Speed: 2,400 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Aspiration: Natural
- Displacement: 100.5 cu. in. (1,647 cc)
- Fuel Tank Capacity: 9 gal. (34 L)
TRANSMISSION
- Transmission Type: Hydrostatic
- No. of Travel Speeds – Forward / Reverse: Infinite, 3 Range
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0.75 mph (1.21 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 9.79 mph (15.75 km/h)
POWER TAKE-OFF (PTO)
- PTO Type Trans: Live
- PTO Power: 21.5 hp (16 kW)
- Rear PTO Speeds (1st): 540 rpm
- Mid PTO Speeds: 2,000 rpm (Optional)
BRAKES AND CLUTCH
- Brakes: Wet Multi Disc
- Clutch: Dry Dual Stage
DIMENSIONS W/AG TIRE
- Length w/ 3-point hitch: 120.9 in. (3,070 mm)
- Width: 54.5 in. (1,385 mm)
- Height from Top of ROPS: 92.91 in. (2,260 mm)
- Wheelbase: 65.7 in. (1,670 mm)
- Ground Clearance: 13.39 in. (340 mm)
- Front Tread Ag Tires – Min: 48.2 in (1,225 mm)
- Rear Tread Ag Tires – Min: 47.6 in. (1,210 mm)
- Min. Turning Radius w/ Brake: 107 in. (2,730 mm)
HYDRAULICS
- Total Pump Flow: 11.7 gpm (44.4 L/min)

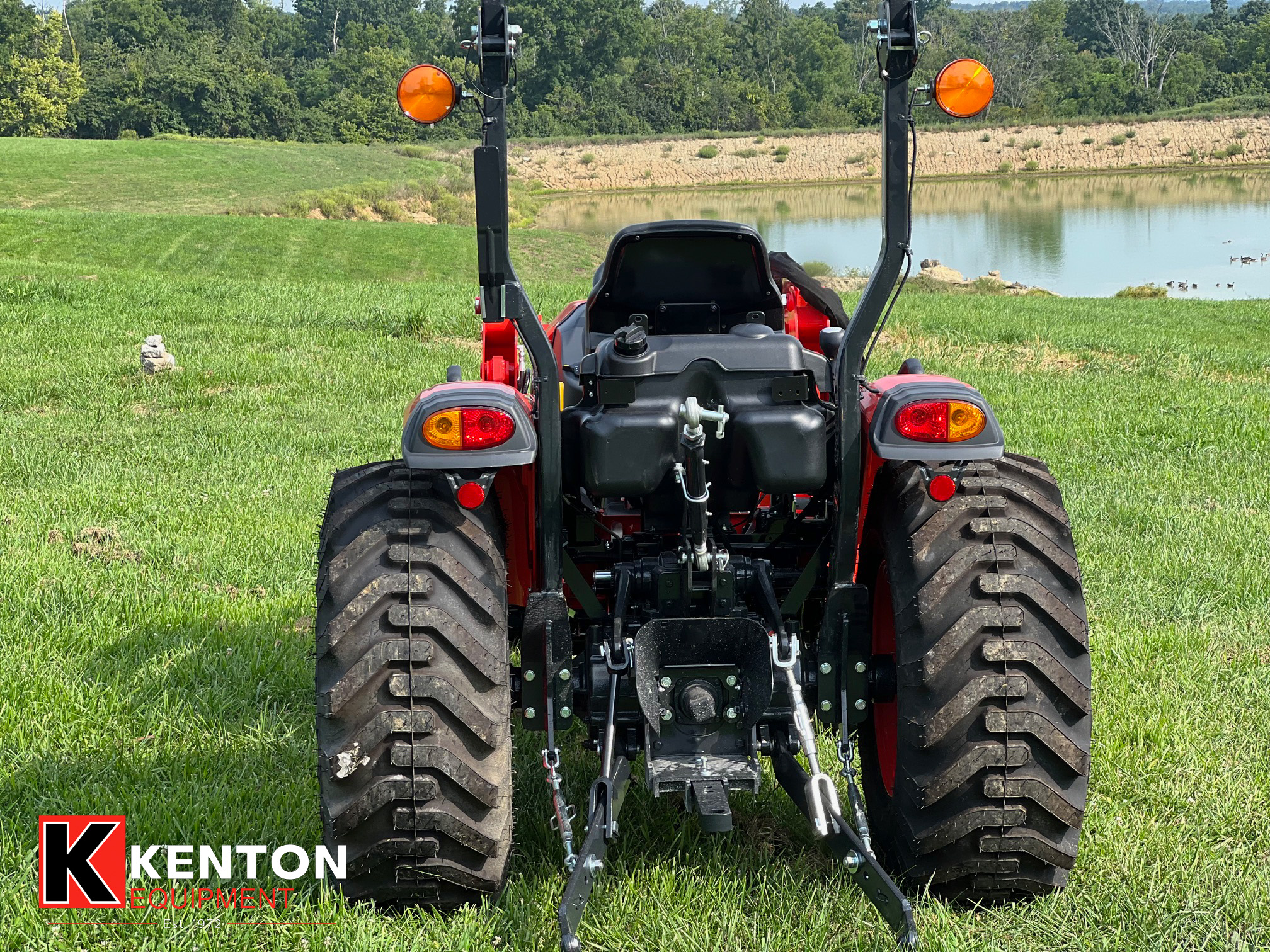

3-POINT HITCH
- Standard Category: Category 1
- Lift Capacity, 24″ aft of hitch: 1,631 lb. (740 kg)
- Control Type: Position
WEIGHT
- Weight w/ Ag Tires w/ ROPS: 2,635 lb. (1,195 kg)
STANDARD EQUIPMENT
- Power Steering
- Rear PTO
- Wet Multi Disc Brakes
- Joystick Valve
- Drawbar
- Headlights
- Parking Brake
- PTO Shield
INSTRUMENT PANEL
- Digital Hour Meter
- Coolant Temperature Gauge
- Electrical Tachometer
- Fuel Gauge
- Engine Oil Pressure Light
- High Beam, Emergency Flasher, Direction Indicators
- Glow Plug Light
- Alternator Light
