MAIN FEATURES
- Engine Gross Power: 50.3 hp (37.5 kW)
- PTO Type: Independent
- Transmission Type: Synchronized Shuttle
- Shuttle: Dry Single Stage
- Open Station (ROPS)
- Rear differential lock
- Push-button hydraulic independent PTO
- Category I three-point hitch
- PTO guard
FEATURES
- KIOTI Diesel Engine: The new Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the DK10 Series offers the operator a quiet work environment with powerful performance.

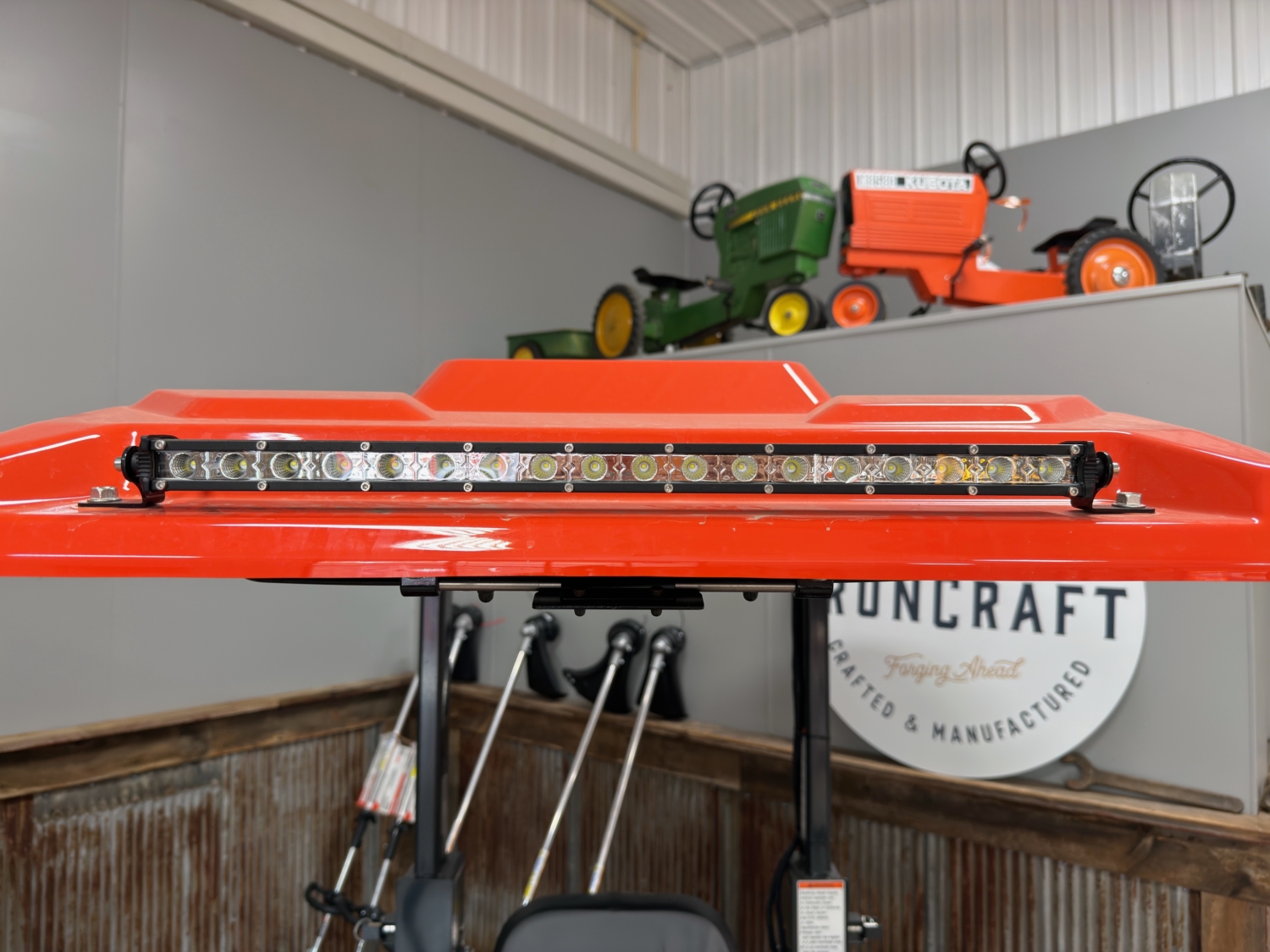

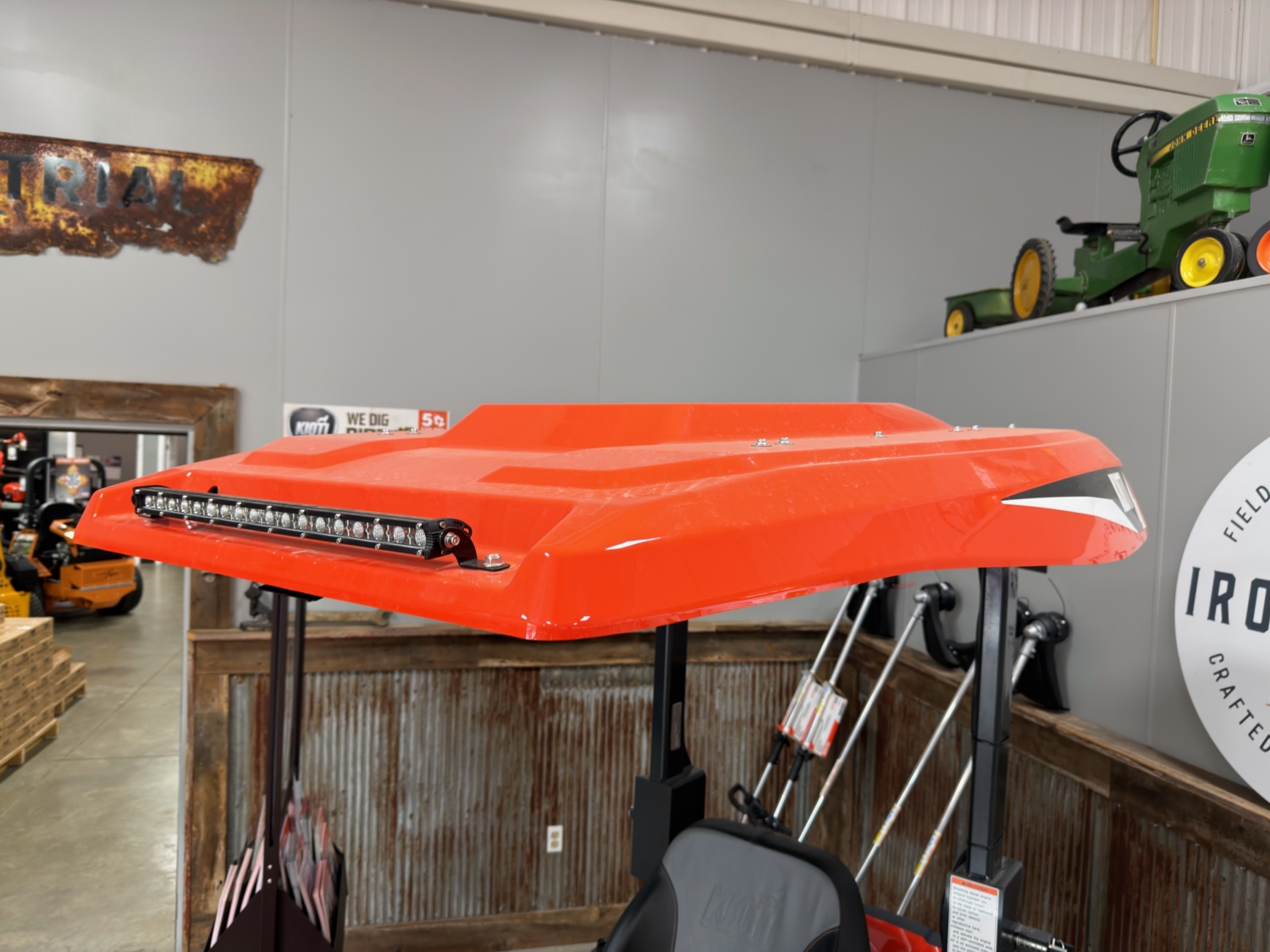

- Projection and Working Lamp: With the new projection head and working lamp, the operator will experience safer and easier operation after the sun goes down.

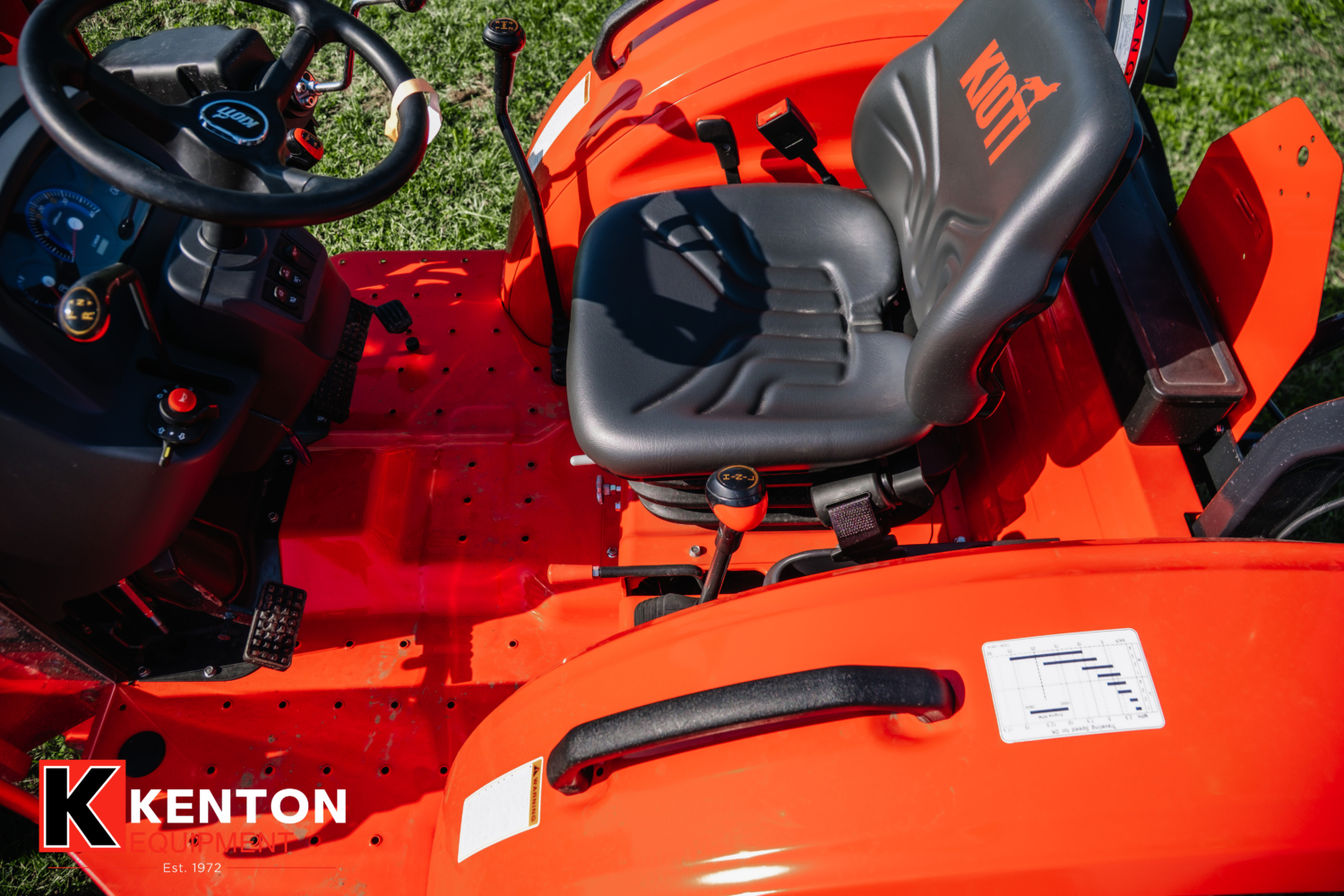

- Deluxe Suspension Seat: Ergonomically designed, fully adjustable suspension seat allows the operator to ride in comfort no matter what the task may be. A pocket on the back of the seat allows easy access for the operator’s manual.
- Large Capacity Hydraulic Pump: The large capacity hydraulic pump (14.5 gpm) combined with high lift capacity (2,716 lbs.) increases productivity.
- PTO Cruise: With the electronically controlled engine, the PTO rpm can be maintained at the set value even with variable load conditions.

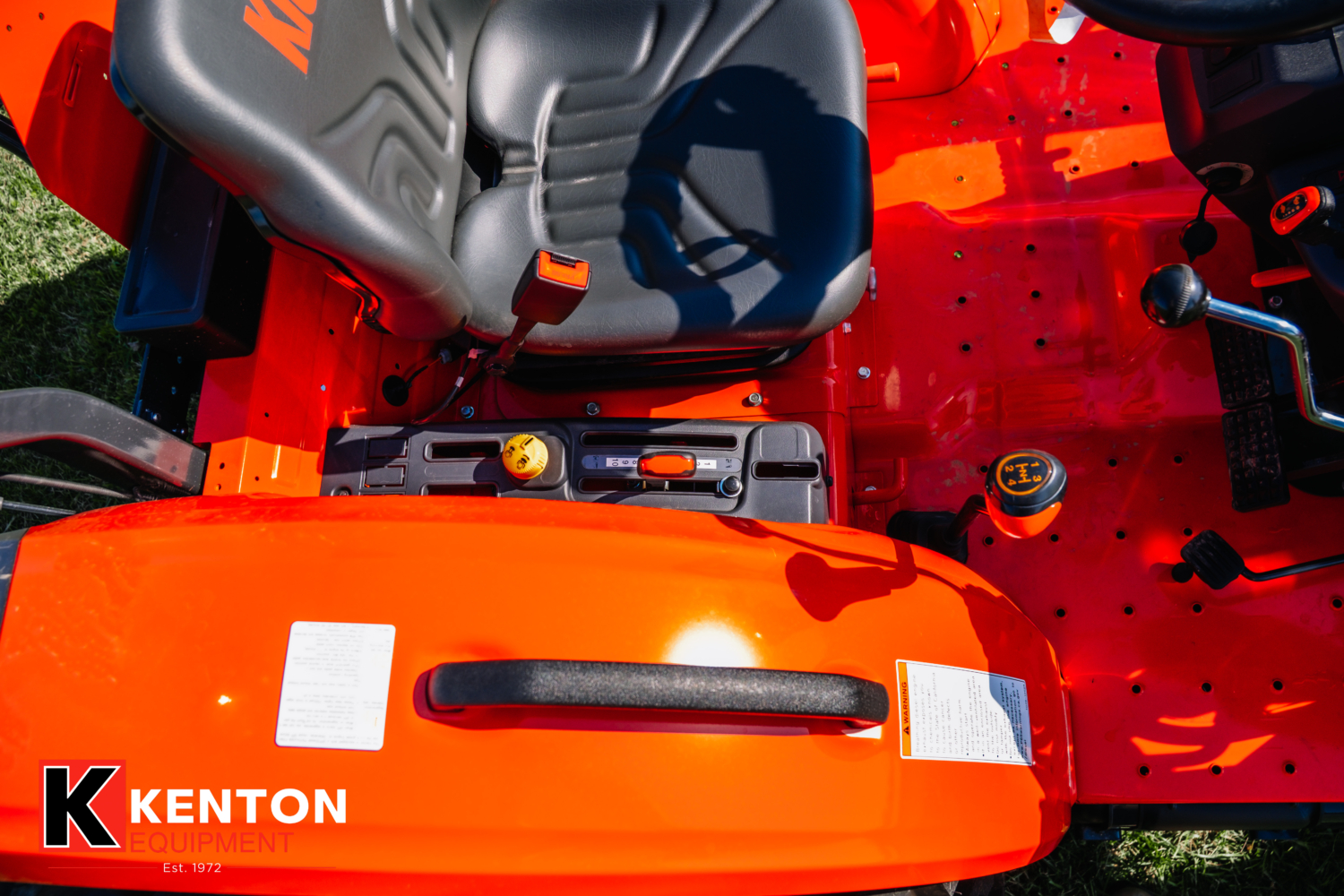

- Fender Grip: The fender grip, available on both sides, makes it easier get in and out of the tractor.
- Tail Lamp: The stylish tail lights improve operator safety by increasing visibility of the operator.
- High Ground Clearance: The maximum ground clearance of 15.2 in. (387 mm) makes usage on rocky or uneven terrain simpler.
- Center Marker: The center marker on the hood assists with maintaining straight rows.

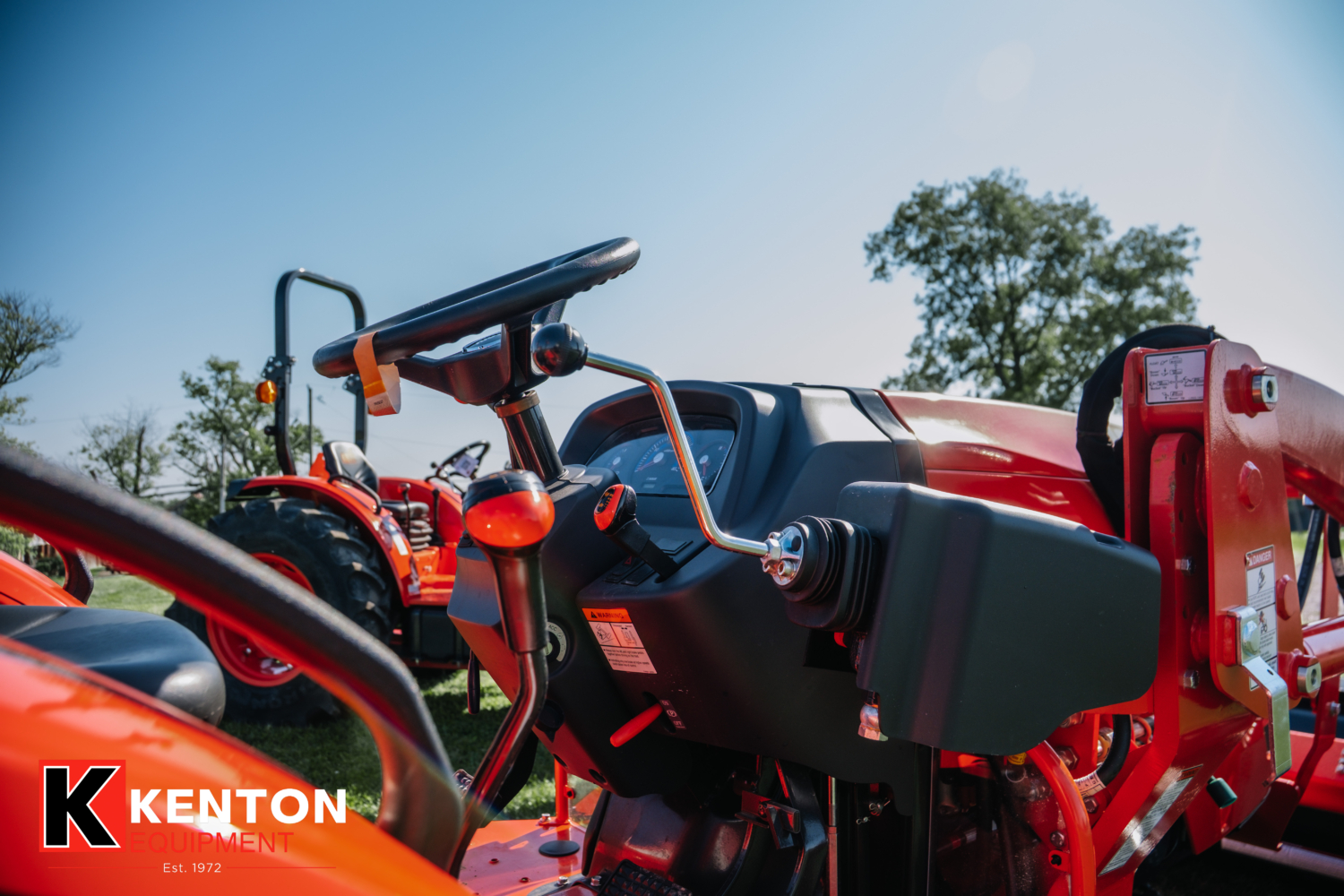

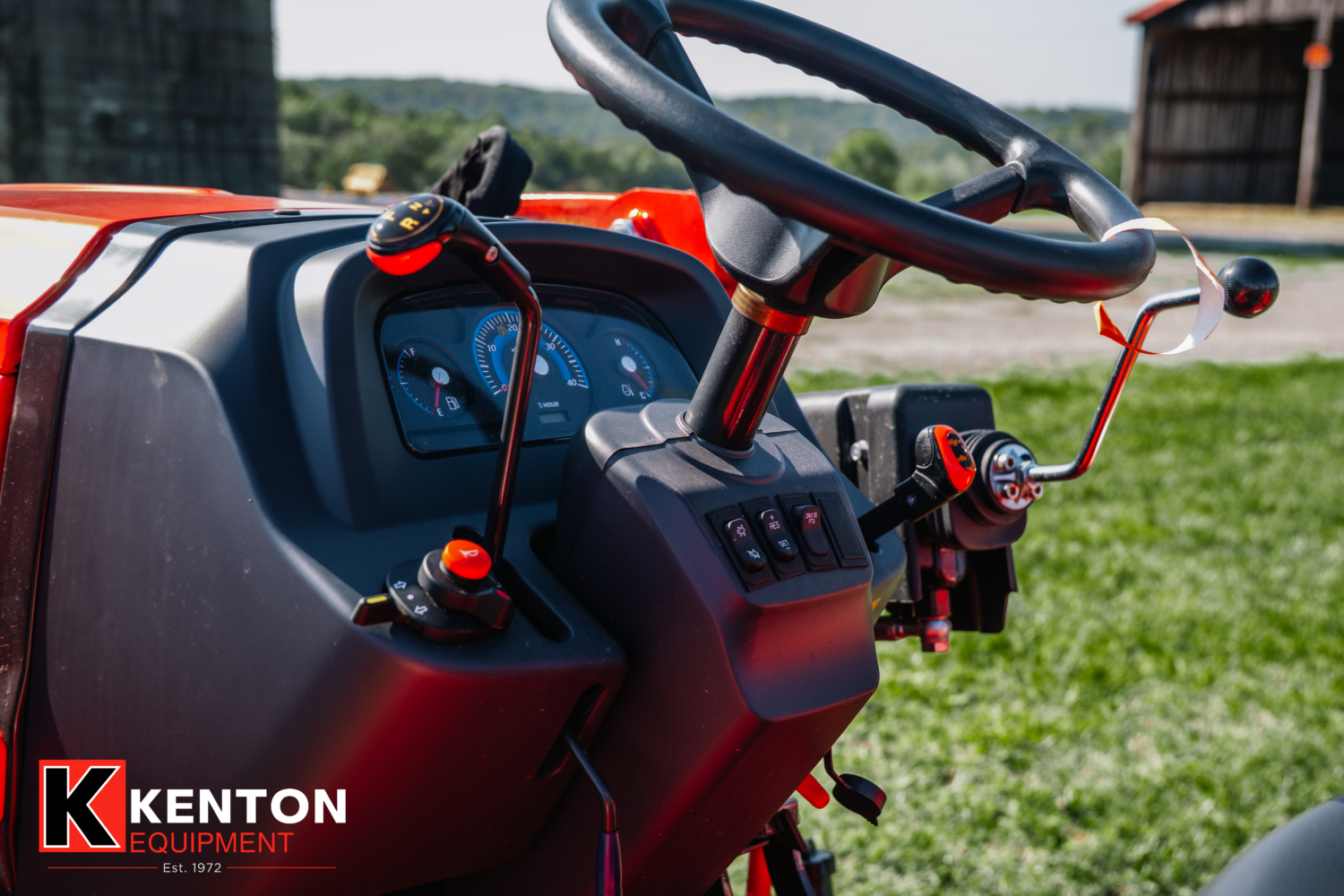

- Power and Tilt Steering: The standard power steering minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of a lever, allowing easy adjustment to fit the operator needs.
ENGINE
- Engine Model: 3HT-TM4B
- Engine Gross Power: 50.3 hp (37.5 kW)
- Rated Speed: 2,600 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Aspiration: Natural
- Displacement: 111.4 cu.in. (1,826 cc)
- Fuel Tank Capacity: 11.9 gal. (45 L)
TRANSMISSION
- Transmission Type: Synchro Shuttle
- Shuttle: Dry Type Single Stage
- Main Gear:
- No. of Travel Speeds – Forward / Reverse: 8 x 8
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 2.08 mph (3.35 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 26.9 mph (43.3 km/h)
POWER TAKE-OFF (PTO)
- PTO Type Trans: Independent
- PTO Power: 45.6 hp (34 kW)
- Rear PTO Speeds (1st): 540 rpm
BRAKES AND CLUTCH
- Brakes: Wet Multi Disc
- Clutch: Dry Single Plate
DIMENSIONS W/AG TIRE
- Length w/3-point hitch: 124.3 in. (3,157 mm)
- Width: 62.8 in. (1,596 mm)
- Height from Top of ROPS Cab: 96.8 in. (2,458 mm)
- Wheelbase: 71.3 in. (1,810 mm)
- Ground Clearance: 14.5 in. (368 mm)
- Front Tread Ag Tires – Min: 49.4 in. (1,254 mm)
- Rear Tread Ag Tires – Min: 49.3 in. (1,254 mm)
- Turning Radius w/ Brake: 102.8 in. (2,610 mm)
HYDRAULICS
- Pump: Gear
- Pump Capacity (Max. Flow Rate): 14.56 gpm (55.1 L/min)

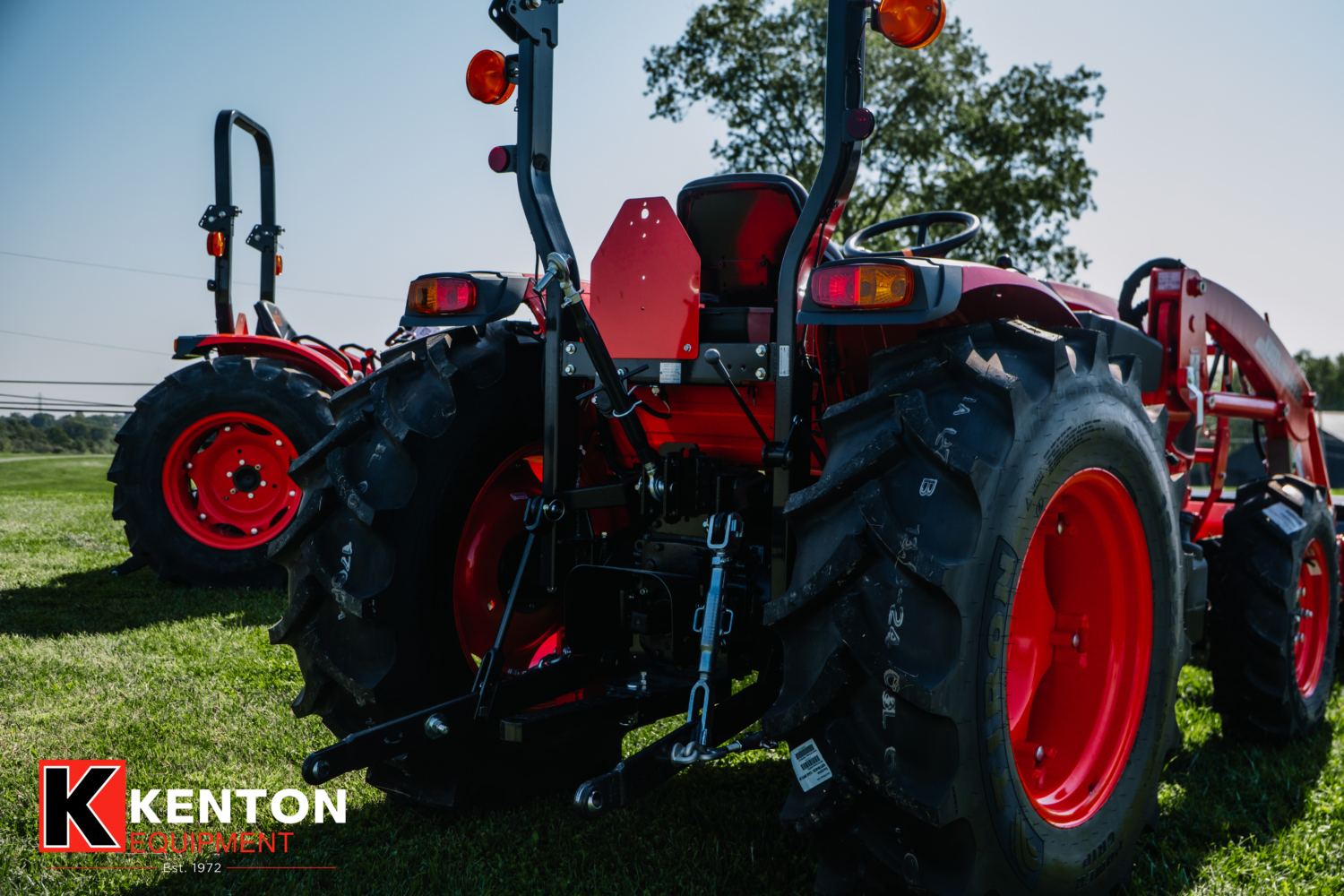

3-POINT HITCH
- Standard Category: Category II
- Lift Capacity, 24″ aft of hitch: 2,716 lbs. (1,232 kg)
- Control Type: Position
WEIGHT
- Weight with Ag Tires: 3,373 lbs. (1,530 kg)
STANDARD EQUIPMENT
- Power Steering
- Rear PTO
- Wet Multi Disc Brakes
- Drawbar
- Headlights
- Parking Brake
- PTO Shield

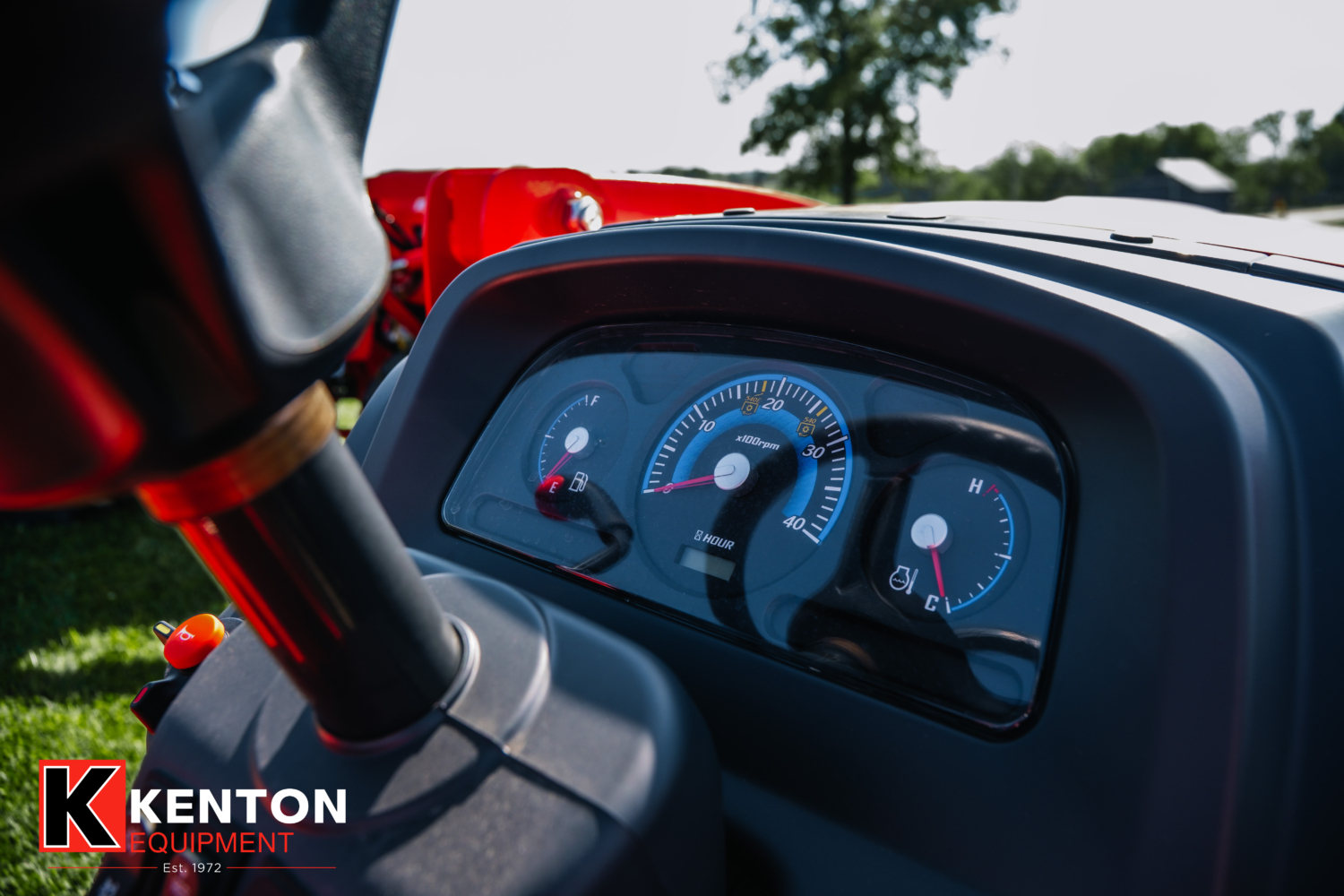

INSTRUMENT PANEL
- Tachometer with Hour Meter
- Fuel Gauge
- Temperature Gauge
- Oil Pressure Indicator
- PTO Indicator
- Low Fuel Indicator
- Hydraulic Warning
- Glow Plug Indicator
- Low Coolant Indicator
- Parking Brake Indicator
