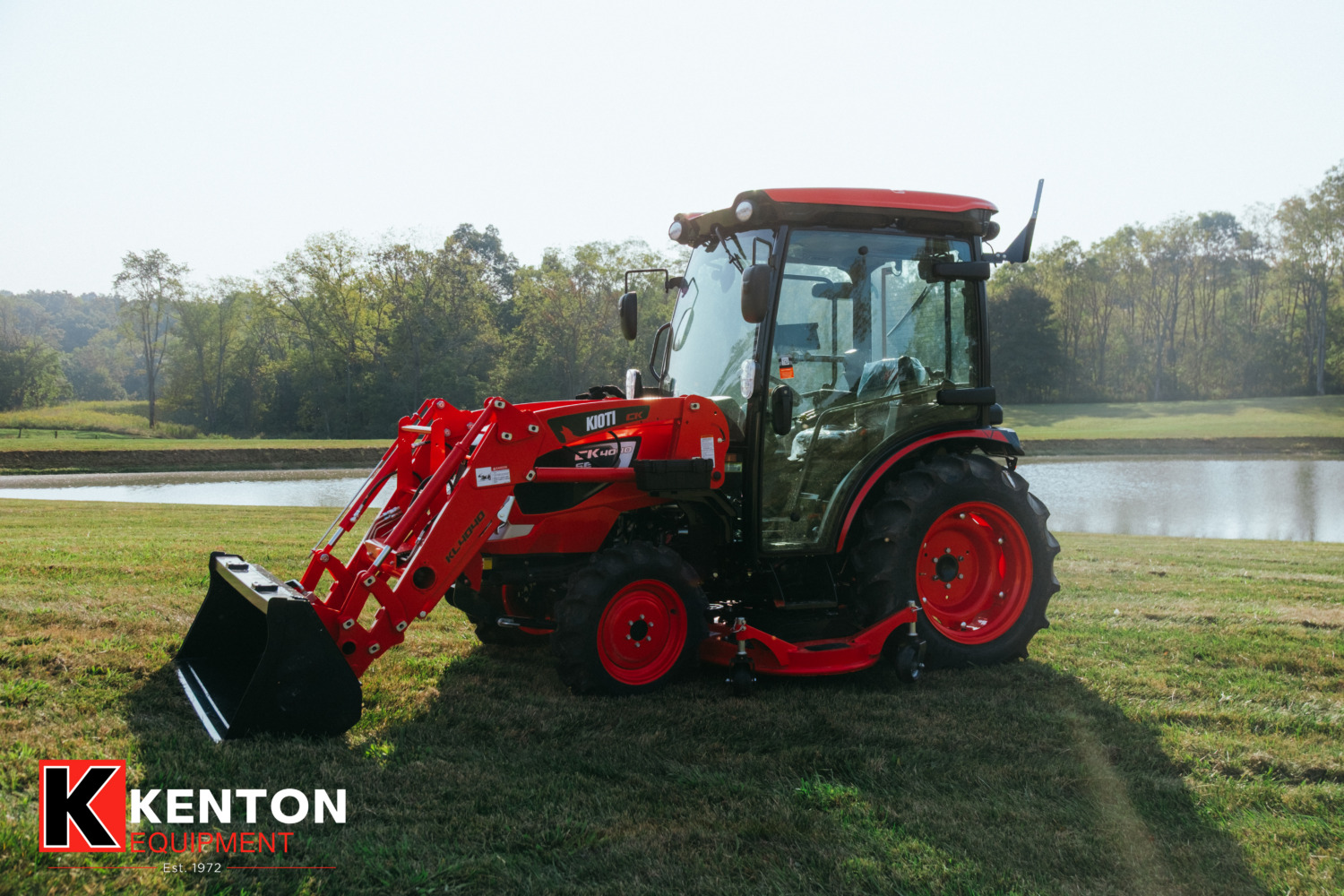

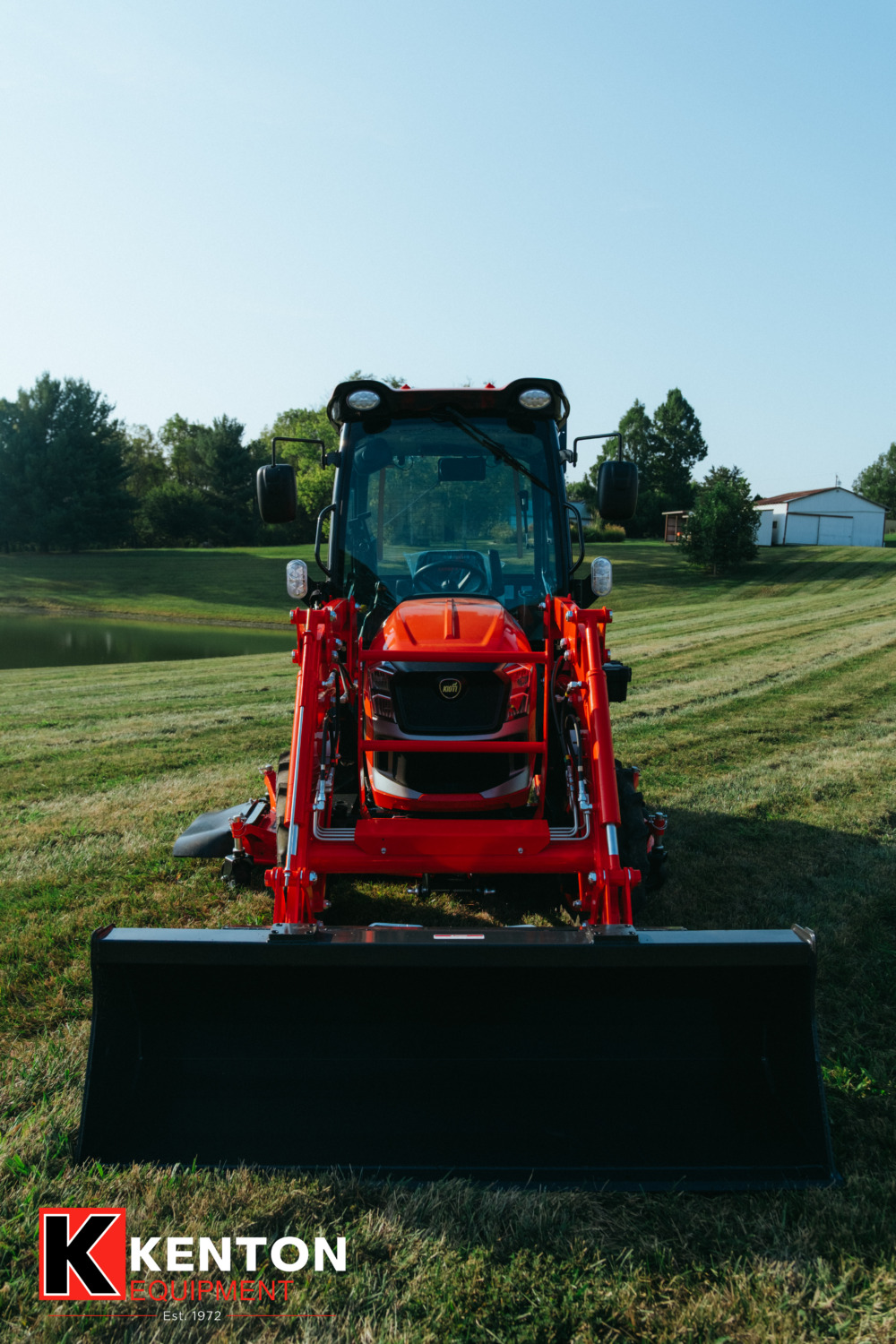

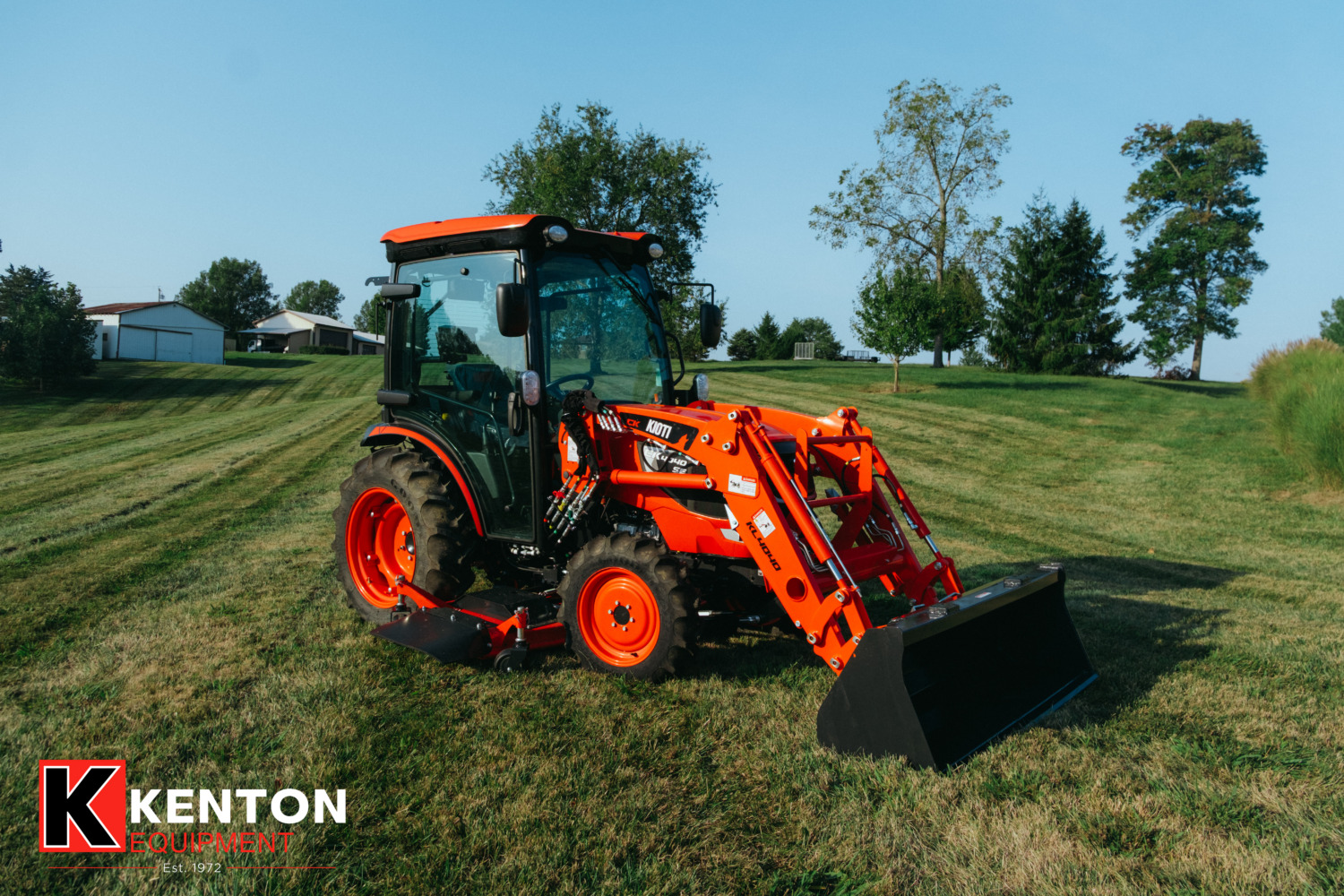

Meet the 2026 KIOTI CK Series CK4040SEHC—a compact utility tractor that shows up ready to work and looks the part doing it. Built as a compact machine with a purposeful stance, it threads the needle between “fits where you need it” and “brings the muscle when it counts.”
Under the hood is a Daedong diesel that puts out 39.5 bhp at 2600 rpm from a 1.8L (111.4 ci) displacement. It’s liquid-cooled, naturally aspirated, and fuel injected, delivering the kind of confident, steady power you want when the job runs long and the to-do list runs longer. With a 9-gallon fuel tank and a clear fuel gauge, you can keep your momentum without constantly second-guessing the next refuel.
Driving it is smooth and intuitive thanks to a hydrostatic transmission with three ranges, letting you dial in the pace up to 16.4 mph. Add 4X4, power steering, and a tight 9-foot turning radius, and you’ve got a tractor that feels nimble around buildings, gates, and landscaping—especially with 13.4 inches of ground clearance for uneven terrain.

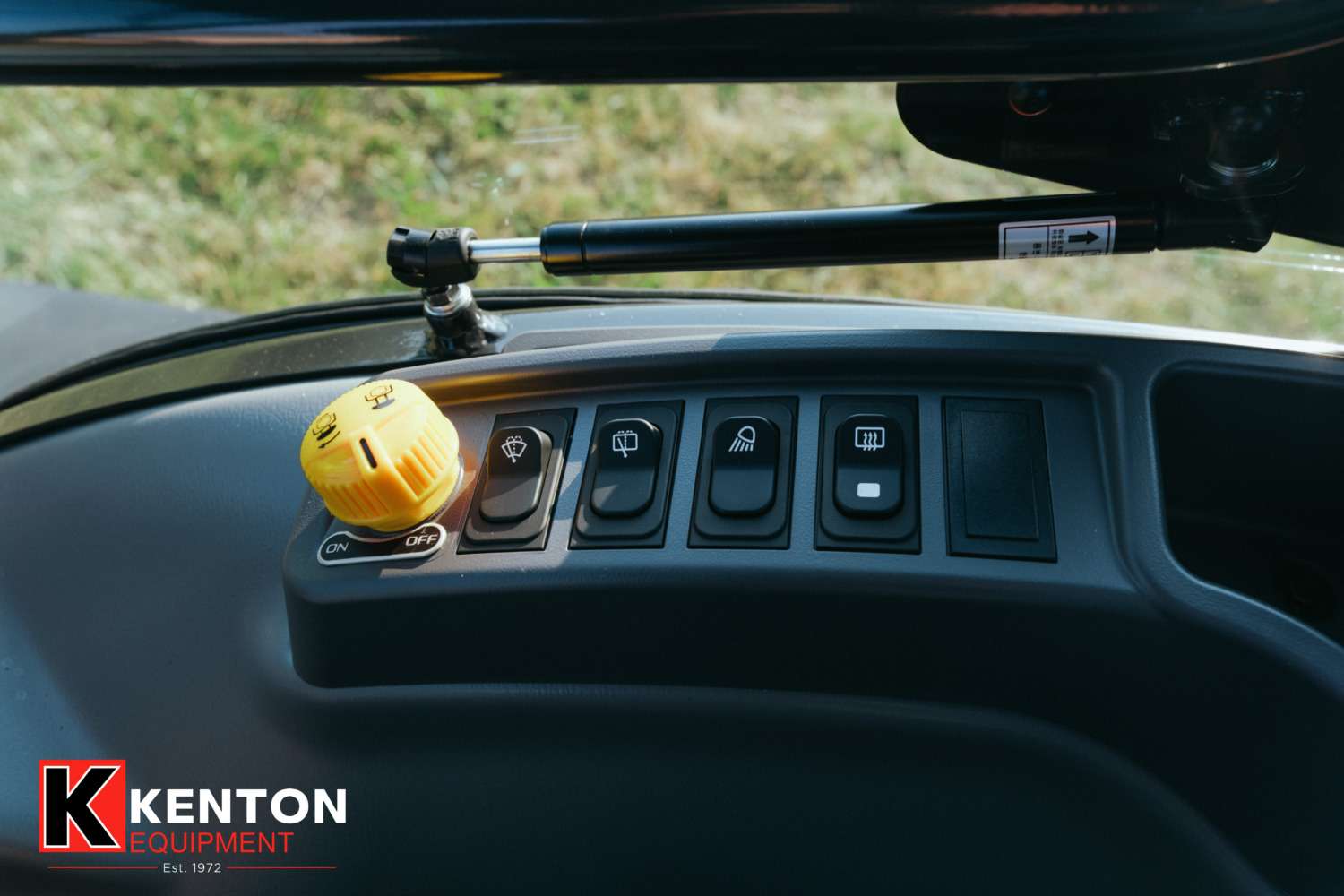

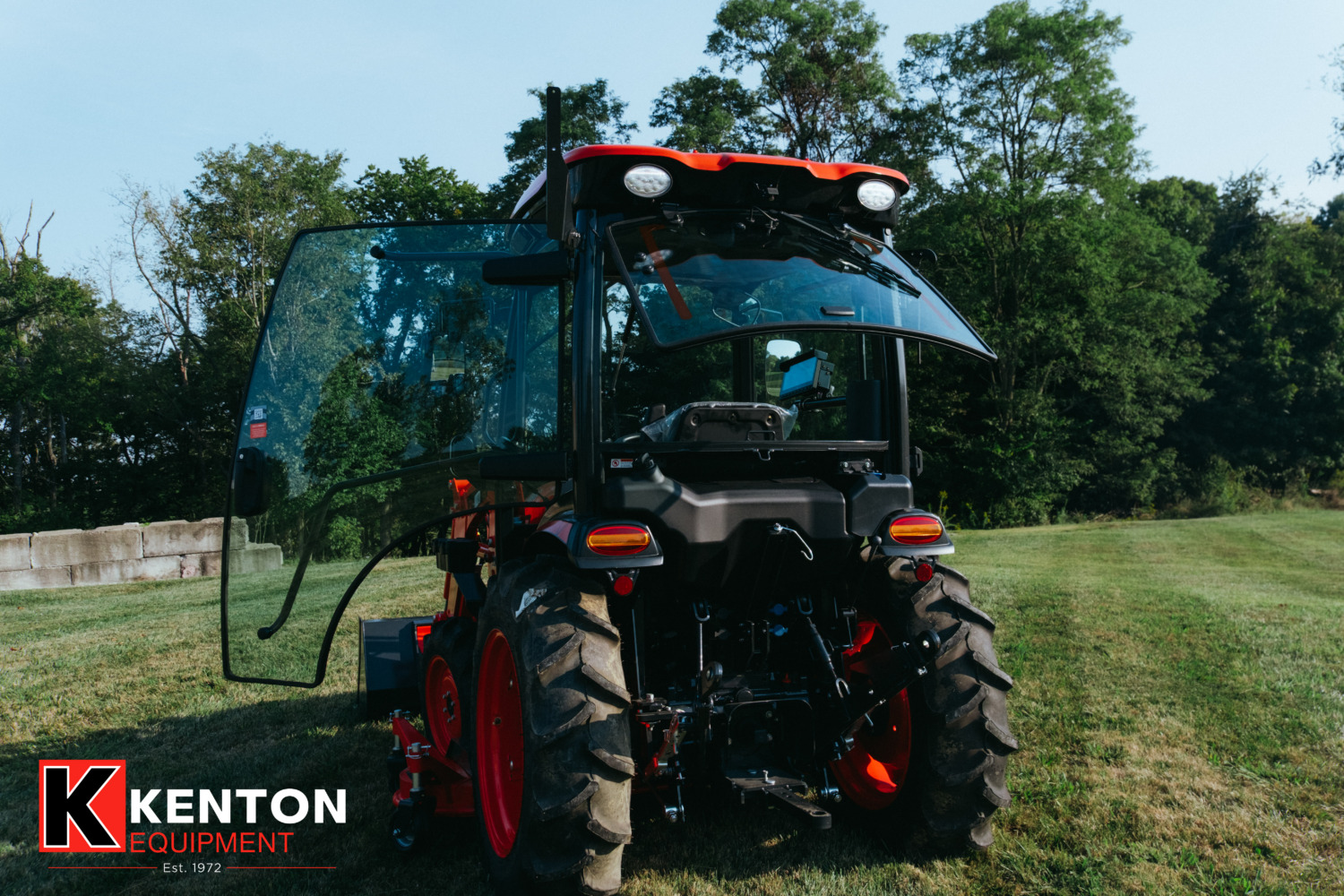

Comfort and control come together in the full cab layout—your workspace, your command center. Traction is tailored for grass-friendly work with turf tread tires, sized 18 x 8.5 – 10 up front and 26 x 12 – 12 in back, wrapped around steel wheels. When it’s time to slow things down, wet disc brakes front and rear provide confident stopping power.

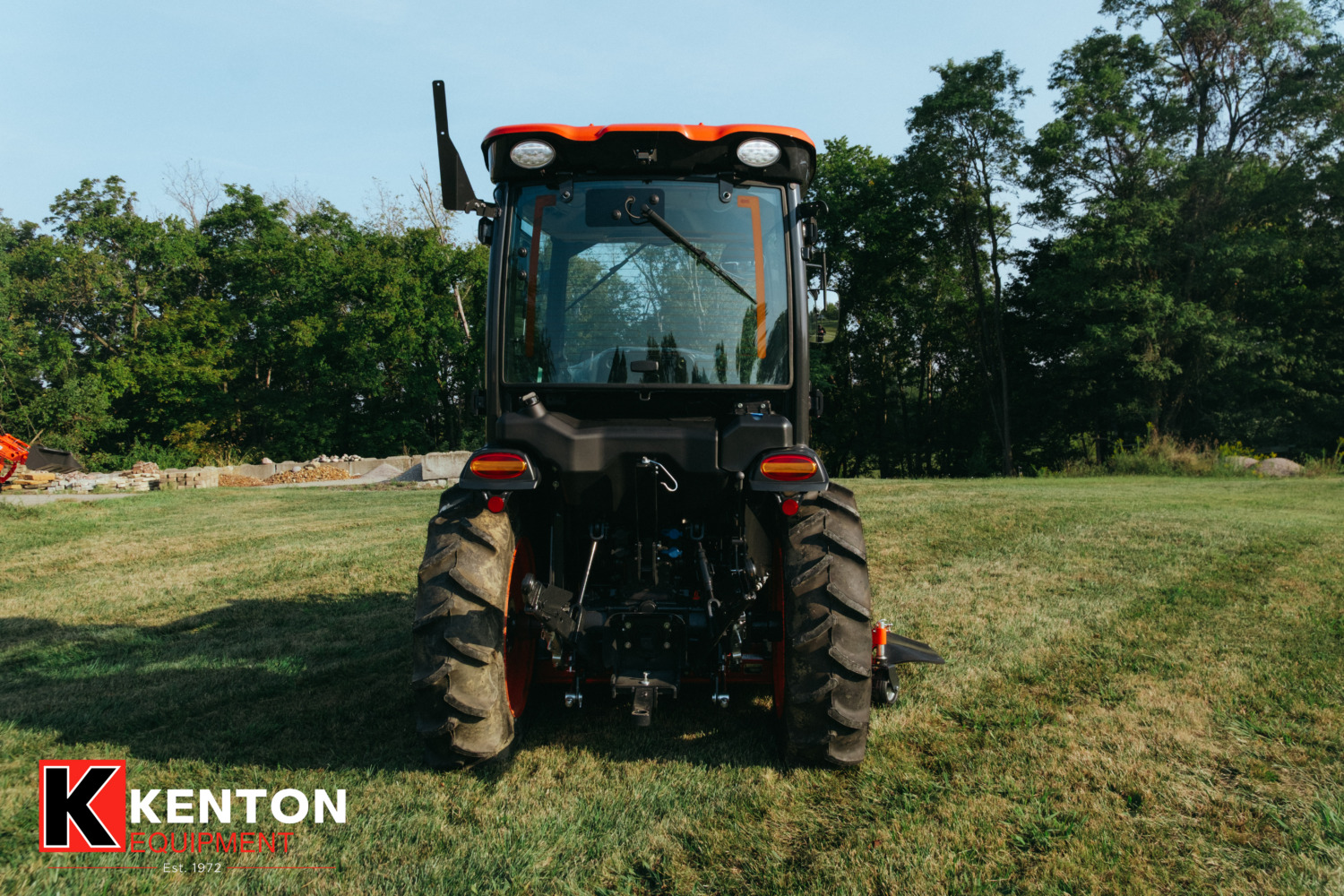

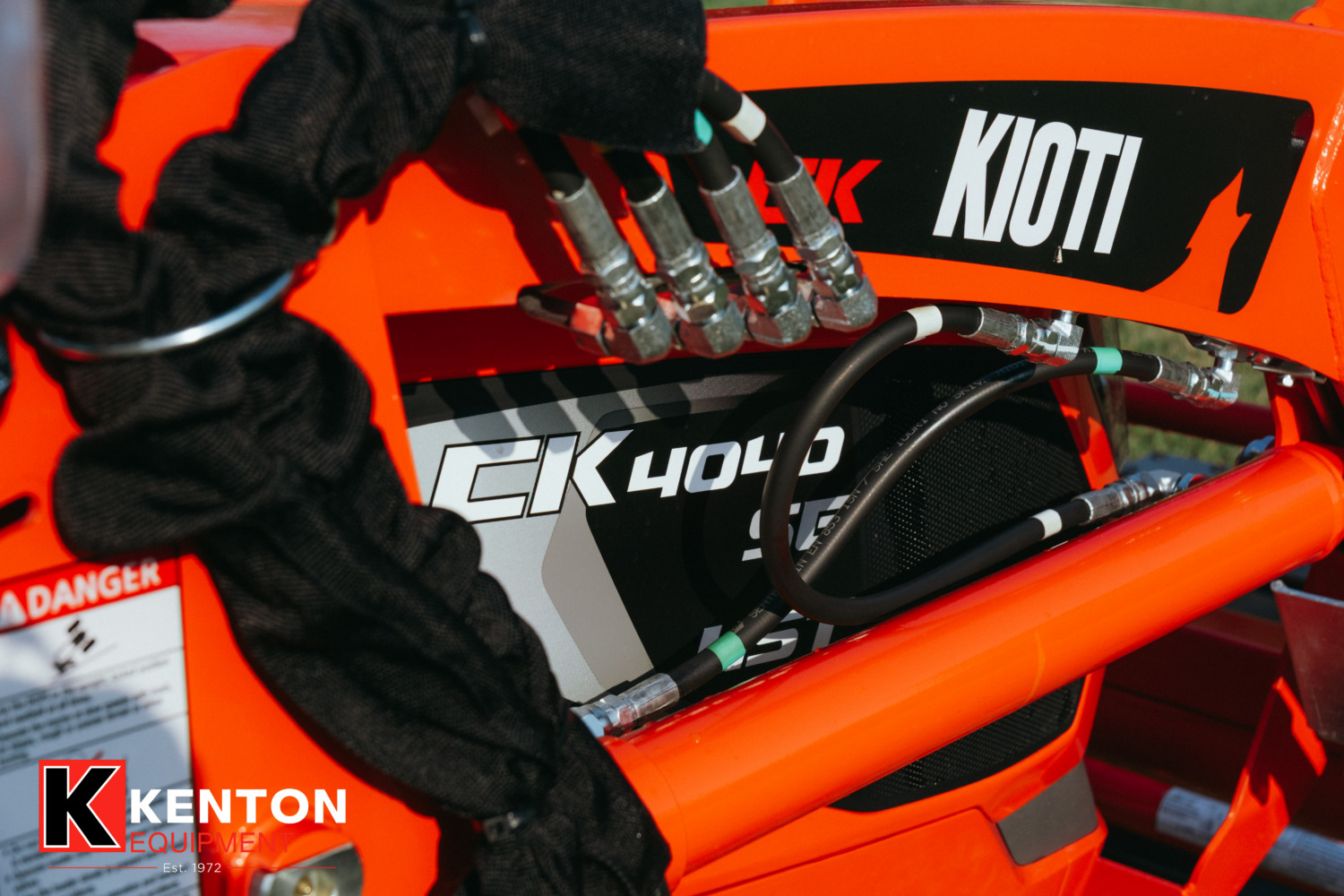

On the business end, the Category 1 rear 3-point hitch offers a stout 2,101 lb lift capacity, and the hydraulics deliver 11.3 gpm to keep implements responding briskly. For powered attachments, the independent rear PTO spins at 540 rpm and is backed by 33.3 PTO horsepower—a strong foundation for getting real work done.
In short: this CK4040SEHC is compact utility capability with a fun, can-do attitude—ready to turn plans into progress, one pass at a time.
Engine
- Horsepower: 39.5 bhp; 29.5 kW
- Cooling: Liquid
- Displacement: 111.4 ci
- Fuel Type: Diesel
- Carburetion Type: Fuel Injected
Transmission
- Transmission Type: Hydrostatic
- Maximum Forward Speed: 16.4 mph; 26.4 kph
Drive Line
- Driveline Type: 4X4
Technical Specifications
- Length: 120.9 in; 3070 mm
- Width: 54.5 in; 1385 mm
- Height: 92.9 in; 2360 mm
- Wheelbase: 65.7 in; 1670 mm
- Ground Clearance: 13.4 in; 340 mm
- Fuel Capacity: 9 gal; 34 l
Wheels & Tires
- Front Tire (Full Spec): 18 x 8.5 – 10
- Rear Tire (Full Spec): 26 x 12 – 12
Brakes
- Front Brake Type: Wet Disc
- Rear Brake Type: Wet Disc

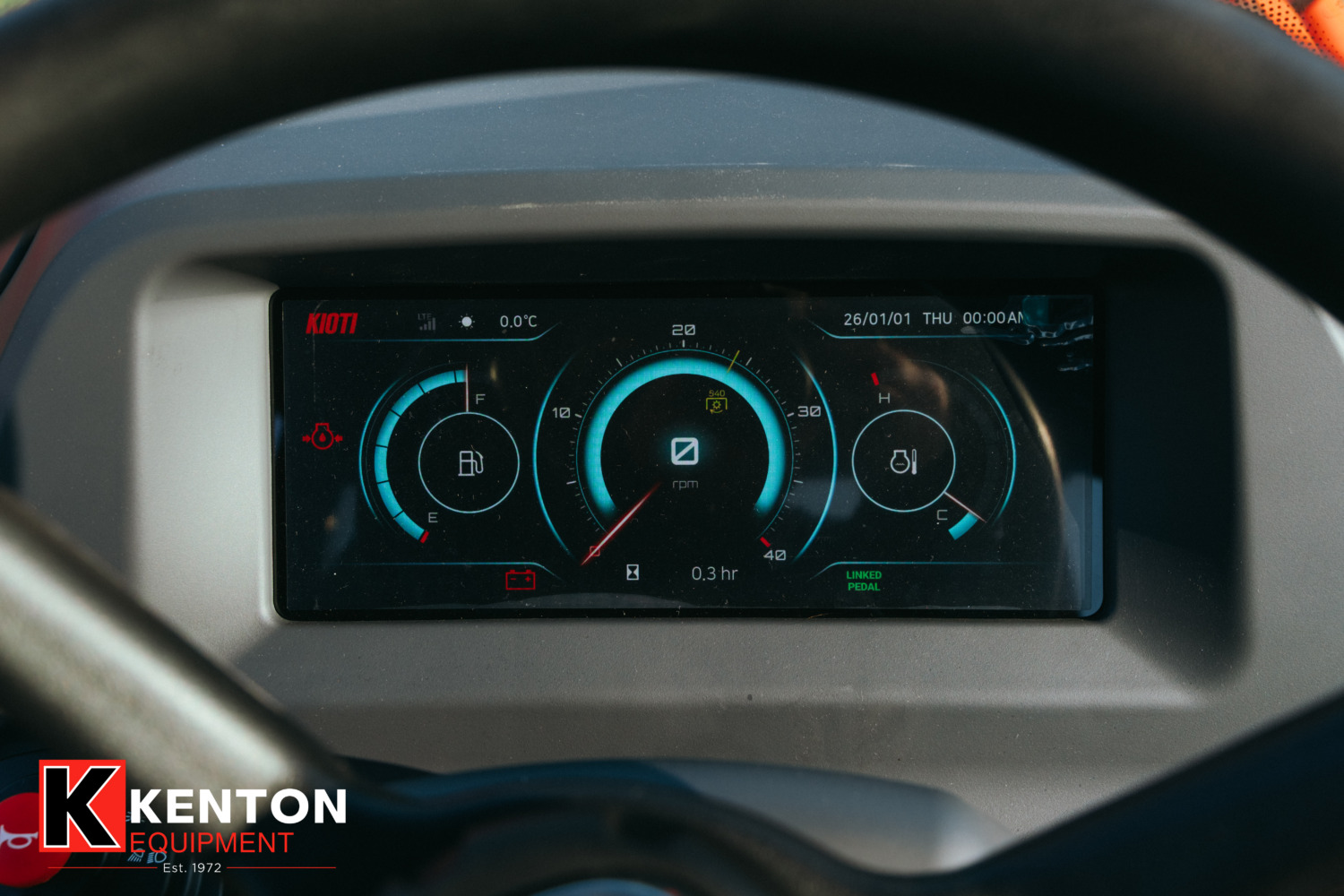

Instrumentation
- Tachometer: Standard
