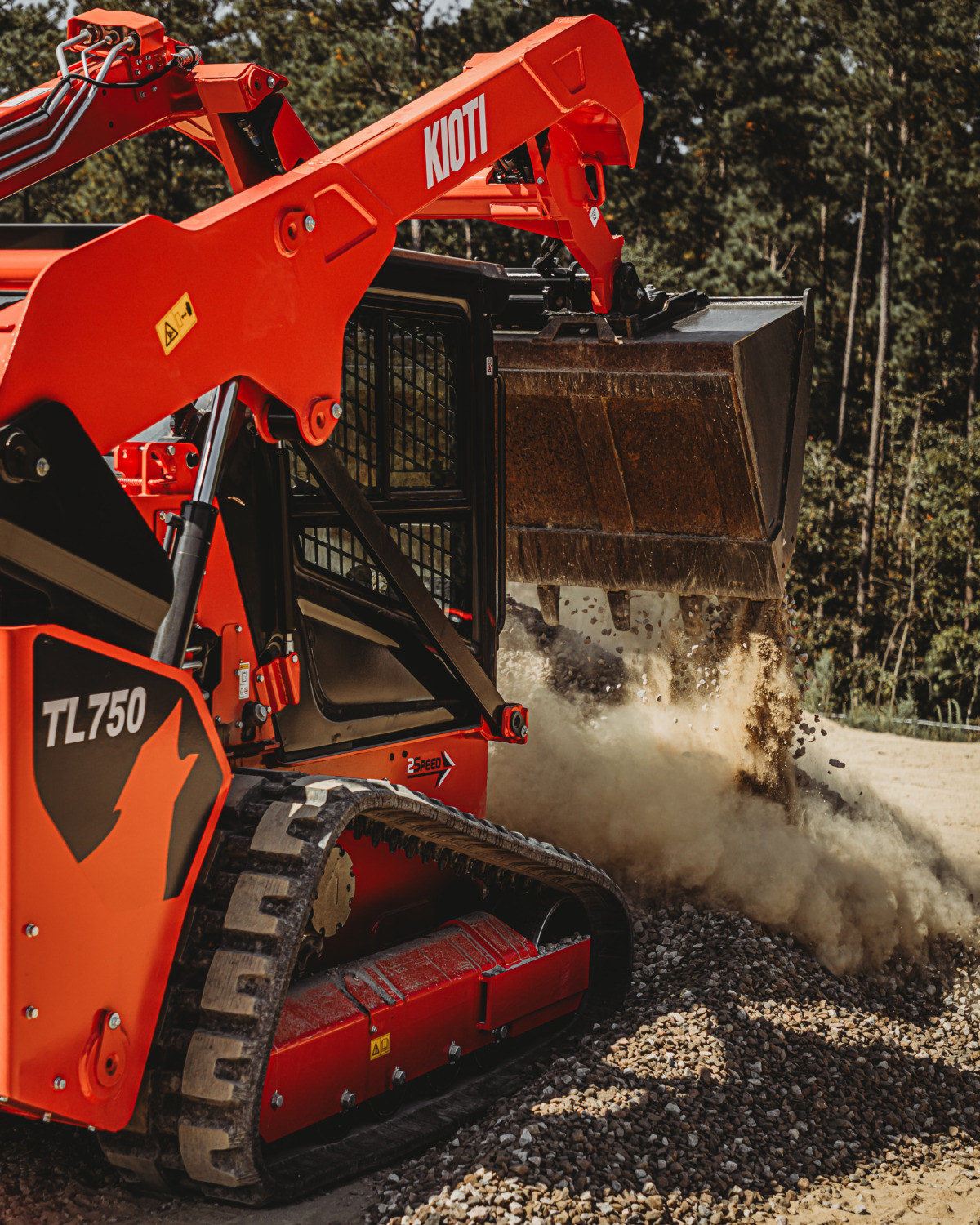

KIOTI track loaders are built for professionals who need a machine to be as tough, dependable and durable as they are and need a machine to match that resolve. KIOTI’s new compact track loaders are tailored to meet those ambitions. The TL750 was designed with comfort in mind to make sure the toughest days don’t have to feel that way. As operators continually push the limits of what compact equipment can accomplish, tackling bigger and more ambitious jobs, they expect their equipment to pave the way. KIOTI compact track loaders are designed to lift, push, and power their way through those rigorous demands, helping them accomplish more.
MAIN FEATURES
- Powerful 74 HP KIOTI engine
- Standard Two-Speed Travel
- Hydraulic Pilot Joystick
FEATURES
- Proven KIOTI Diesel Engine
- Standard Two-Speed Travel
- Pilot Hydraulic Joystick Controls
- Standard Rearview Camera
- Wide, Comfortable Cab
- Powerful Hydraulics
- Standard LED Work Lights
ENGINE
- Manufacturer: KIOTI
- Engine Gross Power: 73.6 HP (54.9 kW)
- Rated Revolution: 2,400 rpm
- Cylinders: 4
- Fuel Tank Capacity: 26.4 us gal. (100 L)
HYDRAULIC SYSTEM
- Loader Hydraulic Pressure: 3,335 psi (230 bar)
- Hydraulic Flow Range: 21.9 gpm (82.9 lpm)
PERFORMANCE
- Tipping Load: 6,570 lb. (2,980 kg)
- Rated Operating Capacity: 2,300 lb. (1,043 kg)
- Operating Weight: 9,689 lb. (4,395 kg)
- Breakout Force, Tilt (Bucket): 5,512 lb. (2,500 kg)
- Breakout Force, Lift: 5,016 lb. (2,275 kg)
- Lift Arm Path: Vertical
- Control: ISO Pilot
- Track Tension Type: Grease
DIMENSIONS
- Lift Height to Hinge Pin at Max Lift: 130.3 in. (3,310 mm)
- Length w/Bucket: 144.7 in. (3,675 mm)
- Length w/o Bucket: 116.5 in. (2,960 mm)
- Width w/Track: 70.9 in. (1,800 mm)
- Height to Top of Cab: 81.9 in. (2,080 mm)
- Wheelbase: 47.2 in. (1,200 mm)
- Track Width: 15.7 in. (400 mm)
- Length of Track on Ground: 56.5 in. (1,435 mm)
- Width w/Bucket: 74.4 in. (1,890 mm)
- Max Overall Height: 163.8 in. (4,160 mm)
- Turning Radius: 87.5 in. (2,223 mm)
STANDARD EQUIPMENT
- Auxiliary Hydraulics
- Self-Leveling Bucket
- Hydraulic Pilot Joystick
- Suspension Seat
- 2 in. Seat Belt
- Backup Buzzer
- LED Front and Rear Work Lights
- Rear View Camera
- Overhead Sliding Front Door
- 14-Pin Electrical Connector
