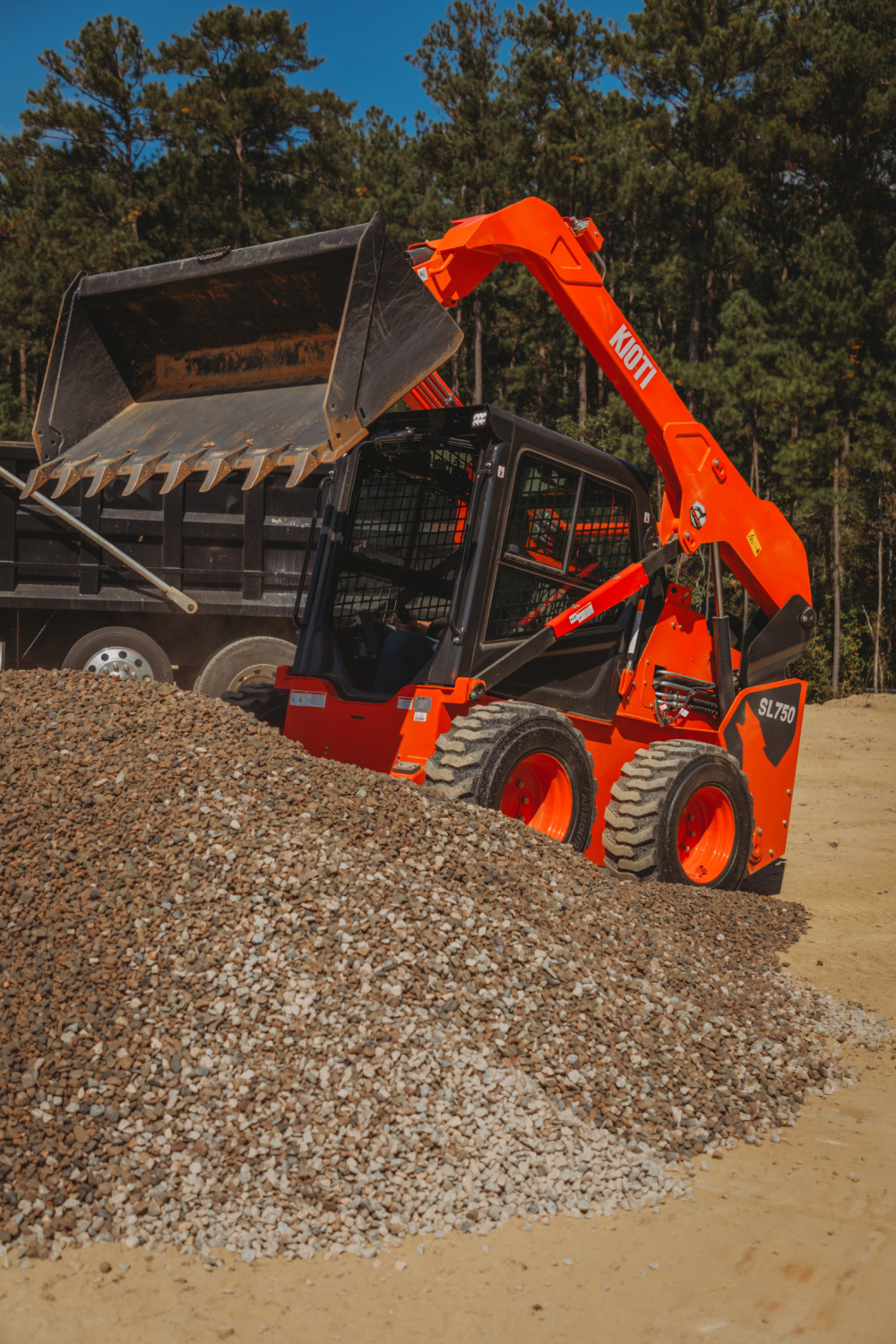

KIOTI compact skid steers are built for professionals who need a machine to be as tough, dependable and durable as they are and need a machine to match that resolve. KIOTI’s new compact skid steers are tailored to meet those ambitions. The SL750 keeps comfort top of mind and ensures the toughest days don’t have to feel that way. As operators continually push the limits of what compact equipment can accomplish, tackling bigger and more ambitious jobs, they expect their equipment to pave the way. KIOTI compact skid steers are designed to lift, push, and power their way through those rigorous demands, helping them accomplish more.
FEATURES
- Proven KIOTI Diesel Engine
- Standard Two-Speed Travel
- Pilot Hydraulic Joystick Controls
- Standard Rearview Camera
- Wide, Comfortable Cab
- Powerful Hydraulics
- Standard LED Work Lights
ENGINE
- Manufacturer: KIOTI
- Engine Gross Power: 73.6 HP (54.9 kW)
- Rated Revolution: 2,400 rpm
- Cylinders: 4
- Fuel Tank Capacity: 26.4 us gal. (100 L)
HYDRAULIC SYSTEM
- Loader Hydraulic Pressure: 3,335 psi (230 bar)
- Hydraulic Flow Range: 21.9 gpm (82.9 lpm)
PERFORMANCE
- Tipping Load: 5,380 lb. (2,440 kg)
- Rated Operating Capacity: 2,689 lb. (1,220 kg)
- Operating Weight: 8,362 lb. (3,793 kg)
- Breakout Force, Tilt (Bucket): 5,512 lb. (2,500 kg)
- Breakout Force, Lift: 5,016 lb. (2,275 kg)
- Lift Arm Path: Vertical
- Control: ISO Pilot
DIMENSIONS
- Lift Height to Hinge Pin at Max Lift: 126.6 in. (3,215 mm)
- Length w/Bucket: 144.7 in. (3,675 mm)
- Length w/o Bucket: 116.5 in. (2,960 mm)
- Width Over Tires: 71.7 in. (1,820 mm)
- Height to Top of Cab: 81.2 in. (2,063 mm)
- Wheelbase: 47.2 in. (1,200 mm)
- Ground Clearance: 7.7 in. (195 mm)
- Width w/Bucket: 74.4 in. (1,890 mm)
- Max Overall Height: 160.2 in. (4,068 mm)
STANDARD EQUIPMENT
- Rear View Camera
- 2-Speed
- Suspension Seat
- Hydraulic Pilot Joystick
- Overhead Sliding Front Door
- Auxiliary Hydraulics
- Self-Leveling Bucket
- LED Front and Rear Work Lights
- 14-Pin Electrical Connector
- Side Mirror
- 2 in. Seat Belt
