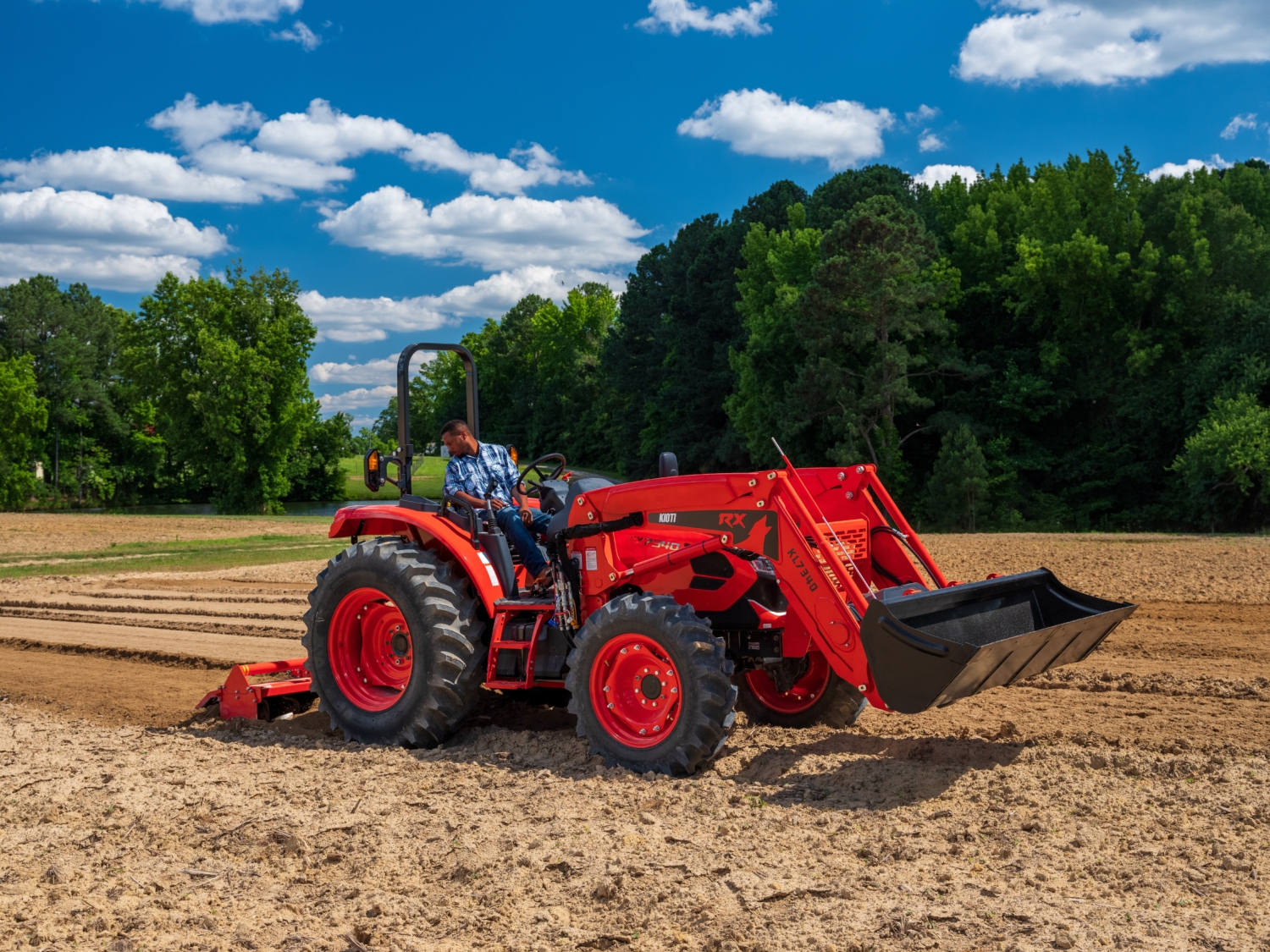

Engineered for seamless compatibility, the KIOTI KL7340 front end loader offers efficient performance effortlessly controlled through a single joystick. The built-in parking stand and quick-attach system ensure swift loader detachment and reattachment. Robust hydraulics enable smooth lifting and lowering, while the single-lever control with float function grants ultimate precision. Maintain clear visibility of your load with the handy bucket level indicator.

Models	KL7340
Compatibility	Fits the RX6640/7340 models
Lift Height Max Pivot Pin	127.10 in (3,229 mm)
Clearance Dumped	93.58 in (2,377 mm)
Dump Angle Max	55 °
Reach at Ground	83.62 in (2,124 mm)
Rollback Angle Max	51 °
Digging Depth	6.22 in (158 mm)
Height Max in Carry Position	69.37 in (1,762 mm)
Bucket Depth	24.09 in (612 mm)
Height	24.40 in (620 mm)
Depth	24.09 in (612 mm)
Length	81.89 in (2,080 mm)
Reach at Max Height	17.40 in (442 mm)

Add To Configuration

KIOTI KB2485 Backhoe

Price: $11,999.00

*Includes 2nd remote & 18" bucket

Standard Features

Subframe mounted.
Self-contained hydraulics (not available for all applications).
Factory assembled.
Responsive two-lever hydraulic control with exceptional feathering characteristics.
Anti-drop load-checks.
Standard buckets: 12", 16", 18", 24" and 36" wide ditch and grave buckets.
All buckets have replaceable teeth.
Extra heavy-duty buckets.
Entire backhoe except for subframe is quick-detached from tractor.

Specifications

Digging Depth: 94.4 in. (2,400 mm)
Reach (From center of Swing Pivot): 136.1 in. (3,460 mm)
Loading Height (Bucket at 60 degrees): 80.3 in. (2,040 mm)
Swing Arc: 180 deg.
Transport Height (Maximum): 92.9 in. (2,360 mm)
Transport Overhang: 50.4 in. (1,280 mm)
Bucket Rotation: 180 deg.
Stabilizer Spread (Down Position): 68.7 in. (1,745 mm)
Stabilizer Spread (Up Position): 46.4 in. (1,180 mm)
Shipping Weight (Less Bucket): 1,102 lb. (500 kg)
Bucket Digging Force: 3,748 lb. (1,700 kg)
Dipperstick Digging Force: 2,205 lb. (1,000 kg)
Operating Pressure: 2,466 psi (170 bar)

Add To Configuration

Bush Hog BH217-2 Single-Spindle Rotary Cutter

Price: $5,899.00

Building on the success of the original BH210 Series, the new, updated BH210-2 Series Rotary Cutters combine the legacy and reputation of Bush Hog®‘s Single-Spindles with new, innovative design updates. These updated cutters now have full-length strongbacks designed to reinforce the entire length of the cutter, front to back, especially enhancing the rear half of the cutter and tailwheel structure. Reinforcement plates have been added to the bottom of the rear sidebands, providing extra strength in this critical area when backing into vegetation. Tall grass, pesky weeds, and small brush are no match for these authentic Bush Hog® built cutters. The BH210-2 Series Rotary Cutters are “Made in America” and designed to deliver superior performance in tough conditions, day after day, and year after year. Remember, “If it doesn’t say Bush Hog®, it just won’t cut it.”

Performance Features

84" Cutting Width
Quick-Hitch Ready
130 HP Gearbox Rating
Taller Sidebands For Increased Cutting Efficiency
Smooth-Top Deck for easy cleaning
Custom Forged, Heat-Treated Blades

Construction Features

Continuously Welded Deck
Full-Length 10ga Strongbacks
Reinforcing plates added to rear sidebands
Double-Braced Lower Hitch Lugs
Formed and Fully-Welded Tailwheel Mount
Puncture-Proof Laminated Tailwheels

Safety Features

PTO Shield
Front Deflector
Rear Metal Band
Front Chains
Rear Chains

Specifications

Cutting Width: 84"
Cutting Height: 2"-12"
Cutting Capacity: 2"
Hitch Type: Cat 1 or 2 Std & QH Ready
Deck Thickness: 10 Ga
Sideband Thickness: 10 Ga
Sideband Height: 11 1/2"
Driveline: CAT 4
Driveline Protection: 2-Plate Slip-Clutch
Gearbox: 130 HP
Tractor PTO Speed: 540 rpm
Minimum Tractor PTO HP: 50 HP
Blade Holder: Oval
Blades: 1/2" X 4" Uplift
Blade Tip Speed: 14,963 fpm
Tires: 15 1/2" Laminated
Deflector Type: Rubber/Metal/Chains
Approximate Weight: 1,075 lb.
Gearbox Warranty: 10 years

NOTES:

Unit shown equipped with certain selections and options.

Add To Configuration

IronCraft 84" Heavy-Duty Cutter

Price: $5,149.00

The 1607 Heavy Duty Cutter is designed for heavy-duty applications such as weeds, grass, and brush up to 3" diameter. Engineered to work with 55 to 100 hp tractors, and with an 84" working width, this cutter uses a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A slip clutch protects the gearbox and driveline from damage. Standard equipment includes driveline shields and clutch shields. Front and rear chain and rubber discharge shields are available.

Specifications

PTO HP: 55 - 100 HP
Width: 84"
Weight: 1375 lbs
Cutting Capacity: 3"
Deck Thickness: 7 Gauge
Side Bands: 8"
PTO Drive Shaft: Series 5
Stump Jumper: 5/8"
Gear Box: 100 HP
Wheel: Laminated
Hub: Greaseable
Hitch: Cat. I & II
Quick Hitch Compatible: Yes, Cat. II
Discharge Shields: Available

Add To Configuration

Bush Hog 2208 Multi-Spindle Rotary Cutter (Pull-Type)

Price: $9,999.00

The new 2208 Multi-Spindle Rotary Cutter is designed for general purpose cutting of fields, crop residue, and light brush up to 2” in diameter. Cutting efficiency is increased by the 8’3” cutting width and 11 ¾” sideband height allowing a greater volume of material within the cutting chamber. Then, higher blade tip speeds shred though tough vegetation for a clean cut of material with excellent distribution. The pull-type model comes equipped with an ASAE CAT 4 CV driveline, rubber cushioned axles, and 21” laminated tires. And with a tongue weight of only 880 lb., the 2208 pull-type is easier on tractor drawbars, effectively powered by tractors with only 35HP. An optional heavy-duty hydraulic cylinder allows for on-the-go cutting height adjustment, while an easy to adjust tension rod allows for leveling the cutter from front to back. All models feature durable, rubber discs within the cross-shafts between gearboxes for dependable protection from unexpected shock loads. The 2208 carries on our tradition of making tough, dependable, performance-driven cutters, and is one more example of why “If it doesn’t say Bush Hog®, it just won’t cut it.”

Key Features

Heavy-Duty Frame and Gearbox Stand Construction
Heavy Duty Pull-Type Axle with 21" Laminated Tires
Self-Leveling Pull-Type with Reinforced Axles and Tongue
Durable rubber discs protect Cross Shafts from harsh impacts and loads

Performance Features

Reliable Bush Hog® Performance In An Economical Pasture Mower
8'3" Cutting Width
Durable Rubber Discs in Cross Shafts from Transfer Box To Cutting Gearboxes
Front Single or Double Row Chains
Rear Metal Band, Single Row Chains, or Double Row Chains
7 Gauge Oval Blade Pans
Shock Absorbing Axles
EZ-Clean Sloped Deck that sheds water
High Blade Tip Speeds

Construction Features

10-Gauge Deck Construction
10 Year Gearbox Limited Warranty
7-Gauge x 11 3/4" inches Sidebands
Weld on Skids
Rubber Cushioned Axle with large 21" Laminated Tires
Durable Powder Coat Paint

Specifications

Cutting Width: 99"
Cutting Height: 2" – 13"
Cutting Capacity: 2"
Hitch Type: Pull Type
Deck Thickness: 10GA
Sideband Thickness: 7GA
Sideband Height: 11 3/4"
Driveline Size: Cat 4
Driveline Protection: 2-Plate Slip-Clutch
Transfer Gearbox: 140 HP
Cutting Gearbox: 65 HP
Tractor PTO Speed: 540 RPM
Minimum Tractor PTO HP: 35 HP
Blade Holder: Oval Pan
Blades: 1/2" X 4" Uplift
Blade Tip Speed: 16,173 fpm
Tires: 15 1/2" Laminated
Deflector Type: Chain / Chain
Approximate Weight: 1,650 lb.
Gearbox Warranty: 10 Years

NOTES:

Unit(s) shown equipped with certain selections and options; please consult with your local Bush Hog dealer for all available configurations.

Add To Configuration

Bush Hog 2310 Multi-Spindle Rotary Cutter (Pull-Type)

Price: $13,699.00

The 2310 Multi-Spindle Rotary Cutter slashes through heavy grass, weeds, and light brush up to 2” in diameter. The 2310 makes quick work of crop residue, orchard maintenance, and general land overgrowth. And when you’re finished cutting, the smooth-top deck makes cleanup a snap. The 2310 is the latest multi-spindle to carry on our tradition of high performance and durability. In a world of imitators, remember that “If it doesn’t say Bush Hog®, it just won’t cut it”…

Construction Features

10 Year Gearbox Limited Warranty
Smooth-Top Deck
Quick-Detach Gearbox Shields
10 gauge Deck
7 Gauge Steel Sidebands
Tough Slip-clutches Standard
Round Blade Pans Standard

Safety Features

Front Single or Double Row Chains
Rear Band or Single or Double Row Chains
Driveline Shields

Specifications

Cutting Width: 117"
Cutting Height: 2" – 12"
Cutting Capacity: 2"
Hitch Type: Pull
Deck Thickness: 10GA
Sideband Thickness: 7GA
Sideband Height: 11 3/4"
Driveline Size: Cat 4
Driveline Protection: 2-Plate Slip-Clutch
Transfer Gearbox: 140 HP
Cutting Gearbox: 130 HP
Tractor PTO Speed: 540 RPM
Minimum Tractor PTO HP: 50 HP
Blade Holder: Round Pan
Blades: 1/2" X 4" Uplift
Blade Tip Speed: 15,778 fpm
Tires: 29" Aircraft
Deflector Type: Chain/Chain
Approximate Weight: 2,000 lb.
Gearbox Warranty: 10 Years

NOTES:

Unit(s) shown equipped with certain selections and options; please consult with your local Bush Hog dealer for all available configurations.

Add To Configuration

IronCraft 2408 Heavy-Duty Dual Spindle Cutter (Lift-Type)

Price: $6,999.00

DESCRIPTION

Get ready to redefine your land management game with the extraordinary IronCraft 2400 Series Cutter – where performance, integrity, and aesthetics seamlessly unite for an unmatched cutting experience. It has an updated splitter box that seamlessly manages tip speed between 8' and 10', ensuring a consistent and controlled cut. The combination of counter rotation, 4" full uplift blades, adjustable tailwheel brackets, and increased deck skirt height is guaranteed to deliver remarkable cut quality through changing conditions.

SPECIFICATIONS

Product Family: 2400 Series
Product: 2408
Description: 8' Heavy Duty Dual Spindle Cutter
RPM: 540 or 1000
HP Required: 42 minimum PTO
Working Width: 96"
Transport Width: 98"
Cutting Height: 3-1/2" to 10"
Cutting Capacity: 3"
Deck Thickness: 10 GA
Side Bands: 11"
Skid Shoes: Replaceable
PTO Drive Shaft: Series 5 w/ slip clutch
Center Driveshaft: Shock Coupler Protected
Blade Holder: 3/16" Formed plate with 3/4" x 2" blade bar
Gearbox Rating: 125 HP
Outboard Gearbox Rating: 75 HP
Wheel Type: Laminated
Hub Type: Bearing
Hitch Type: Lift or Pull
Hitch: Cat 1 & 2
Gearbox Warranty: 5 year limited
Guarding Options: Chains

Add To Configuration

IronCraft 96" Heavy-Duty Box Blade

Price: $1,599.00

For tough jobs, this heavy-duty box blade scrapers will stand up to the tasks required to maintain your farm, building site, or landscaping projects. The Titan© 3208 Heavy Duty Box Blade will make quick work of ripping up dirt, grading and leveling land, or spreading soil. With a 96" working width, and 6 adjustable heavy-duty ripper shanks; is Category I quick hitch compatible and is designed to work with 30 to 70 hp tractors.

Specifications

Horsepower: 30 - 70 HP
Working Width: 96"
Moldboard Height: 17"
Overall Depth: 22"
Weight: 640 lbs
Number of Shanks: 6
A-Frame Material: 1/2"
Cutting Edges: 6"
Quick Hitch Compatible: Yes
Hitch: Cat I & II

Add To Configuration

IronCraft 3707 Dual Edge Grader

Price: $2,499.00

IronCraft’s 3700 dual-edge graders can be used to maintain gravel driveways, level a garden plot, and smooth dirt areas including horse arenas and barn floors. It is designed with an adjustable cutting depth, making the shanks optional.

The 3700 dual-edge graders feature replaceable skid shoes, reversible blades, adjustable blade height, and adjustable shanks.

Designed to work with 40 to 80 hp tractors, the 3700 Graders accommodate a Category I quick hitch, Category II 3-Point and Category II Quick Hitch if applicable. The 3700 dual-edge graders are available in two working widths from 84” to 96”.

Product Family	3700 Series
Product	3707
Description	7' Heavy Duty Dual Edge Grader
HP Required	40 - 80
Working Width	84"
Height	33-3/4"
Overall Width	89-5/8"
Overall Length	58-1/2"
# of Shanks	6
Scarifier Shank Construction	3 Position Heat Treated shank with dimpled on hardened tips
Shank Adjustment	At grade level, 1-1/2" and 3" below grade level
A-frame Material	3/8"
Weight	700 lbs
Side Panel Thickness	3/16"
Side Panel Height	15-11/16"
Side Panel Length	52-3/8"
Scarifier Support Tube Construction	4/" x 4" x 1/4"
Rear Beam Construction	Two Beams 3" x 3" x 3/16" spaced 21-1/8" apart
Skid Shoes	Replaceable 3/16" x 2-3/4" x 53-9/16"
Hitch Type	Clevis Type
Hitch	Cat 1 & 2

Add To Configuration

IronCraft 96" Heavy-Duty Grader Blade

Price: $1,949.00

The 4508 Heavy-Duty Grader Blade is our toughest grader blade, and will easily meet all of your land grading, leveling, or backfilling needs. Designed for 55 to 75 hp tractors, and features a five-position angle adjustment, three-position tilt adjustment. Just use a ratchet jack for the offset adjustment. Category I & II quick hitch compatible and with a 96" working width.

Specifications

Horsepower: 55 - 75 HP
Working Width: 96"
Moldboard Height: 17"
Weight: 503 lbs
Angle Adjustment: Five positions; Forward and reverse
Tilt Adjustment: Three Positions
Offset adjustment: Ratchet Jack
A-Frame Material: 3/8"
Cutting Edges: 6"
Quick Hitch Compatible: Yes
Hitch: Cat. I & II

Add To Configuration

CID Standard-Duty Pallet Forks

Price: $999.00

These standard-duty pallet forks are ideal for lifting pallets, loading lumber or just about anything else. Our forks are 1–3/8 inches thick, 4 inches wide and 48 inches long. They are completely heat treated and rated to carry 4,000 lbs. We put a step on both sides of our frames so the operator can easily climb into the cab. Euro Style and John Deere mounts are available.

Specifications

Features: Heat treated forks; Euro style and John Deere mounts are available; Steps on both sides of frame
Forks Length: 48"
Lift Capacity: 4,000 lbs

Add To Configuration

IronCraft Category 2 Quick Hitch Adapter

Price: $499.00

Add To Configuration

CID Single Low Back Bale Spear

Price: $749.00

Our Low Back Hay Spears are an excellent piece of equipment to have on the farm. Easily move bales of hay with a quick hook-up on your skid steer or tractor. The Low Back Hay Spear is rated at 2,800 lbs. Euro Style and John Deere mounts are available.

Add To Configuration

IronCraft 9300S Rear Hay Spear

Price: $499.00

Lift Capacity: 2500 lb. Weight: 87 lb.

Add To Configuration

IronCraft 2512 Flex Wing Rotary Cutter

Price: $13,999.00

If you are looking for a Flex-Wing Rotary Cutter for your compact tractor, the IronCraft 2512 is the choice for you. With its smooth top deck and spring suspension, this flex-wing is designed to cut grass, weeds, and light brush up to 2” in material while only requiring a minimum PTO horsepower of 35 and one hydraulic outlet.

Specifications

RPM: 540
HP Required: 35 minimum PTO (gear drive transmission)
Working Width: 144 in.
Overall Width: 151 in.
Overall Length: 158 in.
759 lbs

Add To Configuration

IronCraft 2515 Flex-Wing Rotary Cutter

Price: $16,499.00

DESCRIPTION

Utilizing a smooth-top deck and spring suspension, the 2515 will make quick work of tough jobs. Designed for use with tractors with a 50 horsepower minimum, this medium-duty Flex-Wing requires only one hydraulic remote. For its 180” cut width, the cutter uses three spindles with two free-swinging blades each, which reduce the shock of impact when a stationary object is contacted. Slip clutches protect the gearboxes and drivelines from damage. Standard equipment includes driveline shields, clutch shields, chain discharge shields and a safety tow chain.

SPECIFICATIONS

Product Family: 2515 Series
Product: 2515
Description: 15' Medium Duty Flex Wing Rotary Cutter
RPM: 540 or 1000
HP Required: 50 minimum PTO
Working Width: 180"
Overall Width: 188"
Overall Length: 186"
Transport Width: 90"
Transport Height: 83" - 87"
Tongue Weight: 1500 lbs
Weight: 4500 lbs. w/ 6-26" laminated tires
Cutting Height: 2" to 15"
Cutting Capacity: 2-1/2"
Deck Thickness: 10 GA
Height Adjustment: Hydraulic Cylinder
Wing Adjustments: Heavy Duty Turnbuckle
Jack Stand: Standard
Side Bands: 1/4" x 13-1/2"
Suspension: 1 Heavy Duty Spring
Skid Shoes: Replaceable
PTO Drive Shaft: ASAE CAT 6
Wing Drive PTO: ASAE CAT 4
Driveline Protection: Slip Clutch
Blade Holder: Round Pan
Gearbox Rating: 235 HP
Outboard Gearbox Rating: 190 HP
Wing Flex: 22 Degrees Down to 88 Degrees Up
Wing Free Float: 22 Degrees Down to 45 Degrees Up
Blades: 1/2" x 4" Uplift
Blade Overlap: 6"
Output Shaft Diameter: 2"
Wheel Type: 20" or 26" Laminated and 27" Foam Filled or Pneumatic
Hitch Type: Swivel Pivot Self Leveling
Gearbox Warranty: 5 year limited
Safety Tow Chain: Standard
Guarding Options: Single Row Chains Standard
FPM: 17135

Add To Configuration

Bush Hog 1812 Flex-Wing Rotary Cutter

Price: $17,499.00

The 1812 Flex-Wing Rotary Cutter is designed for small tractors with a PTO horsepower of 50 to 75. The narrow cutting width of 12-feet makes this flex-wing ideal for rolling terrain where a wide rigid cutter will not perform as well. Grass, weeds, and brush up to 1 1/2-inch diameter are no match for the hardened parallel uplift blades. The narrow width is also ideal for orchards with prunings that must be cut into smaller pieces. The 1812 has maintenance friendly features, E-Z cleaning decks, high performance cutting and distribution, and it is built Bush Hog® tough for years of reliable service.

Key Features

Full Length Sideband Skids.
Each axle arm on the center section has a rubber cushion to absorb the shock loads near the wheels. Shown with optional dual tires on the center.
Patented oil sight gauge in all three cutting gearboxes for quick and easy monitoring of oil levels.

Performance Features

E-Z clean smooth decks are on the center and wings.
Wing "free float" without movement of wing hydraulic cylinder rod extends cylinder life.
Gearbox oil sight gauge allows the checking of the oil level in a few seconds.
PTO driveline holder is standard.
Wheel spindles are in halves for economy and ease of maintenance.
A single hydraulic hose is standard for lifting. Two hoses are optional for lifting wings independently of center section.

Construction Features

Center section cushions are at each axle arm to absorb shocks near the wheels.
Replaceable full length sideband skids give maximum protection and strength to the sideband.
Wheel hub cap retainers are standard to prevent loss of cap and hub grease.

Safety Features

Safety lights for highway travel are standard.

Specifications

Cutting Width: 12'
Cutting Height: 2" – 13"
Cutting Capacity: 1 1/2"
Transport Width: 6' 8"
Transport Height: 5' 8"
Transport Length: 13' 7"
Approximate Weight: 3,200 lb.
Approximate Tongue Weight: 1,100 lb.
Minimum Tractor PTO HP: 50 HP
Hitch: Cast Swivel Clevis
Center Deck: 10GA
Wing Decks: 10GA
Wing Cutting Angles: 22 deg. Down And 45 deg. Up
Wing Level Adjustment: Turnbuckles
Sidebands: 1/4" X 11 1/2"
Transfer Gearbox: 160 HP
Cutting Gearboxes: 65 HP
Input Driveline: Category 4
Cutting Drivelines: Category 3
Blade Holder: 11GA Oval
Blades: 1/2" x 3"
Blade Tip Speed: 14,504 fpm
Axle Suspension: Rubber Pads (center)
Center & Wing Hydraulics: 1 Hose Standard
Safety Tow Chain: Standard
Warranty: 10-year Gearbox Limited Warranty; 1-year Machine Limited Warranty

NOTES:

Unit(s)shown equipped with certain selections and options; please consult with your local Bush Hog dealer for all available configurations. *Measured from Wing Skid to Wing Skid when Folded **Measured at Maximum Transport Height ***Measured from hitch tip to rear of 21" Laminated Tire

Add To Configuration

IronCraft UH84 Gear-Drive Rotary Tiller

Price: $4,699.00

The UH-84 Heavy Duty Rotary Tiller is suitable for tractors from 50 to 65 hp with a Category 2 hitch. The UH-84 models are heavy-duty and dependable, cutting through very demanding and stony soils.

Specifications

Overall Width: 90"
Tilling Width: 85"
Tractor HP Range: 50 - 65 HP
3-Point hitch Type: Cat. II
Number of Flanges on Rotor: 9
Number of Tines per Flange: 6
Number of Tines: 54
Weight (w/o PTO): 993 lbs
PTO Input speed: 540 RPM
Max Working Depth: 8"
Rotor Tube Diameter: 4"
Rotor Swing Diameter: 19"

Add To Configuration

IronCraft FMH175 Standard-Duty Flail Mower

Price: $5,699.00

The FMH175 Standard-Duty Flail Mower is suitable for tractors from 40 horsepower to 70 horsepower with a category 1 hitch. It utilizes a wide working width (69") and has multi-purpose capability allowing it to mow grass and brush (1.5-inch thickness) by means of flails or hammers. Hydraulic side shift, rear roller, and rakes standard.

Specifications

Overall Width: 75.5"
Mowing Width: 69"
Tractor HP Range: 40 - 70 HP
3-Point Hitch Type: Cat. I
Hydraulic Offset: 12"
Number of Hammers: 22
Weight (w/o PTO): 957 lbs
Belts: 4

Add To Configuration

IronCraft FRF-165 Offset Flail Mower

Price: $5,799.00

The multi-purpose capability of IronCraft’s offset flail mowers makes them ready to face anything! Even on uneven terrain, it shreds grass, weeds, and brushwood up to 2” in diameter. Robust, yet easy to handle in tight areas, IronCrafts new FRF and BRF lines are ideal for mowing along fences, in orchards and along ditch banks and ponds.

Specifications

Product Family: Offset Flail Mowers
Product: FRF-165
Description: FRF-165 Offset Flail Mower
Offset: Offsets to the right
Degree of Tilt: 90 degrees up and 65 degrees down
HP Required: 40-50 hp
Working Width: 63"
# of Hammers: 28
Hammer Size: 3.4" x 1.7"
Side Transmission: 4 Belts
Roller Thickness or Diameter: 4.7"
Rotor Thickness or Diameter: 4.2"
Weight (lbs): 703 lbs
PTO Drive Shaft: Series 4

Add To Configuration

CID 72" Industrial Root Grapple

Price: $3,299.00

The 72-inch Industrial Root Grapple is the choice for those who need an attachment that will hold up in severe applications. It can handle more material and is more rugged that our other grapples. It's built from 1/2" thick steel plate on the top and bottom, and incorporates 4" square tubing.

Specifications

Features: Hydraulic lines routed inside the tubing to prevent tears; Optional spacer tines
Size: 72"
HP Required: 45 HP to 65 HP
Cylinders: Dual 2" x 10"

*Requires a 3rd function hydraulic valve **Additional freight charges may apply.

Add To Configuration

KIOTI KG4072 Grapple

Price: $3,199.00

Specifications and design are subject to change without notification.

Specifications

Working Width: 72 in. (1,829 mm)
Attach Type: Quick Attach
Material: AR400 Steel
Weight: 476 lbs. (216 kg)
Overall Width: 77 in. (1,956 mm)
Closed Height: 32 in. (813 mm)
Jaw Opening: 41 in. (1,041 mm)
Number of Teeth (Top): 11
Number of Teeth (Bottom): 12

*Requires a 3rd function hydraulic valve

Add To Configuration

CID 84" Tractor Rock Bucket

Price: $2,099.00

The CID Standard Duty Rock Buckets offer a similar design to the X-treme version, but in a stepped down size for smaller machines. Easily sift through loose soil to remove unwanted rock and debris.

SKU	SDVTRB84
Width	84"
Height	20"
Length	36"
Tine Spacing	3"
Tine Thickness	3/8"
Rated for (HP)	35 HP - 45 HP

Add To Configuration

Vermeer 504R Classic Baler

Price: $34,499.00

Only put up a limited number of bales a year? The Vermeer 504R Classic baler is designed for part-time operators who want good value in a dependable baler. A wide pickup and optional bale shape sensors make baling easier and with minimal setup and adjustments required, you'll feel like you've been baling with it forever. A camless pickup and heavy-duty components maximize durability for prolonged machine life. And considering the price and the 3-year pickup warranty, the longer you bale with it, the better deal it can become. This baler is a twine unit with bale ramps.

Features and Benefits

Camless pickup: The Vermeer camless pickup comes standard on the 504R Classic baler. Built with fewer moving parts, this camless pickup allows you to get the job done when you have time to put up hay and minimize parts cost when it is time for routine maintenance.
Atlas control system: The Atlas™ control system delivers robust performance in a simple and intuitive package. A 4.3-in (10.9-cm) color touchscreen displays everything you need to bale and allows operators to enter field statistics to track bales per hour and average bale size. Optional features include ability to see bale shape on the display as well as real-time moisture readings.
Low recommended PTO horsepower: Tractors just don't run balers. That is why we designed a baler to fit your tractor. With a low recommended PTO horsepower of 50 hp (37.3 kW), the 504R Classic will run with most part-time operators' tractors.
3-year pickup warranty: Operators can rest assured with a 3-year pickup warranty covering internal components and parts and labor on the 504R Classic baler. Does not include teeth or hardware for teeth.
Optional netwrap system: Using netwrap helps to reduce hay loss compared to twine and keep the shape and structure of your bales during storage.

Bale Size

Bale Diameter: 36 in - 60 in (91.4 cm - 152.4 cm)
Bale Width: 47 in (119.4 cm)
Maximum bale weight: 1000 lbs (453.6 kg)

Dimensions and Weights

Length standard: 156 in (396.2 cm)
Length with net: 173 in (439.4 cm)
Length with ramp: 169 in (429.3 cm)
Height: 107 in (271.8 cm)
Width with standard tires: 100 in (254 cm)
Tires: Standard - 11L-15; Optional - 31 x 13.5-5
Weight fully optioned: 5260 lbs (2385.9 kg)

Bale Forming Chamber

Drive Roller Size: 4.78 in (12.1 cm)
Idler roller size: 3.5 in (8.9 cm)
Start Roller Size: 4.5 in (11.4 cm)
Belt Type: Standard mini rough top
Number of Belts: 5
Width of Belt: 6.8 in (17.3 cm)
Length of belt (long): 465.5 in (1182.4 cm)
Length of belt (short): 455.5 in (1157 cm)
Type of Lace: Alligator rivet

Drive System

Driveline: 540 rpm, standard lube, radial pin clutch
Torque protection pickup: Radial pin clutch
Roller chains: Single 60
Bearing and Sprocket Configuration: Round drive shafts and bearings

Tractor Requirements

PTO horsepower minimum: 40 hp (29.8 kw)
PTO horsepower recommended: 50 hp (37.3 kw)

Pickup

Pickup type: Camless wide
Width tooth to tooth: 60 in (152.4 cm)
Tooth Bars: 4
Number of Teeth: (48) double steel coil
Teeth spacing: 2.83 in (7.2 cm)
Stripper bands: Steel
Flotation: Optional gauge wheels 4.8-16 HD semi-pneumatic with spring assist
Pickup Lift: Manual standard, hydraulic optional
3-year pickup warranty: Standard

Control System

Control system type: Atlas™ control system
Display: 4.3 in (10.9 cm) color touch screen
Field Statistics: 10 fields
Bale shape indicators: Optional
Moisture: Optional - up to 27%
Bales per hour: Standard

Density

Bale density adjustments: Standard manual through hydraulic relief valve
Density readings: Optional physical gauge

Bale Tie System

Twine system: Optional
Netwrap system: Optional
Net tension control: via mechanical adjustment
Extra roll storage: Standard

Features

Bale ramp: Optional spring-loaded
Fire extinguisher, safety chain: Optional

Add To Configuration

Vermeer 504R Signature Baler

Price: $47,499.00

The Signature name says it all. The 504R Signature baler gives the working man a baler for any operation. Designed for producers who harvest primarily dry hay but also want the ability to bale silage when the weather isn't on their side. It is built upon the three signature pillars of Vermeer balers — convenience, ease of use and durability. This baler is a twine/net unit with bale ramps.

Features and Benefits

Camless wide pickup: A camless wide pickup with no cam tracks or follower bearings allows for a smooth, quieter operation compared to previous models. This durable, 5-bar pickup is equipped with steel teeth for baling tough or heavy crops and features fewer moving parts to help reduce maintenance and prolong the life of the machine.
3-year pickup warranty: The Vermeer 3-year pickup warranty covers the internal components and includes parts* and labor on the 504R Signature baler. Operators can rest assured the pickup is backed by Vermeer parts and service. *Does not include teeth or hardware for teeth.
More total tines: A 5-bar, camless wide pickup features more total tines to gather the crop for big feeding capacity. This helps minimize the wear on each individual tine and more importantly provides a more efficient, positive start of the crop into the bale chamber. More tines can also equal more crop picked up in the field.
Rotor: An aggressive rotor creates positive bale starts while the auger and feeding system forces crop onto rotating belts and then into the chamber for bale formation. Together, along with the camless wide pickup, this forms square-shouldered, dense bales.
Real-time moisture sensors: Real-time moisture sensors come standard on the 504R Signature baler and provide moisture readings via the Atlas™ control system, giving operators access to real-time moisture information in the tractor cab.
Optional hydraulic pickup lift: An optional hydraulic pickup lift provides convenience for operators switching between multiple fields in a day, eliminating the extra trips in and out of the tractor. Available hydraulic controls allow the operator to easily lift and lower the pickup without getting out of the cab to make sure pickup teeth aren't scraping the ground.
Durable drivetrain: The durable drivetrain handles starting and stopping during operation. The three main drive chains are made with 80 diamond chain to minimize chain maintenance. The upper and lower drive bearings have a 33 percent higher load rating while the clutch's maximum torque rating is 32 percent higher than on previous models. Durable parts allow operators to efficiently bale dry or wet hay.

Bale Size

Bale Diameter: 36 in - 60 in (91.4 cm - 152.4 cm)
Bale Width: 47 in (119.4 cm)
Maximum bale weight: 2000 lbs (907.2 kg)

Dimensions and Weights

Length standard: 156 in (396.2 cm)
Length with net: 173 in (439.4 cm)
Length with ramp: 169 in (429.3 cm)
Height: 107 in (271.8 cm)
Width with standard tires: 100 in (254 cm)
Tires: Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire
Weight fully optioned: 5400 lbs (2449.4 kg)

Bale Forming Chamber

Drive Roller Size: 4.78 in (12.1 cm)
Idler roller size: 3.5 in (8.9 cm)
Start Roller Size: 4.5 in (11.4 cm)
Belt Type: Standard mini rough top
Number of Belts: 6
Width of Belt: 6.8 in (17.3 cm)
Length of belt (long): 465.5 in (1182.4 cm)
Length of belt (short): 455.5 in (1157 cm)
Type of Lace: Alligator rivet
Silage kit: Optional

Drive System

Driveline: 540 rpm, standard lube, friction clutch
Torque protection pickup: Radial pin clutch
Roller chains: Single 60 and 80
Bearing and Sprocket Configuration: Round drive shafts and bearings

Tractor Requirements

PTO horsepower minimum: 45 hp (33.6 kw)
PTO horsepower recommended: 55 hp (41 kw)

Pickup

Pickup type: Camless wide
Width tooth to tooth: 60 in (152.4 cm)
Tooth Bars: 5
Number of Teeth: (60) double steel coil
Teeth spacing: 2.83 in (7.2 cm)
Stripper bands: Steel
Flotation: Gauge wheels 4.8-16 HD semi-pneumatic with spring assist
Pickup Lift: Manual standard, hydraulic optional
3-year pickup warranty: Standard

Control System

Control system type: Atlas™ control system
Display: 4.3 in (10.9 cm) color touch screen
Field Statistics: 10 fields
Bale shape indicators: Standard
Moisture: Standard - up to 27%
Bales per hour: Standard

Density

Bale density adjustments: Standard manual through hydraulic relief valve
Density readings: Physical gauge

Bale Tie System

Twine system: Optional
Netwrap system: Optional
Net tension control: via mechanical adjustment
Extra roll storage: Standard

Features

Bale ramp: Optional spring-loaded
Right-hand door: Standard
Fire extinguisher, safety chain: Optional

Add To Configuration

Vermeer VR1224 Carted Wheel Rake

Price: $11,499.00

It’s a simple fact — the better you rake, the better you bale. That means shaping the best possible baler-ready windrows to attain the best possible moisture level and consistency — top to bottom, side to side. Vermeer has spent the last decade reshaping and redesigning its full line of wheel rakes (or v rakes) and twin basket rakes with four key objectives: high-capacity performance, speed, durability and operator convenience. The resulting products are not only innovative but also offer performance in the field.

Features and Benefits

Easily adjustable windrow width: Easily adjustable windrow width to conveniently fit the intake of your baler.
Patented rubber torsion suspension: Patented rubber torsion suspension ensures clean hay and extends tooth life.
Single- or double-sided raking: Single- or double-sided raking is quick, convenient and easy.
Center splitter attachment: Uniquely designed center splitter attachment helps balance windrow moisture content and improves dry down.

Dimensions and Weights

Raking width minimum: 19.9 ft (6.1 m)
Raking width maximum: 24.4 ft (7.4 m)
Windrow width minimum: 21 in (53.3 cm)
Windrow width maximum: 98 in (248.9 cm)
Transport width: 10.2 ft (3.1 m)
Transport length: 23 ft (7 m)
Transport height: 8.5 ft (2.6 m)
Total weight: 1812 lbs (821.9 kg)
Tongue weight: 230 lbs (104.3 kg)
Transport tire size: ST205/75D15
Flotation: Rubber torsion on toolbar

Raking Components

Number of rake wheels: 12
Rake wheel diameter: 55 in (139.7 cm)
Teeth per wheel: 40
Tooth diameter: .3 in (.8 cm)
Rake wheel wind discs: Optional
Single-side raking: Standard left- or right-side capable

Tractor Requirements

PTO horsepower minimum: 30 hp (22.4 kw)
Hydraulic type: 1 double-acting
Hydraulic pressure: 1500 psi (103.4 bar)
Hydraulic flow rate: 5 gpm (18.9 L/min)

Features

Safety chain: Optional
Center splitter: Optional

Key Features

Rake field after field with ease
High-performance and reliability
Simple features make operation a breeze

Add To Configuration

Vermeer M6050 Disc Mower

Price: $17,499.00

Features and Benefits

Quick Hitch hookup: The Quick Hitch hookup is a one-person hookup: back up your tractor, hook up the disc mower with a Quick Hitch — and off to the field you go.
Tapered, low-profile cutter bar: A tapered, low-profile cutter bar delivers close, clean cutting— reduces streaking and helps improve performance across a wide variety of crops and conditions. Each self-contained cutter unit comes prepackaged with its own set of gears, bearings and lubricant to help extend operating life. Plus, it's backed by the Vermeer 3-year cutter bar warranty.
Built locally: Vermeer mowers are built at Vermeer Corporation global headquarters in Pella, Iowa, where a passion for quality and reliability is present among team members ranging from engineering to production to service.
Quick-Clip blade retention system: Maintenance is made convenient with the Quick-Clip® blade retention system, which lets you change and turn blades in seconds — with no specialty tools required.

Dimensions and Weights

Transport width - standard: 7.8 ft (2.4 m)
Transport Length: 6.5 ft (2 m)
Cutting Width: 7.8 ft (2.4 m)
Working Width: 7.8 ft (2.4 m)
Working Length: 6.5 ft (2 m)
Total Weight: 1215 lbs (551.1 kg)
Torque Protection: Driveline: V-belt

Tractor Requirements

Tongue/hitch: 3-point quick hitch, category II or III N
Drive PTO: 540 rpm
PTO horsepower recommended: 60 hp (44.7 kw)
Hydraulic Type: 1 auxiliary remote, single-acting
Hydraulic Pressure: 1700 psi (117.2 bar)
Hydraulic flow rate: 6 gpm (22.7 L/min)

Cutter Bar

Cutter bar type: Standard
Cut height: 1.3 in - 3.9 in (3.2 cm - 9.9 cm)
Number of Discs: 6
Disc Diameter: 19.7 in (50 cm)
Disc Speed: 2850 rpm
Number of Blades: 12
Angle Adjustment: Top-link on 3-point
Quick Clip® blade retention system: Standard
Curtain material: 1400 g/m2 polyester woven material with flexible PVC covering
3-year limited cutter bar warranty: Standard

Features

Optional swath formation: Optional crop divider; Optional crop divider and swath wheel combination
Skid Shoes: Optional topping skid shoes; Optional wear skids

Add To Configuration

Lane Shark LS-4 Brush Cutter

Price: $5,098.00

Capability

Hydraulic implement flow rate 8.5gpm to 14.9gpm - Standard motor
Hydraulic implement flow rate 15gpm to 20gpm - High capacity motor (Special Order Only)
Hydraulic rear remotes* or third function. ONLY Pressure comes from the remote, and return must be to the sump. (CANNOT RETURN THROUGH AUXILIARY HYDRAULICS)
We do not recommend rear remote plumbing as some tractors may lose loader priority
NOT COMPATIBLE WITH DIVERTER VALVES
Minimum dry tractor weight of 3000 lbs
Minimum tractor width of 55 inches
Certified roll over protection system
For stabilization while operating the Lane Shark, fill rear tires of your tractor with water for use as a ballast, as well as additional weight on rear. ie: box blade, or rotary cutter.

Details

The Lane Shark LS4 is a light duty rotary cutter designed to clear overgrown roadways, for light land management, and property maintenance.
Easily cuts up to 2-3” diameter limbs, brush, saplings, and underbrush. The LS4 has a wide range of cutting positions that allow it to cut vertically, offset, directly in front (level), or 25°, 35°, & 45° in the vertical and offset positions
Multi-position adjustment rail for added versatility and an extra foot of vertical extension
The Lane Shark LS4 attaches to the front of any FEL tractor with a SSQA or JD Hook & Pin-Style attachment system. There are adapters available to fit most other applications sold separately.
Rear rubber skirt and skid shoes for a smoother cutting process
The Lane Shark LS4 weighs just under 450 lbs.
When purchasing the Lane Shark brush cutter, you will receive a unit equipped with #10 ORB (O-ring Boss) inlets. When using ORB, a minimum inside diameter of 1/2” is required.
NOT COMPATIBLE WITH SKID STEERS

*May require the C-Flow 3rd Function Kit

Add To Configuration

Lane Shark Hammerhead Brush Cutter

Price: $9,990.00

The Lane Shark Hammerhead is the only patented, hydraulically articulated, multi-position brush cutter for tractors with a minimum weight of 3,000lbs and a hydraulic flow range of 8.5-20gpm. Supported by a cutting diameter of 44”, the Hammerhead can tackle overgrown vegetation and cut the time spent on brush clearing jobs by more than half, and a wide range of cutting positions makes sure you get the job done right.

KEY FEATURES

Engineered for both efficiency and durability
The Hammerhead offers a 44-inch cutting diameter, accommodating tractors with a minimum weight of 3,000 pounds and a hydraulic flow range of 8.5–20 GPM.
Wide range of cutting positions: Vertical and offset positions (25 - 55 degrees)
The Lane Shark Hammerhead attaches to the front of any FEL tractor with SSQA or JD Hook and Pin style attachment system. There are adapters available to fit most other applications sold separately.
The Lane Shark Hammerhead weighs just under 550lbs.
When purchasing the Lane Shark brush cutter, you will receive a unit equipped with #10 ORB (O-Ring Boss) inlets. When using ORB, a minimum inside diameter of 1/2" is required.
Cutting Diameter: 44"
NOT COMPATIBLE WITH SKID STEERS

SPECIFICATIONS

Hammerhead Switch Box included
Pressure and return whips to tractor loader bulkhead included
Hydraulic Flow Range: 8.5 gpm to 20 gpm
Hydraulic third function is required.
NOT COMPATIBLE WITH REAR REMOTES
Not compatible with diverter valves or stacked valve third functions - you will lose loader priority. Must exchange for W.R. Long C-Flow Third Function
Minimum dry weight of 3000 lbs
Minimum tractor width of 55 inches.

*Requires the C-Flow 3rd Function Kit

Add To Configuration

IronCraft 9221 Loader-Mounted Post Hole Digger (w/12" Auger)

Price: $3,299.00

Product Family	Standard Duty Auger Drives
Product	9221
Description	2500 Auger Drive w/ 2" Hex Shaft
Notes	4 - 24" Recommended Bit Size
Flow Range	7 - 17 gpm
Max Pressure	3600 psi
Max Torque @ 3500 PSI	2100 ft lb
Speed @ Max Torque	87 rpm
Weight	135 lbs

Add To Configuration

CID 84" Snow Plow (Manual Angle)

Price: $2,449.00

Quickly clear driveways and parking lots with the CID Snow Plow. Manually angles to 30 degrees both directions. *Loader mounted

Add To Configuration

CID 84" Snow Plow (Hydraulic Angle)

Price: $2,699.00

Quickly clear driveways and parking lots with the CID Snow Plow. Powered by 2" x 6" hydraulic cylinder and angles to 30 degrees both directions. *Loader mounted *Requires 3rd function

Add To Configuration

CID Stump Bucket

Price: $999.00

The Heavy-Duty Stump Bucket is an excellent addition to your compact tractor. It allows you to easily dig around a stump and then pop it out. Contractors have even used it to dig house footings. This versatile stump bucket will enhance your capabilities and meet various needs.

Add To Configuration

Options

i2-Year Extended Warranty: $1,450.00

i3-Year Extended Warranty: $2,800.00

iR1 Agriculture Tires: $1,999.00

iR4 Industrial Tires: $0.00

iR14 Tires: $3,399.00

iSecond Remote Hydraulic Valve: $849.00

iThird Remote Hydraulic Valve: $849.00

iFront Work Lamp Kit: $209.00

iRear Work Lamp Kit: $209.00

iDual Arm Rest Kit: $219.00

iSunshade Kit: $999.00

iFront Weight Kit: $1,649.00

i3rd Function Valve: $1,449.00

iFactory Hydraulic Top Link: $579.00

iFront Fenders: $299.00

iTurn Assist Control Kit: $339.00

iRear Weight Kit: $399.00

iLoader Bolt On Cutting Edge: $389.00

iLoader Bucket Tooth Bar: $499.00

iBucket Hook Kit: $119.00

iMesh Grill Guard Insert Kit: $149.00

iLoader Soft Ride Kit: $699.00

iC-Flow 3rd Function Kit: $2,699.00

RX40 2-Year Bumper-Bumper Extended Warranty

Price: $1,450.00

Add To Configuration

RX40 3-Year Bumper-Bumper/Powertrain Extended Warranty

Price: $2,800.00

Add To Configuration

R1 Ag Tires

Price: $1,999.00

The traditional agriculture tractor tire is best suited for traction in dirt and mud. It's also a great choice for hillside traction.

Add To Configuration

R4 Industrial Tires

Industrial tires are a great compromise between R1 ag, and R3 turf style tires. They have a wider footprint than R1 ag tires, but still have a lug pattern unlike the R3 turf tire. R4 industrial tires are especially great for work on gravel or paved surfaces, showing very little wear over time.

Add To Configuration

RX Series R14 Hybrid Tires

Price: $3,399.00

The new R14 "hybrid" tire was designed to bridge the gap between the R1 ag tire and the R4 industrial tire. It has the same tread depth and tire size as the R4, but with a more aggressive tread pattern, allowing for better clear-out characteristics and traction in the dirt.

Add To Configuration

RX Series Second Remote Hydraulic Valve

Price: $849.00

This KIOTI factory rear hydraulic remote valve can be optioned as either "detent", "detent w/float", or "spring" style. One valve can be added in addition to the factory valve. Levers are added to control from the operator's station. This valve allows you to power rear 3-point hitch implements that require hydraulic power for function. Detent valve needed for a backhoe attachment.

Add To Configuration

RX Cab Series Third Remote Hydraulic Valve

Price: $849.00

This KIOTI factory rear hydraulic remote valve can be optioned as either "detent", "detent w/float", or "spring" style. Two valves can be added in addition to the factory valve. Levers are added to control from the operator's station. This valve allows you to power rear 3-point hitch implements that require hydraulic power for function. Detent valve needed for a backhoe attachment.

Add To Configuration

Front Work Lamp Kit

Price: $209.00

2 front-facing LED work lamps mounted to rollbar with operators station mounted switch.

Add To Configuration

RX40 Rear Work Lamp Kit

Price: $209.00

2 rear-facing LED work lamps mounted to rollbar with operators station mounted switch.

Add To Configuration

Arm Rest Kit

Price: $219.00

Factory DUAL armrest kit for increased comfort. Armrests can be folded up or down.

Add To Configuration

Sunshade

Price: $999.00

Shade yourself from the sun with a KIOTI factory fiberglass canopy.

Add To Configuration

RX Series Front Weight Kit

Price: $1,649.00

The RX Series front suitcase weight kit includes 10 weights, hardware, and bar. It is not compatible with a grill guard or loader attachments.

Add To Configuration

3rd Function Valve

Price: $1,449.00

With the KIOTI factory 3rd function hydraulic valve, the loader control joystick is replaced with a 2-button controller that sends hydraulic fluid through a loader-mounted remote. This allows you to power many front implements such as grapples, hydraulic angled snow blades, etc. This opens up a whole new realm of possibilities for the tractor.

Add To Configuration

RX40 Factory Hydraulic Top Link

Price: $579.00

Make 3-point hitch adjustments while seated in the tractor

Add To Configuration

RX40 Front Fenders

Price: $299.00

Protect yourself and your tractor from dirt and debris

Add To Configuration

Turn Assist Control Kit

Price: $339.00

When engaged, the turning assist automatically drops engine RPM when making sharp turns to help with back-and-forth field work.

Add To Configuration

Rear Wheel Weights

Price: $399.00

The KIOTI factory wheel weights are 160 lb. per set, with a maximum of 3 sets. Comes with all mounting hardware.

Add To Configuration

Bolt on cutting to protect the cutting edge

Bolt On Cutting Edge

Price: $389.00

The bolt on cutting edge protects and reduces wear on the factory loader bucket.

Add To Configuration

Toothbar For Loader Bucket

Price: $499.00

The W.R. Long Tooth Bar is a great option to help the bucket make its way into gravel or dirt. Price includes drilling bucket for install.

Add To Configuration

RX40 Bucket Hook Kit

Price: $119.00

Versatile tool for moving heavy loads, securing equipment, organizing tools, and dragging bulky items Includes 3 hooks and hardware

Add To Configuration

RX40 Mesh Grill Guard

Price: $149.00

Provides extra protection for the front end of the tractor from debris, animals, and collisions

Add To Configuration

RX40 Loader Soft Ride Kit

Price: $699.00

Reduce stress on your tractor and get a more comfortable ride

Add To Configuration

Lane Shark C-Flow 3rd Function Kit

Price: $2,699.00

Details

Full WR Long Third Function and valve for continuous hydraulic flow
An affordable, fully custom solution for getting your tractor Lane Shark and grapple ready
Includes a WR Long Third Function, Lane Shark Continuous Flow Valve, Lane Shark switch box, prefabricated whips with quick connect fittings, and a bulkhead mount fully customized to fit your specific tractor make, model, and loader so you can exchange your attachments in one simple step
Easy install in less than 2 hours
American made using American parts and labor
Lane Shark C-Flow and WR Long third function valves include a 1 year limited warranty. Electrical components include a 90 day limited warranty. Hoses include a 30 day limited warranty.
Still unsure what kind of hydraulic kit you may need for your Lane Shark? Visit our FAQ Support Page or contact us to find the best solution to get you up and cutting
Compatible with a wide variety of tractor makes, models, and loaders. Please contact us or your local dealer to be paired with your exact, custom fitted kit

*Required for the Lane Shark LS-2 and LS-3 Brush Cutters *Pricing varies based on specific tractor model

Add To Configuration

KIOTI Cash Back Program

ALL prices listed in the builder utilize the KIOTI Low-Rate Program. For the lowest cash price, customers may choose to take advantage of the KIOTI Cash Back Program. Up to $4000 in rebates are available for the KIOTI RX Series. This program cannot be combined with the KIOTI Low-Rate Program. Standard financing rates apply. GIVE US A CALL OR STOP BY TO DISCUSS THIS OPTION.

Product total

Options total

Grand total

RX7340 Power Shuttle quantity

Calculate Your Payment Estimate

Description

ENGINE

Cylinders: 4
Horsepower: 73.1 bhp; 54.5 kW
Cooling: Liquid
Displacement: 148.6 ci
Fuel Type: Diesel
Carburetion Type: Fuel Injected

TRANSMISSION

Transmission Type: Power Synchro-Shift
Maximum Forward Speed: 23.9 mph; 38.5 kph

DRIVE LINE

Driveline Type: 4X4

TECHNICAL SPECIFICATIONS

Length: 150.3 in; 3817 mm
Width: 82.1 in; 2085 mm
Height: 114.8 in; 2917 mm
Wheelbase: 85.4 in; 2170 mm
Ground Clearance: 17.3 in; 400 mm
Dry Weight: 6252 lbs; 2836 kg
Fuel Capacity: 26.4 gal; 100 l

WHEELS & TIRES

Front Tire (Full Spec): 11.2 x 24
Rear Tire (Full Spec): 16.9 x 30

BRAKES

Front Brake Type: Wet Disc
Rear Brake Type: Wet Disc

INSTRUMENTATION

Tachometer: Standard

Price includes all dealer set up and rear tire fluid ballast. FREE LOCAL DELIVERY!

Models

KL7340

ENGINE

TRANSMISSION

DRIVE LINE

TECHNICAL SPECIFICATIONS

WHEELS & TIRES

BRAKES

INSTRUMENTATION

Independence, KY

Dry Ridge, KY

Equipment Builder

RX7340 Power Shuttle

Calculate Your Payment Estimate

Email Me My Quote

Apply For Financing

Price includes all dealer set up and rear tire fluid ballast. FREE LOCAL DELIVERY!

KIOTI KL7340 Front End Loader

Models

KL7340

KIOTI KB2485 Backhoe

Standard Features

Specifications

Bush Hog BH217-2 Single-Spindle Rotary Cutter

Performance Features

Construction Features

Safety Features

Specifications

IronCraft 84" Heavy-Duty Cutter

Specifications

Bush Hog 2208 Multi-Spindle Rotary Cutter (Pull-Type)

Key Features

Performance Features

Construction Features

Specifications

Bush Hog 2310 Multi-Spindle Rotary Cutter (Pull-Type)

Construction Features

Safety Features

Specifications

IronCraft 2408 Heavy-Duty Dual Spindle Cutter (Lift-Type)

DESCRIPTION

SPECIFICATIONS

IronCraft 96" Heavy-Duty Box Blade

Specifications

IronCraft 3707 Dual Edge Grader

IronCraft 96" Heavy-Duty Grader Blade

Specifications

CID Standard-Duty Pallet Forks

Specifications

IronCraft Category 2 Quick Hitch Adapter

CID Single Low Back Bale Spear

IronCraft 9300S Rear Hay Spear

IronCraft 2512 Flex Wing Rotary Cutter

Specifications

IronCraft 2515 Flex-Wing Rotary Cutter

DESCRIPTION

SPECIFICATIONS

Bush Hog 1812 Flex-Wing Rotary Cutter

Key Features

Performance Features

Construction Features

Safety Features

Specifications

IronCraft UH84 Gear-Drive Rotary Tiller

Specifications

IronCraft FMH175 Standard-Duty Flail Mower

Specifications

IronCraft FRF-165 Offset Flail Mower

Specifications

CID 72" Industrial Root Grapple

Specifications

KIOTI KG4072 Grapple

Specifications

CID 84" Tractor Rock Bucket

Vermeer 504R Classic Baler

Features and Benefits

Bale Size

Dimensions and Weights

Bale Forming Chamber

Drive System

Tractor Requirements

Pickup

Control System

Density

Bale Tie System

Features

Vermeer 504R Signature Baler

Features and Benefits

Bale Size

Dimensions and Weights

Bale Forming Chamber

KIOTI
CX2510 HST Cab

KIOTI
CK4020SE HST

KIOTI
CS2220 HST

KIOTI
NS4710 Gear
