FEATURES

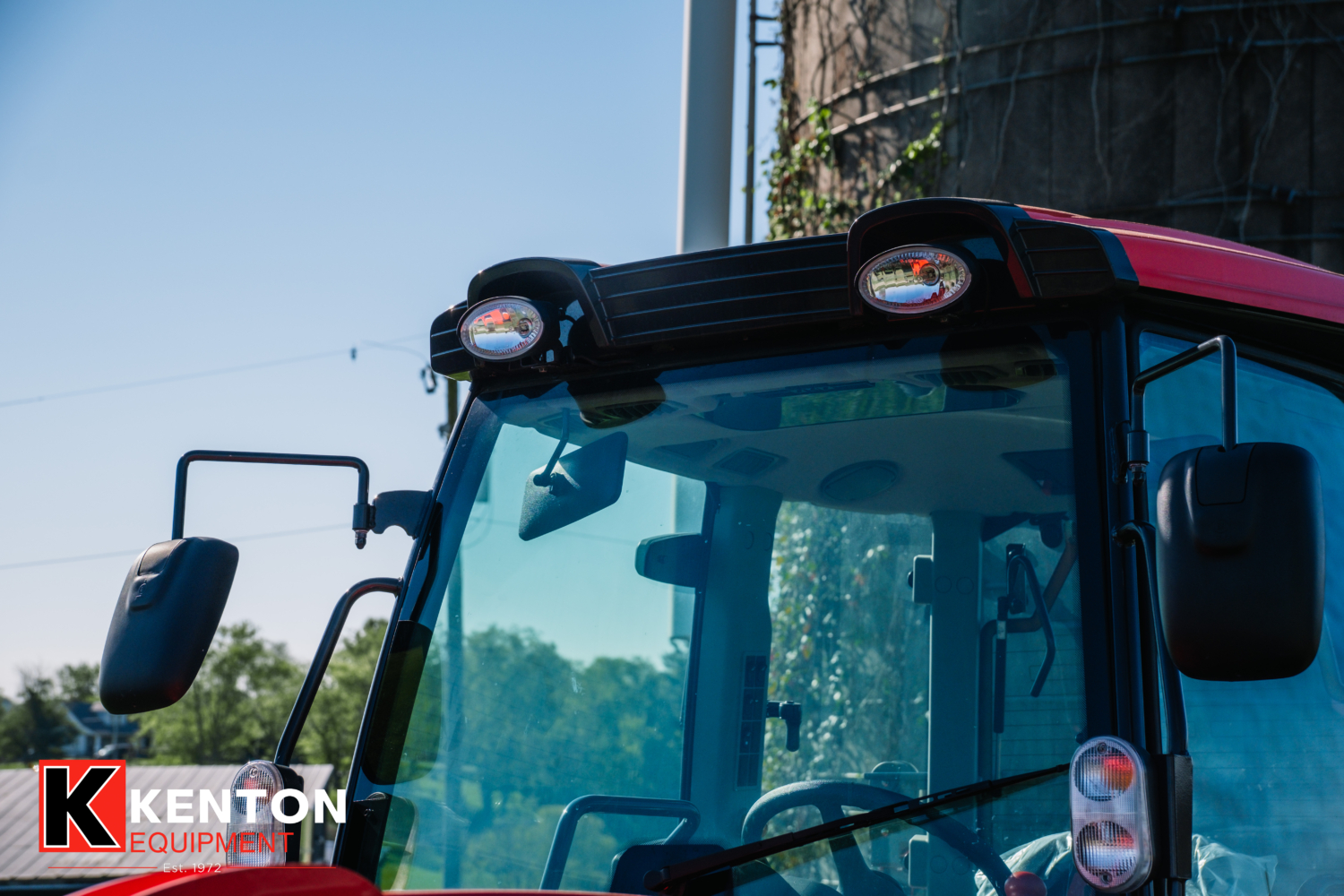

- Projection Head and Working Lamp: With LED projection head and working lamps, the operator will experience safer and easier operation in low light conditions.
- 3-Point Hitch with Telescopic Lower Links: Standard telescopic lower link ends and stabilizers allow the operator to easily connect & adjust a wide variety of 3-point implements. The standard rear 3-point control lever easily raises and lowers the lift arms from outside the tractor when attaching implements.

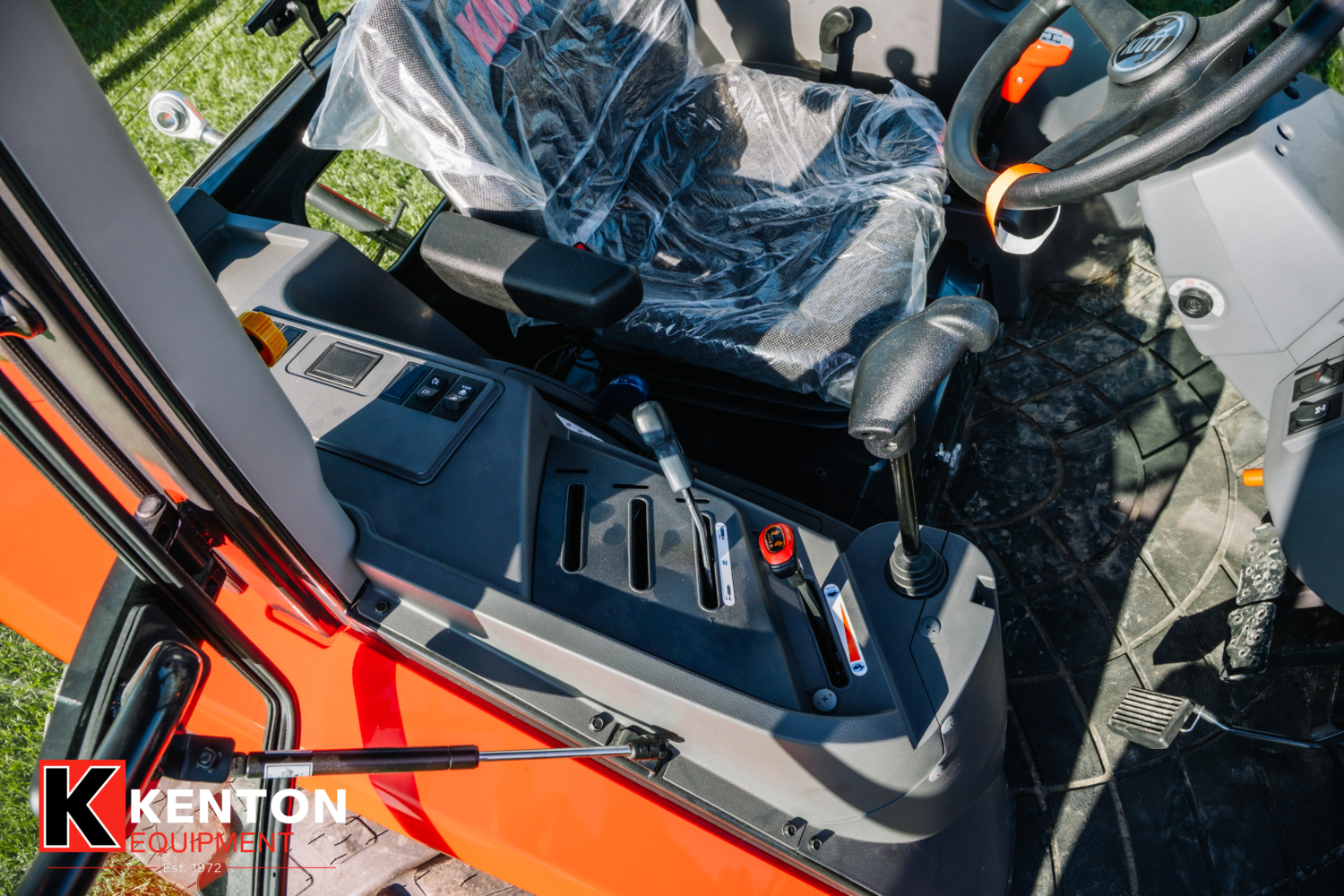

- Deluxe Suspension Seat: Ergonomically designed, adjustable suspension seat allows the operator to ride in comfort no matter what the task may be.
- Independent PTO with Auto-Manual Function: The standard rear PTO is easily engaged by the simple turn of a knob. A safety interlock prevents the engine from starting when the PTO switch is left on. All models come standard with a selectable manual or automatic PTO option. When the Auto PTO is engaged, the PTO will automatically shut off when the 3-point control is raised, eliminating exposure to the running implements.
- CDRI KIOTI Diesel Engine: The Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the NS Series offers the operator a quiet work environment with powerful performance.
- Power Steering with Tilt: The standard power steering minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of a lever, allowing easy adjustment to fit the operator needs.
- Optional Radio with Bluetooth Capabilities: Customize your KIOTI with an optional radio with BluetoothTM Capabilities.
- 12×12 Synchro Shuttle Transmission: The fully synchronized transmission provides smooth and easy shifting on the move. The transmission features 12 forward and 12 reverse gears to handle anything.
ENGINE
- Engine Model: 3HT-S4TM45A
- Engine Gross Power: 45 hp ( 33.6 kW)
- Rated Speed: 2,600 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Aspiration: Turbo Charged
- Displacement: 111.4 cu. in. (1,826 cc)
- Fuel Tank Capacity: 13.2 gal. (50 L)
TRANSMISSION
- Transmission Type: Manual
- Shuttle: Synchronized
- Main Gear: Synchronized
- No. of Travel Speeds – Forward / Reverse: 12 x 12
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0.9 mph (1.5 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 16.7 mph (26.8 km/h)
POWER TAKE-OFF (PTO)
- PTO Type Trans: Independent
- PTO Power: 36.6 hp (27.3 kW)
- Rear PTO Speed: 540 rpm
- Mid PTO Speed: 2,000 rpm (Optional)
BRAKES AND CLUTCH
- Brakes: Wet Disc Type
- Clutch: Dry type single stage
DIMENSIONS W/AG TIRE
- Length w/ 3-point hitch: 136.4 in. (3,465 mm)
- Width: 67.1 in. (1,705 mm)
- Height from Top of Cab: 98.4 in. (2,500 mm) w/o Beacon
- Wheelbase: 75.5 in. (1,918 mm)
- Ground Clearance: 11.8 in. (300 mm)
- Front Tread Ag Tires – Min: 51.3 in. (1,303 mm)
- Rear Tread Ag Tires – Min: 56.9 in. (1,444 mm)
- Turning Radius w/ Brake: 11.04 ft. (3.36 m)
HYDRAULICS
- Pump: Gear
- Pump Capacity (Max. Flow Rate): 16.5 gpm (62.4 L/min)
3-POINT HITCH
- Standard Category: Category I
- Lift Capacity, 24″ aft of hitch: 2,490 lbs. (1,334 kg)
- Control Type: Position with Draft Control
WEIGHT
- Weight with Ag Tires: 4,614 lbs. (2,093 kg.)
STANDARD EQUIPMENT
- Power Steering
- Rear PTO
- Single Remote Hydraulic Valve
- Wet Multi Disc Brakes
- Joystick Valve
- Drawbar
- Headlights
- Parking Brake
- PTO cover
INSTRUMENT PANEL
- Digital Hour Meter
- Coolant Temperature Gauge
- Electrical Tachometer
- Fuel Gauge
- Engine Oil Pressure Light
- High Beam, Emergency Flasher, Direction Indicators
- Glow Plug Light
- Alternator Light
