FEATURES
- Diesel engine with Daedong ECO Technology: The 44.9 hp (33.5 kW) Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the DK20SE Series offers the operator a quiet work environment with powerful performance.
- Dual HST Pedal: DK20SE models utilize a two pedal system for forward and reverse with smooth engagement, acceleration and deceleration. Dual pedals provide easier use which reduces operator fatigue during long hours of work and when doing repetitive tasks.
- Simple Maintenance: KIOTI tractors are designed for easy maintenance. Liftable hoods allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.

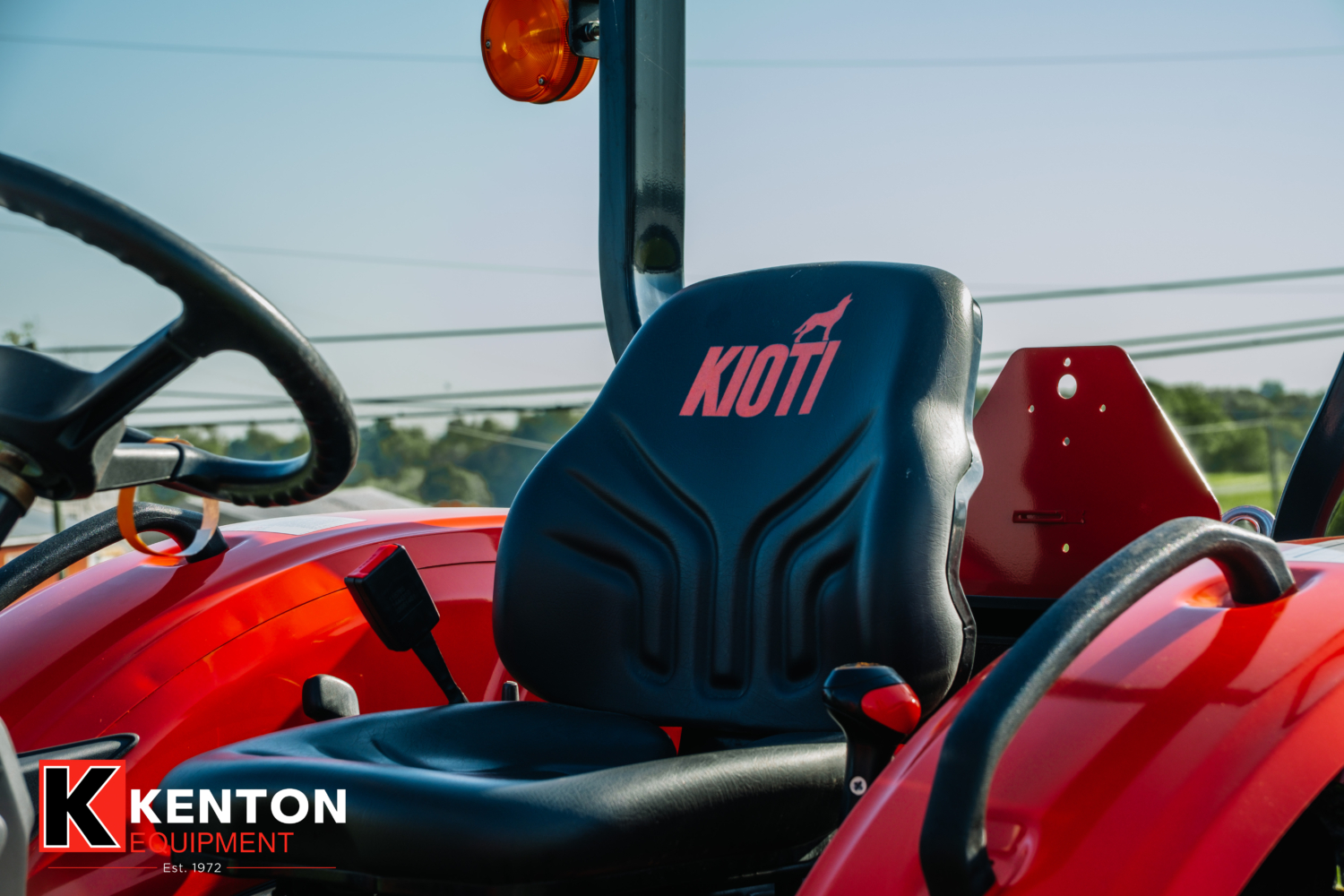

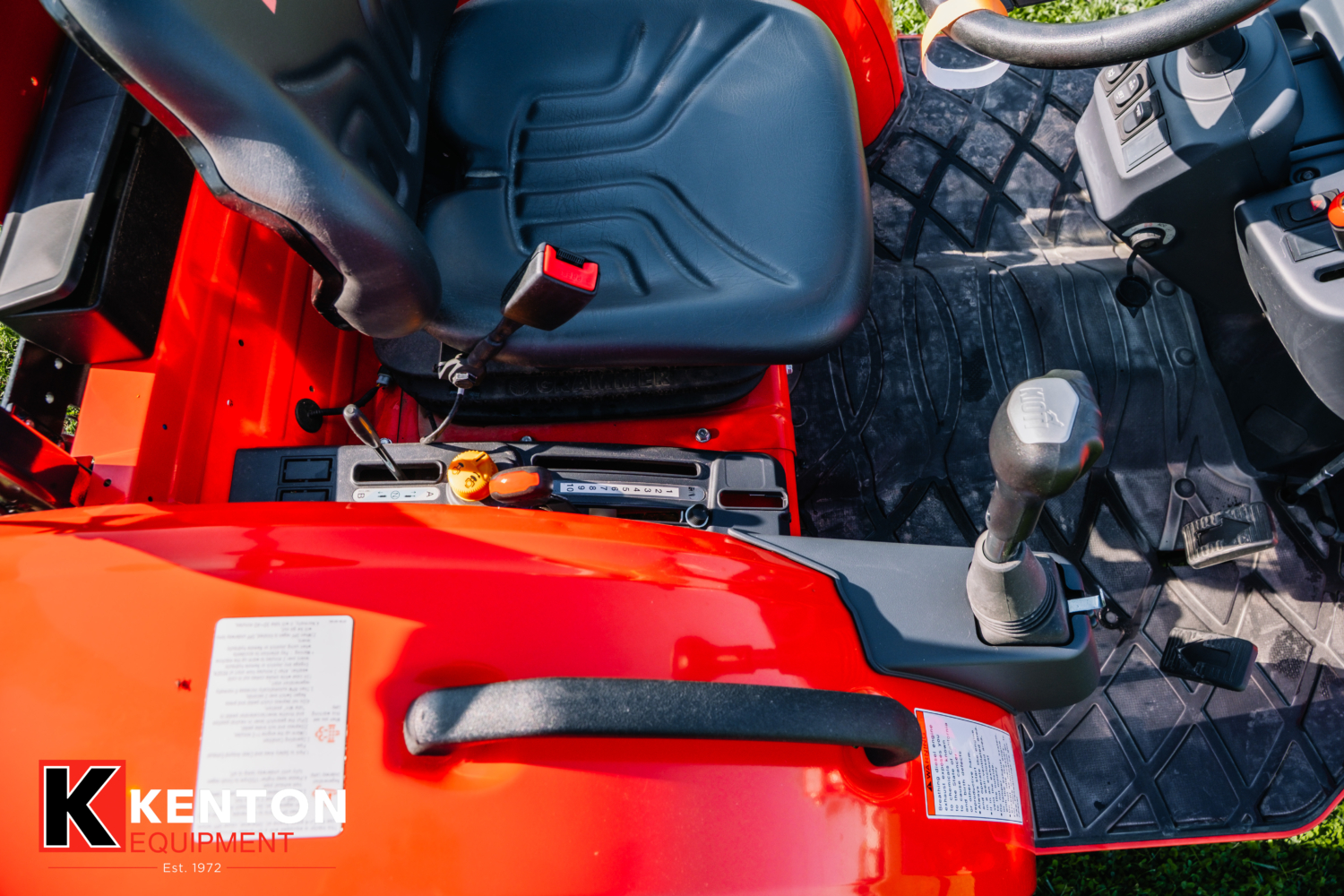

- Roomy Operator Station: The hood design provides the operator with excellent visibility while the center ridge marker assists with maintaining straight lines during operation.

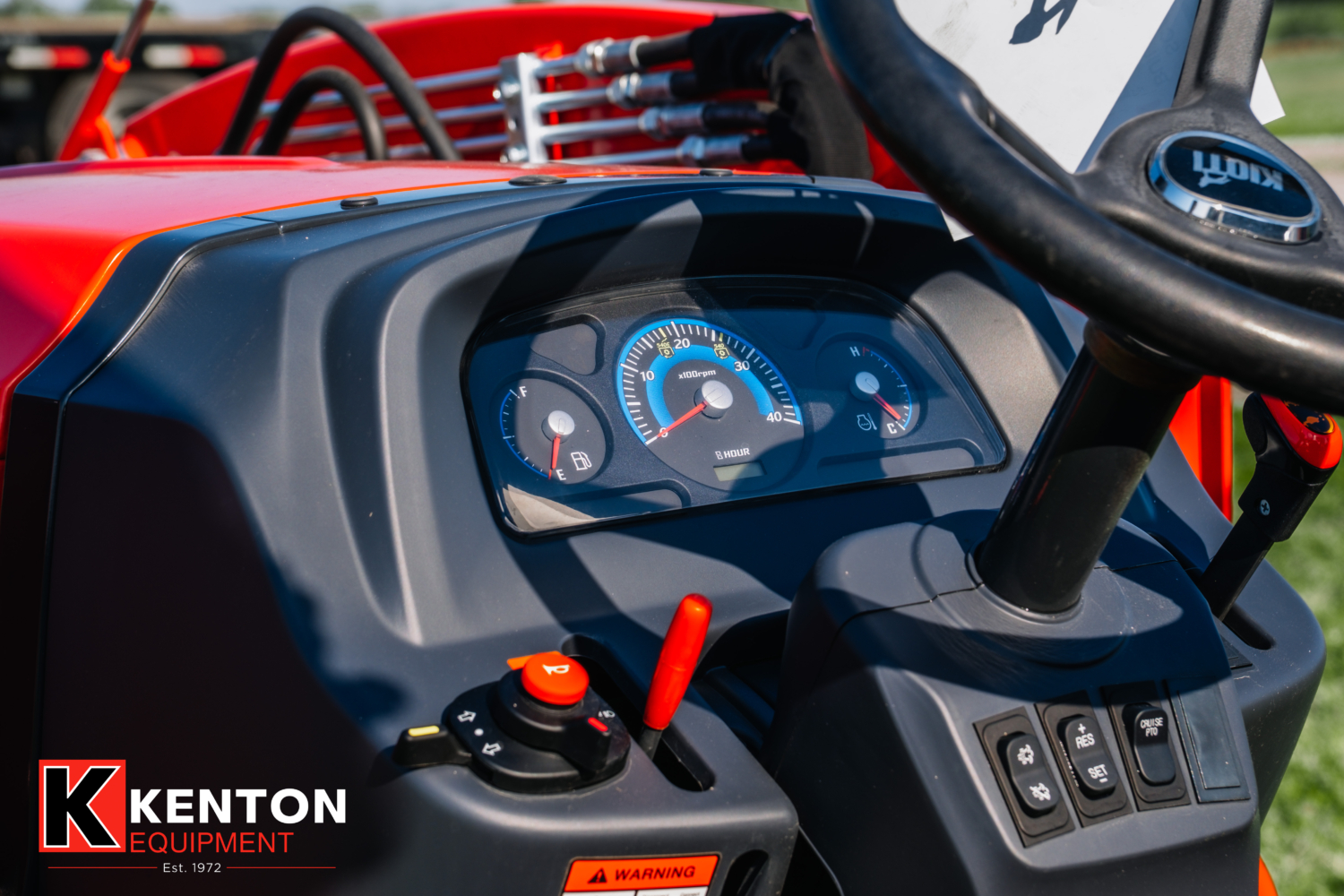

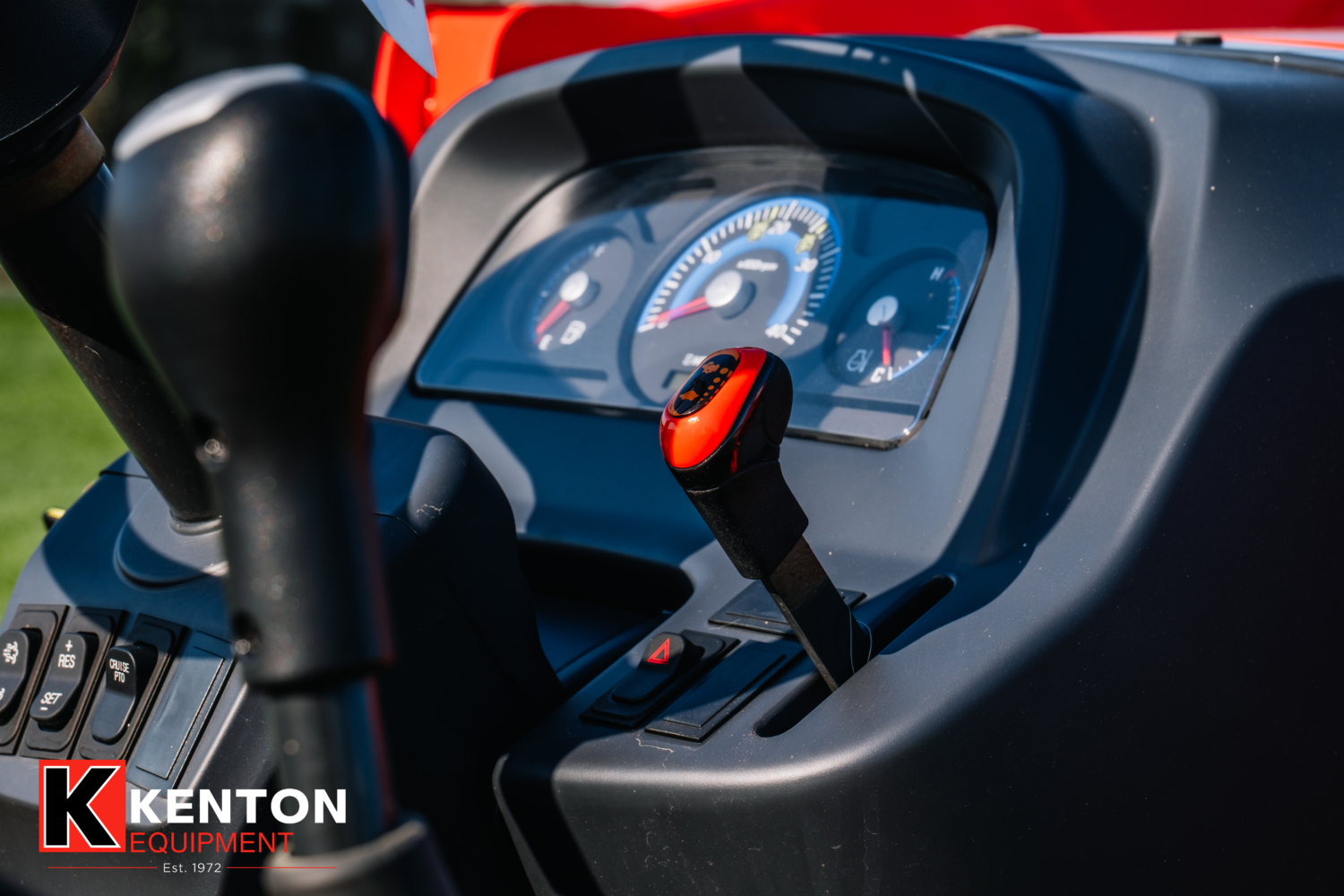

- Illuminated Dashboard: The illuminated dashboard ensures great visibility while working in all lighting conditions.
- Superb Hood Styling: The redesigned hood design provides the operator with excellent visibility and LED headlights allows work to be continued when it gets dark.
- Hydraulic Independent PTO: The standard rear PTO is easily engaged by the simple turn of a knob. A safety interlock prevents the engine from starting when the PTO switch is left on.
- Power Steering with Tilt: The standard power steering minimizes the effort required to make tight, repetitive turns.
- 4WD Engagement: The 4WD comes standard on all models and is engaged with an easy access lever.
- High Ground Clearance: The minimum ground clearance of 14.5 in. makes usage on rocky or uneven terrain simpler.

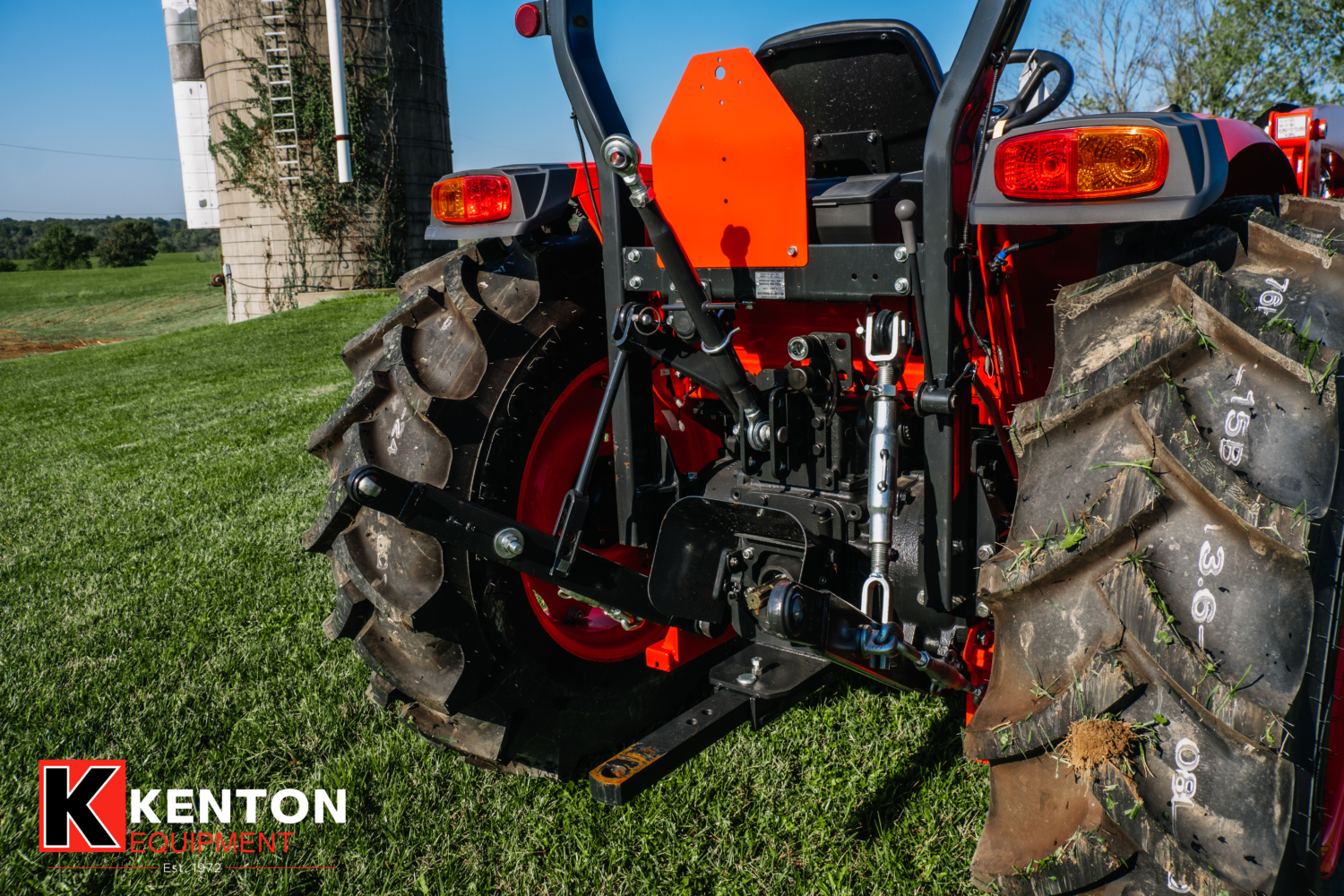

- External 3-Point Control Lever: The rear external 3-point control lever allows you to easily raise and lower the lift arms when attaching implements.
- Tool Box: Conveniently located, this tool box provides storage the operator needs.
ENGINE
- Engine Model: 3H-TH4C
- Engine Gross Power: 44.9 hp (33.5 kW)
- Rated Speed: 2,600 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Displacement: 111.4 cu. in. (1,826 cc)
- Fuel Tank Capacity: 12.7 gal. (48 L)
TRANSMISSION
- Transmission Type: Hydrostatic
- No. of Travel Speeds – Forward / Reverse: 3 Range
- Min. Travel Speed of Forward w/ Ag @ Engine rated speed: 0 mph (0 km/h)
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 18.45 mph (29.7 km/h)
POWER TAKE-OFF (PTO)
- PTO Type Transmission: Independent
- PTO Power: 33.4 hp (24.9 kW)
- Rear PTO Speed: 540 rpm
- Mid PTO Speed: 2,000 rpm (Optional)
BRAKES AND CLUTCH
- Brakes: Wet Disc Type
DIMENSIONS W/AG TIRE
- Length w/ 3-point hitch: 125.5 in. (3,189 mm)
- Width: 62.8 in. (1,596 mm)
- Height from Top of ROPs: 96.8 in. (2,458 mm)
- Wheelbase: 71.3 in. (1,810 mm)
- Ground Clearance: 14.5 in. (368 mm)
- Front Tread Ag Tires – Min: 49.4 in. (1,254 mm)
- Rear Tread Ag Tires – Min: 49.03 in. (1,251 mm)
- Min. Turning Radius w/ Brake: 102.8 in. (2,610 mm)
HYDRAULICS
- Total Pump Flow: 16.49 gpm (62.4 L/min)
3-POINT HITCH
- Standard Category: Category 1
- Lift Capacity, 24″ aft of hitch: 2,716 lbs. (1,232 kg)
- Control Type: Position
WEIGHT
- Weight w/ Ag Tires w/ ROPs: 3,522.9 lbs. (1,598 kg)
STANDARD EQUIPMENT
- Power Steering
- Rear PTO
- Dual Remote Hydraulic Valve (Spring/Detent)
- Wet Multi Disc Brakes
- Joystick Valve
- Drawbar
- Headlights
- Parking Brake
- PTO Shield
INSTRUMENT PANEL
- Digital Hour Meter
- Coolant Temperature
- Gauge Tachometer
- Fuel Gauge
- Engine Oil Pressure
- Light High Beam, Emergency Flasher, Turn Signals
- Glow Plug Light
- Alternator Light
