FEATURES
- KIOTI Diesel Engine: The 34.9 hp (26 kW) diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.
- Power Steering with Tilt: Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.

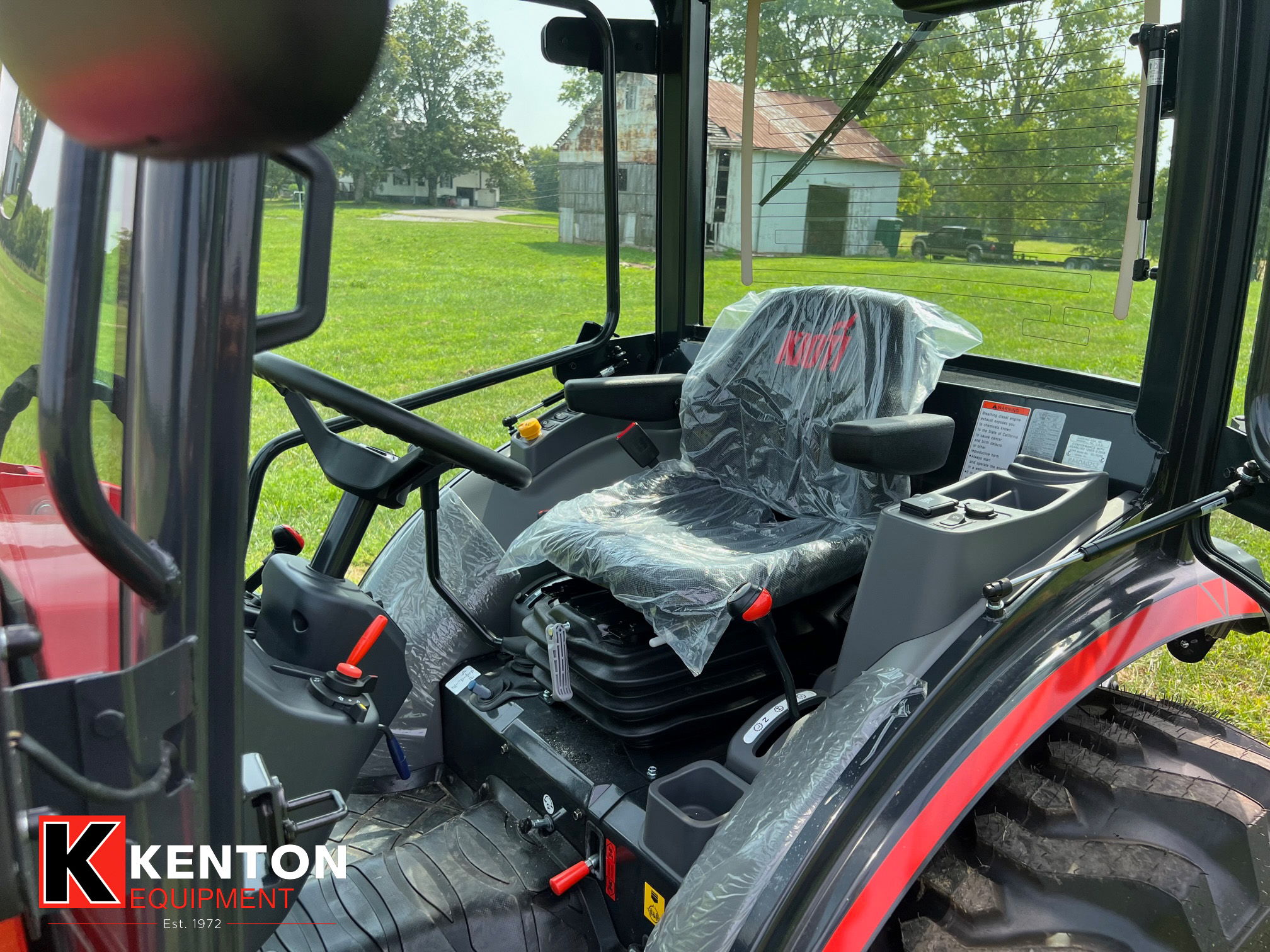

- Deluxe Suspension Seat: No matter what the task may be, the adjustable suspension seat with dual armrests allows the operator to ride in comfort.
- Rear PTO: Rear PTO is standard and mid PTO is optional.

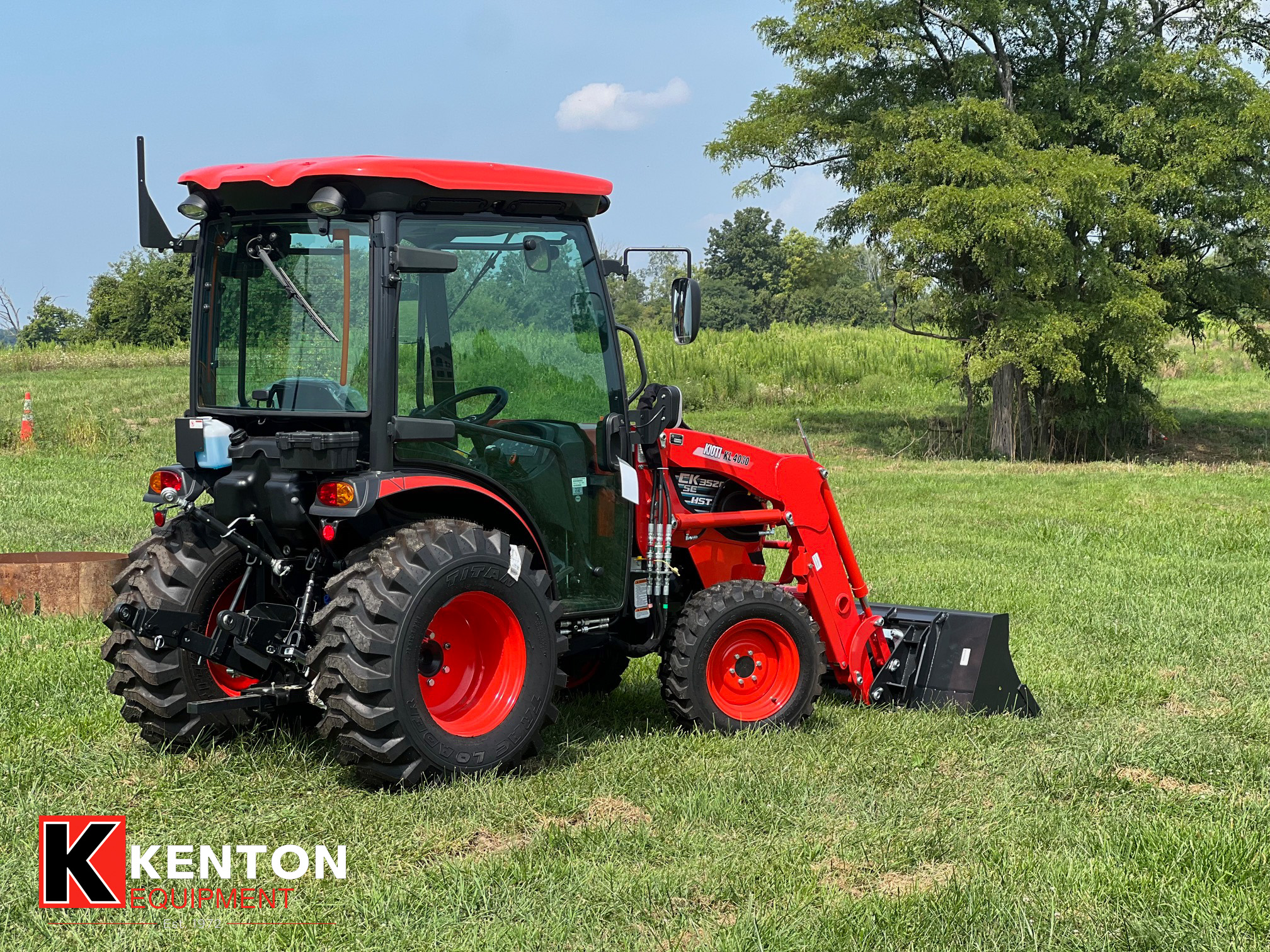

- Single Lever Joystick: Front end loader work is made easier by the use of a single lever joystick. The lever returns to neutral when released. A float position allows the bucket free flotation over the ground surface.

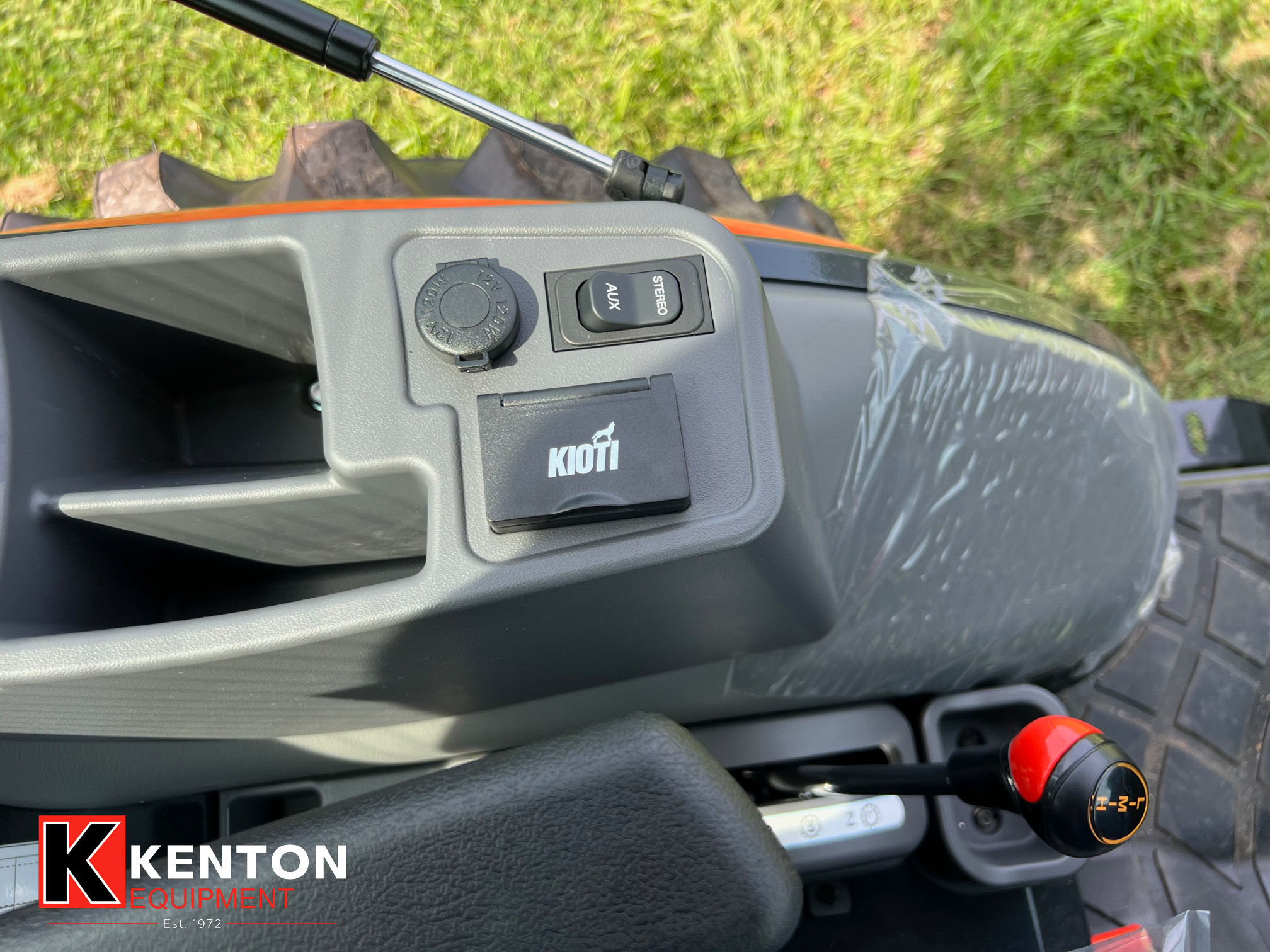

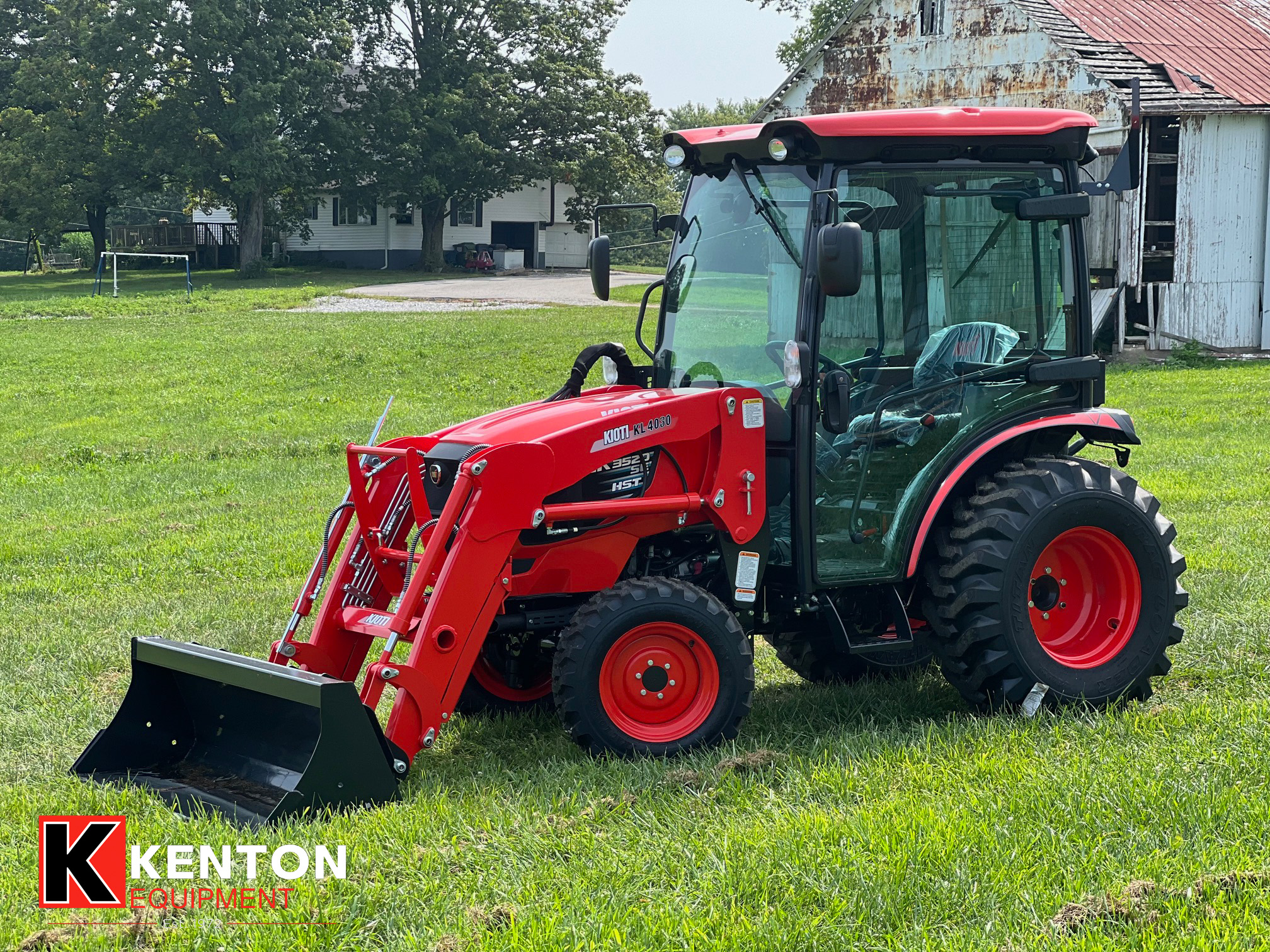

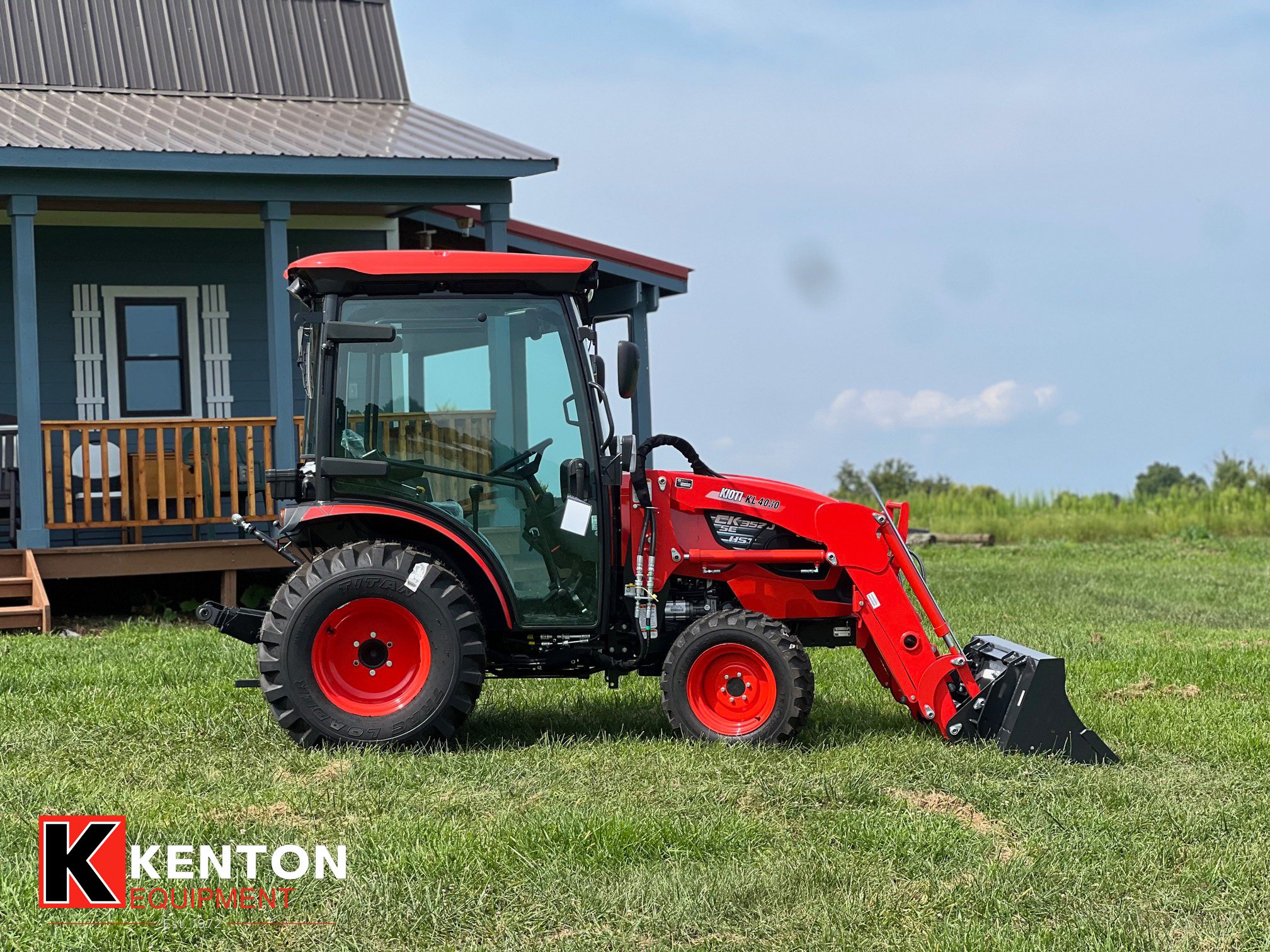

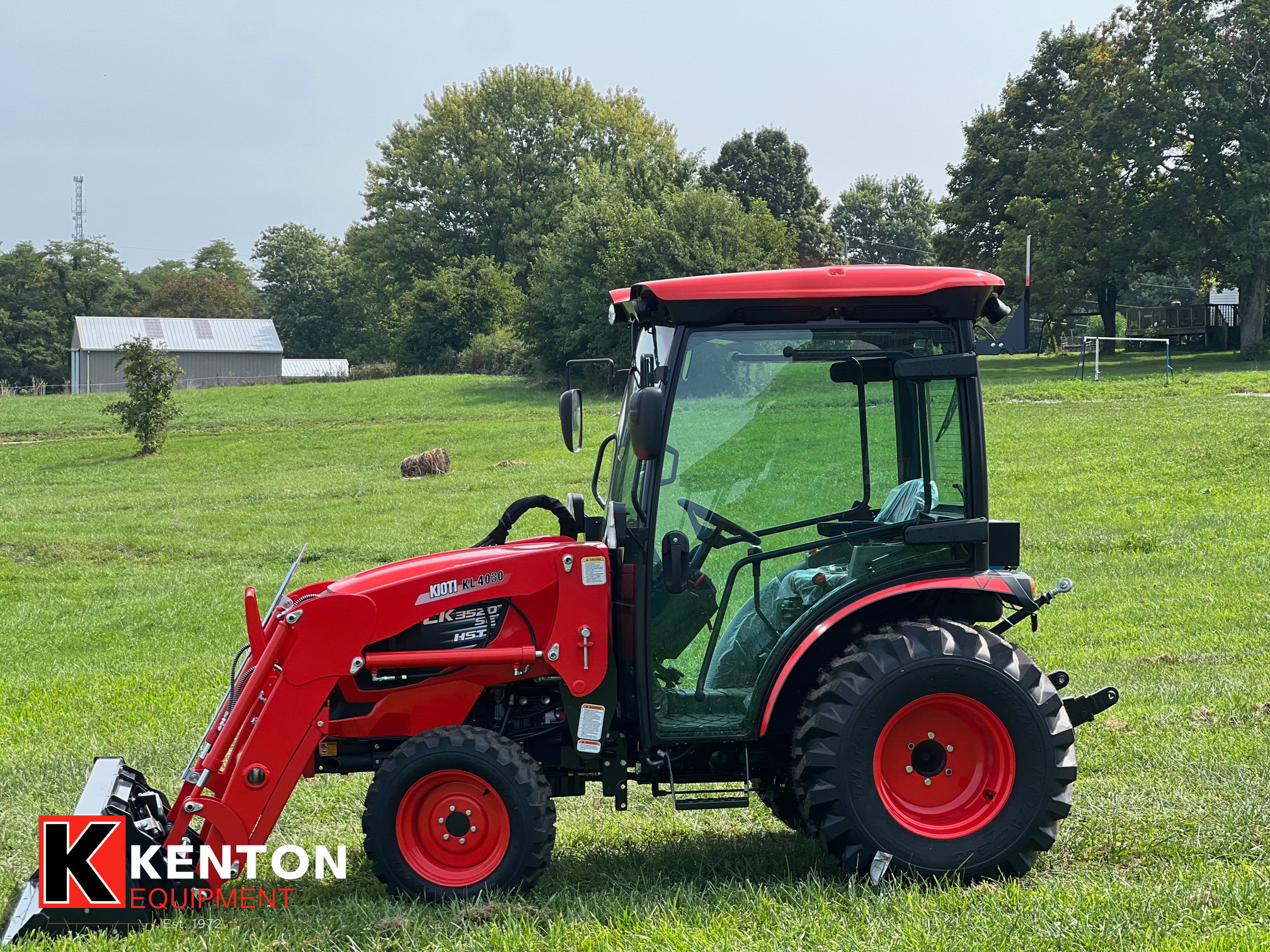

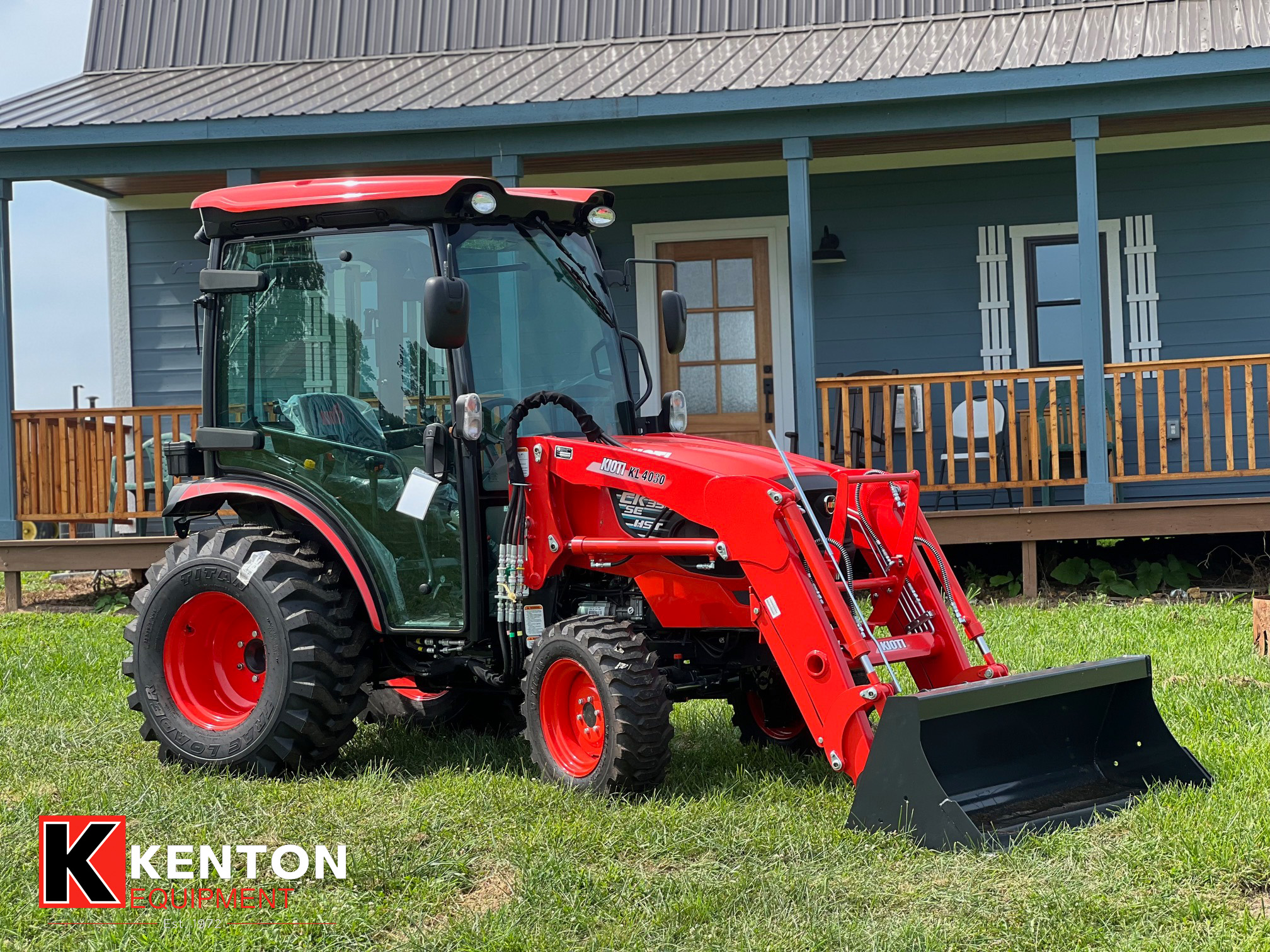

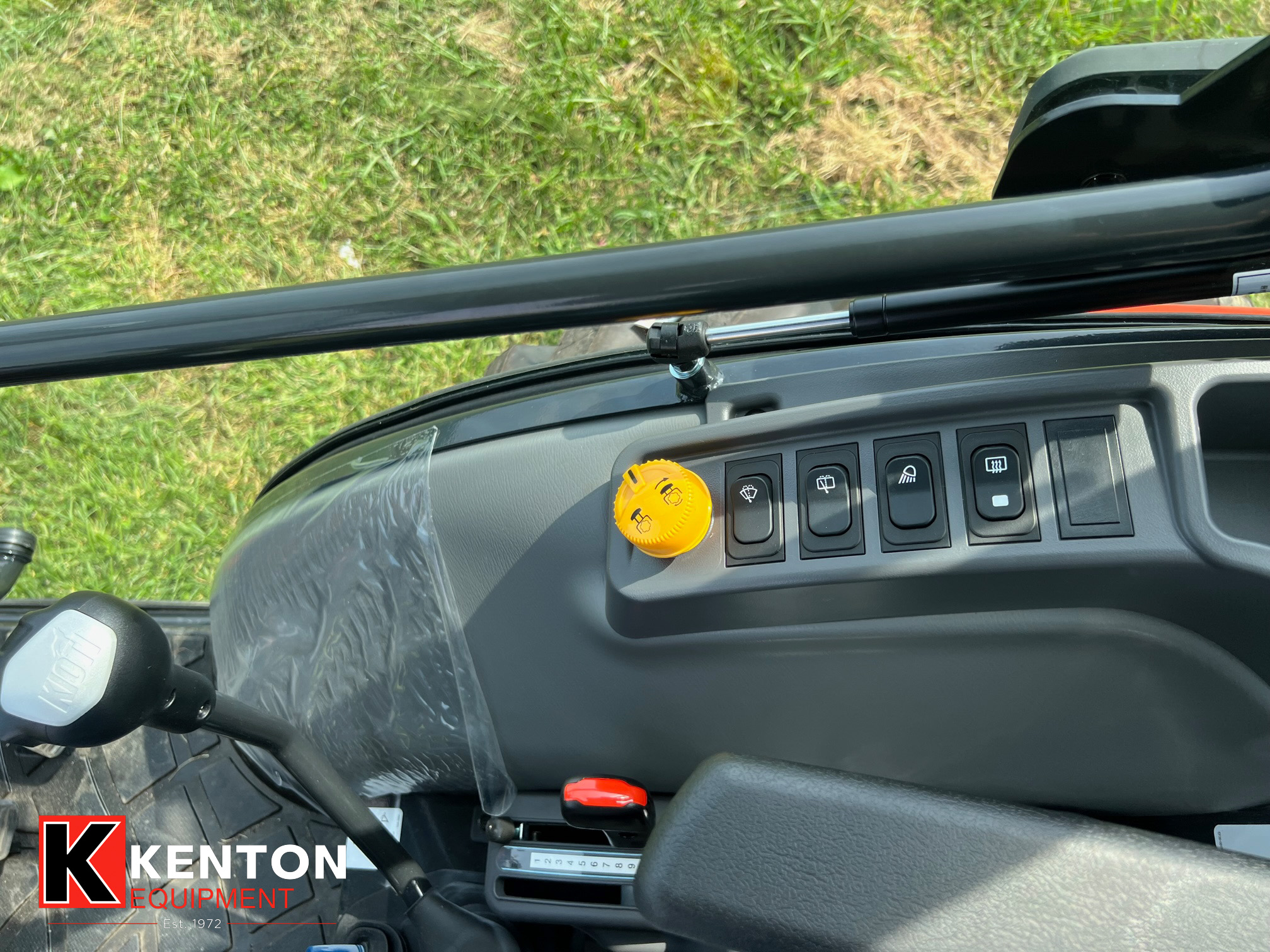

- Factory-Installed Cab: With added features and benefits, including A/C and heat, the factory-installed cab allows operators to perform tasks throughout the year, comfortably.
- Simple Maintenance: KIOTI tractors are designed for easy maintenance. Liftable hoods allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.
- Center Marker: The center ridge marker on the hood assists with maintaining straight lines during operation.
- High Ground Clearance: The minimum ground clearance of 13.4 in. provides sufficient clearance for use on rocky or uneven terrain.
- Illuminated Dashboard: The illuminated dashboard ensures great visibility while working in bright daylight or at night.
- 3-Point Control Lever: The ergonomic 3-point control lever allows you to easily raise and lower the lift arms when attaching implements. The smooth motion reduces effort and improves control.
- Powerful HST Transmission with HST Pedal: This model features a performance proven, heavy-duty HST drive that delivers power and efficiency. The three-range transmission (Hi/Mid/Low) with twin pedal operation makes your job easier, smoother and safer.
ENGINE
- Engine Model: 3H-TM4B
- Engine Gross Power: 34.9 hp (26 kW)
- Rated Speed: 2,600 rpm
- No. of Cylinders: 3
- Fuel Type: Diesel
- Displacement: 111.4 cu. in. (1,826 cc)
- Fuel Tank Capacity: 9 gal. (34 L)
TRANSMISSION
- Transmission Type: HST
- No. of Travel Speeds – Forward / Reverse: 3 Range
- Max. Travel Speed of Forward w/ Ag @ Engine rated speed: 15.4 mph (24.7 km/h)
POWER TAKE-OFF (PTO)
- PTO Type Transmission: HST
- PTO Power: 28.9 hp (21 kW)
- Rear PTO Speeds (1st): 540 rpm
- Mid PTO Speeds: 2,000 rpm (Optional)
BRAKES AND CLUTCH
- Brakes: Wet Multi Disc
DIMENSIONS W/AG TIRE
- Length w/ 3-point hitch: 120.87 in. (3,070 mm)
- Width: 54.53 in. (1,385 mm)
- Height from Top of ROPs: 92.91 in. (2,360 mm)
- Wheelbase: 65.7 in. (1,670 mm)
- Ground Clearance: 13.39 in. (340 mm)
- Front Tread Ag Tires – Min: 48.2 in (1,225 mm)
- Rear Tread Ag Tires – Min: 47.04 in. (1,210 mm)
- Min. Turning Radius w/ Brake: 107.48 in. (2,730 mm)
HYDRAULICS
- Total Pump Flow: 11.3 gpm (42.9 L/min)

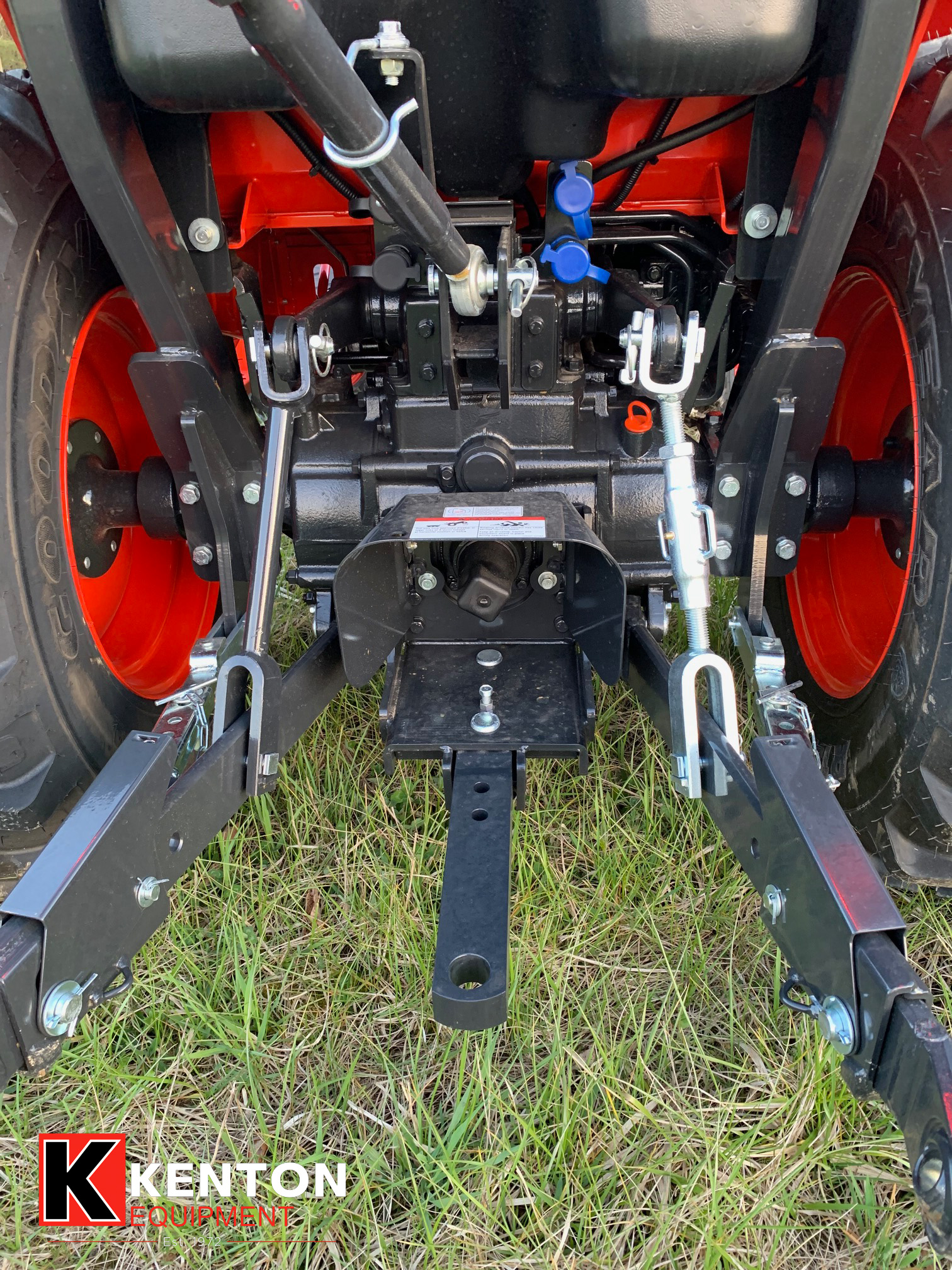

3-POINT HITCH
- Standard Category: Category 1
- Lift Capacity, 24″ aft of hitch: 1,631 lbs. (740 kg)
- Control Type: Position
WEIGHT
- Weight w/ Ag Tires w/ ROPs: 3,397 lbs. (1,541 kg)
STANDARD EQUIPMENT
- Power Steering
- Rear PTO
- Dual Remote Hydraulic Valve (Spring/Detent)
- Wet Multi Disc Brakes
- Joystick Valve
- Drawbar
- Front Working Light
- Rear Working Light
- Headlights
- Parking Brake
- PTO Shield
INSTRUMENT PANEL
- Digital Hour Meter
- Coolant Temperature Gauge
- Tachometer
- Fuel Gauge
- Engine Oil Pressure Light
- High Beam, Emergency Flasher, Turn Signals
- Glow Plug Light
- Alternator Light
