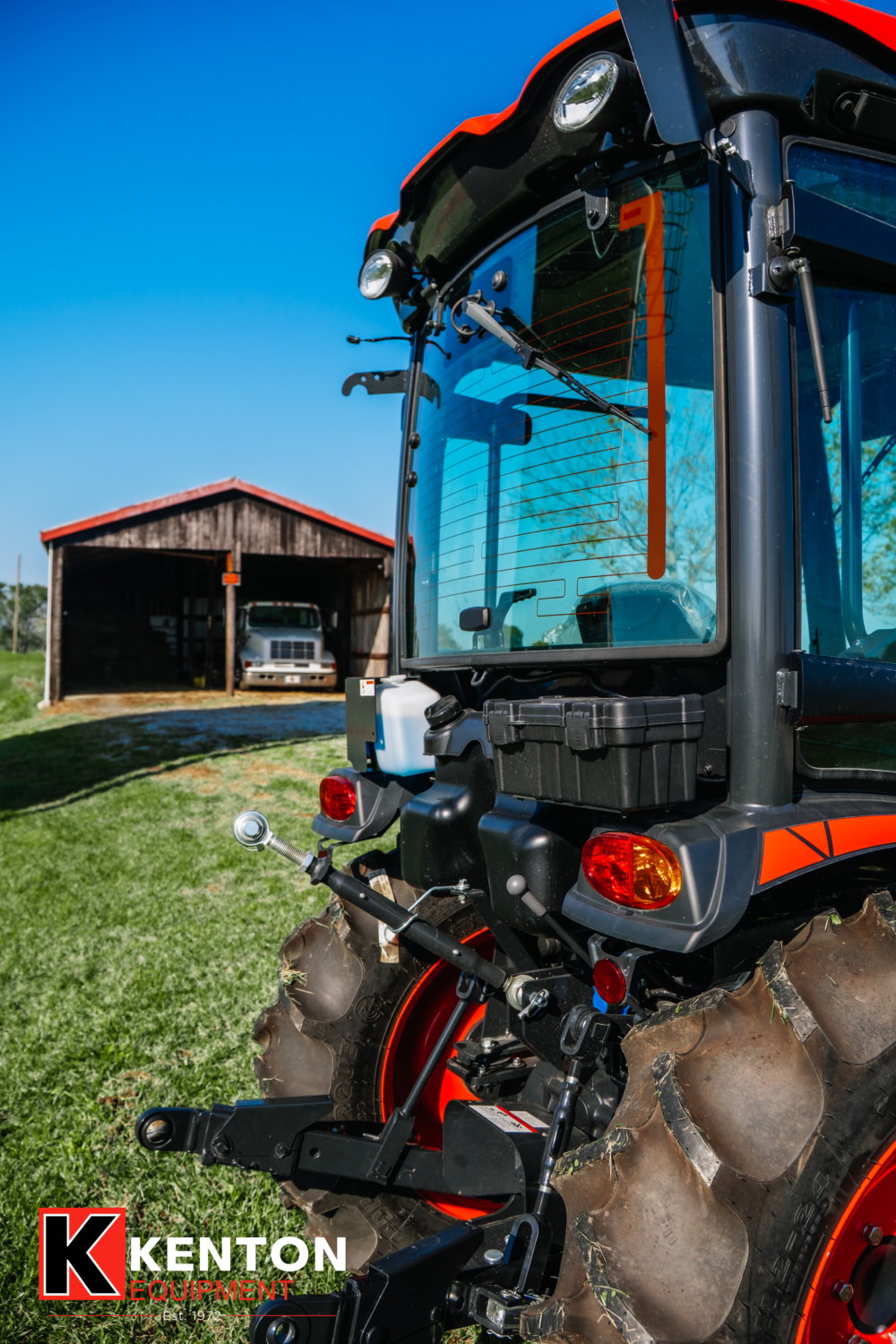

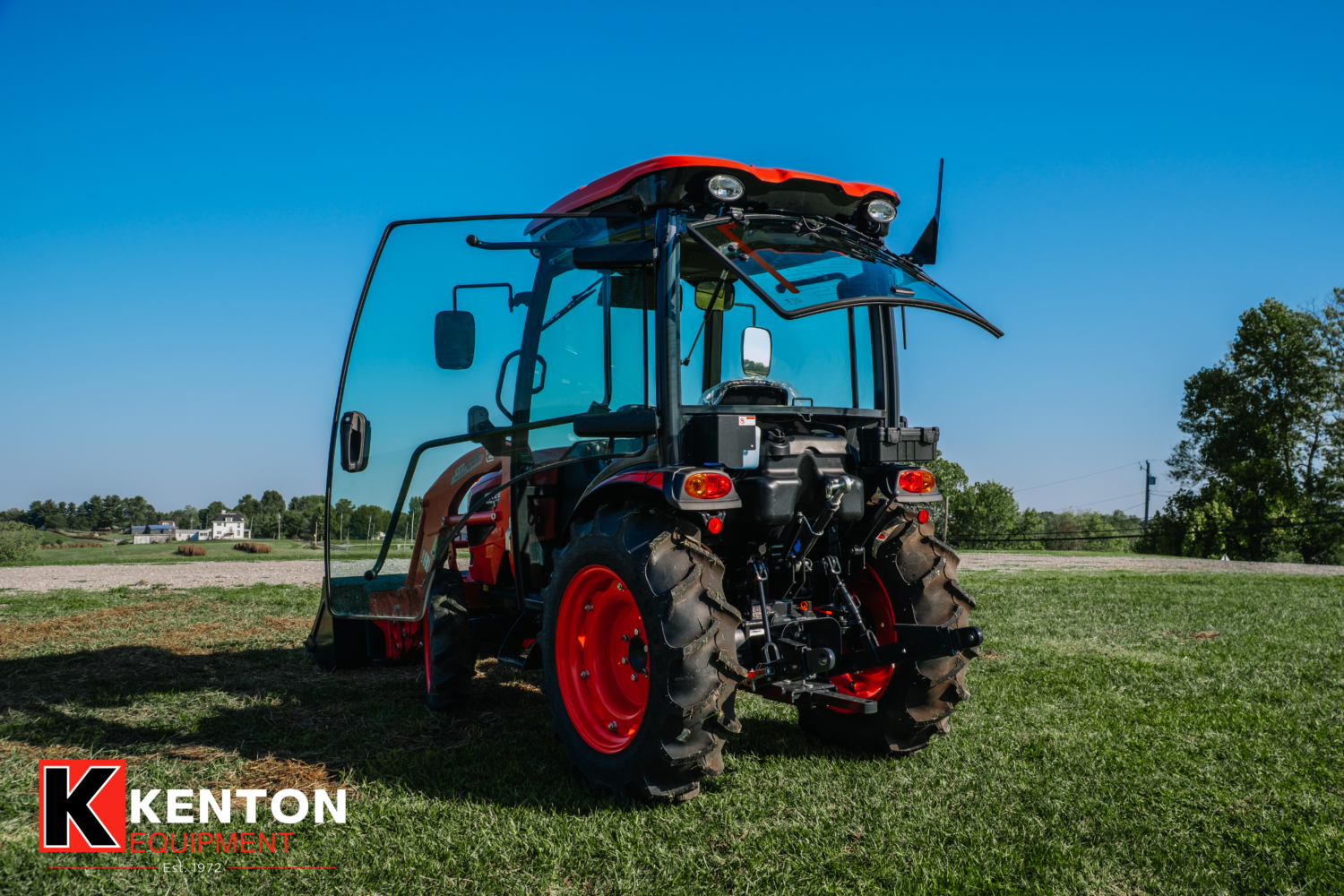

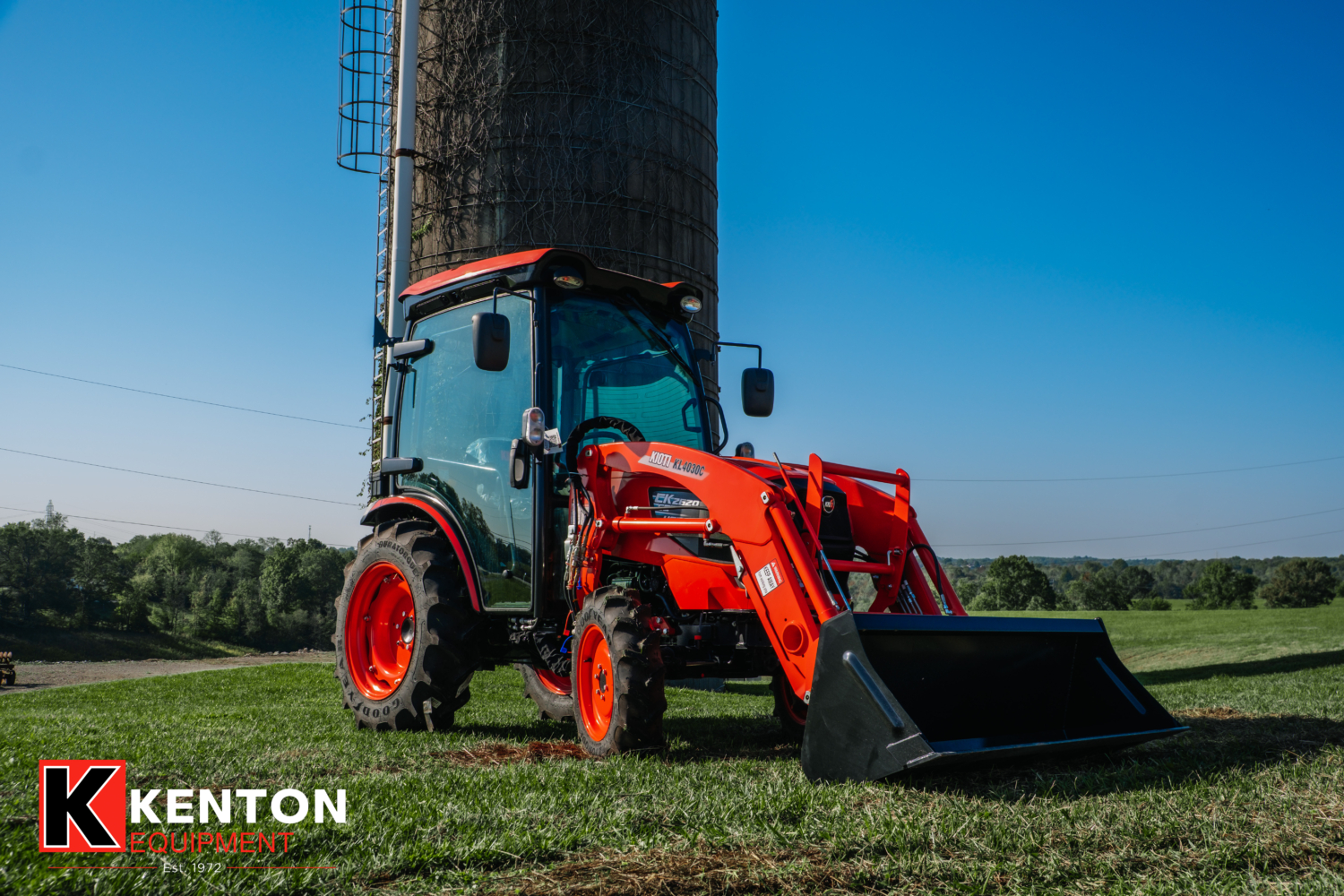

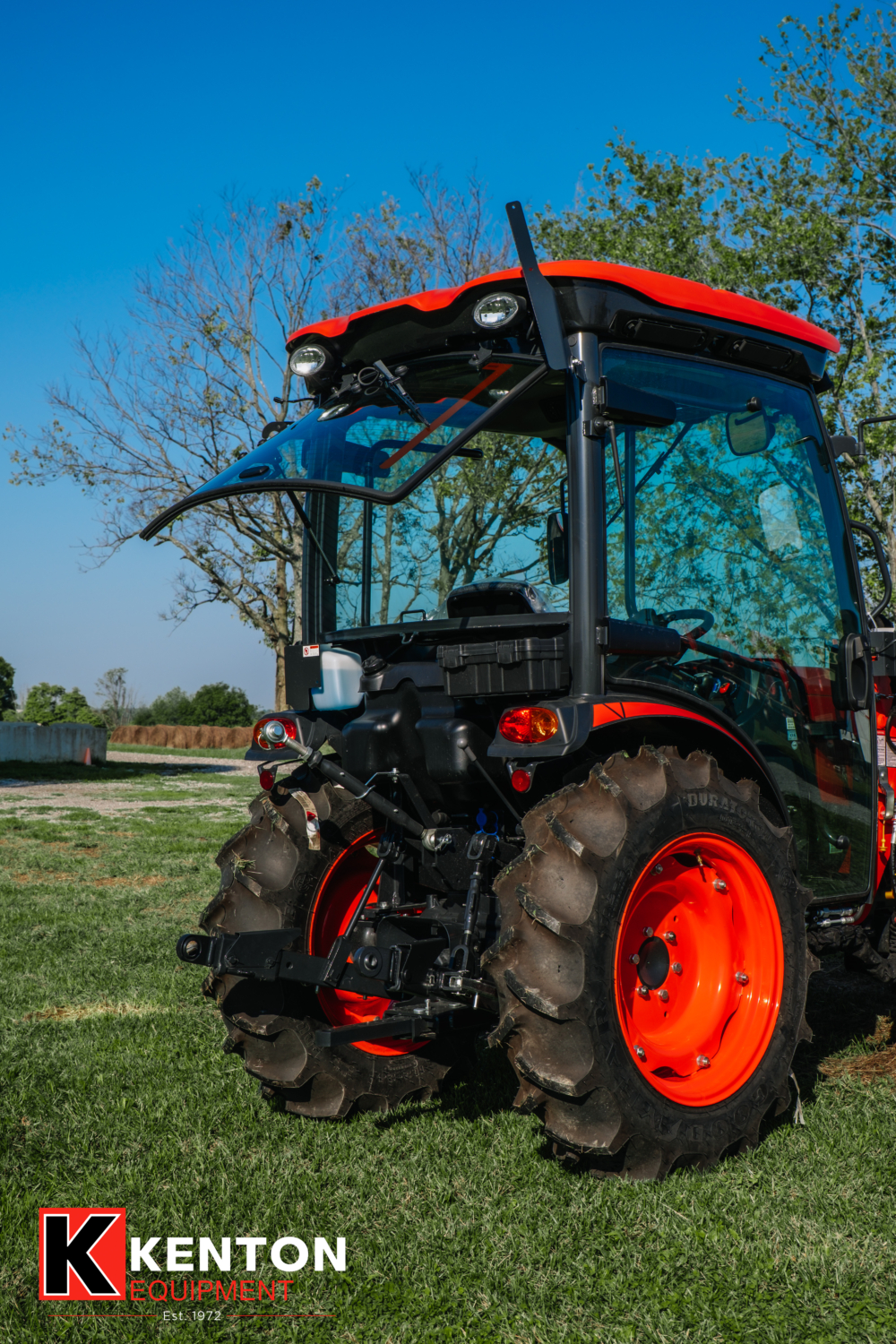

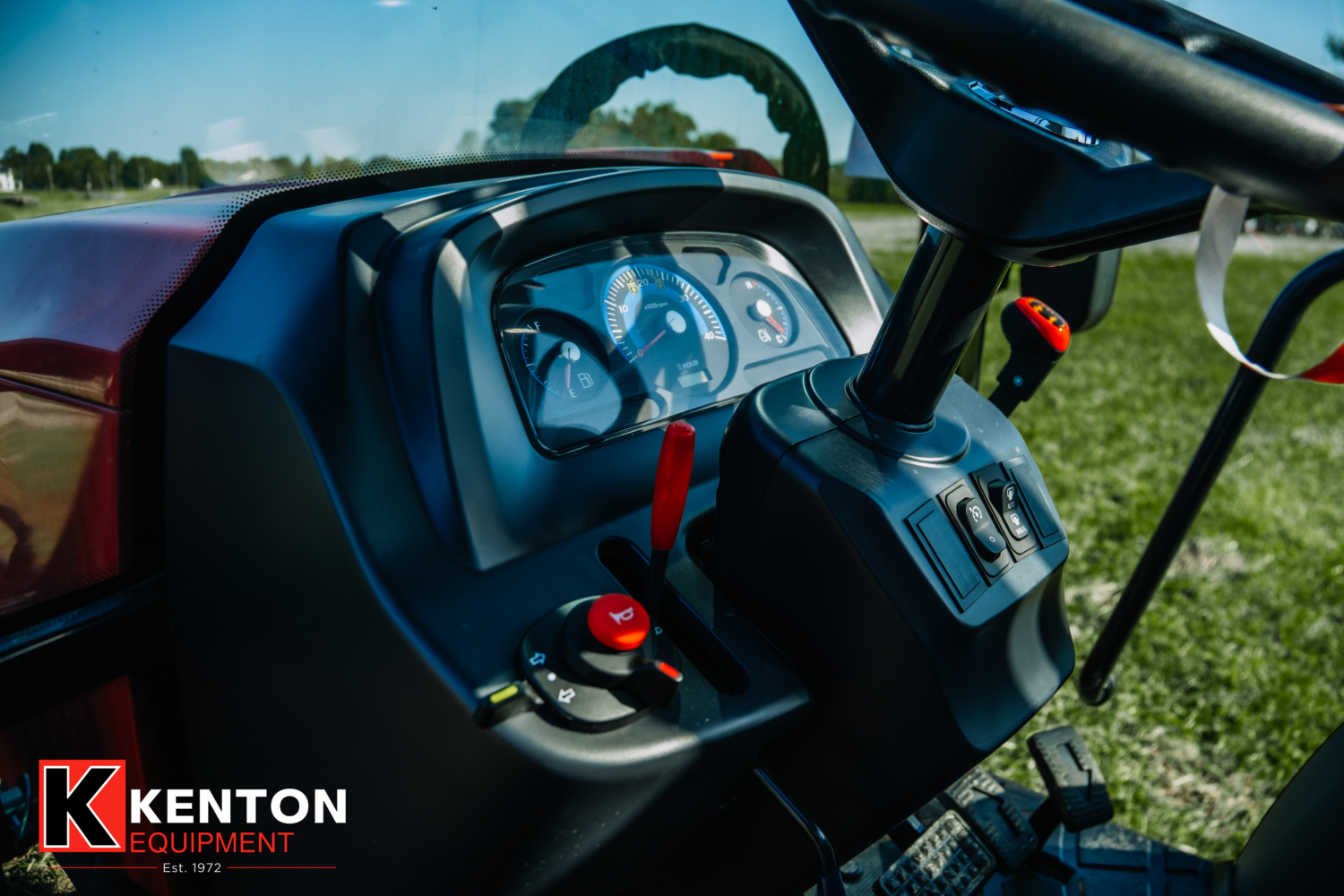

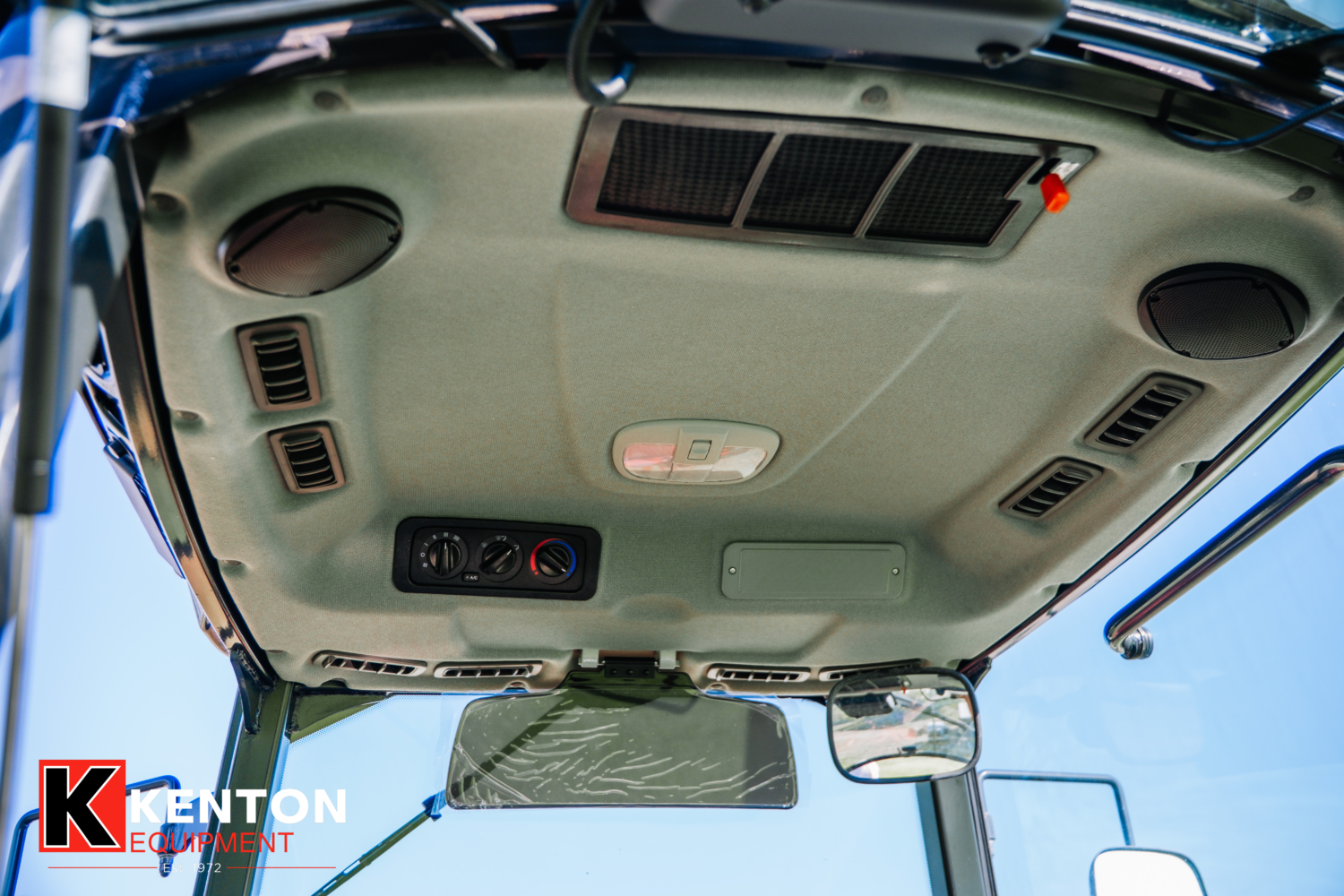

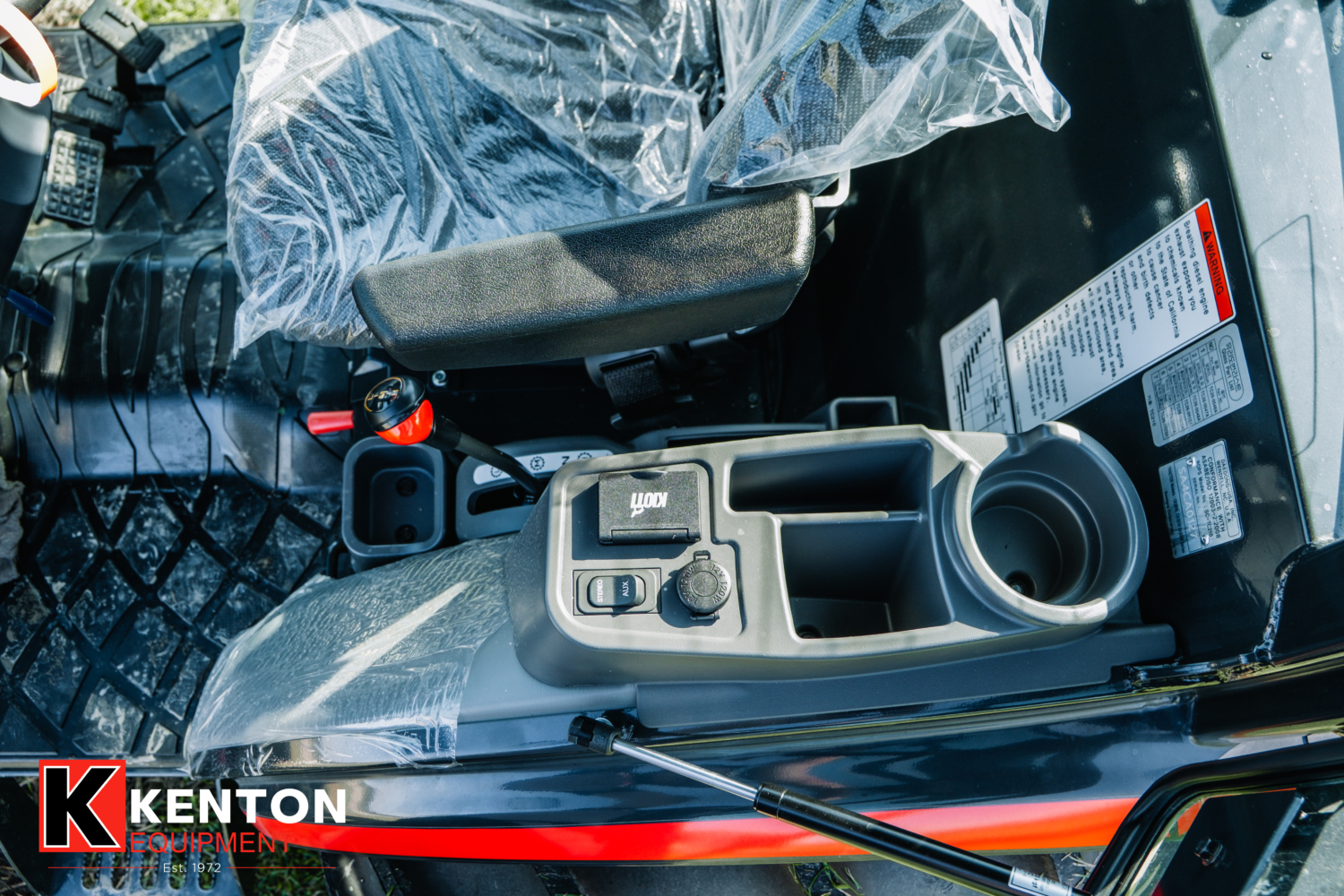

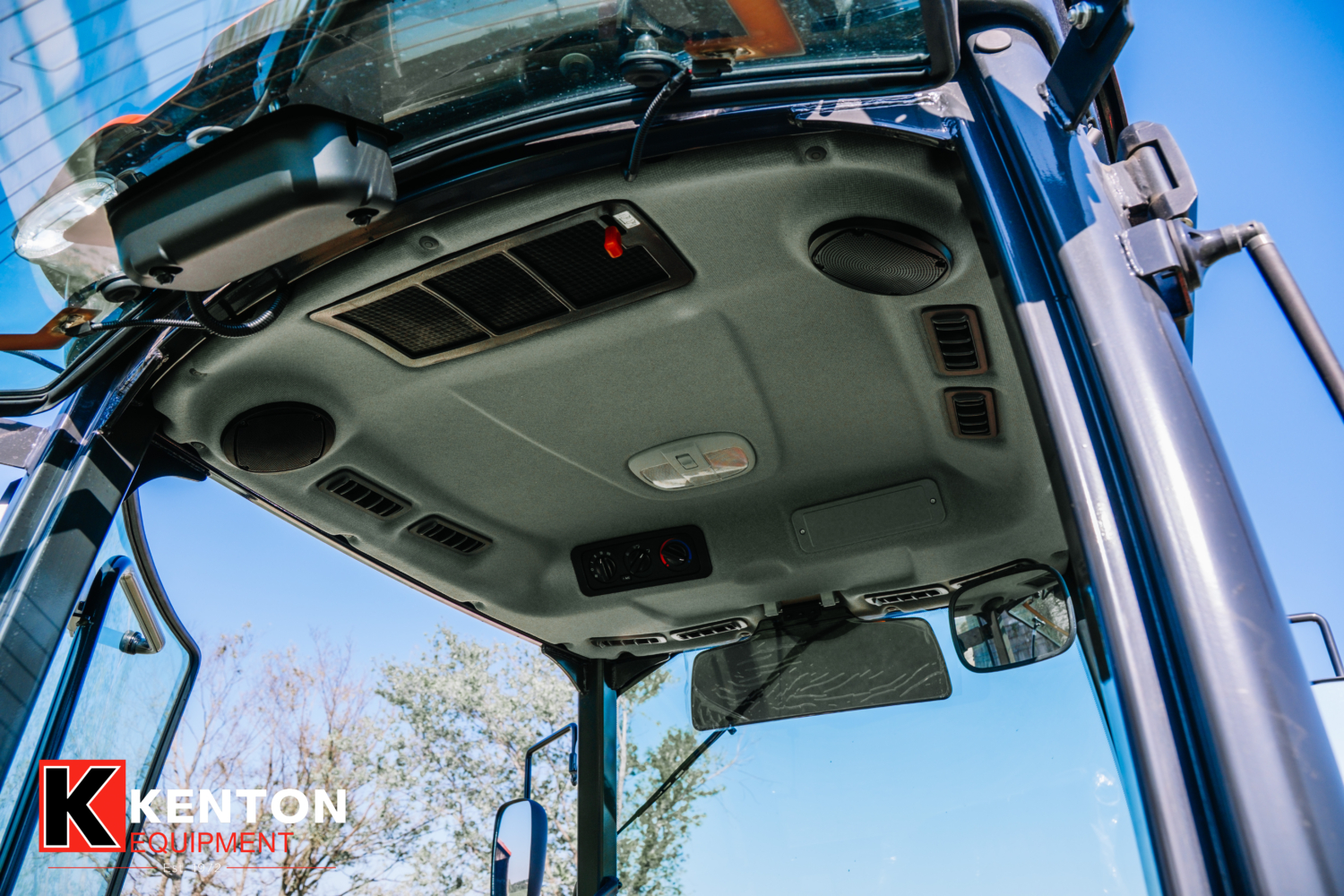

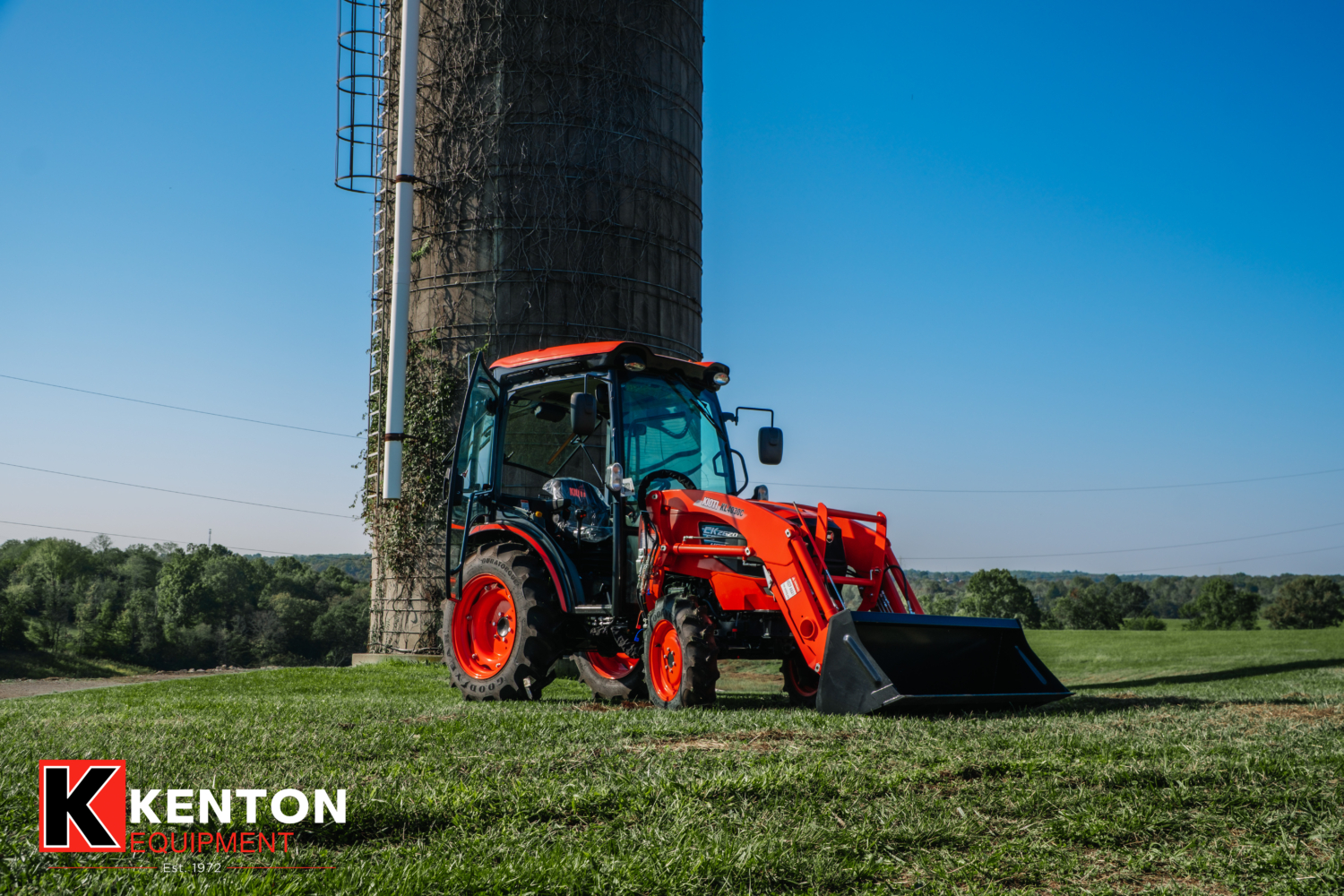

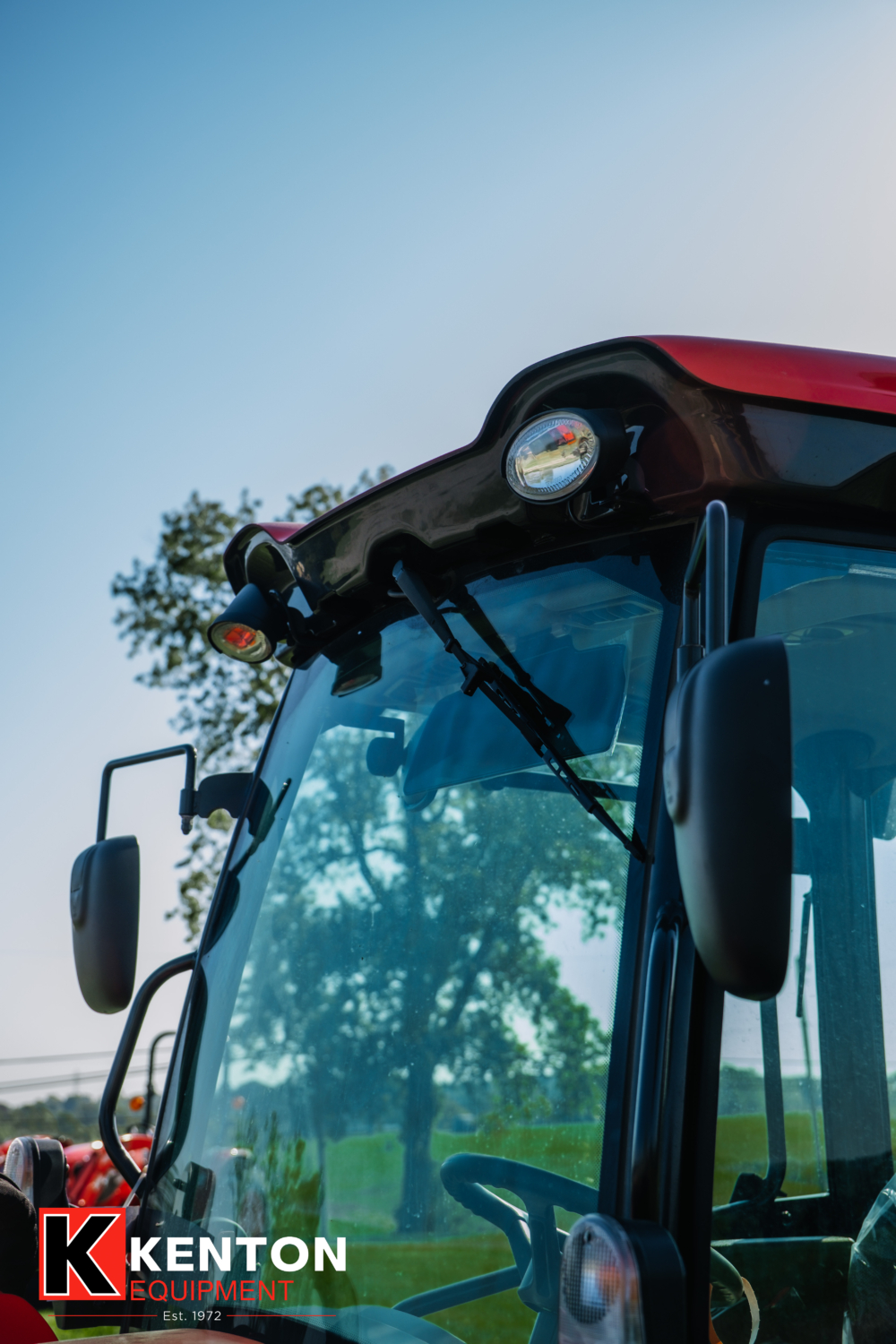

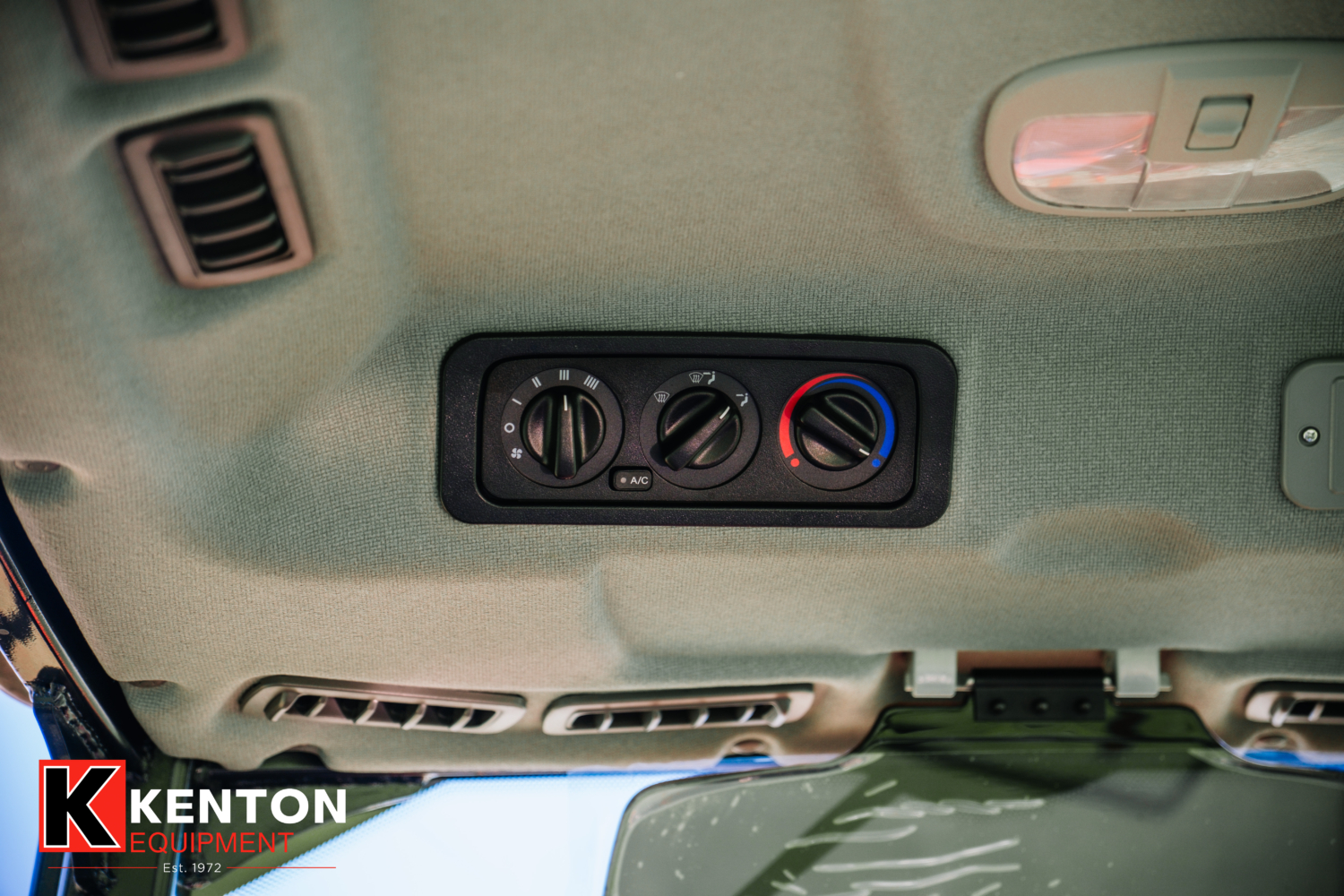

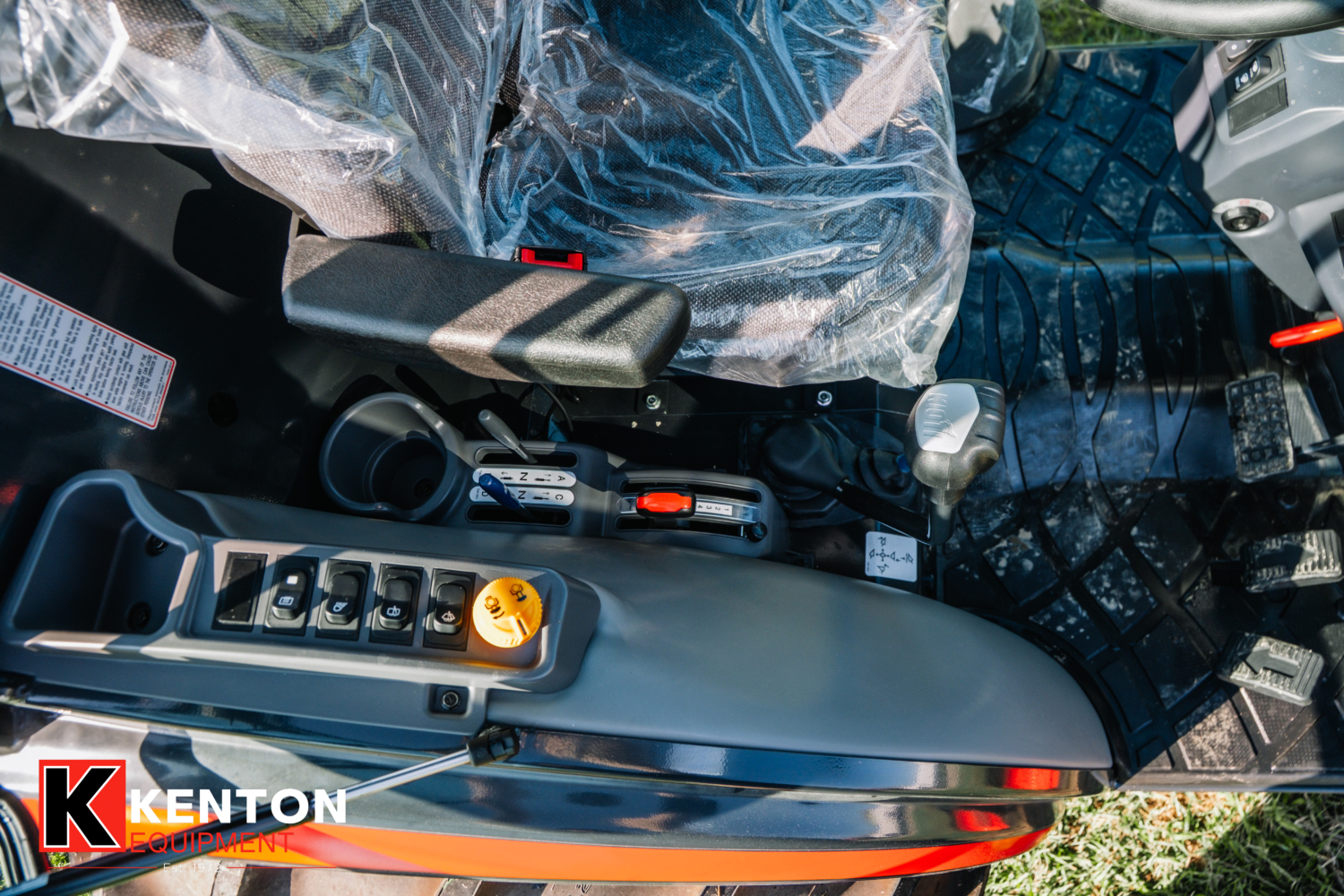

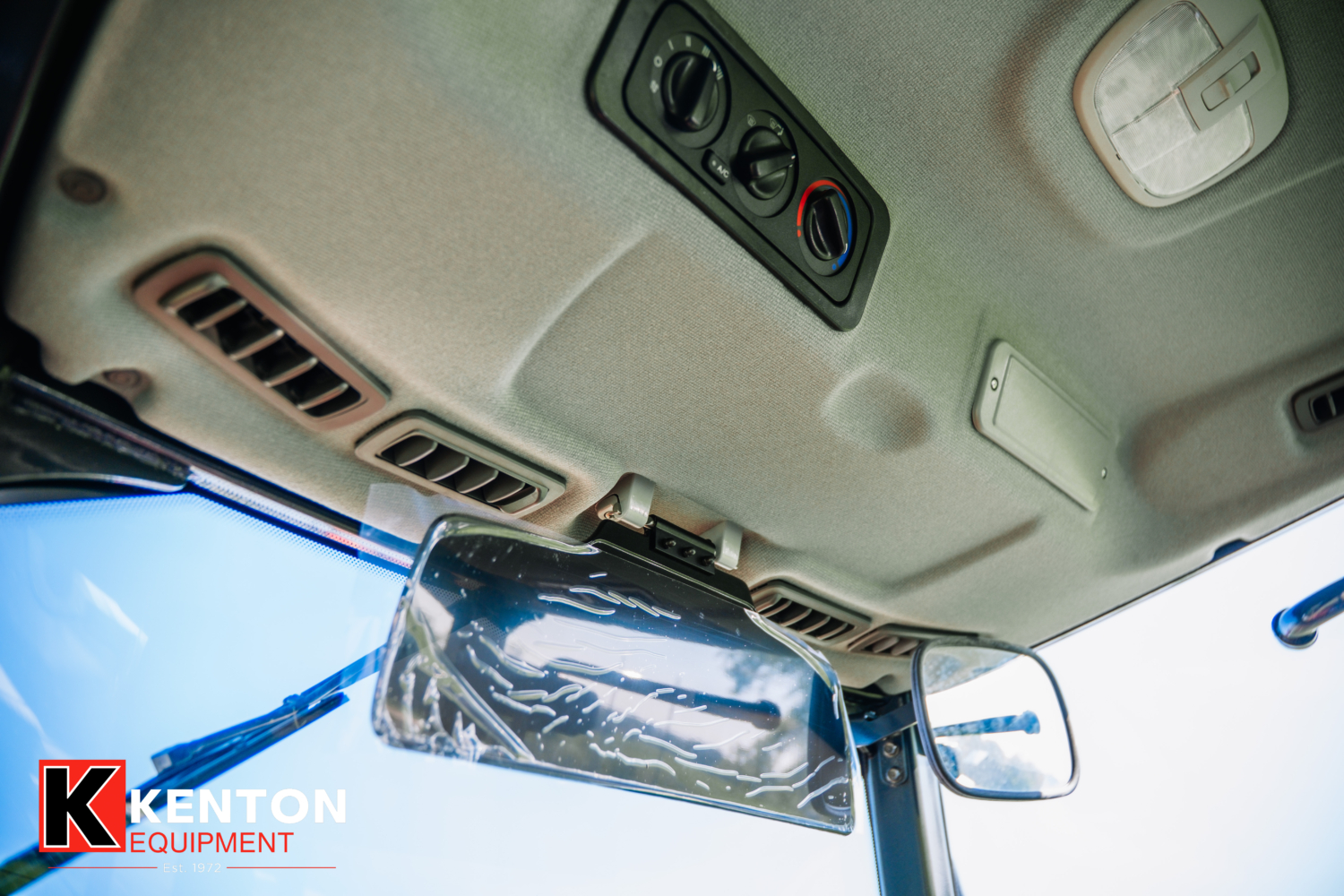

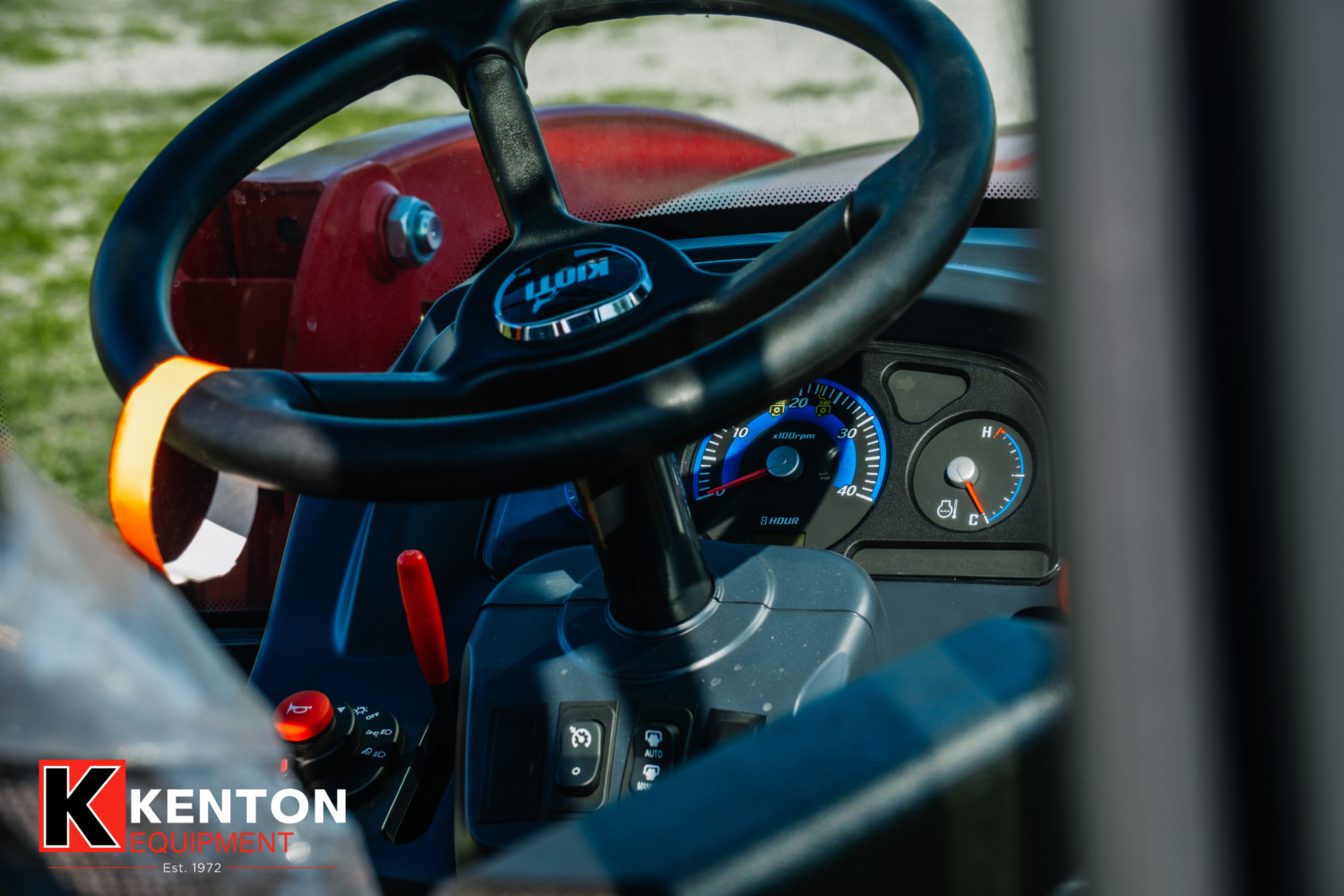

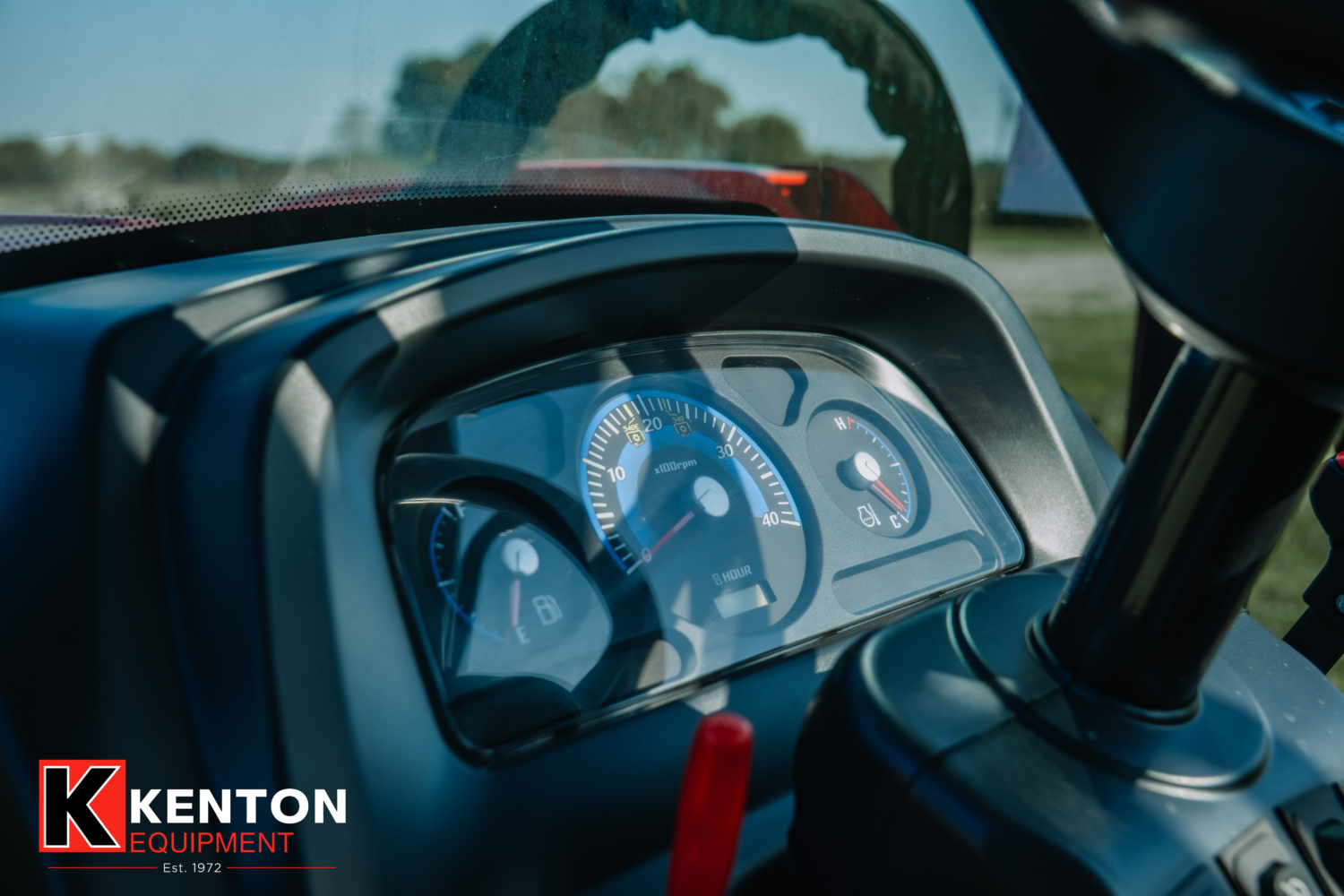

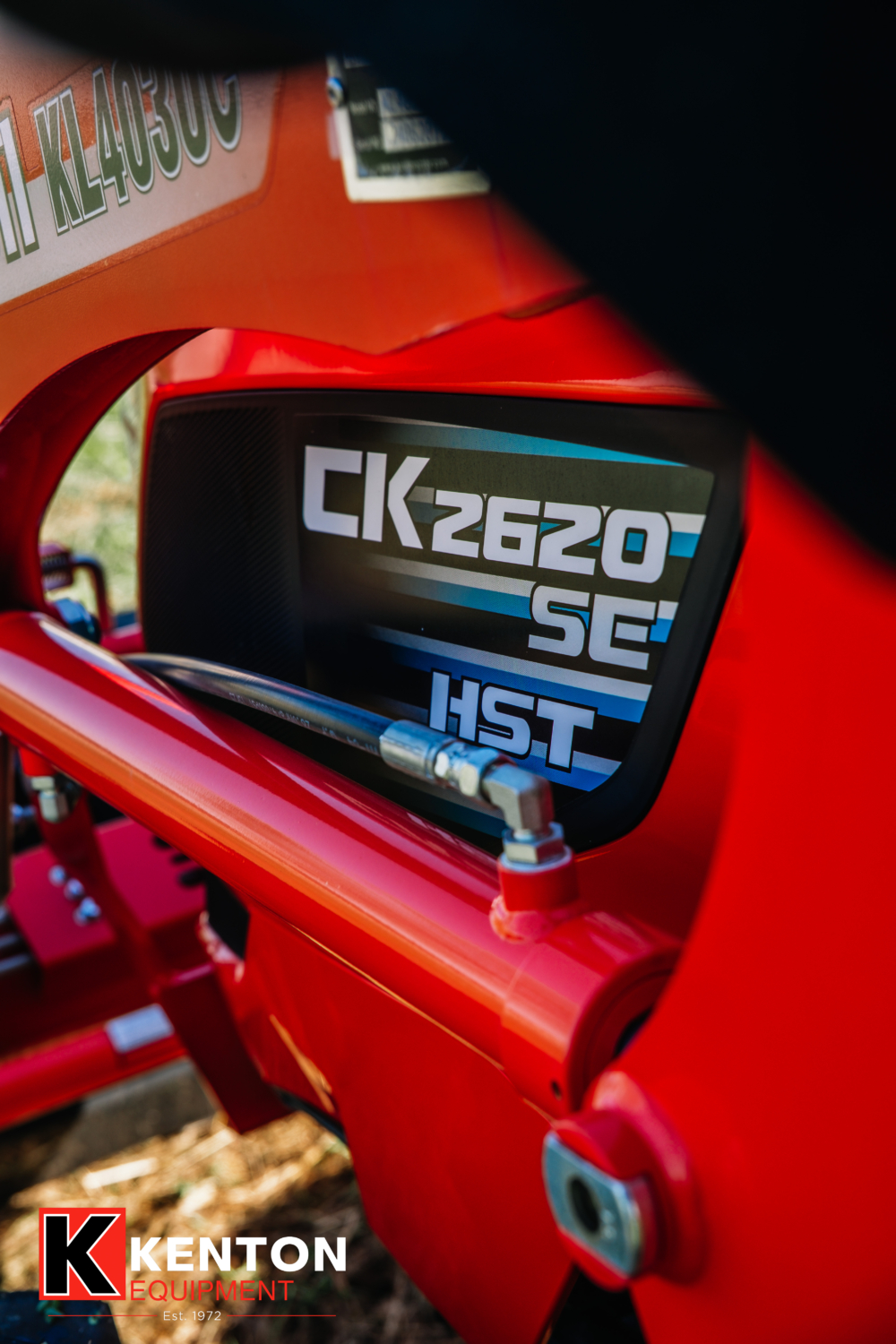

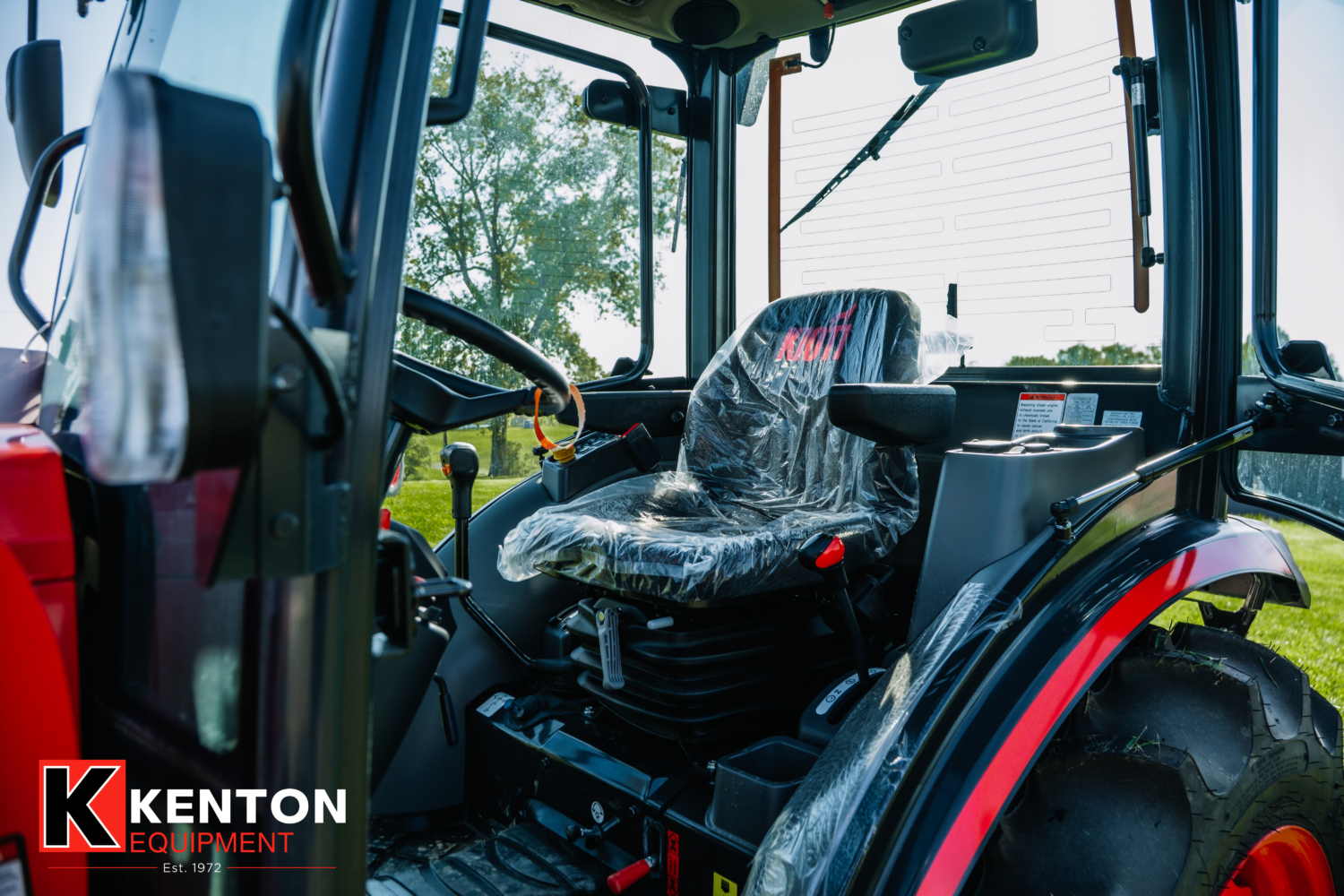

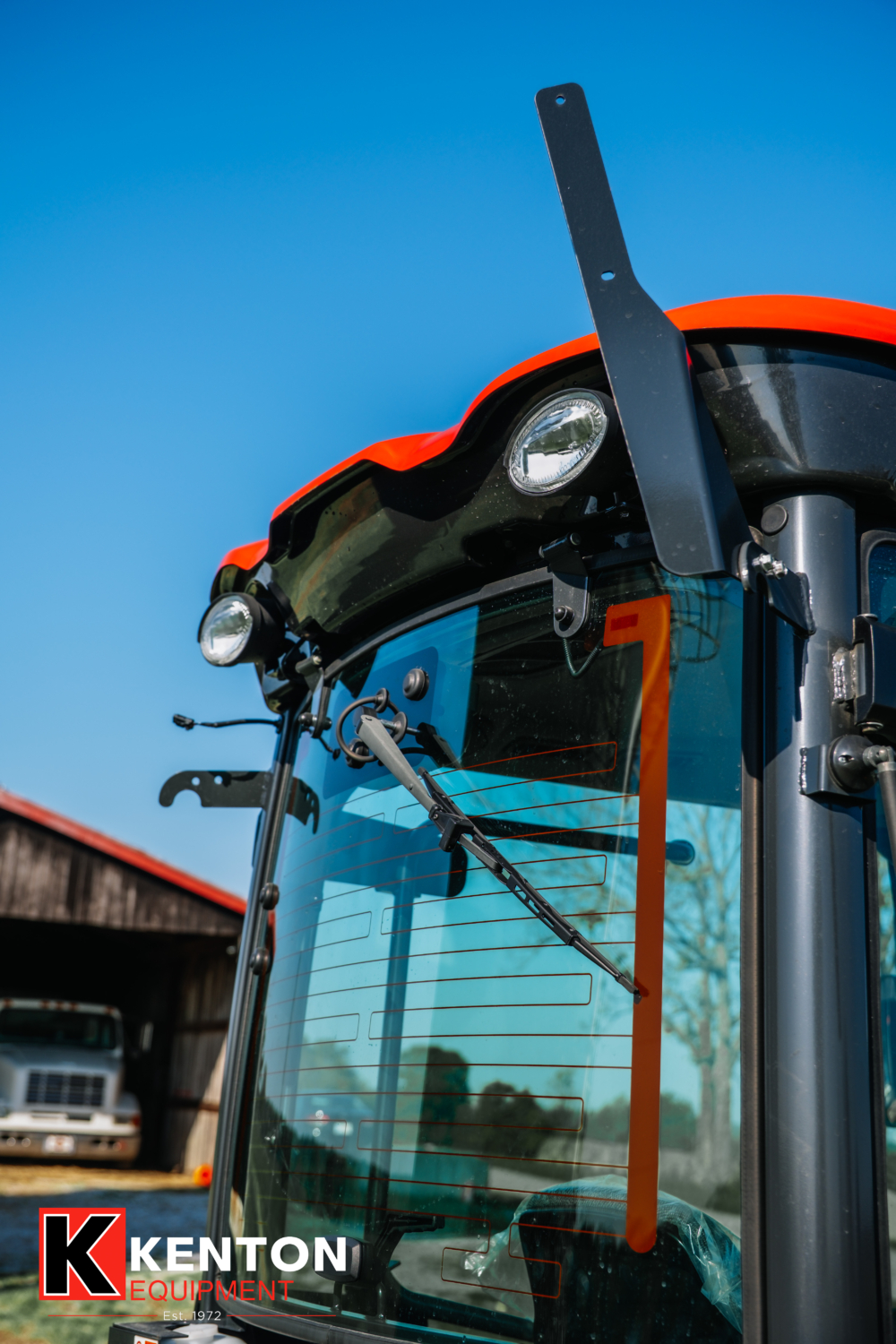

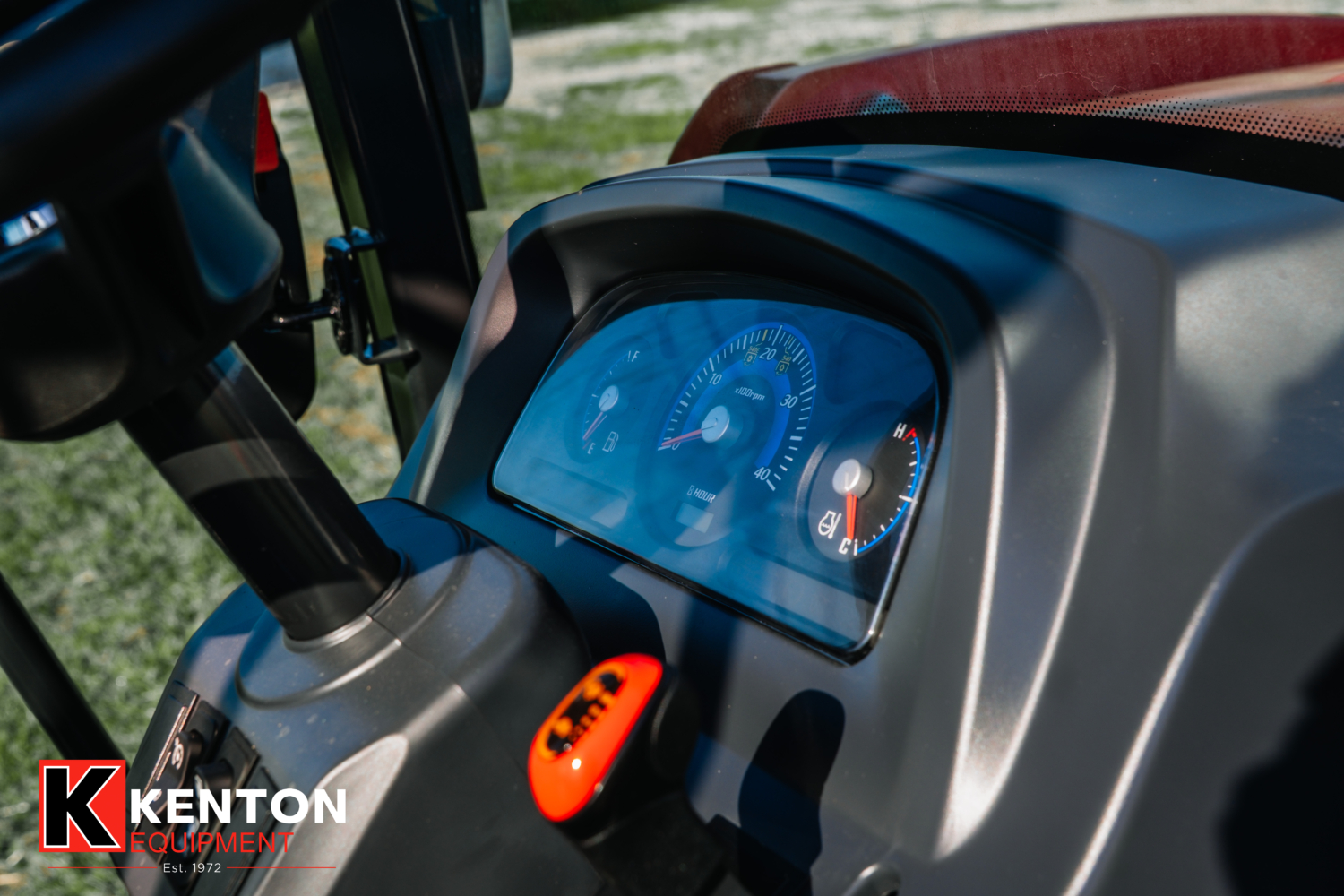

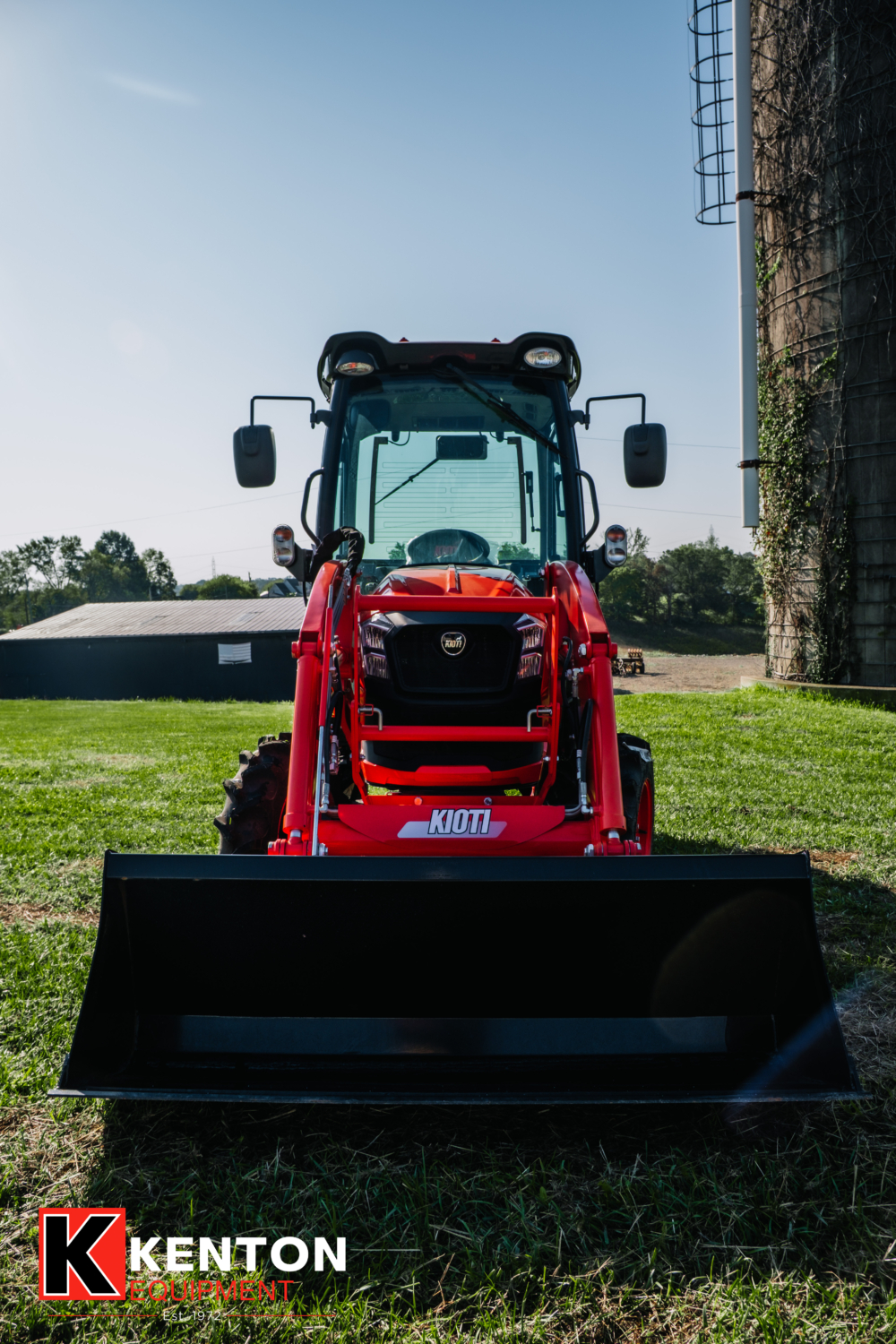

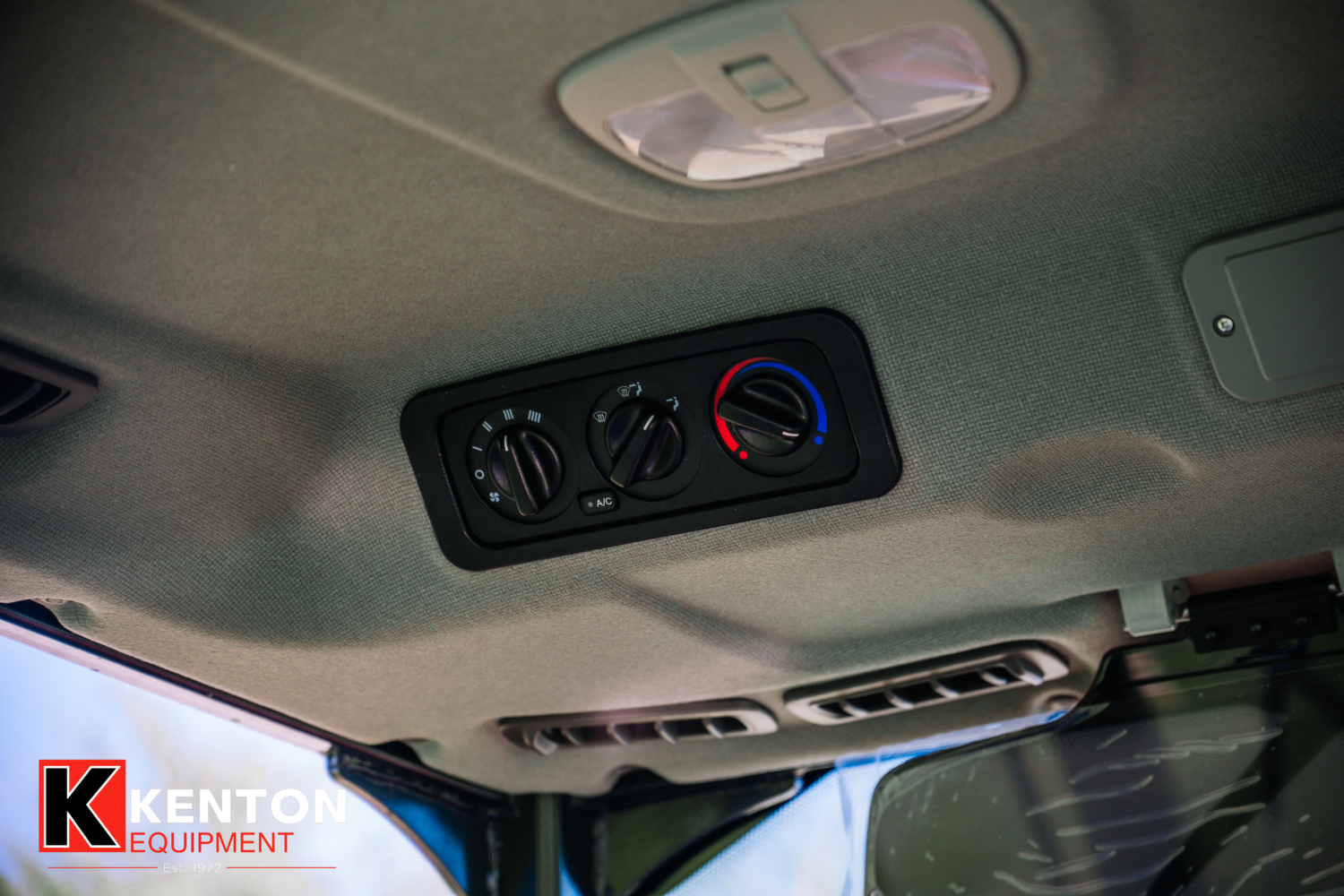

CK2620SE HST Cab

Standard Features

• Low profile design maximizes operator's visibility.
• Designed to be quickly and easily attached and detached.
• A built-in parking stand on the front end loader provides quick and easy connection.
• Mid-mount style frame for engine accessibility.
• Bucket level indicator is standard.
• Color complements KIOTI tractor.

Specifications

• Maximum Lift Height to Pivot Pin: 98.4 in. (2,500 mm)
• Maximum Lift Height Under Level Bucket: 93 in. (2,360 mm)
• Clearance With Bucket Dumped 45 Degrees: 79.1 in. (2,010 mm)
• Reach At Maximum Lift Height: 27.2 in. (690 mm)
• Maximum Dump Angle: 48 deg.
• Reach With Bucket on Ground: 62.2 in. (1,580 mm)
• Maximum Rollback Angle: 28 deg.
• Digging Depth Below Grade: 5.3 in. (135 mm)
• Overall Height in Carry Position: 49.6 in. (1,260 mm)
• Bucket Depth (Inner Shell): 19.9 in. (505 mm)
• Bucket Height: 20.7 in. (526 mm)
• Bucket Length (Pivot Pin): 26.9 in. (682 mm)
• Relief Valve Setting (Loader Control Valve): 2,560 psi
• Rated Flow (Tractor System): 6.9 gpm (26.12 L/min)
• Lift Capacity at 59.84 in. (1,520 mm) Pivot Pin Height: 1,835 lb. (832 kg)
• Breakout Force @ Pivot Pins: 3,464 lb. (1,571 kg)
• Approximate Weight (With Bucket): 60 in.: 959 lb. (435 kg) / 66 in.: 981 lb. (445 kg)
• Bucket Capacity (Heaped): 60 in.: 9.39 cu. ft. / 66 in.: 10.10 cu. ft.
• Bucket Rollback Force at Ground Line: 1,763.7 lb. (800 kg)
• Bucket Size(s) Available (QA): 60 in. / 66 in.

Standard Features

• Subframe mounted.
• Factory assembled.
• Responsive two-lever hydraulic control with exceptional feathering characteristics.
• Anti-drop load-checks.
• Standard buckets: 9", 12", 16", 18", 24" and 36".
• All buckets have replaceable teeth.
• Extra heavy-duty buckets.
• Entire backhoe except for subframe is quick-detached from tractor.

Specifications

• Digging Depth (two foot flat bottom): 89.7 in. (2,280 mm)
• Reach from center line to swing pivot: 125.1 in. (3,180 mm)
• Loading Height (bucket at 60°): 72.4 in. (1,840 mm)
• Maximum Leveling Angle: 10 deg.
• Swing Arc: 180 deg.
• Transport Height (Maximum): 83.5 in. (2,120 mm)
• Transport Overhang: 49 in. (1,245 mm)
• Bucket Rotation: 180 deg.
• Stabilizer Spread (down position): 68.7 in. (1,745 mm)
• Stabilizer Spread (up position): 46.4 in. (1,180 mm)
• Angle of Departure: 21 deg.
• Shipping Weight - Backhoe: 880 lb. (399 kg)
• Bucket Digging Force: 2,817 lb. (1,278 kg)
• Dipperstick Digging Force: 2,105 lb. (955 kg)
• Operating Pressure: 2,466 psi (170 bar)

Compatibility

• Hydraulic implement flow rate 5gpm to 8.5gpm - Standard motor
• Hydraulic implement flow rate 8.6gpm to 15gpm - High capacity motor (Special Order Only)
• Third function or Lane Shark valve kit. ONLY pressure comes from the remote, and return must be to the sump. (CANNOT RETURN THROUGH AUXILIARY HYDRAULICS).
• We do not recommend rear remote plumbing as some tractors may lose loader priority
• NOT COMPATIBLE WITH DIVERTER VALVES
• Minimum dry tractor weight 2000lbs
• Minimum tractor width 55 inches
• Certified roll over protection system
• For stabilization while operating the Lane Shark, fill rear tires of your tractor with water for use as a ballast, as well as additional weight on rear. ie: box blade, or rotary cutter.

Details

• The Lane Shark LS-3 is a light duty rotary cutter designed to clear overgrown roadways, for light land management, and property maintenance.
• Easily cuts up to 2-3” diameter limbs, brush, saplings, and underbrush. The Lane Shark has 11 positions that allow it to cut vertically, offset, directly in front (level), or 25°, 35°, & 45° in the vertical and offset positions.
• The Lane Shark LS-3 attaches to the front of any FEL tractor with a SSQA or JD Hook & Pin-Style attachment system. There are adapters available to fit most other applications sold separately.
• The Lane Shark LS-3 weighs just under 320 lbs.
• When purchasing the Lane Shark LS-3 brush cutter, you will receive a unit equipped with #8 ORB (O-ring Boss) inlets. When using ORB, a minimum inside diameter of 3/8” is required.
• NOT COMPATIBLE WITH SKID STEERS

Specifications

• Overall Width: 76"
• Working Width: 72"
• Tractor HP Range: 35 HP - 45 HP
• Cutting Height: 1" - 4"
• Hitch Type: 3-Point Hitch
• Number of Blades: 3
• PTO Input Speed: 540 RPM
• Deck Thickness: 7 Gauge
• PTO Shaft Type: Series 4
• Weight (without PTO): 554 lbs
• Belts: 2
• Front Roller: Standard

Specifications

• Dimensions (L x W x H): 30" x 8" x 24"
• Weight: 68 lbs
• Max Lifting capacity: 880 lbs

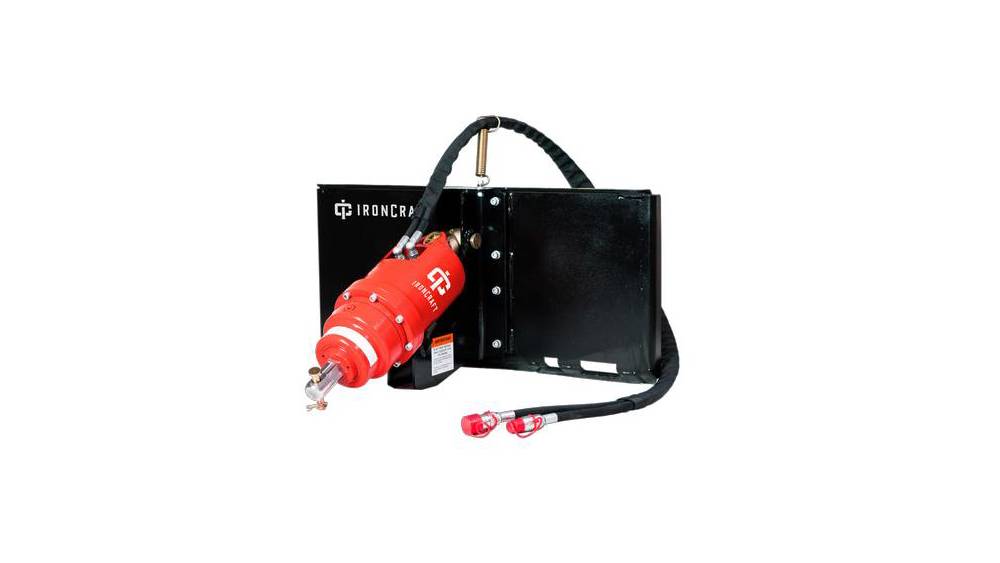

Specifications

• Product Family: Standard Duty Auger Drives
• Product: 9211
• Description: 1500 Auger Drive w/ 2" Hex Shaft
• Flow Range (GPM): 5 - 13
• Max Pressure (PSI): 2973
• Max Torque @ 3500 PSI (FT LB): 1103
• Speed @ Max Torque (RPM): 98
• Weight (lbs): 101 lbs
• Notes: 4 - 16" Recommended Bit Size

Specifications

• Working Width: 60 in. (1,524 mm)
• Attach Type: Quick Attach
• Material: AR400 Steel
• Weight: 251 lbs. (114 kg)
• Overall Width: 62 in. (1,575 mm)
• Closed Height: 28 in. (711 mm)
• Jaw Opening: 30 in. (762 mm)
• Number of Teeth (Top): 6
• Number of Teeth (Bottom): 7

Specifications

• Product Family: Offset Flail Mowers
• Product: FRF-125
• Description: FRF-125 Offset Flail Mower
• Offset: Offsets to the right
• Degree of Tilt: 90 degrees up and 65 degrees down
• HP Required: 20-40 hp
• Working Width: 47"
• # of Hammers: 20
• Hammer Size: 3.4" x 1.7"
• Side Transmission: 3 Belts
• Roller Thickness or Diameter: 4.7"
• Rotor Thickness or Diameter: 4.2"
• Weight (lbs): 630 lbs
• PTO Drive Shaft: Series 4

Description

Description

Description

Includes:

• Dual Axles
• 6'x10"x14'
• 2' Dove
• 2" Ball - 8K Coupler
• 3' Reinforced Gate
• 5" C Chanel Tongue
• Treated Lumber
• M-Ring Tie Down Hooks
• Radial Tires
• 2-3,500 lb Spring Axles (1 Elec FSA Brakes)
• Lights LED (w/Cold Weather Harness)
• Set Back Jack
• Electric Brakes
• Brake Away Kit
• Black Pain (w/Primer)

Includes:

• Car Hauler Trailer
• 6'x10"x16'
• 2' Dove
• 2" Ball - 8K Coupler
• 4.5' Slide-in Ramps
• 5" C Chanel Tongue
• Treated Lumber
• D-Ring Tie Down Hooks
• Radial Tires
• 2 - 3,500 lb Spring Axles (1 Elec FSA Brakes)
• Lights LED (w/Cold Weather Harness)
• Set Back Jack
• Stake Pockets
• Electric Brakes
• Brake Away Kit
• Black Paint (w/Primer)

• Full WR Long Third Function and valve for continuous hydraulic flow
• An affordable, fully custom solution for getting your tractor Lane Shark and grapple ready
• Includes a WR Long Third Function, Lane Shark Continuous Flow Valve, Lane Shark switch box, prefabricated whips with quick connect fittings, and a bulkhead mount fully customized to fit your specific tractor make, model, and loader so you can exchange your attachments in one simple step
• Easy install in less than 2 hours
• American made using American parts and labor
• Lane Shark C-Flow and WR Long third function valves include a 1 year limited warranty. Electrical components include a 90 day limited warranty. Hoses include a 30 day limited warranty.
• Still unsure what kind of hydraulic kit you may need for your Lane Shark? Visit our FAQ Support Page or contact us to find the best solution to get you up and cutting
• Compatible with a wide variety of tractor makes, models, and loaders. Please contact us or your local dealer to be paired with your exact, custom fitted kit

• 2 Pads per set
• Compatible with 2465, 2475, and 2485 backhoes
